Volvo EC530 /EC550 VOE14777920 Track Lower Roller Assembly – CQCtrack’s Mining -Grade Engineering for Maximum Ground- Bearing Endurance

CQCtrack, a brand dedicated to heavy-duty chassis parts for harsh mining conditions, reveals the engineering behind the Volvo EC530/EC550 14777920 track lower roller. From closed-die forging and deep-shell induction hardening to sealed assembly QC and worldwide mine-site supply, discover how this roller assembly delivers impact resistance and wear life in the most abrasive excavation environments.

1. Undercarriage Load Distribution: The Lower Roller as the Primary Ground-Bearing Array

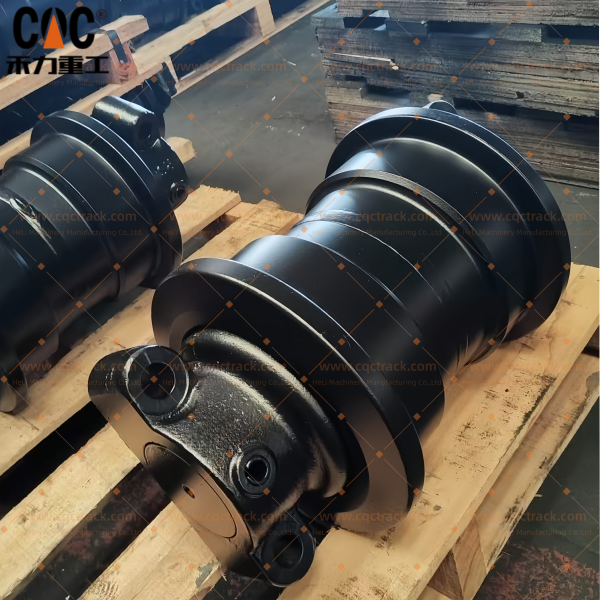

On the Volvo EC530 and EC550 tracked excavators — machines commonly deployed in heavy construction, quarrying, and mining — the Track Lower Roller Assembly (VOE14777920 / 14777920) is the most numerous and heavily loaded component in the entire undercarriage. A set of these rollers forms the vertical load-bearing column that transfers the full operating weight of the machine plus dynamic digging forces into the track chain and ground. CQCtrack engineers this roller with the understanding that a failure here is not an isolated event; it triggers a cascade of damage through connected chassis elements.

The roller interacts directly with the track link rails and the track shoe plates. As the machine travels or swings, the rollers guide the track chain around the track frame, keeping it aligned with the front idler and the drive sprocket. When a lower roller underperforms, the consequences are systemic:

• Track Chain Misalignment: A roller with excessive axial float or worn flanges allows the chain to wander laterally, scrubbing the guide lugs against idler and sprocket flanges. This accelerates lug wear and can lead to derailment on uneven ground.
• Uneven Track Shoe and Link Wear: A seized or eccentrically worn roller concentrates contact pressure on a small patch of the link rail, creating localized wear pockets that hook the chain and cause vibration.
• Excessive Bottom Roller Load on Adjacent Rollers: If one roller fails to carry its share of the load, neighboring rollers become overloaded, leading to a domino effect of bearing and tread failures.

CQCtrack’s design approach for the VOE14777920 roller begins with the Volvo undercarriage geometry. We map the roller frame length, track link rail profile, and the designed load distribution curve. Our roller rim profile, flange clearance, and bearing preload are specified to maintain perfect tandem with all other rollers in the cluster, ensuring that the machine’s weight is evenly distributed and that the track chain wraps smoothly around the idler and sprocket. In harsh mining conditions — where sharp, abrasive material packs around the rollers — this system-level integration is the difference between continuous production and constant undercarriage repair.

2. Author & Brand: Jack, CQCtrack – Heavy-Duty Chassis Parts Engineered for the Harshest Mine Sites

Author: Jack, Senior Product Specialist, CQCtrack

CQCtrack is a focused brand that designs and manufactures heavy-duty tracked chassis parts specifically for harsh mining conditions. Unlike standard aftermarket suppliers who service a broad range of general construction equipment, our entire technical infrastructure is tuned to the extreme end of the duty cycle: high-impact loading, continuous abrasion, corrosive water, and ambient temperature swings. The Volvo EC530/EC550 lower roller VOE14777920 is manufactured under this mining-first doctrine. We support OEM production standards and offer technical customization for sites where standard components simply do not survive. Every roller that leaves our facility is built to bear weight in a pit, not to sit on a shelf.

3. Full-Process Manufacturing: How CQCtrack Builds a Roller That Lives at the Bottom

A mining-duty lower roller is a pressure vessel of metallurgy, geometry, and sealing technology. CQCtrack’s integrated manufacturing chain manages every variable that dictates roller life.

3.1 Blank Production: Forged Shells and Shafts for Fatigue-Defeating Grain Flow

The roller shell (body) and the inner shaft are produced from separate high-grade alloy steels, each processed through a controlled forging route.

• Roller Shell Forging: We begin with a 40CrMnMo or similar deep-hardening alloy steel billet, heated to 1,200–1,250°C in a temperature-controlled induction furnace. The billet is pierced, upset, and formed into a thick-walled cup shape through a closed-die forging press. This operation aligns the material’s grain flow radially from the shaft bore outward to the tread and continuously around the flange shoulders. The forged shell is then isothermally annealed to homogenize the microstructure and achieve a uniform machinable hardness. This grain flow integrity eliminates the centerline porosity and directional weakness found in castings, providing superior resistance to rolling-contact fatigue spalling when the roller repeatedly rolls over imbedded rock fragments.
• Shaft Forging: The shaft is forged from a separate vacuum-degassed 4140 or 40CrNiMo steel, upset-forged to concentrate grain flow at the flange-to-shaft radius, the highest stress concentration point. After forging, the shaft is normalized and rough-machined.

3.2 Precision Machining: Concentricity That Keeps the Track Running True

Machining is distributed across CNC turning centers dedicated to roller components.

• Shell Machining: The roller shell is clamped on a vertical lathe. In a single setup, we machine the inner bearing bore, the shaft seating shoulder, the main outer tread diameter, and both side flange faces. This guarantees a total indicated runout (T.I.R.) between the tread and the bearing axis of ≤0.05 mm. A crown profile is optionally machined on the tread to ensure center-biased contact pressure with the track link rail, preventing edge loading that causes flange lip spalling. The floating seal counterbore is machined to exact dimensions and the sealing face is lapped to a flatness of <2 light bands with an Ra ≤0.3 µm surface finish.
• Shaft Machining: The shaft is turned and ground between centers on a CNC cylindrical grinder. Bearing journal diameters are held to a tolerance of IT5, and the journal surface finish is held to Ra ≤0.4 µm for optimal bearing fit and oil film formation. The central oil gallery and cross-drilled lubrication holes are deburred and flushed.

3.3 Heat Treatment: Engineering the Deep Wear-Resistant Envelope

Thermal processing defines how long the roller tread can resist abrasion before softening. CQCtrack applies a three-phase heat treatment protocol:

• Core Strengthening: The roller shell is through-hardened in a protective atmosphere furnace, quenched in an agitated polymer-oil bath, and tempered to a core hardness of 280–320 HBW. This provides the structural ductility needed to absorb rock impacts without shell cracking.
• Tread and Flange Induction Hardening: A profiled scanning induction coil precisely heats the entire tread width and the critical inner flange faces. A controlled water-polymer spray quench produces a fine martensitic case at 54–58 HRC. The effective case depth (ECD) is engineered to 8–12 mm on the tread and 6–9 mm on the flange contact surfaces. This deep hardened shell remains wear-resistant through the majority of the roller’s service life, even as the tread surface slowly recedes from abrasive contact with the link rails.
• Double Tempering and Stress Relief: Immediately after surface hardening, the shell is tempered, cooled, and tempered again. This double-cycle thoroughly stabilizes the martensitic structure, relieves quenching stresses, and eliminates any retained austenite that could cause dimensional drift in the field. A micro-hardness traverse on a batch-sacrificed shell confirms the hardness gradient.

3.4 Final Assembly and Integrated Quality Gates

The complete Track Lower Roller Assembly (VOE14777920/14777920) is assembled in a positive-pressure clean room. The assembly includes the hardened shell, precision-ground shaft, two heavy-duty tapered roller bearings (or cylindrical roller bearings, depending on design), dual-cone floating seals (duo-cone type), and the specified volume of extreme-pressure semi-fluid grease. End caps are bolted and torqued using a digital multi-spindle tool with angle monitoring.

Quality Control – Ensuring Mining-Duty Repeatability:

1. Incoming Material Spectrometry: Full chemical analysis of every steel heat against the material specification.
2. Forging Soundness: 100% ultrasonic testing (UT) of shells and shafts for internal discontinuities.
3. Surface Integrity: Magnetic particle inspection (MT) of all machined load-bearing surfaces prior to assembly.
4. Dimensional Verification: Critical dimensions — bearing bore, shaft journal diameters, tread profile, and flange width — are audited on a bridge CMM against the 3D CAD model.
5. Case Depth Audit: A shell from each heat treat batch is sectioned for Knoop hardness traverse, documenting the effective case depth and transition zone.
6. Assembly Bench Tests: Every assembled roller undergoes a rotation test under load to measure starting and running torque, ensuring bearing preload is within specification. Radial and axial runout are recorded at the tread and hub faces.
7. Leak Integrity: The sealed roller cavity is pressurized with dry air to confirm that the duo-cone floating seals are leak-free.
8. Final Preservation: The roller is externally coated with a multi-layer anti-corrosion paint system, and preservative oil is applied to exposed metal. A permanent data matrix code links to the roller’s digital birth certificate, with all process and inspection records.

Quality Stability: Because CQCtrack’s manufacturing cells are dedicated to these assemblies, and every process is validated and locked down, the roller performance is consistent from batch to batch. A fleet manager can confidently replace all rollers on an EC550 at a scheduled 4,000-hour interval, knowing that the components from CQCtrack will exhibit uniform wear characteristics and no infant-mortality failures.

4. Global Harsh-Mining Deployment and Aftermarket Support

CQCtrack lower rollers are currently supporting Volvo EC530 and EC550 excavators in severe-duty mining and quarrying applications globally:

• Scandinavian Granite Quarries: Rollers operating in sharp, fractured rock conditions with high moisture are equipped with our enhanced corrosion-resistant seal packages and deep case hardening.
• Australian Open-Pit Coal and Iron Ore: In highly abrasive silica-rich overburden, our rollers’ deep induction-hardened treads provide the wear volume required for extended change-out intervals.
• South African Diamond and Platinum Mines: High ambient temperatures and abrasive mud are managed by our special high-temperature grease fill and multi-stage labyrinth seal options.
• Global Aftermarket Network: CQCtrack maintains buffer stock of VOE14777920 assemblies in logistics hubs in the Middle East, Southeast Asia, and North America. We supply directly to mine maintenance planners, independent rebuild centers, and equipment dealers with lead times measured in days. Packaging uses VCI-impregnated materials, desiccant, and reinforced sea-crates to ensure that rollers arrive in ready-to-install condition after months in transit and on-site storage.

5. OEM Conformance and Mining-Specific Customization

The VOE14777920/14777920 roller is manufactured to match the OEM form, fit, and function for direct installation on Volvo EC530 and EC550 excavators. For mining operations that push rollers beyond standard design limits, CQCtrack applies its engineering capability to deliver targeted upgrades:

• Thicker Hardened Shell: Increasing the induction-hardened case depth by 2–3 mm for operations where track link rail wear is historically aggressive.
• Hardfaced Flange Protection: A wear-resistant chromium carbide overlay welded to the inner flange faces on rollers positioned at the ends of the track frame, where side-loading is most severe during turning on slopes.
• Enhanced Sealing Packages: Dual-cone seals made from specially compounded cast iron and nitrile elastomers for high-acid water environments, or high-temperature seal materials for hot slag and coke handling.
• Special Lubrication Fills: Synthetic extreme-pressure greases with wide ambient temperature ranges for arctic or desert operations.
• Custom Tread Profile: A modified crown radius to optimize contact stress distribution when running on non-standard track shoes or in conditions where packing and compaction are extreme.

Every customization is supported by finite element analysis of the roller-to-rail contact stress and a documented field-fitment recommendation, ensuring that the upgrade solves the mine’s unique wear issue without compromising adjacent components.

Conclusion
The Volvo EC530/EC550 VOE14777920 Track Lower Roller Assembly, as engineered by CQCtrack, is a purpose-built, mining-grade component that carries the full economic weight of the excavator’s productivity. From closed-die forged shells with optimized grain flow, through precision single-setup machining and deep-shell induction hardening, to clean-room assembly and exhaustive QC, every stage is designed to defeat the abrasive, high-impact reality of a mine floor. With direct global supply and a brand commitment to harsh-condition engineering, CQCtrack delivers a lower roller that keeps your Volvo excavator moving and your maintenance budget predictable.

Author: Jack, CQCtrack – Heavy-duty tracked chassis parts, designed specifically for harsh mining conditions.
