Precision Ground Engagement Engineering for Caterpillar E330RC Excavators: A Definitive Technical Analysis of the Forged Bucket Tooth Assembly (Part Number 9W8452RC) and the Manufacturing Excellence of HELI Dsword

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of Forged Bucket Teeth in Heavy Excavation

The bucket tooth—also referred to as the tooth point, rock chisel, or ground engaging tool (GET)—is the primary interface between an excavator and the material being excavated. As the most heavily worn component in any earthmoving operation, the bucket tooth directly determines penetration efficiency, material retention, bucket protection, and ultimately, the productivity and operating cost of the entire machine. Unlike undercarriage components such as rollers or sprockets that support and propel the machine, the bucket tooth is a sacrificial wear part designed to be replaced frequently—but its design, metallurgy, and manufacturing quality have an outsized impact on overall equipment effectiveness.

For operators of Caterpillar E330RC excavators—a 30–33 ton reduced-radius class machine widely deployed in confined-space construction, urban demolition, quarrying, and large-scale infrastructure development—the reliability and performance of the bucket tooth assembly directly affect digging productivity, bucket protection, fuel efficiency, and total cost of ownership. The E330RC, with its reduced tail swing design, is engineered specifically for maximum maneuverability in space-constrained worksites while delivering the power and penetration required for heavy excavation in rock and compacted materials.

This publication delivers a comprehensive technical examination of the Caterpillar OEM part number 9W8452RC, which represents the forged rock chisel bucket tooth assembly for the CAT J450 tooth system—the standard GET platform for the E330RC and a broad range of Caterpillar excavators across the 30–35 ton class. Particular focus is placed on HELI Dsword (HELI MACHINERY MANUFACTURING CO., LTD.) , a vertically integrated manufacturer and specialist in forged ground engaging tools, and why its position as a source factory matters for global procurement professionals seeking OEM-quality bucket teeth at competitive price points.

2. The Caterpillar E330RC Platform: Engineering for Confined-Space Heavy Duty

2.1 Reduced-Radius Design and Operational Applications

The Caterpillar E330RC is a reduced-radius (RC) variant within the Cat 300-series excavator family, specifically engineered to deliver maximum digging performance in space-constrained environments where standard excavators cannot maneuver effectively. The RC designation indicates a reduced tail swing radius—typically achieved through a compact counterweight design and optimized upper structure geometry—enabling the machine to operate safely and efficiently in urban construction sites, tunnel projects, road widening, demolition zones, quarry benches, and other confined spaces.

The E330RC shares the same robust undercarriage and hydraulic architecture as the standard 330 model but with a reduced rear overhang that minimizes the risk of contact with adjacent structures, vehicles, or personnel. This design makes the E330RC particularly suitable for:

• Large-scale urban construction and infrastructure renewal where worksite boundaries are restricted
• Demolition and recycling where maneuverability around standing structures is essential
• Quarry and mining support where bench edges and haul roads limit swing clearance
• Trenching and utility installation along existing roadways and building lines
• Highway and bridge construction where multiple machines operate in close proximity

2.2 Machine Specifications

The Caterpillar E330RC operates with the following verified specifications:

Source: Verified E330RC specifications.

The machine features standard CAT Grade technologies and advanced hydraulic systems delivering precise control for both standard excavation and attachment operations, including hammer, shear, and pulverizer applications common in demolition and recycling work.

2.3 GET System Compatibility

The E330RC is equipped with Caterpillar‘s J-series bucket and tooth adapter system, which uses a standardized interface for tooth points across multiple machine sizes. The 9W8452RC tooth is designed specifically for the J450 adapter system—a heavy-duty GET platform widely deployed on 30–35 ton class Caterpillar excavators including the 330, 336, and 340 series, as well as E330 models.

The J450 system features:

• Adapter weldment: A robust, cast or fabricated steel adapter welded to the bucket cutting edge
• Tooth point: The replaceable wear component (9W8452RC) that interfaces with the adapter
• Retention system: A pin and sleeved retainer that secures the tooth to the adapter (compatible with 1U1458 pin and 8E6359 sleeved retainer, or 8E0468 pin and 8E8469 sleeved retainer)

This modular design enables rapid field replacement of worn teeth without special tools or welding equipment, minimizing machine downtime and reducing labor costs.

3. Part Number 9W8452RC: Identification and Functional Architecture

3.1 OEM Part Number and Application

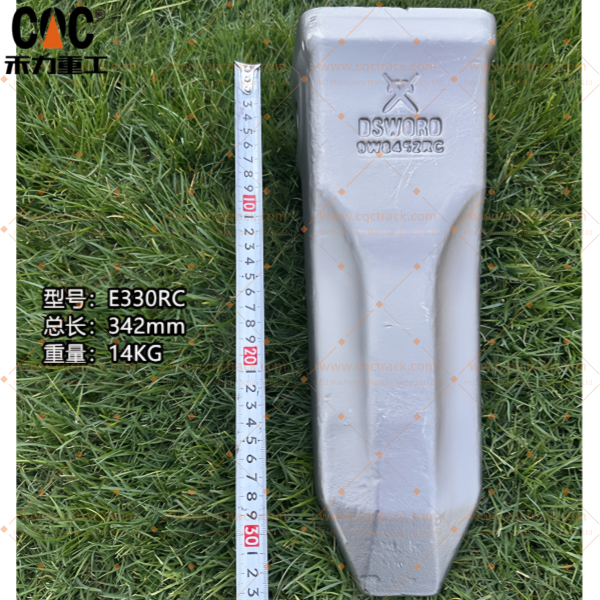

The Caterpillar 9W8452RC Forged Rock Bucket Tooth is a precision-engineered ground engaging tool specifically designed for the CAT J450 tooth system, which is standard equipment on the E330RC and a broad range of 30–35 ton class Caterpillar excavators. The “RC” suffix in the part number designates the rock chisel profile—a specific tooth geometry optimized for penetration and material breakage in rocky, compacted, or highly abrasive materials. The “RC” variant is one of several profiles available for the J450 system, alongside TL (Tiger Long), RP (Rock Penetration), E (Extra), and other configurations.

The 9W8452RC tooth is also referenced under the alternative designation 9W-8452RC in some supplier catalogs, with the same dimensional and material specifications. The tooth is designed to fit CAT J450 series adapters and is compatible with a wide range of Caterpillar excavator models, including E330, 322C, 325C, 330B, 336D, 345C, and 349D.

3.2 Functional Responsibilities

The 9W8452RC bucket tooth assembly performs three mission-critical functions that directly impact excavation efficiency and bucket longevity:

1. Material Penetration and Fracture: As the primary point of contact between the excavator and the material being excavated, the tooth‘s chisel-shaped profile concentrates the machine’s hydraulic force into a narrow contact zone, initiating fracture in rock, breaking compacted soil, and shearing through dense materials. The rock chisel design provides exceptional digging power and precision, allowing for a strong grip on materials and making it ideal for excavating tasks such as breaking up rock, stone, and hard soils. The tooth‘s streamlined geometry reduces drag resistance, improving fuel efficiency and cycle times.

2. Bucket Protection: The tooth serves as a sacrificial wear component that shields the bucket lip, cutting edge, and adapter system from direct contact with abrasive materials. By absorbing the majority of abrasive wear and impact forces, the tooth preserves the structural integrity of the more expensive bucket assembly, extending its service life significantly. The design ensures optimal load retention and effective material scooping.

3. Retention and Power Transfer: The tooth is securely mounted to the adapter using a pin-and-retainer retention system that ensures positive locking under all digging conditions. The precision-machined mounting interfaces guarantee a secure, rattle-free fit with the adapter, minimizing stress concentrations, preventing harmful movement that accelerates wear on both the tooth and adapter, and ensuring efficient power transfer from the hydraulic system to the material.

3.3 Dimensional Specifications

Based on verified supplier data, the 9W8452RC tooth conforms to the following dimensional specifications:

Source: Verified multiple supplier specifications.

The tooth is manufactured using a precision forging process that ensures consistent dimensions and superior mechanical properties compared to cast alternatives. The forging process involves putting pressure on heated steel billet between forging dies at high temperature, ensuring the material fully fills the die cavity to achieve the desired shape.

3.4 Retention System Compatibility

The 9W8452RC tooth is designed to work with the following retention components:

Source: Verified supplier documentation.

The pin-and-retainer system allows rapid field replacement without special tools, enabling operators to change worn teeth in minutes rather than hours, maximizing machine uptime and productivity.

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium forged bucket teeth for Caterpillar excavators are manufactured from high-grade alloy steels selected for their exceptional combination of surface hardness, core toughness, and impact resistance. The primary materials specified for the 9W8452RC tooth include chromium-molybdenum alloy round steel, HARDOX steel, and high-strength alloy steel formulations that include chromium, molybdenum, and manganese to enhance hardness and tensile strength while maintaining ductility.

The use of chromium-molybdenum alloy steel—the same high-grade material used by major steel mills for premium GET applications—ensures:

Alternative premium grades employed for heavy-duty GET applications include:

4.2 Heat Treatment Specifications

The performance of a forged bucket tooth depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness. The manufacturing process for forged bucket teeth involves a precision heat treatment protocol that includes quenching and tempering to achieve an ideal balance of extreme surface hardness for wear resistance and a tough, ductile core for shock absorption.

The finished bucket teeth undergo forging and heat treatment twice, followed by antirust paint application and storage—a process that requires the cooperation of multiple skilled workers and technicians to ensure consistent quality.

Source: Verified multiple supplier specifications.

The heat treatment process typically involves:

1. Austenitizing: The forged tooth is heated to a precise temperature to transform the steel‘s microstructure
2. Quenching: Rapid cooling locks the desired metallurgical structure in place
3. Tempering: Controlled reheating to develop the optimal balance of hardness and toughness

This multi-stage process establishes a hardened outer surface for wear resistance, paired with a tough, ductile core to absorb high-impact shocks without brittle fracture under heavy loads. The surface high-frequency quenching process combined with controlled cooling greatly reduces abnormal wear in harsh working conditions such as rock excavation and quarrying.

4.3 Forging vs. Casting: Metallurgical Advantages

HELI Dsword specializes in precision hot-forging for bucket tooth manufacturing, a process that offers distinct metallurgical advantages over conventional casting:

The raw materials used for forging bucket teeth are chromium-molybdenum alloy round steel produced by large steel mills, ensuring consistent material properties and traceability. As stated in HELI Dsword product literature, forged bucket teeth demonstrate higher resistance to wear, greater hardness, and a longer lifespan in comparison to cast bucket teeth.

5. HELI Dsword: A Specialist Manufacturer of Forged Ground Engaging Tools

5.1 Corporate Profile and Manufacturing Heritage

HELI Dsword, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a premier industrial cluster and key supply hub for global earthmoving equipment and GET components. With over 20 years of manufacturing experience, HELI has established itself as one of the top three undercarriage component and GET manufacturers in the Quanzhou region.

The brand name HELI Dsword (also marketed under CQC TRACK for undercarriage components) represents a specialized focus on ground engaging tools and wear parts. As a specialist manufacturer focused solely on GET, HELI Dsword engineers its products to deliver optimal performance and durability under extreme abrasion and impact conditions.

The company operates with eight forged bucket teeth production lines and a newly built factory of over 10,000 square meters, enabling large-scale production capacity while maintaining rigorous quality control.

5.2 Quality Certifications and Manufacturing Standards

HELI Dsword operates under a rigorous quality assurance framework, holding ISO 9001:2015 quality system recognition with full component traceability from raw material through finished assembly. The company‘s manufacturing facility features:

• Spectrographic analysis for raw material verification at the mill
• Hardness testing (HRC/HB) for every production batch
• Metallographic analysis for microstructural verification
• Dimensional checks using precision measurement equipment
• Video factory inspection available for customer verification
• Mechanical test reports available upon request

5.3 Engineering Design Philosophy

HELI Dsword’s ODM development follows a “Failure-Mode-Driven” approach, proactively addressing common failure modes—including chipping, breakage, and uneven wear—through optimized tooth geometry, material selection, and heat treatment protocols. This engineering philosophy ensures that HELI Dsword products are not merely copies of OEM components but value-optimized designs that enhance performance and reduce total cost of ownership.

5.4 Manufacturing Capabilities

HELI Dsword‘s manufacturing strength rests on a vertically integrated precision hot-forging process that produces GET components with superior mechanical properties:

5.5 OEM and ODM Service Model

HELI Dsword operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of GET components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of forged bucket teeth, ripper teeth, adapters, and retainers.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized GET solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to ground engaging tools, the engineering team offers value-optimized designs that enhance performance and reduce total cost of ownership.

5.6 Caterpillar Product Portfolio

HELI Dsword manufactures a comprehensive range of forged GET components for Caterpillar excavators, dozers, and loaders across multiple GET systems. Key components include:

Source: Verified HELI Dsword product documentation.

HELI Dsword‘s extensive CAT product portfolio demonstrates the company’s engineering capability and manufacturing expertise across multiple GET platforms, confirming its position as a leading supplier of forged bucket teeth for Caterpillar equipment.

6. Performance Validation and Field Testing

6.1 Mechanical Property Verification

HELI Dsword‘s 9W8452RC forged bucket teeth undergo rigorous mechanical testing to verify compliance with OEM-equivalent specifications:

Source: Verified multiple supplier specifications.

6.2 Field Performance Expectations

Under normal quarrying, construction, and demolition conditions, a quality forged bucket tooth meeting HRC 48–53 surface hardness specifications with proper heat treatment can achieve 300–500 operating hours in abrasive rock materials before requiring replacement—representing a 20–30% extension over cast alternatives in comparable applications.

In severe applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 150–250 operating hours, though forged teeth consistently outperform cast alternatives due to their denser microstructure and continuous grain flow.

For optimal bucket and GET life, regular inspection is critical. The bucket teeth on both sides of the excavator typically wear about 30% faster than those in the middle. By interchanging the teeth between sides and the middle, operators can extend the overall service life of the bucket teeth set and reduce the frequency of replacements.

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new 9W8452RC bucket tooth, verify the following critical parameters:

1. Adapter condition — Inspect the J450 adapter for wear, cracks, or deformation; worn adapters prevent proper tooth retention
2. Retention system — Verify availability of new retaining pin (1U1458 or 8E0468) and sleeved retainer (8E6359 or 8E8469); reuse of old pins or retainers is not recommended
3. Pocket dimensions — Confirm that the adapter pocket accepts the tooth‘s mounting shank without excessive play
4. Bucket condition — Inspect the bucket cutting edge for wear; a worn cutting edge compromises GET performance

7.2 Installation Procedure Summary

Replacing a bucket tooth is a straightforward field procedure:

1. Remove worn tooth: Use a hammer and punch to drive out the retaining pin from the adapter. Remove the sleeved retainer and discard both along with the worn tooth.
2. Clean adapter pocket: Remove all debris, dirt, and accumulated material from the adapter‘s mounting pocket to ensure proper seating of the new tooth.
3. Install new tooth: Position the new 9W8452RC tooth onto the adapter‘s mounting shank, ensuring full engagement of the tooth’s bore with the adapter.
4. Install retention components: Insert the new sleeved retainer into the aligned holes of the tooth and adapter, followed by the new retaining pin.
5. Verify retention: Use a hammer to seat the pin fully, ensuring the retainer is properly compressed and the tooth is secure with no lateral movement.
6. Check operation: Operate the machine at low speed and inspect the tooth for proper retention and absence of rattling or movement.

Tools needed: Hammer, punch, safety glasses, gloves. No welding or special equipment is required.

7.3 Maintenance Schedule

7.4 Failure Modes and Troubleshooting

8. Factory-Direct Sourcing: Competitive Advantages

8.1 Supply Chain Value Proposition

Sourcing the Caterpillar 9W8452RC forged bucket tooth directly from a source factory and specialist manufacturer such as HELI Dsword offers distinct advantages over multi-tier distribution channels:

HELI Dsword operates as an integrated source factory and manufacturer, eliminating intermediary markups while maintaining strict adherence to original equipment specifications. The “source factory” designation indicates that HELI Dsword is the original producer of these components, not a reseller or distributor, ensuring full control over quality, pricing, and supply chain transparency.

8.2 Lead Times and Logistics

For the Caterpillar 9W8452RC forged bucket tooth, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships. The Quanzhou region‘s status as a premier industrial cluster for heavy machinery manufacturing ensures efficient logistics infrastructure and competitive freight rates.

8.3 Estimated Cost Comparison

9. Conclusion

For operators of Caterpillar E330RC excavators deployed in confined-space construction, urban demolition, quarrying, and large-scale infrastructure development—a 30–33 ton reduced-radius machine with daily production demands—the forged rock chisel bucket tooth represented by part number 9W8452RC is a mission-critical GET component whose performance directly affects digging productivity, bucket protection, fuel efficiency, and operating costs. As the primary interface between the excavator and the material being excavated, the 9W8452RC tooth‘s design, metallurgy, and manufacturing quality have an outsized impact on overall equipment effectiveness.

HELI Dsword distinguishes itself as a specialist manufacturer that combines over two decades of metallurgical expertise, vertical integration of precision closed-die forging and controlled heat treatment processes, and a focused OEM/ODM service model to deliver forged bucket teeth that perform reliably under the most demanding excavation conditions. As one of the top three undercarriage component and GET manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—HELI Dsword has established itself as a leading supplier of high-performance forged bucket teeth for Caterpillar equipment across multiple size classes and applications.

With material specifications including premium chromium-molybdenum alloy steel and HARDOX wear-resistant steel options; closed-die forging for continuous grain flow and superior impact resistance; precision heat treatment achieving HRC 48–53 surface hardness (tip part 50–53 HRC) with ≥20 J/cm² impact toughness and ≥1,450 MPa tensile strength; ISO 9001:2015 quality certification; eight dedicated production lines in a 10,000+ square meter facility; and comprehensive mechanical testing including hardness profiling, tensile verification, and dimensional validation, HELI Dsword provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications at competitive price points.

By sourcing the Caterpillar 9W8452RC forged bucket tooth directly from the factory, construction and excavation operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine productivity in the world‘s most demanding excavation environments.

Author: Jack
Specializing in heavy equipment ground engaging tools, excavation productivity optimization, and global sourcing strategies for construction equipment fleets.

Disclaimer: This publication is original content created for informational and technical reference purposes. All product numbers, brand names, and manufacturer references are used for identification and cross-reference only. Always verify compatibility with your machine‘s serial number and bucket adapter configuration before ordering. Installation procedures summarized from industry standards are provided for reference; consult the complete original equipment documentation before performing any maintenance. Warranty information is representative and subject to confirmation with the manufacturer at the time of purchase. Bucket teeth are sacrificial wear components; regular inspection and timely replacement are essential for optimal machine performance and bucket protection. The wear life figures provided are estimates based on industry standards; actual service life will vary depending on material conditions, operator technique, and maintenance practices.
