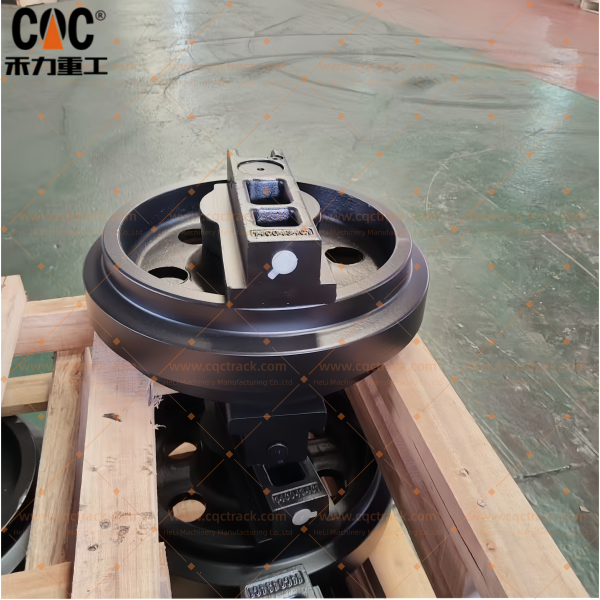

Technical White Paper: LIUGONG 14C0434 / 14C0434C1 CLG906F Compact Excavator Track Idler Wheel Assembly

Source Manufacturer: HELI Machinery Manufacturing Co., Ltd. (CQCTRACK)

1. Executive Summary: Precision Guidance Engineering for Compact Excavator Applications

The track idler wheel assembly represents a mission-critical structural component in the undercarriage system of compact crawler excavators. For the LIUGONG CLG906F—a machine engineered for urban construction, landscaping, utility work, and confined-space operations—the idler assembly designated as Part Number 14C0434 (and its variant 14C0434C1) performs the vital functions of guiding the track chain, maintaining precise track tension, and absorbing the dynamic and impact loads inherent to compact equipment operation in variable terrain conditions .

HELI Machinery Manufacturing Co., Ltd., operating under the CQCTRACK brand, manufactures this critical component as a vertically integrated producer—from raw material sourcing and closed-die forging to precision CNC machining and advanced heat treatment. Operating under rigorous quality management systems, CQCTRACK delivers components engineered to meet or exceed Original Equipment Manufacturer (OEM) performance benchmarks for the LIUGONG CLG906F mini excavator class .

This document provides a comprehensive technical exposition of the LIUGONG 14C0434/14C0434C1 Track Idler Wheel Assembly, detailing the engineering philosophy, material metallurgy, manufacturing protocols, and quality assurance frameworks that distinguish these components for compact excavator applications.

2. Product Identification and Cross-Reference Matrix

Accurate component identification is essential for procurement and maintenance operations. The following matrix establishes the interrelationship between the various reference numbers and their application context.

3. Functional Role in the Undercarriage System

In the closed-loop undercarriage architecture of the LIUGONG CLG906F compact excavator, the front idler assembly is positioned at the opposite end of the track frame from the drive sprocket. It is not merely a rolling component; it is the structural vanguard of the track system, performing three primary mechanical functions with precision .

3.1 Primary Operational Functions

1. Track Guidance & Derailment Prevention:
The idler features integrally forged and precision-machined flanges that serve as a continuous rail. These flanges interface precisely with the inner surfaces of the track links, providing positive lateral control of the track chain. This guidance is critical during counter-rotation turns or operations on sloped terrains, preventing lateral displacement (de-tracking) which can cause catastrophic damage and costly downtime in confined urban job sites .

2. Dynamic Tension Maintenance:
The idler assembly serves as the movable anchor point for the track tensioning mechanism (a grease cylinder). By maintaining the prescribed track sag as per LIUGONG specifications, it ensures optimal engagement between the drive sprocket teeth and the track bushings. Proper tension is paramount for optimizing undercarriage component life and power transfer efficiency, especially in compact machines operating in variable terrain conditions .

3. Primary Load Bearing & Shock Absorption:
The idler wheel rolls along the ground-contacting portion of the track chain, supporting a significant percentage of the machine’s operating weight. Critically, as the machine traverses obstacles or engages in digging, the idler is the first component to encounter impact forces. It acts as the primary shock absorber, transmitting these reaction forces through the track frame to the excavator’s main body while protecting the integrity of the track chain and sprocket .

3.2 System Integration Context

The idler assembly interfaces with the following components to form an integrated wear system:

4. Technical Deconstruction: The Anatomy of the 14C0434 Idler Assembly

The operational lifespan of a front idler for a 6-ton class compact excavator is dictated by advanced material science and precise thermal treatment. The LIUGONG CLG906F assembly from HELI-CQCTRACK exemplifies state-of-the-art metallurgical engineering for mini excavator applications .

4.1 Core Material Selection: Forged for Fortitude

Idler Wheel Material:
The wheel is forged from high-grade, wear-resistant alloy steel, specifically 50Mn or 40MnB. These manganese-boron alloys are selected for their exceptional toughness and dynamic work-hardening characteristics. When subjected to the continuous impact and rolling contact from the track chain, the surface of the material undergoes micro-structural densification, actually increasing its hardness and wear resistance in the field. The closed-die forging process ensures a continuous grain flow, superior impact resistance, and exceptional fatigue strength compared to cast components .

Idler Shaft Material:
The stationary axle is precision-machined from high-tensile alloy steel, typically 40Cr or 42CrMo. These chromium-molybdenum alloys provide supreme fatigue limit, torsional strength, and resistance to bending under cyclic loads, ensuring the shaft maintains perfect geometric alignment throughout its service life. The shaft journals are precision-ground to a fine surface finish to ensure optimal performance and longevity of the bearing system .

4.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between an abrasion-resistant surface and a tough, impact-absorbing core is achieved through a precise, multi-stage thermal process .

4.3 Structural Anatomy: Component Breakdown

The LIUGONG CLG906F Idler Assembly is a precision-engineered assembly consisting of several high-performance sub-components, each designed for a specific function in the demanding compact excavator environment .

5. Sealing System Engineering: The Durability Core

The single most critical determinant of idler service life in compact excavator applications is the integrity of its sealing system. Contamination ingress—particularly from silica sand, construction debris, mud, and water—is the root cause of premature bearing failure .

HELI CQCTRACK employs a multi-stage, pressure-adaptive sealing architecture specifically engineered for severe-service environments in compact excavator applications:

The complete sealed cavity is pre-filled with high-viscosity, shear-stable lithium-complex grease containing extreme-pressure (EP) additives, designed as a maintenance-free sealed unit—no daily greasing required, only periodic visual checks as part of undercarriage inspection .

6. Manufacturing Capabilities: HELI CQCTRACK as a Source Manufacturer

HELI Machinery Manufacturing Co., Ltd. (CQCTRACK) operates as a vertically integrated manufacturer, distinguishing itself from parts distributors and trading companies through direct control over the entire production value chain .

6.1 Vertical Integration Architecture

6.2 Quality Assurance Framework

The CQCTRACK quality system incorporates mandatory inspection gates that ensure batch-to-batch consistency and full traceability :

Incoming Material Validation:

• Spectrographic chemical analysis against certified specifications
• Ultrasonic testing for internal flaw detection
• Hardness verification and grain structure examination

In-Process Controls:

• 100% dimensional inspection of critical features (running surface OD, flange width, bore concentricity, seal gland profiles)
• Real-time monitoring of heat treatment parameters with digital record retention
• Magnetic particle inspection for surface and sub-surface defects

Final Assembly Validation:

• Hardness mapping: minimum 9-point verification per component
• Rotational torque analysis verifying bearing preload and freedom of movement
• Seal pressure testing validating contamination exclusion capability

Traceability Systems:

• Material certificates per EN 10204 3.1
• Digital retention of heat treatment logs and inspection reports (24+ months)
• Production lot traceability enabling root cause analysis and warranty validation

7. Technical Specifications Summary

8. Value Proposition for Compact Excavator Operations

8.1 Economic Rationale for Source Manufacturer Selection

8.2 Total Cost of Ownership Considerations

For CLG906F-class machines operating in urban construction, landscaping, and utility applications, the total cost of ownership advantages of quality-sourced idler assemblies include:

• Extended service intervals through superior wear resistance
• Prevention of collateral damage to track chains and tensioner systems
• Reduced unplanned downtime from premature idler failure
• Predictable wear cycles enabling scheduled maintenance planning
• Elimination of warranty disputes through documented traceability
• Maintenance-free sealed unit reducing daily greasing requirements

9. Maintenance and Replacement Strategy

9.1 Inspection Protocol

Regular inspection of the idler assembly enables predictive maintenance:

9.2 Replacement Strategy Recommendations

9.3 Failure Mode Prevention

Common failure modes addressed through engineering design:

10. Conclusion: Engineering Confidence for Compact Excavator Operations

The LIUGONG 14C0434 / 14C0434C1 Track Idler Wheel Assembly for the CLG906F compact excavator, as manufactured by HELI Machinery Manufacturing Co., Ltd. (CQCTRACK), represents a convergence of advanced material science, precision manufacturing, and application-specific engineering. Developed for the rigorous demands of urban construction, landscaping, and utility operations, these assemblies incorporate :

• Forged steel construction with controlled grain flow for superior impact resistance and fatigue strength
• Deep-case induction hardening (HRC 53-58, 8-12 mm effective depth) providing extended wear life through differential hardness profiles
• Multi-stage sealing architecture with floating metal wear rings and labyrinth passages engineered to exclude the abrasive contaminants that cause premature failure in construction environments
• Precision-machined geometry (IT7-IT8 tolerance) ensuring perfect fit and alignment with LIUGONG CLG906F track systems
• Maintenance-free lubrication system pre-filled with EP lithium complex grease, eliminating daily greasing requirements
• Vertically integrated manufacturing ensuring full traceability and batch-to-batch consistency
• Certified quality systems providing documented validation of materials, processes, and final assembly

For fleet managers, maintenance engineers, and equipment owners responsible for maximizing the availability and cost-effectiveness of LIUGONG CLG906F compact excavators, sourcing these idler assemblies from a specialized manufacturer offers a demonstrable path to optimized total cost of ownership, reduced unplanned downtime, and enhanced operational safety.
