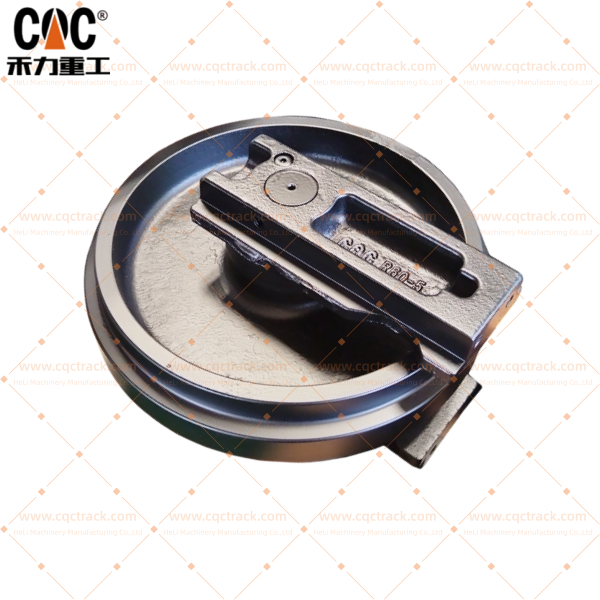

Hyundai 81M913100 R55 R60-5 Forging Front Idler Assembly – Mini Excavator Undercarriage Chain Idler Wheel

Manufactured by CQC TRACK – Professional Undercarriage Component Manufacturer Based in Quanzhou, China

Technical Abstract

This technical publication provides comprehensive engineering documentation for the Hyundai front idler assembly—OEM part number 81M913100—engineered specifically for the Hyundai R55 and R60-5 series hydraulic crawler excavators. This idler wheel assembly, alternatively designated as a front idler group, track idler, or forging front idler assembly, represents a foundational chassis component within the undercarriage track system of the 5.5–6 ton mini excavator class.

Within the mini excavator chassis architecture, the front idler performs four essential functions: guiding the track chain around the undercarriage frame, maintaining proper track tension in conjunction with the track adjuster assembly, supporting the frontal weight of the machine during travel and excavation, and preventing track derailment through precise lateral alignment. For Hyundai R55 and R60-5 excavators—machines widely deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects worldwide—the engineering integrity of the front idler assembly is fundamental to track system reliability and machine mobility.

This analysis examines the 81M913100 idler assembly through multiple technical lenses: functional engineering principles of track guidance and tension management, metallurgical composition with detailed material grade specifications for mini excavator chassis applications, advanced forging technology versus casting alternatives, comprehensive heat treatment engineering including medium-frequency induction hardening, rigorous quality assurance protocols, dimensional specifications and installation parameters, comprehensive installation and track tensioning procedures, wear diagnosis and replacement criteria, regional market analysis for South America, Australia, Europe, Russia, and Central Asia, and strategic sourcing considerations for procurement professionals managing Hyundai mini excavator fleets worldwide.

Industry sources confirm that the 81M913100 idler assembly is applicable to Hyundai excavator models including the R55, R60-5, and other similar-sized mini excavators within the 5–7 ton class. The R60-5 designation indicates a specific forging model or part number used by certain manufacturers, representing an aftermarket or OEM-compatible replacement part for the Hyundai R60-5 mini excavator’s front idler. Additional sources list this idler assembly as compatible with R55, R60-5, R60-7, R130, R200, R210, R255-7, R290, R320-3, and R320LC-7 models, demonstrating broad cross-platform compatibility within the Hyundai product line.

The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment, while most excavator front idlers also act as supporting wheels. This can increase the contact area between the track and the ground and reduce the grounding pressure.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components. Based in Quanzhou, Fujian Province—China‘s premier industrial cluster for heavy machinery manufacturing, with strategic access to major international ports including Xiamen and Fuzhou—the company has established itself among the premier undercarriage component manufacturers in the region. The company’s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

This focused specialization enables CQC TRACK to deliver idler components that not only meet but often exceed OEM performance standards. The company manufactures a full range of Hyundai-compatible undercarriage parts, including track rollers, idlers, sprockets, track chains, track shoes, and complete undercarriage systems. The R60-5 Forging Front Idler Assembly is manufactured using forged steel for durability, which provides superior performance compared to cast iron in high-stress applications.

The company’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

CQC TRACK warmly welcomes cooperation to build a brilliant long-term relationship with global partners. The company warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A front idler assembly—technically designated as a track idler, guide wheel, idler group, or front idler wheel—is a critical passive undercarriage component mounted at the front of the excavator‘s track frame, opposite the rear-mounted drive sprocket. Unlike the drive sprocket, which is an active component that propels the machine, the front idler is a passive component that rotates freely around a stationary shaft as the track chain moves. However, its functional importance within the mini excavator chassis equals or exceeds that of the drive sprocket for several reasons:

Track Chain Guidance: The front idler is the primary component responsible for maintaining proper track chain alignment as the chain travels around the front of the undercarriage. The idler’s precision-machined flanges prevent lateral chain movement, ensuring that the track remains centered on the undercarriage frame during forward travel, reverse travel, and turning operations. In compact chassis configurations, where space constraints limit undercarriage width, precise track guidance is particularly critical for preventing derailment in confined job sites. The guide wheel ensures the track rotates correctly to prevent deviation and derailment, acting as a supporting wheel to increase contact area between the track and the ground.

Track Tension Management: The idler assembly interfaces directly with the track tensioning system—typically a grease-filled recoil spring and tension cylinder assembly—to maintain optimal track chain tension across varying operating conditions. Proper tension is essential for preventing chain derailment, minimizing vibration, maximizing component service life in the compact chassis format, and ensuring consistent track contact for machine stability. The function of an idler is to guide the track links into running smoothly and to prevent dislocation. Idlers also carry some weight and therefore increasing the track links and decreasing ground pressure.

Frontal Load Support: The idler wheel supports the front portion of the excavator‘s operating weight, transferring loads from the track frame through the idler shaft and bearing system to the track chain and ultimately to the ground surface. For the 5.5–6 ton mini excavator class, the idler must accommodate the machine’s full frontal weight during dozing, grading, and traversing uneven terrain while maintaining structural integrity under continuous cyclic loading.

Shock Load Absorption: When the excavator encounters obstacles such as rocks, curbs, or uneven ground, the front idler—working in conjunction with the recoil spring assembly—absorbs impact loads that would otherwise be transmitted directly to the undercarriage frame and upper structure. This shock absorption function is particularly important in urban construction and utility applications where operators frequently traverse mixed terrain conditions with abrupt elevation changes and debris.

The idler is composed of multiple precision-engineered subcomponents, including collar, idler shell, shaft, seal, O-ring, bushing, and lock pin plug. The idler main pin shaft will be hardened by medium-frequency hardening heat treatment to ensure its hardness, while the idler shell is cast from special steel.

1.2 OEM Part Number and Compatible Hyundai Excavator Models

The 81M913100 front idler assembly documented in this analysis corresponds to precise Hyundai OEM engineering specifications, offering direct interchangeability without requiring modifications to the track frame, track adjuster assembly, or track chain components.

Industry sources confirm that this idler assembly is applicable to a broad range of Hyundai excavator models:

Multiple industry sources confirm the broad compatibility of this idler assembly. One source lists Hyundai models including R55, R60-5, R60-7, R130, R200, R210, R255-7, R290, R320-3, and R320LC-7 as compatible with the front idler assembly. Additional sources list R55, R60, R130, R200, R210, R255, R290, and R320 among the compatible Hyundai excavator models. The R60-5 designation suggests a specific forging model or part number used by certain manufacturers for the Hyundai R60-5 mini excavator‘s front idler.

The 81M913100 front idler assembly demonstrates wide cross-platform compatibility across multiple Hyundai excavator model generations, from the compact R55 and R60-5 mini excavators in the 5.5–6 ton class through the larger R130 (13 ton class), R200/R210 (20–22 ton class), and up to the R290 (29 ton class) and R320 (32 ton class). This broad compatibility makes the 81M913100 idler a valuable inventory item for fleet operators managing multiple Hyundai excavator models across different size classes.

1.3 Component Architecture and Assembly Composition

A complete Hyundai 81M913100 front idler assembly consists of multiple precision-engineered subcomponents, each manufactured to exacting tolerances for the mini excavator chassis format:

Idler Wheel Body (Shell): The outer wheel component that contacts the track chain link rails. The idler wheel features precision-machined flanges that maintain lateral track alignment and a hardened tread surface that engages with the chain bushings. For mini excavator applications, the wheel body diameter is proportionally smaller than larger excavator classes, requiring precise dimensional control for proper track engagement. The idler shell is cast from special steel to ensure optimal wear characteristics.

Shaft (Axle): The stationary central component that mounts to the track frame via the idler bracket or yoke. The shaft incorporates precision-ground bearing journals and sealing surfaces. Made from round steel, the idler main pin shaft will be hardened by medium-frequency induction hardening heat treatment to ensure its hardness.

Bearing System: Hardened steel bushings or anti-friction bearings that enable smooth rotation of the idler wheel body around the stationary shaft while supporting the machine‘s frontal loads. The bearing system must accommodate the lower rotational speeds but higher relative load per contact area characteristic of mini excavator undercarriages. Good quality bimetal bronze bushings are employed to ensure idler quality and longevity.

Sealing System: High-durability floating seals incorporating rubber O-rings and metal-faced sealing elements that prevent lubricant leakage and contamination ingress from mud, dust, water, and abrasive particles. The sealing system must resist ingress of fine debris common in urban construction and landscaping environments. High-hardness wear-resistant alloy chrome and molybdenum floating seals, combined with elastic rubber O-rings, ensure reliable sealing performance.

Lubrication Charge: Grease-based lubricant that maintains the bearing system under proper lubrication conditions throughout the service life. The idler features a great lubricated system with dedicated lubricant retention design.

Idler Bracket/Yoke: The mounting structure that connects the idler shaft to the track frame and interfaces with the track adjuster recoil spring assembly. For mini excavator chassis, the bracket design must accommodate the reduced frame width while maintaining structural integrity under operational loads.

1.4 Hyundai R55 and R60-5 Excavator Specifications

The Hyundai R55 and R60-5 excavators represent the compact end of the Hyundai product line, offering substantial digging performance in a package suitable for confined job sites.

Hyundai R55 Series Specifications: Industry sources indicate that Hyundai R55 excavators operate in the 5.5–6 ton class, with the R55-9A having an operating weight of approximately 5,650 kg (12,460 lbs) and being powered by a reliable 65.1 HP (48.5 kW) Tier 4 Final Yanmar 4TNV98C engine. The R55W-9A wheeled excavator variant has an operating weight of 5,552 kg (12,240 lbs) and engine power of 49.9 kW (67.85 hp). The R55-9A achieves a maximum travel speed of 4 km/h and has a dig depth of 12 feet, 6 inches.

Hyundai R60-5 Specifications: The Hyundai R60-5 is a mini excavator in the 6-ton class, with an operating weight of approximately 6 metric tons and engine power of approximately 54 horsepower. The R60-5 is equipped with a Yanmar 4TNE94 engine. The R60-5 features a bucket capacity of 0.21 m³ and is available with rubber tracks for enhanced versatility in urban applications. The R60-5 small excavator is designed for use in various applications including utility work, landscaping, and construction, with the ability to be equipped with various buckets and rubber tracks for user convenience and enhanced market competitiveness.

For the R60-5 undercarriage, the track chain pitch is commonly 135 mm or as per OEM specifications, with sealed and greased bushings to minimize internal friction and dirt infiltration.

2. Forging vs. Casting: Engineering Considerations for Idler Manufacturing

2.1 The Forging Advantage

The 81M913100 front idler assembly is manufactured using forged steel, which provides significant durability advantages over cast iron in high-stress applications. Forging is a manufacturing process that shapes metal using localized compressive forces, typically delivered by a hammer or press. The forging process refines the steel‘s internal grain structure, eliminates porosity, and aligns the grain flow with the component’s primary stress paths.

Grain Flow Alignment: The forging process aligns the material grain structure with the idler wheel geometry, with grain boundaries oriented to resist the principal tensile and compressive stresses encountered during operation. This grain flow orientation is particularly important at the flange-to-wheel body transition zone where stress concentrations are highest. Forged components exhibit superior mechanical properties including higher impact strength, better fatigue resistance, and greater resistance to catastrophic failure under shock loads.

Porosity Elimination: The high compressive forces of forging eliminate internal voids and porosity that would otherwise act as crack initiation sites under cyclic loading. Cast components may contain internal porosity or inclusions that can serve as crack initiation sites under repeated loading cycles.

Material Consolidation: The forging process increases material density, resulting in superior mechanical properties compared to cast components of equivalent alloy composition. The dense, uniform microstructure of forged steel provides consistent performance across the entire component cross-section.

Surface Integrity: The forged surface exhibits superior fatigue resistance due to the absence of casting defects and the compressive residual stresses imparted by the forging process. This results in extended service life and reduced risk of premature failure.

2.2 Casting Applications in Idler Manufacturing

While forging is specified for premium-grade applications, casting remains a viable manufacturing method for standard-duty applications where cost optimization is prioritized. The idler shell can be cast from special steel, with the lathing process ensuring precise boundary dimensions. Casting allows for complex geometries and is generally more cost-effective for production volumes.

However, cast components may contain internal porosity or inclusions that can serve as crack initiation sites under cyclic loading. For demanding mining and heavy construction applications where extended service life is critical, forged construction provides the highest level of performance and reliability.

2.3 Material Grade Specifications

CQC TRACK manufactures Hyundai cross-reference front idlers using premium alloy steel grades selected for their specific mechanical properties in compact excavator undercarriage applications. The primary material grades employed include:

ZG50Mn Cast Steel (ZG50Mn): A manganese-alloyed cast steel grade offering good wear resistance and moderate impact toughness. Industry sources indicate that R60-5 excavator idlers are manufactured using ZG50MN material. This material provides an optimal balance of surface hardenability, core toughness, and cost-effectiveness for 5.5–6 ton class excavator applications.

50Mn Alloy Steel: A premium-grade manganese steel offering superior wear resistance and surface hardness characteristics. The 50Mn grade provides the highest level of wear resistance for demanding applications.

40Mn2 Alloy Steel: A chromium-manganese alloy offering superior hardenability and impact toughness, typically reserved for higher-duty applications or idlers requiring extended service life under severe conditions.

The material grade selection directly determines the idler‘s service life in abrasive environments. For steel parts like idlers, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

2.4 The Idler Roller Shaft

The idler roller shaft is machined by the utilization of the most modern technological advances known to the industry. Grinding and finishing methods ensure a mirror-like finish, and tempering with medium to low frequency heat treating equipment guarantees maximum strength. The shaft is manufactured from round steel and undergoes medium-frequency hardening heat treatment to ensure its hardness.

The idler shaft incorporates precision-ground bearing journals that interface with the bearing system, and sealing surfaces that accommodate the floating seal assembly. The shaft also features mounting interfaces that connect to the idler bracket and track adjuster assembly.

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Idler Applications

Heat treatment is the single most critical manufacturing operation determining front idler service life in compact excavator applications. The heat treatment process—primarily quenching and tempering—transforms steel at the molecular level, achieving a precise balance between hardness and toughness. For undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This creates the hard, wear-resistant surface essential for idler treads and flanges.

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for idlers that must withstand dynamic loads and shocks.

3.2 Medium-Frequency Induction Hardening

The 81M913100 front idler employs medium-frequency induction hardening heat treatment to achieve the required hardness profile. The idler main pin shaft will be hardened by the mid-frequency hardening heat treatment to ensure its hardness, while the idler shell is cast from special steel and also undergoes medium-frequency hardening heat treatment.

The lathing process ensures the idler boundary dimension, and the mid-frequency hardening heat treatment will be made to harden its hardness to approximately HRC 56°.

3.3 Hardness Specifications

Industry sources report the following hardness specifications for Hyundai excavator idlers:

Industry sources indicate that the rail surface is hardened through medium-frequency induction to achieve a surface hardness of between HRC 48 and HRC 58, with a hardening depth of at least 4–6 mm (reaching HRC 45 at this depth). Crafts idlers achieve a hardness of approximately HRC 56°.

The heavy profiles of idler roller rims are carefully heat-treated in depth for extra service life. The guide wheel showcases an innovative integrated design, combined with precise heat treatment specifications, resulting in high strength, exceptional impact resistance, and a notably hard tread surface with substantial hardening layer depth.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. After assembly, there is a testing process under water to prove the sealing property of the idlers. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

3.5 Maximum Strength Through Advanced Processing

The idler roller shaft is machined by the utilization of the most modern technological advances known to the industry. Grinding and finishing methods ensure a mirror-like finish, and tempering with medium to low frequency heat treating equipment guarantees maximum strength. This attention to surface finish reduces friction with the bearing system, extends seal life, and ensures smooth rotation throughout the service life.

The heavy profiles of idler roller rims are carefully heat-treated in depth for extra service life, ensuring that the hardened surface layer remains intact even after significant wear has occurred.

4. Sealing System and Bearing Technology

4.1 Floating Seal Configuration

Front idlers for mini excavator applications are equipped with high-durability floating seals that prevent contamination ingress while retaining lubricant throughout the service life. The sealing system incorporates premium-grade rubber O-rings and metal-faced seals designed to withstand the moderate impact and contamination exposure encountered in construction and utility applications:

Metal-Faced Seal Rings: Hardened steel sealing rings with precision-lapped faces that provide the primary sealing interface, preventing lubricant leakage and contamination ingress. High-hardness wear-resistant alloy chrome and molybdenum floating seals are employed for superior sealing performance.

Rubber O-Rings: Elastomeric O-rings that provide the compressive force maintaining metal-faced seal contact, while also accommodating minor shaft-to-bore misalignments.

Seal Housing: Precision-machined cavity that positions the sealing elements correctly relative to the shaft and idler wheel body, ensuring optimal seal compression and alignment.

The sealing system must resist ingress of abrasive materials common in construction environments—including soil, sand, dust, and moisture—which would otherwise accelerate bearing wear and cause premature failure. The high-hardness wear-resistant alloy chrome and molybdenum floating seal, combined with the elastic rubber O-ring, ensures reliable sealing even in demanding operating conditions.

4.2 Bearing System Design

Each front idler incorporates a bearing system designed for low-friction rotation and extended service life under continuous operation. The bearing system consists of:

Bimetal Bronze Bushings: Good quality bimetal bronze bushings are employed to ensure idler quality. These bushings provide excellent wear resistance and low friction characteristics, extending the service life of the idler assembly.

Hardened Steel Shaft Journals: The idler main pin shaft is hardened by medium-frequency induction hardening heat treatment, providing a durable bearing surface that resists wear under continuous operation.

The rotating shaft within stationary bushings produces less contact stress and wear, contributing to extended service life and reduced maintenance requirements.

4.3 Lubrication System

The idler features a great lubricated system designed to maintain proper lubrication throughout the service life. Key lubrication features include:

• Lubricant Type: High-quality grease with extreme pressure (EP) additives
• Lubricant Retention: The floating seal system maintains lubricant retention even under pressure fluctuations and thermal cycling
• Seal Integrity Testing: After assembly, there is a testing process under water to prove the sealing property of the idlers

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

CQC TRACK operates under ISO 9001:2015 certified quality management systems, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards
• Dimensional Verification: Inspection of all critical dimensions using calibrated measurement equipment
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination
• Seal System Validation: Verification of proper seal installation, bearing clearance, and lubricant charge
• Final Testing: Dynamic rotation testing and seal integrity verification

5.2 Dynamic Rotation Testing

Each finished front idler is subjected to a dynamic rotation test that verifies:

• Concentricity: The idler wheel rotates without radial runout that would cause uneven track chain contact or vibration
• Smoothness: The bearing system rotates freely without binding, noise, or resistance
• Seal Integrity: The sealing system maintains proper lubricant retention with no leakage under rotational load

Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

5.3 Seal Integrity Testing

After assembly, there is a testing process under water to prove the sealing property of the idlers. This water immersion test verifies that the floating seal system maintains proper lubricant retention and prevents water ingress under static and dynamic conditions.

5.4 Warranty and Service Life Expectations

Industry sources indicate that R60-5 excavator idlers are offered with a guarantee period of 6 months from manufacturers. For Hyundai front idlers manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Expected service life for R55 and R60-5 idlers ranges from 2,000 to 5,000 operating hours depending on ground conditions, operator practices, and maintenance schedules.

Industry sources report that R60/R200 excavator front idlers are rated for 2,000+ hours of service life. These idlers are designed for underside assembly parts and provide reliable performance in demanding applications.

5.5 Anti-Corrosion Protection and Packaging

The idler surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. Industry sources indicate that R60-5 excavator idlers are available with black or customized colors. The coating protects the idler from rust and harsh environmental exposure during storage and field operations.

Finished idlers are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

After assembly, the idlers will be painted and packed, waiting for loading and shipping.

6. Installation and Track Tensioning Procedures

6.1 Pre-Installation Preparation

Proper installation of a front idler assembly on a Hyundai R55 or R60-5 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level and firm ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder relief valve to allow removal of the track chain.
2. Component Inspection: Before installation, inspect the idler bracket and track frame for wear, corrosion, or damage. Clean all mounting surfaces thoroughly, removing all debris, old gasket material, and corrosion.
3. Idler Assembly Inspection: Inspect the new idler assembly for any shipping damage. Verify that the idler rotates freely by hand. Check seal integrity.

6.2 Idler Bracket and Tensioner Interface

The front idler mounts to the track frame via the idler bracket or yoke, which interfaces directly with the track adjuster assembly (recoil spring and grease cylinder). Key installation considerations include:

• Ensure that the idler bracket is properly aligned with the track frame guide surfaces
• Verify that the recoil spring is properly seated and functioning correctly
• Lubricate all sliding surfaces with appropriate grease before assembly
• Install the idler shaft retaining hardware to specified torque values

The track adjusting mechanism, by pressing against the spring stop, maintains the desired tension on the track assembly by holding the idler and yoke in the forward position.

6.3 Track Tension Adjustment

After idler installation, proper track tension must be established according to Hyundai R55/R60-5 specifications. The general procedure is as follows:

1. Chain Installation: Install the track chain around the undercarriage components (front idler, bottom rollers, carrier rollers, drive sprocket).
2. Tension Application: Apply grease to the track adjuster grease fitting using a manual grease gun until the track chain begins to tension.
3. Sag Measurement: The proper track sag for Hyundai R55/R60-5 excavators is typically measured as the vertical distance between the top of the track chain and the top of the track frame at the midpoint between the front idler and the first bottom roller.
4. Final Adjustment: Adjust grease volume as needed to achieve proper sag. Over-tensioning will accelerate wear on all undercarriage components. Under-tensioning may cause chain derailment.
5. Test Operation: Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing chain-to-idler engagement.

6.4 Post-Installation Verification

After 2–4 hours of operation, re-check track tension and re-torque any idler mounting hardware as specified in the Hyundai service manual to account for initial seating and thermal expansion.

✔ Check Track Tension – Adjust after installing the new idler. ✔ Inspect Seals & Bearings – Ensure they’re pre-lubricated (if not, apply grease). ✔ Verify Bolt Torque – Use manufacturer specs to avoid loosening.

7. Wear Diagnosis and Replacement Criteria

7.1 Primary Wear Indicators

For equipment dealers, rental fleet operators, and end users managing Hyundai R55 and R60-5 excavators, early identification of front idler wear is essential to prevent secondary damage to track chains, bottom rollers, and track adjuster assemblies. The following wear indicators should be monitored:

Tread Surface Wear: The idler tread surface (the rolling contact area) wears progressively over time. When the tread surface exhibits significant flat spots or wear beyond approximately 2–3 mm below the original diameter, replacement is recommended. The guide wheel showcases an innovative integrated design, combined with precise heat treatment specifications, resulting in a notably hard tread surface with substantial hardening layer depth.

Flange Wear: The integral guide flanges are subject to abrasive wear from track chain contact. Flange thickness reduction beyond 30% of original indicates immediate replacement is required.

Seal Leakage: Visible lubricant leakage around the seal housing indicates seal failure. Continued operation with failed seals will result in bearing failure due to contamination ingress.

Abnormal Noise: Grinding, squealing, or clicking sounds during track rotation may indicate bearing failure, seal failure, or foreign object damage.

Uneven Wear Pattern: If one side of the idler shows significantly more wear than the other, this may indicate misalignment between the idler and the track chain or issues with the track frame alignment.

7.2 Replacement Interval Planning

A well-maintained idler directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn idler will accelerate wear on the new chain‘s bushings and link rails, significantly reducing overall system life. Conversely, installing a new idler on a worn chain will cause accelerated tread and flange wear and premature idler failure.

For fleet operators, the recommended replacement strategy is to replace the idler and track chain as a matched set whenever either component reaches the end of its service life.

The idler is vital for ensuring the smooth operation of the track links and preventing their displacement.

8. Regional Market Applications

8.1 South America: Urban Construction and Infrastructure Development

The South American construction market presents growing demand for compact excavator components, with operations concentrated in Brazilian infrastructure projects (São Paulo, Rio de Janeiro), Chilean urban development (Santiago, Valparaíso), Peruvian construction markets (Lima), and Argentinean infrastructure development. The region‘s heavy machinery market is characterized by high demand for 5.5–6 ton excavators for utility work, residential construction, and site preparation.

For South American customers, CQC TRACK’s Hyundai cross-reference front idlers offer OEM-equivalent quality at competitive pricing, with efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia (Buenaventura, Cartagena ports), and Mexico (Veracruz, Manzanillo ports).

8.2 Australia: Residential Construction, Rental Fleet, and Light Infrastructure

The Australian construction and rental equipment market demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Australian compact excavator market—including applications in Sydney, Melbourne, Brisbane, Perth, Adelaide, and regional centers—utilizes Hyundai R55 and R60-5 excavators for residential construction, utility trenching, landscaping, and site preparation.

CQC TRACK‘s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. Industry sources indicate that guide rollers for front idlers for Hyundai R16, R22, R55 construction equipment are available from Australian suppliers.

8.3 Europe: Urban Construction and Utility Work

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s construction industry (Berlin, Munich, Hamburg, Frankfurt), France‘s infrastructure sector (Paris, Lyon, Marseille), the United Kingdom’s utility and residential construction markets (London, Manchester, Birmingham), and Scandinavia‘s construction industry (Stockholm, Oslo, Copenhagen, Helsinki) represent major application zones for Hyundai R55 and R60-5 excavators.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers.

8.4 Russia and Central Asia: Growing Compact Equipment Market

Following the realignment of global supply chains, Russian and Central Asian construction operators increasingly source heavy equipment components from Chinese manufacturers. Russia’s urban development projects (Moscow, St. Petersburg, Kazan, Yekaterinburg), Kazakhstan‘s infrastructure growth (Astana, Almaty, Shymkent), Uzbekistan’s construction sector (Tashkent, Samarkand), and Mongolia‘s construction and mining support operations (Ulaanbaatar) represent growing markets for Hyundai compact excavator components.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes.

8.5 Service Center Network Strategy

CQC TRACK’s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of service centers in major construction equipment markets worldwide that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine‘s serial number and the specific OEM part number from the Hyundai parts catalog. The part number documented in this analysis—81M913100—serves as the primary OEM reference for direct cross-reference ordering.

The 81M913100 idler assembly has documented compatibility with Hyundai R55, R60-5, R60-7, R130, R200, R210, R255-7, R290, R320-3, and R320LC-7 models. Additional sources list R55, R60, R130, R200, R210, R255, R290, and R320 among the compatible Hyundai excavator models. The R60-5 designation indicates a specific forging model or part number used for the Hyundai R60-5 mini excavator’s front idler.

9.2 Quality Documentation Requirements

When sourcing front idlers for construction applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification: ZG50MN, 50Mn, or 40Mn2)
• Heat treatment records (hardness profiles: HRC 48–58, case depth: 4–12 mm)
• Mill test certificates for raw material
• Seal system specifications and type
• Bearing type and configuration details
• Warranty documentation (6–12 months typical)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance. Manufacturers can offer OEM service according to your drawings or samples, with the ability to produce custom components based on customer specifications.

9.3 Supply Chain and Lead Times

CQC TRACK maintains finished goods inventory for high-demand part numbers including the 81M913100 idler assembly, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. Industry sources indicate that manufacturers can make customer logos if the order reaches the minimum order quantity for customer logo orders, and can develop new items based on main dimensions provided by the customer.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine‘s operating costs over its service life. For construction companies, rental fleet operators, and equipment dealers managing fleets of Hyundai compact excavators, sourcing OEM-equivalent aftermarket idlers from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability.

The 81M913100 Forging Front Idler Assembly is an aftermarket or OEM-compatible replacement part for the Hyundai R60-5 mini excavator’s front idler, manufactured using forged steel for durability (better than cast iron in high-stress applications). The company‘s vertically integrated manufacturing—encompassing material sourcing, heat treatment, machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

9.5 OEM and ODM Service Models

CQC TRACK operates two primary service models for international customers:

OEM Manufacturing: The company produces components to exact client specifications, drawings, and quality standards. The factory is adept at seamless integration into global supply chains, providing reliable volume production of idlers, rollers, sprockets, track links, and complete undercarriage systems for brands including Hyundai, Hitachi, Komatsu, Caterpillar, Volvo, Kobelco, Doosan, SANY, and others.

ODM Engineering: Leveraging extensive field experience, CQC TRACK collaborates with clients to develop, design, and validate improved or fully customized undercarriage solutions. The engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership. If customers don‘t have drawings, they can offer the main dimensions for comparison with ready products and drawing creation for customer checking.

10. Frequently Asked Questions for Equipment Dealers and Fleet Operators

Q1: What is the function of a front idler on a Hyundai R55 or R60-5 excavator?

A front idler (also called a guide wheel or track idler) guides the track chain, maintains proper track tension in conjunction with the track adjuster assembly, supports the front portion of the machine’s weight, and absorbs shock loads from uneven terrain. The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment.

Q2: How do I verify which idler part number my Hyundai excavator requires?

Verify using the machine‘s serial number and the specific OEM part number from the Hyundai parts catalog. The part number covered in this analysis—81M913100—covers the R55, R60-5, R60-7, R130, R200, R210, R255-7, R290, R320-3, and R320LC-7 model range.

Q3: What materials are used in the 81M913100 front idler?

The 81M913100 front idler is manufactured using forged steel for durability, better than cast iron in high-stress applications. Industry sources also indicate that R60-5 excavator idlers are manufactured using ZG50MN material. The idler shaft is made from round steel and undergoes medium-frequency hardening heat treatment.

Q4: Is the 81M913100 idler a direct replacement for Hyundai OEM parts?

Yes, the 81M913100 front idler manufactured by CQC TRACK is a direct OEM cross-reference replacement, manufactured to Hyundai‘s original engineering specifications for dimensional accuracy and mechanical properties. It is an aftermarket or OEM-compatible replacement part for the Hyundai R60-5 mini excavator’s front idler.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a front idler in mini excavator applications?

Front idler service life in R55 and R60-5 applications typically ranges from 2,000 to 5,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules. Industry sources report that R60/R200 excavator front idlers are rated for 2,000+ hours of service life.

Q7: What is the hardness specification for the 81M913100 idler?

The idler achieves surface hardness of approximately HRC 56° through medium-frequency induction hardening heat treatment. Industry sources indicate a surface hardness range of HRC 48–58 with a hardening depth of at least 4–6 mm.

Q8: Should I replace the idler when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the idlers for balanced wear. Installing a new chain on a worn idler will rapidly accelerate chain bushing and link rail wear.

Q9: What warranty is provided with the 81M913100 idler?

Industry sources indicate that R60-5 excavator idlers are offered with a guarantee period of 6 months from manufacturers. Warranty periods may be aligned with customer requirements and application severity.

Q10: What is the lead time for volume orders of Hyundai idlers?

Lead times for volume orders of Hyundai front idlers typically range from 7–30 days depending on order volume and destination.

Q11: What are the key components of the idler assembly?

The idler is composed of collar, idler shell, shaft, seal, O-ring, bushing bronze, and lock pin plug. Good quality bimetal bronze bushings and high-hardness wear-resistant alloy chrome and molybdenum floating seals ensure idler quality.

Q12: How is the idler tested before shipment?

After assembly, there is a testing process under water to prove the sealing property of the idlers. Rolling fluency testing is also necessary to finally prove the idlers are ready for duty.

11. Manufacturing Capability Overview: CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.)

11.1 Corporate Profile

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) has established itself as a premier undercarriage component manufacturer in the Quanzhou region, a key supply cluster for global earthmoving equipment. Rooted in the industrial hub of Quanzhou, Fujian Province—a region renowned for its concentration of mechanical manufacturing expertise and strategic access to major international ports including Xiamen and Fuzhou—the company serves the global market as a proficient OEM and ODM manufacturing partner.

CQC TRACK manufactures a full range of Hyundai-compatible undercarriage parts, including track rollers, idlers, sprockets, track chains, track shoes, and complete undercarriage systems. The company’s evolution from a specialized parts workshop to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems.

11.2 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• Material Sourcing: Utilization of premium ZG50MN, 50Mn, and 40Mn2 alloy steels through strategic supply partnerships, with full material certification and traceability
• Casting and Forging Capabilities: Both casting and forging processes employed depending on application requirements and quality grade
• CNC Machining Centers: Precision machining of all critical surfaces to ISO 2768-mK tolerances
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles
• Assembly and Testing: Dust-free assembly environments with dynamic rotation testing, water immersion sealing tests, and rolling fluency testing on every finished idler
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors

11.3 Quality and Value Proposition

World-class quality with factory direct pricing, extensive experience in excavator undercarriage parts manufacturing, flexible payment terms, and fast delivery. The R60-5 Forging Front Idler Assembly is manufactured using forged steel for durability (better than cast iron in high-stress applications). The idler roller shaft is machined by the utilization of the most modern technological advances known to the industry. Grinding and finishing methods ensure a mirror-like finish and tempering with medium to low frequency heat treating equipment guarantees maximum strength.

12. Conclusion

The Hyundai OEM cross-reference front idler assembly documented in this analysis—81M913100—represents an essential undercarriage component for R55 and R60-5 series hydraulic crawler excavators deployed in urban construction, utility work, landscaping, residential development, and light infrastructure projects worldwide. As the primary track guidance and tension management component at the front of the undercarriage, the idler assembly plays a critical role in track chain alignment, load distribution, shock absorption, and overall undercarriage system longevity.

The Hyundai R55 and R60-5 excavators, with operating weights of approximately 5.5–6 metric tons, represent a significant segment of the global mini excavator market. For these machines, the front idler must provide reliable service under demanding conditions while accommodating the space constraints of the compact chassis format. The guide wheel is used to guide the track to rotate correctly to prevent its deviation and derailment, while also acting as a supporting wheel to increase the contact area between the track and the ground.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures this idler to meet or exceed OEM specifications through advanced forging technology, precision CNC machining, computer-controlled medium-frequency induction heat treatment achieving HRC 48–58 surface hardness with 4–12 mm case depth, and rigorous quality assurance protocols including water immersion sealing tests and rolling fluency testing. The company‘s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as a premier undercarriage component manufacturer in Quanzhou’s heavy machinery industrial cluster enable consistent supply to global markets.

For equipment dealers, rental fleet operators, and end users throughout South America, Australia, Europe, Russia, and Central Asia, this front idler provides a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life. The 81M913100 Forging Front Idler Assembly is an aftermarket or OEM-compatible replacement part for the Hyundai R60-5 mini excavator’s front idler, manufactured using forged steel for durability (better than cast iron in high-stress applications).

For fleet managers and maintenance supervisors, implementing a proactive idler inspection and replacement schedule—including regular tread wear measurement, flange geometry verification, seal integrity checks, proper track tension adjustment, and coordinated idler-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime. The idler is vital for ensuring the smooth operation of the track links and preventing their displacement.

CQC TRACK warmly welcomes you to build cooperation and generate a brilliant long-term partnership together.

This technical publication is intended for engineering and procurement professionals in the construction, rental, and light infrastructure industries. All specifications are subject to verification against current OEM documentation. Original spare part numbers are for comparison purposes only. For current pricing, lead times, and technical support, contact CQC TRACK directly.
