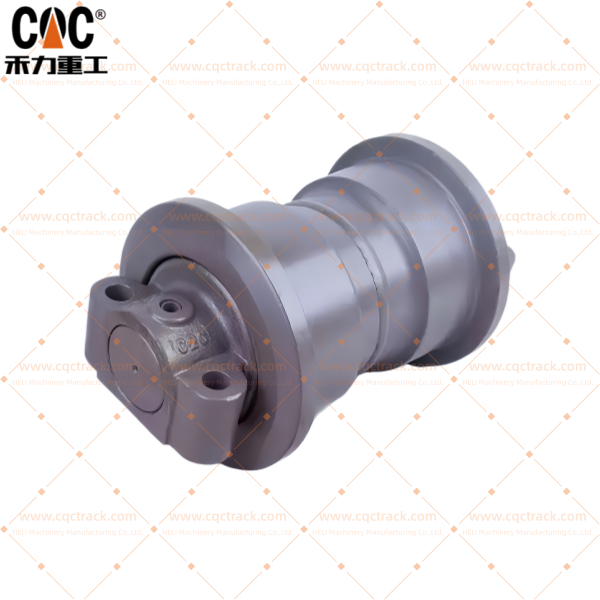

VOLVO EC290LC / EC290B Excavator Track Lower Roller Assembly (OEM Ref: 118100781, 14520822, 14527315)

Manufacturer: HELI (Brand: CQCTRACK) – Heavy Duty Crawler Construction Machinery Parts Expert & Vertically Integrated Manufacturer

Publication Date: 2026
Target Audience: Mining Contractors, Heavy Equipment Fleet Managers, VOLVO Dealership Parts Departments, Maintenance Engineers
Keywords: VOLVO EC290 LC Track Roller, EC290B Bottom Roller, VOLVO Undercarriage Parts, 118100781, 14520822, 14527315, Excavator Lower Carrier Roller, Heavy Duty Crawler Parts, HELI/ CQCTRACK, Chassis Components, Swedish Excavator Parts, ODM Undercarriage Manufacturer.

1. Executive Summary: Precision Engineering for VOLVO’s Medium-Large Excavator Class

The track lower roller assembly is the primary load-bearing interface between a crawler excavator’s mass and the ground. For mid-sized heavy construction machines like the VOLVO EC290LC and EC290B, these rollers must manage significant static weight while withstanding dynamic shock loads generated during digging and traveling over uneven terrain. Failure manifests as seal blowout, bearing seizure, or tread wear, leading to immediate downtime and costly track chain damage.

HELI (CQCTRACK) addresses these challenges with a precision-engineered VOLVO EC290 Lower Roller Assembly, fully compatible with OEM part numbers: 118100781,14520822, 14527315. As a specialist heavy-duty crawler machinery parts manufacturer, HELI combines metallurgical expertise with strict adherence to VOLVO’s original dimensional and performance specifications. This assembly is designed to provide structural reliability, extended wear life, and seamless integration with the EC290 series undercarriage, ensuring maximum machine availability in demanding environments .

2. Product Identification & Cross-Compatibility

2.1 Reference Part Numbers & Interchangeability

The HELI lower roller is engineered as a direct OEM replacement, matching the form, fit, and function of the following genuine VOLVO references:

• VOLVO 118100781: Primary part number for the EC290 series lower roller.
• VOLVO 14520822: Superseded or alternative assembly number, fully interchangeable.
• VOLVO 14527315: Another common reference for the same component; cross-referenced and verified.

2.2 Target Machine Models

This assembly is specifically designed for the following VOLVO excavator models, known for their application in heavy construction, quarrying, and large-scale earthmoving :

• VOLVO EC290B
• VOLVO EC290LC (Long Carriage version)
• VOLVO EC290 NLC

*Note: The EC290 typically operates in the 28-30 ton class. While these rollers are designed as a standard fit, verification of track type (e.g., 600mm, 700mm shoes) and undercarriage configuration against the machine’s VIN is always recommended prior to installation .*

3. Technical Engineering & Robust Construction Features

The EC290 undercarriage operates under high tension and constant abrasion. HELI’s manufacturing protocol for these VOLVO-compatible rollers focuses on load distribution precision, rotational efficiency, and contaminant defense .

3.1 Metallurgical Foundation & Heat Treatment Protocol

• Raw Material Selection: The roller shell is fabricated from a specialized high-tensile alloy steel, chosen for its ability to withstand repeated impact without deformation. Materials such as 40CrMnMo or 50Mn are utilized for their superior fatigue resistance .
• Deep Induction Hardening: The critical wear surfaces—the tread (where the track chain rides) and the guide flanges—undergo a controlled medium-frequency induction hardening process.
  • Case Depth: A deep, hardened case is developed to resist abrasive wear from steel track bushings.
  • Hardness Profile: Achieves a surface hardness of HRC 52-58, creating an abrasion-resistant shell, while the core retains ductility to absorb operational shock loads without cracking.
• Shaft Durability: The mounting shaft is precision-machined from high-strength steel, treated to prevent galling and corrosion within the track frame mounting ears.

3.2 Load-Bearing System: Precision Bearings for Smooth Rotation

Efficient rotation is key to minimizing power loss and reducing friction between the roller and the track chain . HELI incorporates:

• Heavy-Duty Tapered Roller Bearings: Specifically selected to manage the combined radial (vertical load) and axial (side thrust) forces encountered during turning or operating on side slopes.
• Optimized Internal Geometry: Precision-ground raceways ensure minimal internal friction, contributing to smooth machine tracking and reduced fuel consumption .

3.3 Multi-Stage “Zero-Contaminant” Sealing Technology

In the gritty environments where EC290 excavators operate, the seal is the most critical line of defense. HELI employs an advanced sealing pack designed to exclude fine particles like silica and slurry :

1. External Metal Ring / Deflector: A hardened steel floating ring creates a mechanical labyrinth, deflecting large debris and rocks away from the seal housing.
2. Triple-Lip Nitrile (NBR) Seal: A flexible, multi-lip primary seal maintains constant contact pressure, providing a watertight and dust-tight barrier. This is crucial for retaining lubricant and preventing ingress .
3. PTFE Dust Shield / Labyrinth: A secondary PTFE or engineered plastic shield acts as a final sacrificial barrier. It creates a tortuous path, ensuring that any contaminant bypassing the outer rings is trapped before reaching the bearing cavity .
4. High-Performance Lubrication: The cavity is factory-filled with a measured amount of extreme-pressure (EP) lithium-complex grease, designed to withstand high temperatures and provide a lasting lubricating film under heavy load.

4. Manufacturer Profile: HELI (CQCTRACK) – Your Partner in Undercarriage Excellence

HELI (branded as CQCTRACK) is not merely a supplier; we are a specialist heavy-duty crawler construction machinery parts expert and manufacturer . Our capability lies in our vertically integrated production system, ensuring quality control from raw material to finished product.

4.1 Advanced Manufacturing Capabilities

• Pre-Fabrication Precision: Components like flanges and shells are often fabricated from high-tensile alloy steel plates, utilizing laser cutting and robotic welding to ensure structural integrity and precise geometry .
• CNC Machining: All critical interfaces—the inner bore for bearings, the mounting foot dimensions—are machined on modern CNC lathes and machining centers to guarantee interchangeability with VOLVO OEM specifications.
• Proprietary Heat Treatment: In-house induction hardening lines allow for precise control over case depth and hardness, eliminating the risk of a prematurely worn surface.

4.2 Quality Assurance & Certifications

• Process Control: HELI operates under strict quality management protocols, ensuring traceability of materials and processes.
• Metallurgical Verification: Material certifications are available upon request, confirming the chemical composition and mechanical properties of the steel used .
• Rigorous Testing: Each finished roller assembly undergoes functional checks, including rotational torque testing to ensure smooth bearing operation and seal efficiency validation.

5. Application, Maintenance, and Service Life Optimization

5.1 Operational Roles & Benefits

Installing HELI’s VOLVO EC290 lower rollers ensures:

• Even Load Distribution: The precision design ensures the machine’s weight is evenly distributed across the track chain, minimizing “point loading” and preventing accelerated wear on links and bushings .
• Stable Tracking: Properly functioning lower rollers guide the track chain accurately, preventing de-tracking and ensuring stable movement during excavation .
• Reduced Downtime: The robust construction and advanced seals translate to longer intervals between replacements, directly improving machine uptime .

5.2 Installation Best Practices

1. Undercarriage Inspection: Before fitting new rollers, inspect the track chain for excessive pitch extension (“chain stretch”) and the track frame for wear or damage.
2. Bolt Torque: Use a calibrated torque wrench to tighten mounting bolts to the precise specifications outlined in the VOLVO service manual. Proper torque prevents bolt loosening and subsequent damage to the roller frame.
3. Initial Operation: Monitor the rollers during the first few hours of operation for any signs of abnormal heating or seal leakage.

5.3 Lifecycle Management

• Wear Limits: Regularly measure the roller tread diameter. Replacement is critical when wear approaches the limit specified by VOLVO, typically when the flange is worn thin or the tread diameter is significantly reduced.
• Visual Inspections: Routinely check for damaged seals or leaking grease, as these are early indicators of potential bearing failure.

6. OEM/ODM Services & Global Supply Chain Solutions

As a dedicated manufacturing expert, HELI (CQCTRACK) offers more than just stock parts. We provide comprehensive development and supply chain solutions .

6.1 ODM / Custom Engineering & Reverse Engineering

• Sample-to-Part Service: Clients can provide an original VOLVO part (new or worn) for full reverse engineering. Our technical team analyzes the metallurgy, geometry, and hardening profile to create an exact-match component.
• Design Enhancement: For specialized applications, HELI can modify standard VOLVO designs—for example, incorporating enhanced seal packs for ultra-abrasive environments like mining or dredging.
• Private Label Manufacturing: We offer white-label production services, enabling equipment dealers and distributors to market these premium undercarriage components under their own brand.

6.2 Logistics and Global Export

Based in a major Chinese industrial hub, HELI provides seamless logistics solutions. We offer flexible shipping terms (FOB, CIF, etc.) and manage all export documentation, ensuring a smooth supply chain for our global partners.

7. Conclusion: The Definitive Choice for VOLVO EC290 Undercarriage Reliability

The VOLVO EC290B and EC290LC excavators are workhorses in the construction and mining industries. Their productivity depends entirely on the integrity of their undercarriage. The VOLVO 118100781 / 14520822 / 14527315 track lower roller assembly from HELI (CQCTRACK) represents the optimal balance of OEM-grade quality, heavy-duty durability, and factory-direct value.

By choosing HELI, you partner with a specialist heavy-duty crawler construction machinery parts manufacturer committed to extending the life of your equipment through superior engineering and precision manufacturing.

Contact HELI (CQCTRACK) today for detailed product specifications, engineering drawings, or to discuss your VOLVO undercarriage spare parts requirements with our technical experts.
