Track Excavator EX300-1 EX300-2 EX300-3 Undercarriage 1022168 71471228 AT202586 Sprocket Wheel / Track Final Drive sprocket rim / CQC OEM Quality Original Factory Supply Directly

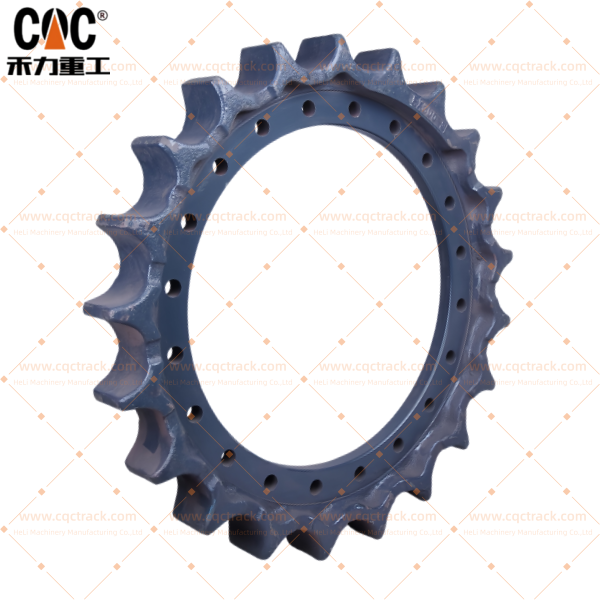

Hitachi EX300-1 EX300-2 EX300-3 Undercarriage Sprocket Wheel / Track Final Drive Sprocket Rim – OEM Cross-Reference Part Numbers 1022168, 71471228, AT202586

Manufactured by CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) – OEM Quality Original Factory Supply Directly

Technical Abstract

This technical publication provides comprehensive engineering documentation for three mission-critical Hitachi drive sprocket assemblies—OEM cross-reference part numbers 1022168, 71471228, and AT202586—engineered specifically for the EX300-1, EX300-2, and EX300-3 series hydraulic crawler excavators. These sprocket wheel assemblies, alternatively designated as track final drive sprocket rims or drive sprockets, represent the foundational power transmission component within the undercarriage track system. The sprocket is a contoured gear equipped with teeth designed to interlock with the track chain bushings, converting the final drive motor‘s rotational torque into the linear pulling force that propels the entire machine across terrain. Every ton of material the excavator moves and every meter it travels across rugged mining terrain is a direct result of the force exerted by the sprocket’s teeth against the chain.

This analysis examines each part number through multiple technical lenses: functional engineering principles of torque transmission, metallurgical composition for high-impact mining applications, advanced manufacturing process engineering with specific focus on closed-die hot precision forging and heat treatment technologies, rigorous quality assurance protocols including ISO 9001:2015 certification, wear pattern diagnosis and replacement criteria, and strategic sourcing considerations for mining operations throughout South America, Australia, Europe, Russia, and Central Asia. CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) operates as a vertically integrated OEM and ODM manufacturer with over two decades of specialization in crawler excavator undercarriage components, recognized as one of the top three undercarriage component manufacturers in the Quanzhou region, China‘s premier industrial cluster for heavy machinery manufacturing.

The company’s evolution from a specialized parts workshop in the late 1990s to its current status as a vertically integrated manufacturing powerhouse reflects a steadfast focus on the undercarriage niche, investing in advanced manufacturing assets and cultivating deep technical expertise in metallurgy and tribology specific to track systems. This focused specialization enables CQC TRACK to deliver sprocket components that not only meet but often exceed OEM performance standards, with a strategic objective of establishing a well-integrated network of Mining Service Centres in major mining areas worldwide.

1. Product Identification and Application Coverage

1.1 Component Nomenclature and Functional Overview

A drive sprocket, also known as a final drive sprocket rim, segment group, or sprocket wheel, is the primary power transmission component of the excavator‘s undercarriage system. Unlike passive components such as carrier rollers or idlers, the sprocket is an active, driven component that engages directly with the track chain’s bushings to propel the machine. The sprocket‘s teeth mesh with the track chain’s cylindrical bushings, pulling the chain around the undercarriage frame in a continuous loop, enabling the excavator to move forward, reverse, and turn.

The term ‘sprocket’ is used for any gear that has radial extensions interacting with a chain that moves across it. Sprockets can be installed either at the leading or trailing end of a machine, or sometimes at both ends. On a crawler excavator, the drive sprocket is mounted directly to the output shaft of the final drive motor (travel motor) and is positioned at the rear of the undercarriage frame, opposite the front idler.

The primary functional responsibilities of the drive sprocket include:

• Torque-to-Traction Conversion: Converting the rotational torque generated by the hydraulic travel motor into linear pulling force that moves the track chain and, consequently, the entire machine.
• Precision Chain Engagement: Engaging with the track chain bushings with exact tooth geometry to ensure smooth, consistent power transmission without skipping or binding.
• Load Distribution: Distributing the driving load evenly across multiple teeth and bushings to prevent concentrated stress points that would cause premature wear or failure.
• Directional Control: Working in concert with the front idler and track rollers to maintain proper track chain alignment during forward travel, reverse travel, and turning operations.

1.2 OEM Part Numbers and Compatible Hitachi Excavator Models

The three drive sprocket assemblies documented in this analysis correspond to precise Hitachi OEM engineering specifications, offering direct interchangeability without requiring modifications to the final drive hub or track chain components. The table below provides comprehensive cross-reference data:

The EX300-2 model, which represents the core platform for these sprocket applications, has a transport weight of 28.6 tons and a track width of 600 mm. The transport dimensions are 11.06 meters in length, 3.39 meters in width, and 3.41 meters in height. The EX300-1, EX300-2, and EX300-3 share common undercarriage architecture, making these sprocket assemblies directly interchangeable across all three model variants. The EX300-3C service repair manual includes comprehensive undercarriage sections covering Group 1 Swing Bearing, Group 2 Travel Device (which includes the final drive sprocket interface), Group 4 Track Adjuster, Group 5 Front Idler, and Group 6 Upper and Lower Roller, confirming the integrated nature of the undercarriage system.

1.3 Component Architecture and Assembly Composition

A complete final drive sprocket assembly consists of precision-engineered subcomponents, each manufactured to exacting tolerances:

• Sprocket Rim (Tooth Ring): The toothed outer component that directly engages with the track chain bushings. The teeth feature precise involute geometry designed to mesh with the chain’s cylindrical bushings without causing excessive friction or wear.
• Hub (Mounting Interface): The central portion of the sprocket that bolts directly to the final drive motor‘s output hub flange. The hub incorporates precisely drilled bolt holes with hardened seating surfaces.
• Mounting Hardware: High-strength bolts, hardened washers, and lock nuts (typically grade 10.9 or higher) that secure the sprocket rim to the final drive hub. For mining-class applications, bolt torque specifications typically range from 1,000 to 1,100 Nm depending on the specific fastener size.
• Segmented Configuration (Optional): For larger excavator classes or maintenance convenience, some sprocket designs utilize segmented construction with 3–5 individual pieces bolted together around the final drive hub. However, for the EX300-1/2/3 class, a one-piece sprocket rim is the standard configuration.

2. Dimensional Specifications and Engineering Parameters

2.1 Installation Dimensions

The dimensional specifications for Hitachi EX300-1/2/3 drive sprockets, as documented in industry technical references, are as follows:

These dimensions apply to the EX300-1, EX300-2, and EX300-3 sprocket configurations. The EX300-5 variant uses slightly different dimensions (A: 745, C: 481, H: 88, N: 20, D: 21.5) and should not be interchanged with the EX300-1/2/3 sprockets.

2.2 Material Grade Specifications

The material grade selection for drive sprockets directly determines the component’s service life in high-abrasion mining environments. CQC TRACK manufactures Hitachi cross-reference sprockets using premium alloy steel grades selected for their specific mechanical properties in power transmission applications:

ZG40Mn Cast Steel: A manganese-alloyed cast steel grade offering good wear resistance and moderate impact toughness. This material is suitable for standard-duty applications where the abrasion levels are moderate. The 40Mn grade provides excellent castability for complex tooth geometries.

20CrMnTi Alloy Steel: A chromium-manganese-titanium alloy steel offering superior hardenability, excellent wear resistance, and enhanced impact toughness. The titanium addition refines the grain structure, resulting in improved fatigue strength and resistance to tooth breakage under shock loading. This grade is the preferred material for mining-grade sprocket applications.

Forged 42CrMo (High-Grade Alternative): A chromium-molybdenum forged alloy steel offering exceptional strength, deep hardenability, and superior impact resistance. For demanding mining applications where extended service life is critical, forged 42CrMo provides the highest level of performance.

High-Strength Steel Alloys: Advanced undercarriage materials combined with heat-treated sprockets, idlers, and rollers are now setting new standards for machine longevity, reducing downtime, and boosting productivity. High-strength steel alloys are at the core of modern undercarriage systems. These materials resist abrasion and deformation under heavy loads.

2.3 Forging vs. Casting: Engineering Considerations

The manufacturing method—forging versus casting—significantly influences sprocket performance and service life in mining applications:

Forged Sprockets: The forging process refines the steel‘s internal grain structure, eliminates porosity, and aligns the grain flow with the component’s primary stress paths. The result is superior mechanical properties including higher impact strength, better fatigue resistance, and greater resistance to catastrophic failure under extreme loads. Hot precision forging (press forging and precision trimming) can manufacture sprocket segments through a simplified process, reducing manufacturing period and cost while securing competitive power.

Cast Sprockets: Casting allows for complex tooth geometries and is generally more cost-effective for production volumes. However, cast components may contain internal porosity or inclusions that can serve as crack initiation sites under cyclic loading. For this reason, mining-grade sprockets for high-impact applications are typically specified as forged components rather than cast.

CQC TRACK utilizes both manufacturing methods depending on the specific part number and application requirements, with premium-grade sprockets produced through closed-die forging processes using 52Mn, 55Mn, and 40CrNiMo alloy steels, ensuring optimal grain flow and material density in component blanks, fundamental for impact strength and fatigue life.

3. Heat Treatment Engineering

3.1 Metallurgical Principles for Sprocket Applications

Heat treatment is the single most critical manufacturing operation determining sprocket service life in mining applications. In the world of heavy machinery, undercarriage components constantly battle friction, pressure, and abrasive environments. Every sprocket, roller, and track shoe operates under immense load and repeated impact. To survive in such harsh conditions, material hardness is critical—and achieving that hardness depends on proper heat treatment.

Heat treatment is more than just a step in manufacturing; it is a science that transforms steel at the molecular level. Through controlled heating and cooling cycles—primarily quenching and tempering—metal achieves a precise balance between hardness and toughness. For excavator undercarriage components, this balance determines how long a part can endure before fatigue or deformation occurs.

The quenching process is where steel‘s real strength begins. The component is heated to a critical temperature (typically around 850–900°C), where its crystalline structure transforms into austenite. It is then rapidly cooled—usually by immersion in water or oil. This sudden temperature drop locks carbon atoms in place, forming a very hard but brittle microstructure known as martensite. This is how the hard, wear-resistant surface essential for sprocket teeth is created.

3.2 Quenching and Tempering Protocol

While quenching provides hardness, it also introduces brittleness. Tempering is the crucial follow-up step that relieves internal stresses and restores ductility. The component is reheated to a lower, controlled temperature (typically between 150–500°C) and held for a specific period before slow cooling. This process slightly reduces extreme hardness but significantly improves toughness, impact resistance, and flexibility. The result is an ideal combination—a hardened, wear-resistant surface and a strong, flexible core—perfect for sprockets that must withstand dynamic loads and shocks.

Heat-treated sprockets maintain proper tooth profiles longer, ensuring smooth engagement with track chains. This reduces chain wear and prevents premature failure.

3.3 Hardness Specifications

For Hitachi EX300-1/2/3 sprockets, the surface hardness typically ranges from HRC 42 to HRC 56 depending on the specific manufacturing specification, minimizing wear and extending the lifespan. Premium-grade sprockets for severe mining applications achieve surface hardness of HRC 52–58 with case depth of 8–12mm, providing extended wear life under high-abrasion conditions including silica-rich mine soils, crushed rock haul roads, and high-silica-content overburden materials.

3.4 Quality Control and Consistency

Effective heat treatment demands strict quality control. Manufacturers must continuously monitor temperature uniformity, soaking time, cooling rate, and metallographic structure to ensure the process meets performance requirements. Ignoring these parameters—or relying on inconsistent heat treatment—can drastically shorten component lifespan. Even minor temperature deviations during quenching or tempering can lead to uneven hardness, causing premature wear, cracking, or dimensional instability.

Components produced with advanced alloys and heat treatments undergo rigorous testing to ensure uniform hardness, impact resistance, and fatigue strength. This level of quality reduces the likelihood of unexpected failures and ensures machines operate at peak performance for longer periods.

4. Manufacturing Process Engineering

4.1 Closed-Die Forging Technology

CQC TRACK employs advanced closed-die forging processes for premium-grade sprocket production. The multi-stage hot precision forging process includes:

Primary Hot Forging: A heated billet is placed in a booster die mounted on a forging press to perform distribution of volume, establishing the basic material shape and density.

Secondary Hot Forging: The hot-forged material is placed in a blocker die to form the rib face, establishing the core structural geometry.

Tertiary Hot Forging: The secondarily hot-forged material is placed in a finisher die to keep right angles and planes of the toothed face and the rib face, achieving final dimensional accuracy.

Trimming-Piercing-Coining: The tertiarily hot-forged material is placed in a product guide die of a trimming-piercing-coining die to eliminate flash and form bolt holes simultaneously, eliminating the need for additional machining operations.

4.2 CNC Machining Capabilities

All critical surfaces of Hitachi cross-reference sprockets are machined using modern CNC lathes, milling machines, and drilling centers that perform rough and finish machining operations to ISO 2768-mK dimensional accuracy standards. Utilizing specialized hardening and tempering techniques ensures products possess outstanding mechanical characteristics, exceptional durability, and enhanced resistance to deformation and fracture. Manufactured using state-of-the-art machining centers and vertical CNC lathes to meet stringent precision standards.

4.3 Integrated Production Workflow

The company‘s manufacturing prowess is built on complete vertical integration and controlled sequential processes:

• In-House Forging & Forging Alliance: Utilization of premium 52Mn, 55Mn, and 40CrNiMo alloy steels through strategic control of forging parameters, ensuring optimal grain flow and material density in component blanks.
• CNC Machining Centers: Battery of modern CNC lathes, milling machines, and drilling centers performing rough and finish machining to ISO 2768-mK tolerances.
• Advanced Heat Treatment Lines: Computer-controlled induction hardening and tempering furnaces achieving deep, uniform case hardness profiles of HRC 52–58 with 8–12mm case depth.
• Anti-Corrosion Coating: Industrial-grade painting systems providing long-term rust protection, available in black, yellow, or customized colors to meet customer specifications.

5. Quality Assurance and Testing Protocols

5.1 ISO 9001:2015 Certified Manufacturing

Every CQC TRACK sprocket is manufactured under ISO 9001:2015 certified processes, with components traceable from raw material receipt through finished assembly. The quality management system encompasses all production stages:

• Material Certification: Incoming raw material certification verifying alloy composition and mechanical properties against industry standards, including mill test certificates.
• Forging Verification: Inspection of forged blanks for dimensional accuracy, surface quality, and absence of internal defects using ultrasonic testing.
• Heat Treatment Validation: Verification of hardness profiles and case depth using calibrated Rockwell hardness testers and metallographic examination.
• Machining Dimensional Checks: In-process and final dimensional inspection using CMM (Coordinate Measuring Machine) and precision gauging equipment.
• Final Testing: Visual inspection of tooth profiles, bolt hole verification, and dynamic balance testing where applicable.

5.2 Dimensional Inspection and Certification

Finished sprockets undergo comprehensive dimensional inspection using calibrated measurement equipment. Each critical dimension is verified against the OEM engineering specification, with inspection records maintained for full traceability. Key inspection points include:

• Overall diameter verification against specification (A dimension: 701mm for EX300-1/2/3)
• Tooth count confirmation (Z: 21 teeth)
• Pitch circle diameter measurement (C: 465mm)
• Bolt hole diameter verification (N: 20mm)
• Hub bore concentricity check
• Tooth profile geometry inspection using dedicated gauges

Dimensional inspection reports and metallurgical test certifications are available upon request, providing procurement professionals with documented evidence of quality compliance.

5.3 Warranty and Service Life Expectations

Industry-standard warranty coverage for aftermarket sprockets typically ranges from 12 to 24 months depending on the manufacturer and application. For Hitachi EX300-1/2/3 sprockets manufactured by CQC TRACK, warranty periods are aligned with customer requirements and application severity. Typical service life in mining applications ranges from 10,000 to 15,000 operating hours depending on ground conditions, operator practices, and maintenance schedules, with proper maintenance. For severely abrasive environments, service life may be reduced accordingly.

5.4 Anti-Corrosion Protection and Packaging

The sprocket surface is coated with anti-corrosion industrial paint, available in black, yellow, or customized colors to meet customer specifications. The coating protects the sprocket from rust and harsh environmental exposure during storage and field operations.

Finished sprockets are wrapped in anti-rust film and packed into pallets or fumigated wooden crates suitable for international ocean freight. Each package is labeled with part number, dimensions, and quantity for easy handling and identification at destination ports and warehouses. Packaging meets international shipping standards for seafreight export from Chinese ports to destinations worldwide, with fumigated wooden crates complying with ISPM 15 phytosanitary regulations.

6. Wear Diagnosis and Replacement Criteria

6.1 Primary Wear Indicators

For mining operations managing fleets of Hitachi EX300-1/2/3 excavators, early identification of sprocket wear is essential to prevent secondary damage to track chains and final drive components. The following wear indicators should be monitored:

Tooth Thickness Reduction: Teeth worn to less than 70% of original thickness indicates immediate replacement is required. Measurable using calibrated calipers or dedicated tooth wear gauges.

Hook Formation: When the driving face of the sprocket tooth develops a characteristic “hook” or undercut shape, this indicates significant wear has progressed beyond acceptable limits. Hook formation reduces driving efficiency and accelerates chain bushing wear.

Cracked Root Areas: Visual inspection of the tooth root radii should be performed regularly. Cracks in the root area indicate stress fatigue and can lead to catastrophic tooth failure if not addressed promptly.

Bolt Hole Elongation: Elongation or deformation of the mounting bolt holes indicates that the sprocket has been operating with loose bolts or that excessive torque has been applied. This condition compromises the sprocket’s secure mounting to the final drive hub.

Uneven Tooth Wear Pattern: If some teeth show significantly more wear than others, this may indicate misalignment between the sprocket and the track chain or issues with the final drive output shaft concentricity.

6.2 Replacement Interval Planning

A well-maintained sprocket directly reduces long-term operational costs. When replacing the track chain, always inspect and likely replace the sprockets for balanced wear. The economic rationale is straightforward: installing a new track chain on a worn sprocket will accelerate wear on the new chain’s bushings, significantly reducing overall system life. Conversely, installing a new sprocket on a worn chain will cause accelerated tooth wear and premature sprocket failure.

For mining operations, the recommended replacement strategy is to replace the sprocket and track chain as a matched set whenever either component reaches the end of its service life.

7. Installation Best Practices

7.1 Pre-Installation Preparation

Proper installation of a drive sprocket on a Hitachi EX300-1/2/3 excavator is critical to achieving expected service life. The following procedures should be followed:

1. Site Preparation: Park the machine on level ground. Engage the parking brake. Block the tracks securely to prevent unintended movement. Release track tension via the grease cylinder to allow removal of the track chain if necessary.
2. Component Inspection: Before installation, inspect the final drive output hub for spline wear, corrosion, or damage. Clean the hub surface thoroughly, removing all debris, old gasket material, and corrosion.
3. Hardware Inspection: Inspect all mounting bolts for thread damage or stretching. For mining-grade applications, use new bolts and washers of grade 10.9 or higher specification.

7.2 Torque Specifications

For EX300-class drive sprockets, the following torque specifications apply:

• Bolt Grade: 10.9 or higher
• Bolt Size: Typically M20–M24 depending on the specific final drive configuration
• Torque Value: 1,000–1,100 Nm (738–811 lb-ft)
• Torque Pattern: Staggered (criss-cross) pattern applied in three progressive stages

Apply a high-quality anti-seize compound (such as Komatsu P/N 20Y-63-12200 or equivalent) to bolt threads before installation to prevent galling and ensure accurate torque readings. Torque bolts in a staggered pattern to the specified value using a calibrated torque wrench.

7.3 Post-Installation Verification

After installation, perform the following verification steps:

1. Track Tension Adjustment: Re-establish proper track tension according to Hitachi EX300 specifications (typically measured as track sag between the front idler and the first track roller).
2. Rotation Check: Slowly rotate the track chain through at least one full revolution while listening for unusual noises and observing tooth-to-bushing engagement.
3. Bolt Re-Torque: After 2–4 hours of operation, re-torque the sprocket mounting bolts to the specified value to account for initial seating and thermal expansion.

8. Regional Market Applications: Mining-Focused Engineering

8.1 South America: Brazilian Iron Ore, Chilean Copper, and Peruvian Polymetallic Operations

The South American mining market presents unique demands for undercarriage components, with operations concentrated in Brazilian iron ore mines, Chilean copper mines, and Peruvian polymetallic operations. The region‘s heavy machinery market is characterized by high demand for excavators in the 28–30 ton class, with Hitachi EX300 series equipment extensively deployed across mining, quarrying, and major infrastructure projects. In Brazil, Vale’s Carajás iron ore mine and other large-scale operations utilize EX300-class excavators for overburden removal and material handling. Chile‘s copper mining industry, the world’s largest, relies on heavy excavators for open-pit operations in the Atacama Desert region. Peru‘s Antamina and Cerro Verde mines represent additional major deployment zones for Hitachi equipment.

For South American mining customers, CQC TRACK’s Hitachi cross-reference sprockets offer a compelling value proposition: OEM-equivalent quality at competitive pricing, with the ability to supply volume quantities through established export channels. The company‘s strategic location in Quanzhou—a premier industrial cluster for heavy machinery manufacturing with proximity to major international ports—enables efficient logistics to Latin American destinations including Brazil (Santos, Rio de Janeiro ports), Chile (Valparaíso, San Antonio ports), Peru (Callao port), Colombia, and Mexico.

8.2 Australia: Queensland Coal, Pilbara Iron Ore, and Goldfields Operations

The Australian mining industry demands aftermarket components that meet or exceed OEM performance standards, with consistent supply availability and industry-standard warranty coverage. Australian operators seek parts fit for purpose, of OEM-equivalent quality or higher, with reliable supply chains and documented quality certifications. The Pilbara region of Western Australia—home to the world’s largest iron ore mining operations—represents a primary deployment zone for Hitachi EX300-class excavators. Queensland‘s Bowen Basin coal mines, the Hunter Valley in New South Wales, and the Western Australian goldfields also utilize EX300 series excavators for overburden removal, coal extraction, and ore handling.

CQC TRACK’s manufacturing processes align with these requirements through ISO 9001:2015 certification, comprehensive testing protocols, and full component traceability. For Australian customers operating Hitachi EX300-1, EX300-2, and EX300-3 excavators in iron ore, coal, gold, and base metal mining operations, these sprockets provide reliable performance in the high-impact, high-abrasion conditions characteristic of Australian mine sites. Heat-treated sprockets maintain proper tooth profiles longer, ensuring smooth engagement with track chains, reducing chain wear and preventing premature failure in Australia’s highly abrasive ground conditions.

8.3 Europe: German Quarrying, French Infrastructure, and Scandinavian Mining

The European market requires undercarriage components to comply with relevant EU directives and safety standards. EN 474-12:2006/A1:2008 applies to cable excavators and their undercarriage systems, establishing essential health and safety requirements that CE marking confirms. Germany’s quarrying industry, particularly in the Rhineland and Bavarian regions, utilizes EX300-class excavators for limestone, basalt, and other aggregate extraction. France‘s infrastructure development sector and the Scandinavian mining industry (LKAB’s Kiruna iron ore mine in Sweden, the Pyhäsalmi mine in Finland) represent additional major application zones.

CQC TRACK maintains technical documentation and quality records that support CE compliance declarations for European customers. For parts distributors, equipment dealers, and mining service centers throughout Germany, France, Scandinavia, and Eastern Europe, the company provides comprehensive technical data packages including dimensional specifications, material certifications, and heat treatment records. Modern aftermarket rollers and sprockets often include advanced sealing systems and wear-resistant coatings, protecting against dirt, water, and impact in European operating conditions.

8.4 Russia and Central Asia: Siberian Mining, Kazakhstanean Copper, and Mongolian Operations

Following the realignment of global supply chains, Russian and Central Asian mining operators increasingly source heavy equipment components from Chinese manufacturers. Recent data indicates nearly 70% of Russian enterprises have selected Chinese manufacturing alternatives for Western equipment replacement, with Kazakhstan representing a growing market for Chinese mining equipment exports. Russia‘s vast mining industry—including Norilsk Nickel’s operations in Siberia, the Kuzbass coal basin, and various gold mining operations in the Russian Far East—utilizes EX300-class excavators for heavy-duty applications. Kazakhstan‘s copper mining operations (Kazakhmys, KAZ Minerals) and the Oyu Tolgoi copper-gold mine in Mongolia represent additional major deployment zones.

For customers in Russia, Kazakhstan, Uzbekistan, and Mongolia, CQC TRACK provides reliable supply through established export channels, with packaging suitable for rail and overland transport across Central Asian routes. The company’s manufacturing capacity supports volume orders for mining operations requiring regular undercarriage replacement schedules. High-quality aftermarket components—such as sprockets, track chains, rollers, and idlers—deliver durability and reliability while often costing significantly less than OEM counterparts, making fleet maintenance more predictable and financially manageable.

8.5 Service Center Network Strategy

CQC TRACK‘s strategic objective is to establish, directly or through authorized distributors, a well-integrated network of Mining Service Centres in the major mining areas around the world that provide complete specialized undercarriage maintenance service. These service centers employ properly trained professionals with the right expertise and tools, backed by the best parts availability to enable machines to be up and running quickly and reliably.

9. Sourcing Considerations for Procurement Professionals

9.1 Cross-Reference Verification

Before purchasing aftermarket undercarriage components, procurement professionals should verify compatibility using the machine’s serial number and the specific OEM part number. Aftermarket manufacturers typically provide cross-reference tables allowing direct matching of their parts to OEM numbers. The part numbers documented in this analysis—1022168, 71471228, and AT202586—serve as primary OEM references for direct cross-reference ordering. Original spare part numbers are for comparison purposes only.

9.2 Quality Documentation Requirements

When sourcing sprockets for mining applications, request supplier quality documentation including:

• ISO 9001:2015 certification
• Dimensional inspection reports
• Metallurgical test certifications (material grade verification)
• Heat treatment records (hardness profiles and case depth)
• Mill test certificates for raw material
• Bolt grade certification (where hardware is included)

Reputable manufacturers maintain full traceability from raw material to finished assembly, enabling verification of material grade, heat treatment parameters, and dimensional compliance. For steel parts like sprockets, the quality difference between OEM and aftermarket is largely about material grade and heat treatment. These can be measured and verified with hardness tests and metallurgical analysis.

9.3 Supply Chain and Lead Times

For mining operations requiring regular undercarriage replacement schedules, consistent supply availability is critical. CQC TRACK maintains finished goods inventory for high-demand part numbers including the 1022168, 71471228, and AT202586 sprocket assemblies, with lead times of 7–30 days depending on order volume and destination. Minimum order quantities are negotiable, with sample quantities available for qualification testing. The company‘s supply ability is substantial, with capacity of up to 10,000 pieces per month for sprocket production.

9.4 Cost Optimization Through Aftermarket Sourcing

Undercarriage components can account for up to 50% of a machine’s operating costs over its service life. For mining operations managing large fleets of Hitachi excavators, sourcing OEM-equivalent aftermarket sprockets from specialized manufacturers like CQC TRACK provides significant cost savings without compromising quality or reliability. The company‘s vertically integrated manufacturing—encompassing forging, heat treatment, CNC machining, and assembly—eliminates multiple supply chain markups, enabling competitive pricing for volume buyers.

The shift is driven by several factors. First, rising machinery costs and budget pressures have made aftermarket parts a smart investment. Contractors and fleet managers are seeking solutions that reduce expenses without compromising performance. Durability and performance have improved dramatically in the aftermarket sector. Manufacturers now use advanced forging, CNC machining, and heat treatment processes to produce components that match OEM specifications. Reinforced steel, precision-ground components, and multi-layered seals ensure long service life and reliable operation under extreme conditions.

10. Frequently Asked Questions for Mining Operations

Q1: What is the difference between a drive sprocket and a sprocket segment/rim?

A drive sprocket is the complete toothed wheel assembly that mounts to the final drive hub. A sprocket rim or segment refers to the toothed outer ring that engages the track chain. For EX300-1/2/3 excavators, the sprocket is typically a one-piece design rather than segmented.

Q2: How do I verify which sprocket part number my Hitachi EX300 excavator requires?

Verify using the machine serial number and the specific OEM part number from the parts manual. The three part numbers covered in this analysis—1022168, 71471228, and AT202586—cover the EX300-1, EX300-2, and EX300-3 model range. Note that EX300-5 uses different dimensions and should not be interchanged.

Q3: What materials are used in CQC TRACK sprockets for EX300 excavators?

CQC TRACK uses premium ZG40Mn cast steel, 20CrMnTi alloy steel, and for premium-grade applications, forged 42CrMo alloy steel, induction-hardened to HRC 52–58 with case depth of 8–12mm for optimal wear resistance.

Q4: Are these sprockets direct replacements for Hitachi OEM parts?

Yes, all sprockets manufactured by CQC TRACK are direct OEM cross-reference replacements, manufactured to Hitachi‘s original engineering specifications for dimensional accuracy and mechanical properties.

Q5: What quality certifications does CQC TRACK hold?

CQC TRACK operates under ISO 9001:2015 certified quality management systems with full component traceability from raw material through finished assembly.

Q6: What is the typical service life of a sprocket in mining applications?

Sprocket service life in mining applications typically ranges from 10,000 to 15,000 operating hours, depending on ground conditions, operator practices, and maintenance schedules.

Q7: When should I replace my excavator’s drive sprocket?

Replace the sprocket when teeth are worn to less than 70% of original thickness, when “hook” formation is visible on tooth profiles, or when cracks appear in tooth root areas.

Q8: Should I replace the sprocket when I replace the track chain?

Yes. When replacing the track chain, always inspect and likely replace the sprockets for balanced wear. Installing a new chain on a worn sprocket will rapidly accelerate chain bushing wear.

Q9: What is the lead time for volume orders of EX300 sprockets?

Lead times for volume orders of Hitachi EX300 sprockets typically range from 7–30 days depending on order volume and destination, with supply ability of up to 10,000 pieces per month.

Q10: What torque should be applied to sprocket mounting bolts?

For EX300-class drive sprockets, mounting bolts (typically grade 10.9) should be torqued to 1,000–1,100 Nm (738–811 lb-ft) in a staggered, three-stage pattern using a calibrated torque wrench.

11. Conclusion

The three Hitachi OEM cross-reference drive sprocket assemblies documented in this analysis—1022168, 71471228, and AT202586—represent essential power transmission components for EX300-1, EX300-2, and EX300-3 series hydraulic crawler excavators deployed in mining, quarrying, and heavy construction operations worldwide. As the primary active component in the undercarriage system, the sprocket converts the final drive motor‘s rotational torque into the linear pulling force that propels the machine, making its engineering integrity fundamental to machine mobility and operational productivity.

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) manufactures these sprockets to meet or exceed OEM specifications through advanced closed-die hot precision forging, precision CNC machining, computer-controlled induction heat treatment, and rigorous quality assurance protocols. The company’s ISO 9001:2015 certified manufacturing processes, comprehensive testing protocols, and strategic position as one of the top three undercarriage component manufacturers in Quanzhou‘s heavy machinery industrial cluster enable consistent supply to global mining markets.

For mining operators, equipment dealers, and parts distributors throughout South America (Brazil, Chile, Peru), Australia (Pilbara, Queensland, New South Wales), Europe (Germany, France, Scandinavia), and Russia/Central Asia (Siberia, Kazakhstan, Mongolia), these sprockets provide a reliable, cost-effective alternative to OEM parts without compromising on material quality, manufacturing precision, or service life.

Procurement professionals are encouraged to verify compatibility using the OEM part numbers provided, request quality documentation including material certifications and dimensional inspection reports, and establish direct supply relationships with specialized manufacturers to optimize total cost of ownership for Hitachi EX300-1/2/3 crawler excavator undercarriages. For fleet managers and maintenance supervisors, implementing a proactive sprocket inspection and replacement schedule—including regular tooth wear measurement, bolt torque verification, and coordinated sprocket-and-chain replacement—represents the most effective strategy for maximizing undercarriage system life and minimizing unplanned downtime.

This technical publication is intended for engineering and procurement professionals in the mining and heavy construction industries. All specifications are subject to verification against current OEM documentation. For current pricing, lead times, and technical support, contact CQC TRACK directly.
