Executive Summary

This technical publication delivers an exhaustive examination of the SANY SY950 and SY980 track upper roller (carrier roller) assembly—a mission-critical undercarriage component engineered for ultra-large mining-class hydraulic excavators. The SY950 and SY980 represent SANY’s flagship models in the 90-100 ton class, machines deployed in the most demanding applications including open-pit mining, large-scale quarry operations, major infrastructure projects, and heavy earthmoving operations worldwide.

The track upper roller assembly (alternatively designated as carrier roller or top roller) serves the essential function of supporting the upper run of the track chain between the front idler and rear sprocket, preventing excessive track sag and maintaining proper engagement with the drive system. For operators of SANY’s largest excavators, understanding the engineering principles, material specifications, and manufacturing quality indicators of this component is essential for making informed procurement decisions that optimize total cost of ownership in extreme-duty applications.

This analysis examines the SANY SY950/SY980 upper roller through multiple technical lenses: functional anatomy, metallurgical composition for mining applications, manufacturing process engineering, quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (operating under HELI Group affiliation) as a specialized manufacturer and supplier of mining-quality heavy-duty excavator chassis components operating from Quanzhou, China.

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application

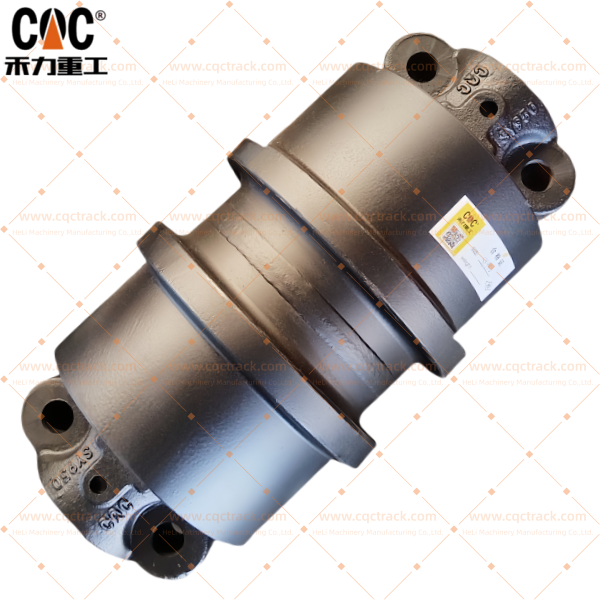

The SANY SY950 and SY980 track upper roller assembly is a precision-engineered undercarriage component specifically designed for SANY’s largest hydraulic excavator models. These machines represent the pinnacle of SANY’s excavator lineup, with operating weights in the 90-100 ton class, typically deployed in:

• Open-pit mining operations: Overburden removal, ore extraction, and mine site development
• Large-scale quarrying: Primary production in aggregate and dimensional stone operations
• Major infrastructure projects: Dam construction, highway development, and large earthmoving
• Heavy construction: Mass excavation for industrial and commercial developments

The upper roller (carrier roller) performs the critical function of supporting the upper strand of the track chain between the front idler and rear sprocket. In mining-class machines, the unsupported span of track chain can exceed 3-4 meters, and without proper support, the chain would sag excessively, causing:

• Increased power consumption from chain dragging on the track frame
• Accelerated wear of track chain components due to improper engagement
• Dynamic loading during machine operation as the chain whips and impacts
• Risk of derailment from chain instability during travel and operation

1.2 Primary Functional Responsibilities

The upper roller assembly in mining-class excavator applications performs three interconnected functions critical to machine performance and undercarriage longevity:

Track Chain Support: The upper roller’s peripheral surface contacts the track chain’s rail section, supporting the weight of the upper chain run. For 90-100 ton class machines with track chains weighing 200-300 kg per meter, the upper rollers must support substantial static loads while accommodating dynamic loading during machine operation.

Chain Guidance: The roller maintains proper chain alignment, preventing lateral displacement that could cause the chain to contact the track frame or other undercarriage components. This guidance function is particularly critical during machine turning and operation on side slopes.

Shock Load Management: During travel over uneven terrain, the upper roller absorbs impact loads transmitted through the track chain, protecting the track frame and final drive from shock-induced damage. This function demands both structural strength and controlled deflection characteristics.

1.3 Technical Specifications and Dimensional Parameters

While SANY’s exact engineering drawings remain proprietary, industry-standard specifications for 90-100 ton class mining excavator upper rollers typically encompass the following parameters based on CQC TRACK’s engineering data and cross-reference with heavy equipment industry standards:

These parameters are established through reverse engineering of OEM components and direct collaboration with equipment manufacturers. Premium aftermarket suppliers like CQC TRACK achieve tolerances of ±0.02 mm on critical bearing journals and seal housing bores, ensuring proper fit and long-term reliability in the most demanding applications.

1.4 Mining Quality Distinctions

“Mining quality” represents a distinct performance tier above standard heavy-duty construction specifications. For upper rollers in SY950/SY980 applications, mining quality encompasses:

• Enhanced material specifications with tighter alloy control and premium steel sources
• Increased hardened case depth (8-12 mm vs. 5-8 mm for standard duty)
• More robust bearing selections with higher dynamic load ratings
• Advanced sealing systems designed for extreme contamination environments
• 100% non-destructive testing of critical components
• Extended warranty coverage reflecting confidence in severe-duty performance

2. Metallurgical Foundation: Material Science for Mining Applications

2.1 Alloy Steel Selection Criteria for Extreme Duty

The service environment of a mining-class excavator upper roller presents the most demanding material requirements in the heavy equipment industry. The component must simultaneously:

• Resist abrasive wear from continuous contact with abrasive track chain and exposure to mining dust containing quartz, silicates, and other highly abrasive minerals
• Withstand impact loads from machine travel over rough mine terrain and shock loading during excavation cycles
• Maintain structural integrity under cyclic loading exceeding 10⁷ cycles over the machine’s lifetime
• Preserve dimensional stability despite exposure to temperature extremes (-40°C to +50°C), moisture, and chemical contaminants including fuels, lubricants, and mining reagents

Premium manufacturers like CQC TRACK select specific alloy steel grades that achieve the optimal balance of hardness, toughness, and fatigue resistance for mining applications:

42CrMo Chromium-Molybdenum Alloy: This is the preferred material for mining-class upper rollers. With carbon content of 0.38-0.45%, chromium of 0.90-1.20%, and molybdenum of 0.15-0.25%, 42CrMo (similar to AISI 4140) provides:

• Excellent hardenability for through-hardening of large-section components
• Superior fatigue resistance for cyclic loading applications
• Good toughness at high hardness levels
• Resistance to temper embrittlement during heat treatment

40Cr Chromium Alloy: For applications requiring slightly different property balances, 40Cr (similar to AISI 5140) with carbon 0.37-0.44% and chromium 0.80-1.10% provides excellent hardenability with good weldability for fabricated designs.

50Mn Manganese Steel: For roller bodies where enhanced wear resistance is prioritized over through-hardening, 50Mn with carbon 0.45-0.55% and manganese 1.4-1.8% provides excellent surface hardenability and wear resistance.

Material Traceability: Reputable manufacturers provide comprehensive material documentation, including Mill Test Reports (MTRs) certifying chemical composition with element-specific analysis (C, Si, Mn, P, S, Cr, Mo, Ni as applicable). Spectrographic analysis confirms alloy chemistry against certified specifications.

2.2 Forging vs. Casting: The Grain Structure Imperative

The primary forming method fundamentally determines the upper roller’s mechanical properties and service life. While casting offers cost advantages for simple geometries, it produces an equiaxed grain structure with random orientation, potential porosity, and inferior impact resistance. Premium mining-class upper roller manufacturers exclusively employ closed-die hot forging for the roller body.

The forging process for SY950/SY980 class components begins with cutting large-diameter steel billets to precise weight, heating them to approximately 1150-1250°C until fully austenitized, then subjecting them to high-pressure deformation between precision-machined dies in hydraulic presses capable of thousands of tons of force.

This thermo-mechanical treatment produces continuous grain flow that follows the component contour, aligning grain boundaries perpendicular to principal stress directions. The resulting structure exhibits 20-30% higher fatigue strength and significantly greater impact energy absorption compared to cast alternatives—a critical advantage in mining applications where impact loads can be severe.

After forging, components undergo controlled cooling to prevent the formation of detrimental microstructures such as Widmanstätten ferrite or excessive grain boundary carbide precipitation.

2.3 Dual-Property Heat Treatment Engineering

The metallurgical sophistication of a mining-quality upper roller manifests in its precisely engineered hardness profile—a hard, wear-resistant surface coupled with a tough, impact-absorbing core:

Quenching and Tempering (Q&T) : The entire forged roller body is austenitized at 840-880°C, then rapidly quenched in agitated water, oil, or polymer solution. This transformation produces martensite—providing maximum hardness but with associated brittleness. Immediate tempering at 500-650°C allows carbon to precipitate as fine carbides, relieving internal stresses and restoring toughness. The resulting core hardness typically ranges from 280-350 HB (29-38 HRC), providing optimal toughness for impact absorption in mining applications.

Induction Surface Hardening: Following finish machining, the critical wear surface—the tread diameter—undergoes localized induction hardening. A precision-designed copper inductor coil surrounds the component, inducing eddy currents that rapidly heat the surface layer to austenitizing temperature (900-950°C) within seconds. Immediate water quenching produces a martensitic case of 8-12 mm depth with surface hardness of HRC 55-60, providing exceptional resistance to abrasive wear from track chain contact.

Hardness Profile Verification: Quality manufacturers perform microhardness traverses on sample components to verify case depth compliance with specifications. The hardness gradient from surface (HRC 55-60) through the hardened case to the core (280-350 HB) must follow a controlled transition to prevent spalling or case-core separation under impact loading.

This differential hardening creates the ideal composite structure for mining applications: a wear-resistant surface that withstands millions of cycles of abrasive contact with track chain, supported by a tough core that absorbs impact loads without catastrophic fracture.

2.4 Quality Assurance Protocols for Mining Components

Manufacturers like CQC TRACK implement multi-stage quality verification throughout production, with enhanced protocols for mining-class components:

• Spectroscopic Material Analysis: Confirms alloy chemistry against certified specifications at raw material receipt, with enhanced element verification for critical alloys.
• Ultrasonic Testing (UT) : 100% inspection of critical forgings verifies internal soundness, detecting any centerline porosity, inclusions, or laminations that could compromise structural integrity under mining loads.
• Hardness Verification: Rockwell or Brinell hardness testing confirms both core hardness after Q&T treatment and surface hardness after induction hardening. Enhanced sampling rates for mining components.
• Magnetic Particle Inspection (MPI) : Examines critical areas—particularly flange roots and shaft transitions—detecting any surface-breaking cracks or grinding burns with enhanced sensitivity.
• Dimensional Verification: Coordinate Measuring Machines (CMM) verify critical dimensions, with statistical process control maintaining process capability indices (Cpk) exceeding 1.33 for critical features.
• Mechanical Testing: Sample components undergo tensile testing and impact testing (Charpy V-notch) at reduced temperatures to verify toughness for cold-climate mining operations.
• Microstructural Evaluation: Metallographic examination verifies proper grain structure, case depth, and absence of detrimental phases.

3. Precision Engineering: Component Design and Manufacturing

3.1 Roller Geometry for Mining Applications

The upper roller geometry for SY950/SY980 class machines must precisely match the track chain specifications while accommodating the extreme loads of mining operations:

Outer Diameter: The 350-420 mm diameter is calculated to provide appropriate rotational speed and bearing life at typical travel speeds (2-4 km/h). The diameter must be maintained within tight tolerances to ensure consistent chain support height and proper engagement with track links.

Tread Profile: The contact surface may incorporate a slight crown (typically 0.5-1.0 mm radius) to accommodate minor track misalignment and prevent edge loading that could accelerate localized wear. The profile is optimized through finite element analysis to ensure uniform pressure distribution across the contact patch.

Flange Configuration: Upper rollers for mining excavators may be offered in single-flange or double-flange configurations depending on track guidance requirements:

• Single-flange designs: Provide lateral constraint on one side, allowing some misalignment accommodation
• Double-flange designs: Provide positive retention in both directions, preferred for severe side-slope operations

Flange Geometry: Flange angles typically incorporate 5-10° relief to facilitate debris ejection and prevent material packing. Root radii are optimized to minimize stress concentration while providing adequate strength for anti-derailment function.

3.2 Shaft and Bearing System Engineering for Mining Loads

The stationary shaft must withstand continuous bending moments and shear stresses while maintaining precise alignment with the rotating roller body. For SY950/SY980 applications, shaft diameters typically range 90-110 mm, calculated based on:

• Static machine weight distributed to each upper roller (typically 3-5 tonnes per roller)
• Dynamic load factors of 2.5-3.5 for mining applications (higher than construction due to impact)
• Track tension loads transmitted through the chain
• Side loads during turning and slope operation

The bearing system for mining-class upper rollers employs heavy-duty spherical roller bearings, which are preferred because they:

Accommodate Combined Loads: Spherical roller bearings simultaneously support high radial loads (from chain weight and dynamic loading) and moderate thrust loads (from lateral track forces).

Allow Misalignment: The self-aligning capability of spherical roller bearings accommodates minor frame deflection and installation tolerances, preventing edge loading that would reduce bearing life.

Provide High Load Capacity: The optimized internal geometry provides maximum load capacity within the available envelope dimensions.

Bearings Specifications: Premium manufacturers source bearings with:

• Dynamic load ratings (C) appropriate for mining duty cycles
• Cage designs optimized for shock loading (machined brass cages preferred)
• Internal clearances selected for operating temperature range (C3 or C4 clearance classes)
• Enhanced raceway finishes for improved fatigue life

The shaft bearing journals are precision-ground and often surface-treated (e.g., chrome plating or nitriding) for enhanced wear and corrosion resistance.

3.3 Advanced Multi-Stage Sealing Technology for Mining Environments

The seal system is the single most critical determinant of upper roller longevity in mining applications, where machines operate in environments with extreme contamination levels. Industry data indicates that over 80% of premature roller failures in mining originate from seal compromise, allowing abrasive particles to enter the bearing cavity.

Premium mining-class upper rollers from CQC TRACK employ multi-stage, heavy-duty sealing systems specifically engineered for mining environments:

Primary Heavy-Duty Floating Seal: Precision-ground hardened iron or steel rings with lapped sealing faces achieving flatness within 0.5-1.0 µm. For mining applications, seal face materials and coatings are selected for:

• Enhanced wear resistance in high-contamination environments
• Improved corrosion resistance for wet mining conditions
• Optimized face width for extended service life

Secondary Radial Lip Seal: Manufactured from HNBR (Hydrogenated Nitrile Butadiene Rubber) material with:

• Exceptional temperature resistance (-40°C to +150°C)
• Chemical compatibility with extreme pressure (EP) greases and mining fluids
• Enhanced abrasion resistance for contaminated environments
• Positive sealing pressure maintained by garter spring

External Labyrinth-Style Dust Guard: Creates a tortuous path with multiple chambers that progressively trap coarse contaminants before they reach the primary seals. The labyrinth is:

• Packed with high-adhesion, extreme-pressure grease
• Designed with expulsion channels for self-cleaning action
• Configured to maintain sealing effectiveness even when stationary

Heavy-Duty Wear Rings: Hardened steel rings protect the shaft and housing in the seal contact area, providing sacrificial wear surfaces that maintain seal alignment even as components wear.

Pre-Lubrication: The bearing cavity is pre-filled with mining-grade, high-adhesion, extreme pressure (EP) grease containing:

• Molybdenum disulfide (MoS₂) or graphite for boundary lubrication
• Enhanced anti-wear additives for shock load protection
• Corrosion inhibitors for wet environment operation
• Oxidation stabilizers for extended service intervals

3.4 Mounting Bracket and Frame Interface

The upper roller mounts to the track frame via robust brackets that must withstand the full dynamic loads of mining operation. Critical design features include:

• Precision-Machined Mounting Surfaces: Ensure proper alignment and load distribution to the track frame
• High-Strength Fasteners: Grade 10.9 or 12.9 bolts with controlled tightening specifications
• Positive Locking Features: Tab washers, locking plates, or thread-locking compounds to prevent loosening under vibration
• Grease Fittings: Equipped for scheduled re-lubrication of any serviceable interfaces
• Corrosion Protection: Heavy-duty paint systems or zinc-rich coatings for mine environment durability

3.5 Precision Machining and Quality Control

Modern CNC machining centers achieve dimensional tolerances that directly correlate with service life in mining applications. Critical parameters for SY950/SY980 class upper rollers include:

CNC-controlled turning and grinding processes guarantee precise geometry and surface finish for smooth track chain interaction. In-process dimensional verification with real-time feedback to machine operators enables immediate correction of process drift.

3.6 Assembly and Pre-Delivery Testing

Final assembly is performed in clean-room conditions to prevent contamination—a critical requirement for mining components where even microscopic contaminants can initiate premature wear. Assembly protocols include:

• Component Cleaning: Ultrasonic cleaning of all components before assembly
• Controlled Environment: Positive-pressure clean areas with HEPA filtration
• Bearing Installation: Precision pressing with force monitoring to ensure proper seating
• Seal Installation: Specialized tools prevent damage to sealing lips and faces
• Lubrication: Measured grease fill with specified mining-grade lubricants
• Rotation Testing: Verification of smooth rotation and correct bearing preload

Pre-delivery testing for mining-class upper rollers includes:

• Rotational torque test to verify smooth rotation and correct bearing preload
• Seal integrity test with pressurized air and soap solution to detect leakage paths
• Dimensional inspection of the assembled unit to verify all critical fits
• Visual inspection of seal installation, fastener torque, and overall workmanship
• Mechanical run-in on sample basis to verify performance under simulated loads
• Ultrasonic re-inspection of critical areas after final machining

4. CQC TRACK: Manufacturer Profile and Capabilities for Mining Components

4.1 Company Overview and Industry Position

CQC TRACK (operating under HELI Group affiliation) is a specialized industrial manufacturer and supplier of heavy-duty undercarriage systems and chassis components, operating on both ODM and OEM principles. Based in Quanzhou, Fujian Province—a region recognized for specialized expertise in customized undercarriage solutions—the company has established itself as a significant player in the global undercarriage components market, with particular strength in mining-class components.

With specialized focus on undercarriage components for global markets, CQC TRACK has developed comprehensive capabilities across the entire undercarriage product spectrum, including track rollers, carrier rollers, front idlers, sprockets, track chains, and track shoes for applications ranging from mini excavators to ultra-large mining-class machines. The company serves as a source factory and manufacturer for mining-quality spare parts, supplying international distributors, mining operations, and aftermarket networks worldwide.

4.2 Technical Capabilities and Engineering Expertise for Mining Applications

Integrated Heavy-Duty Manufacturing: CQC TRACK controls the full production cycle from material sourcing and forging to precision machining, heat treatment, assembly, and quality testing. For mining-class components, this vertical integration ensures consistent quality and complete traceability throughout the manufacturing process—essential for components that must perform reliably under extreme conditions.

Advanced Metallurgical Expertise: The company’s technical team leverages advanced metallurgical knowledge and dynamic load simulation tools to design components for mining duty cycles. For SY950/SY980 class upper rollers, this includes:

• Finite Element Analysis (FEA) of stress distribution under mining loads
• Fatigue life prediction based on mining duty cycle data
• Material selection optimization for specific mine environment conditions
• Heat treatment process development for large-section components
• Case depth optimization for wear life versus toughness balance

Mining-Specific Design Features: CQC TRACK’s engineering team incorporates design elements specifically for mining applications:

• Enhanced seal systems for extreme contamination environments
• Optimized flange geometries for mine terrain operation
• Reinforced bearing configurations for impact loading
• Corrosion-resistant coatings for wet mining conditions
• Wear indicator features for maintenance planning

Quality Assurance for Mining Components: CQC TRACK implements enhanced quality protocols for mining-class products, including:

• 100% ultrasonic testing of critical forgings
• Enhanced sampling rates for hardness verification
• Extended dimensional verification protocols
• Mining-specific test criteria and acceptance standards
• Comprehensive documentation packages for quality traceability

4.3 Product Range for SANY Mining Excavators

CQC TRACK manufactures a comprehensive range of undercarriage components for SANY’s largest excavator models, including:

The company maintains tooling and production capability for multiple SANY mining excavator models, ensuring consistent supply for both current production and field support requirements.

4.4 Global Supply Capability for Mining Operations

CQC TRACK has strengthened its technical services in geographic areas closest to its mining customers, with particular attention to:

• Major mining regions: Australia, Indonesia, South Africa, Chile, Peru, Canada, Russia
• Infrastructure development zones: Middle East, Southeast Asia, Africa
• Heavy construction markets: North America, Europe, China

This strategy enables the company to develop optimized solutions for specific mining applications and environments in collaboration with customers worldwide. With production facilities in Quanzhou and strategic partnerships across China’s undercarriage manufacturing ecosystem, CQC TRACK offers:

• Competitive lead times: Typically 35-55 days for custom mining-class production
• Flexible minimum order quantities: Suitable for both mine-site inventory programs and just-in-time maintenance requirements
• Emergency response capability: Expedited production for critical downtime situations
• Technical field support: Engineering consultation for application optimization

5. SANY SY950 and SY980 Mining Excavator Overview

5.1 Machine Classification and Applications

The SANY SY950 and SY980 represent the pinnacle of SANY’s excavator lineup, designed and built for the most demanding mining and heavy construction applications worldwide:



Model	Operating Weight	Engine Power	Typical Applications
SY950	90-95 tons	420-450 kW	Large-scale mining, major quarrying, heavy infrastructure
SY980	95-100 tons	450-500 kW	Ultra-large mining, primary overburden removal, major excavation

These machines feature:

• Heavy-duty undercarriage systems designed for 20,000+ hour service life
• Mining-grade components throughout, including upper rollers engineered for extreme duty
• Advanced hydraulic systems for maximum productivity and efficiency
• Operator-focused cabs with comprehensive monitoring and control systems
• Global service support through SANY’s worldwide dealer network

5.2 Undercarriage System Specifications

The undercarriage system for SY950/SY980 class machines represents the state of the art in heavy-duty track design:

The upper rollers in this system must support track chain spans of 2-3 meters between supports, with chain weights exceeding 300 kg per meter—resulting in static loads of 600-900 kg per roller before dynamic factors are applied.

5.3 Mining Duty Cycle Considerations

Upper rollers in mining applications experience duty cycles significantly more severe than construction applications:

• Continuous operation: Often 20+ hours per day, 6-7 days per week
• High travel distances: Frequent repositioning across mine sites
• Rough terrain: Operation on unimproved mine roads and benches
• Extreme temperatures: From arctic cold to desert heat
• Contamination: Exposure to abrasive dust, mud, water, and chemicals
• Impact loading: Travel over mine debris and uneven surfaces

These conditions demand upper rollers with enhanced specifications, robust sealing, and quality assurance beyond standard heavy-duty components.

6. Performance Validation and Service Life Expectations for Mining Applications

6.1 Benchmarks for Mining-Class Excavator Upper Rollers

Field data from diverse mining operations provides realistic performance expectations for SY950/SY980 class upper rollers:

Premium aftermarket upper rollers from reputable manufacturers like CQC TRACK demonstrate performance parity with OEM mining-class components, achieving 85-95% of OEM service life at significantly lower acquisition cost (typically 30-50% below OEM pricing).

6.2 Common Failure Modes in Mining Applications

Understanding failure mechanisms enables proactive maintenance and informed procurement decisions for mining operations:

Seal Failure and Contamination Ingress: The predominant failure mode in mining applications, seal compromise allows abrasive particles to enter the bearing cavity. Mining environments with high concentrations of quartz, silicates, and other hard minerals accelerate seal wear and contaminant ingress. Initial symptoms include:

• Grease leakage around seals (visible as wetness or accumulated debris)
• Increasing operating temperature (detectable by infrared thermography)
• Rough rotation as contamination initiates bearing wear
• Eventually, seizure or catastrophic bearing failure

Flange Wear: Progressive wear on flange faces indicates inadequate surface hardness or improper track alignment. In mining applications, this can be accelerated by:

• Frequent operation on side slopes
• Tight turning on abrasive surfaces
• Track misalignment from worn components
• Impact damage from mine debris

Tread Wear and Diameter Reduction: The roller tread gradually wears from continuous contact with track chain. When tread diameter reduction exceeds specifications (typically 10-15 mm), chain support height decreases, altering engagement geometry and accelerating wear of both roller and chain.

Bearing Fatigue: After extended service, bearings may exhibit spalling due to subsurface fatigue, indicating the component has reached its natural life limit. In mining applications, this is often accelerated by:

• Higher-than-expected dynamic loading
• Contamination-induced surface distress
• Lubricant degradation from high temperatures
• Misalignment from frame deflection

Shaft Fatigue: In severe applications, shaft fatigue cracks may develop at stress concentration points, potentially leading to catastrophic failure if undetected.

6.3 Wear Indicators and Inspection Protocols for Mining Operations

Regular inspection at 250-hour intervals (or weekly for continuous mining operations) should check for:

• Seal condition: Grease leakage, debris accumulation, seal damage
• Roller rotation: Smoothness, noise, binding
• Flange condition: Wear, damage, sharp edges
• Tread condition: Wear pattern, diameter measurement, surface damage
• Mounting integrity: Fastener torque, bracket condition, alignment
• Frame interface: Wear plate condition, clearance, lubrication
• Operating temperature: Comparison with baseline, sister rollers
• Unusual noises: Grinding, squeaking, knocking during operation

Advanced inspection techniques for mining operations may include:

• Ultrasonic thickness measurement of tread and flange sections
• Magnetic particle inspection of shafts during major overhauls
• Thermographic imaging to identify bearing distress before failure
• Oil analysis of any serviceable bearings
• Vibration analysis for predictive maintenance programs

7. Installation, Maintenance, and Service Life Optimization for Mining Applications

7.1 Professional Installation Practices for Mining-Class Excavators

Proper installation significantly impacts upper roller service life in SY950/SY980 class machines:

Track Frame Preparation: The mounting surfaces on the track frame must be clean, flat, and free of burrs or damage. Any wear or deformation should be repaired before installation to ensure proper alignment and load distribution.

Mounting Bracket Inspection: The brackets themselves should be inspected for:

• Wear or deformation of mounting surfaces
• Crack initiation at stress points
• Corrosion damage
• Thread condition in mounting holes

Fastener Specifications: All mounting bolts must be:

• Grade 10.9 or 12.9 as specified
• Clean and lightly oiled before installation
• Tightened in proper sequence to specified torque using calibrated tools
• Equipped with appropriate locking features (lock washers, thread locker, etc.)

Alignment Verification: After installation, verify that:

• The roller is parallel to the track frame
• The roller contacts the track chain evenly across its width
• Clearances to adjacent components meet specifications
• The roller rotates freely without binding

Track Tension Adjustment: After installation, verify proper track tension according to machine specifications. For mining-class machines, proper sag typically ranges 30-50 mm measured at the center of the upper chain run between carrier rollers.

7.2 Preventive Maintenance Protocols for Mining Operations

Regular Inspection Intervals: Visual inspection at 250-hour intervals (weekly for continuous mining) should check for all wear indicators previously described. More frequent inspection (daily walk-around) should include visual check for obvious seal leakage or damage.

Track Tension Management: Proper track tension directly impacts upper roller life. Excessive tension increases bearing loads; insufficient tension allows chain slapping that accelerates seal deterioration and increases impact loads. Check tension:

• At every 250-hour service interval
• After the first 10 hours on new components
• When operating conditions change significantly
• When abnormal track behavior is observed

Cleaning Protocols: In mining environments, proper cleaning is essential but must be performed correctly:

• Avoid high-pressure washing directed at seal areas, which can force contaminants past seals
• Use low-pressure water for general cleaning
• Remove accumulated debris from around rollers during daily inspections
• Allow components to dry thoroughly before extended idle periods in cold climates

Lubrication: For upper rollers with sealed bearings, no additional lubrication is required during service life. For any serviceable components:

• Use specified mining-grade greases with appropriate additives
• Follow recommended intervals and quantities
• Purge until clean grease appears at relief points
• Wipe fittings clean before and after lubrication

Operating Practice Considerations: Operator practices significantly impact roller life:

• Minimize high-speed travel over rough terrain
• Avoid sudden direction changes that impose high side loads
• Reduce travel speed when crossing obstacles
• Keep track tension properly adjusted for conditions
• Report unusual noises or handling immediately

7.3 Replacement Decision Criteria for Mining Operations

Upper rollers for SY950/SY980 class machines should be replaced when:

• Seal leakage is evident and cannot be stopped
• Radial or axial play exceeds manufacturer specifications (typically 3-5 mm)
• Flange wear reduces guidance effectiveness or creates sharp edges
• Tread wear exceeds hardened case depth (typically when diameter reduction exceeds 10-15 mm)
• Tread diameter reduction impairs proper chain support
• Bearing rotation becomes rough, noisy, or irregular
• Visible damage including cracks, spalling, or impact damage
• Mounting integrity is compromised by worn or damaged brackets

7.4 System-Based Replacement Strategy for Mining Operations

For optimal undercarriage performance and cost efficiency in mining applications, the upper roller condition should be evaluated alongside:

• Track chain: Pin and bushing wear, rail condition, seal effectiveness
• Track rollers: Seal condition, tread wear, bearing condition
• Front idler: Tread and flange condition, bearing condition, yoke wear
• Sprocket: Tooth wear, segment condition, mounting integrity
• Track frame: Alignment, wear plate condition, structural integrity

Replacing severely worn components in a matched set is considered best practice to prevent accelerated wear on new parts. Industry best practice recommends:

• Replace in pairs: Upper rollers on both sides should be replaced together to maintain balanced performance
• Consider system replacement: When multiple components show significant wear, full undercarriage replacement may be most cost-effective
• Schedule during major service: Plan replacement during scheduled downtime to minimize production impact

For mining operations with multiple machines, developing component life data enables predictive replacement planning, optimizing parts inventory and minimizing unplanned downtime.

8. Strategic Sourcing Considerations for Mining Components

8.1 The OEM vs. Aftermarket Decision for Mining Operations

Mining equipment managers must evaluate the OEM versus high-quality aftermarket decision through multiple lenses:

Cost Analysis: Aftermarket components from manufacturers like CQC TRACK typically offer 30-50% initial cost savings compared to OEM parts. For mining fleets with multiple SY950/SY980 class machines operating 6,000+ hours annually, this differential can represent millions in annual savings. However, total cost of ownership calculations must factor in:

• Expected service life in specific mine conditions
• Maintenance labor costs for replacement
• Production downtime impact during replacement
• Warranty coverage and claim processing efficiency
• Parts availability and lead time reliability

Quality Parity: Premium aftermarket manufacturers achieve performance parity with OEM mining-class components through:

• Equivalent material specifications (42CrMo, 40Cr, 50Mn)
• Comparable heat treatment processes (core 280-350 HB, surface HRC 55-60)
• Mining-grade sealing systems with enhanced contamination protection
• Rigorous quality control with 100% NDT of critical components
• Comprehensive testing and validation protocols

CQC TRACK’s ISO 9001 certification and mining-specific quality protocols ensure consistent quality suitable for the most demanding applications.

Warranty Considerations: OEM warranties typically cover 1-2 years or 3,000-4,000 hours, with strict installation requirements and parts sourcing through authorized dealer networks. Reputable aftermarket manufacturers offer comparable warranties covering manufacturing defects, with coverage periods of 1-2 years and flexibility regarding installation providers.

Availability and Lead Times: OEM parts may face extended lead times due to centralized distribution and potential supply chain disruptions—critical considerations for mining operations where downtime costs can exceed $1,000 per hour. Aftermarket manufacturers with local production often deliver within 4-8 weeks, with emergency expediting available for critical situations.

Technical Support: Aftermarket suppliers with mining engineering expertise can provide:

• Application engineering support for specific mine conditions
• Custom modifications for unique requirements
• Field service support for installation and troubleshooting
• Component life data for predictive maintenance planning

8.2 Supplier Evaluation Criteria for Mining Applications

Procurement professionals for mining operations should apply rigorous evaluation frameworks when assessing potential upper roller suppliers:

Manufacturing Capability Assessment: Facility evaluations should verify the presence of:

• Large-capacity forging equipment for mining-class components
• Modern CNC machining centers with large-envelope capability
• Automated heat treatment lines with atmosphere control and quenching systems for large components
• Induction hardening stations with process monitoring and verification
• Clean-room assembly areas with contamination control
• Comprehensive testing facilities including UT, MPI, CMM, and metallurgical laboratory

Quality Management Systems: ISO 9001:2015 certification represents the minimum acceptable standard. Suppliers with additional certifications demonstrate enhanced commitment to quality:

• ISO/TS 16949 for automotive-grade quality systems
• ISO 14001 for environmental management
• OHSAS 18001 for occupational health and safety
• CE marking for European market compliance

Material and Process Transparency: Reputable manufacturers readily provide:

• Material certifications (MTRs) with full chemistry and mechanical properties
• Heat treatment process documentation and verification records
• Inspection reports for dimensional verification and NDT
• Sample testing capability for customer verification
• Metallurgical analysis upon request

Production Capacity and Lead Times: Mining operations require reliable supply:

• Typical lead times for custom mining-class production: 35-55 days
• Inventory programs for critical components
• Emergency response capability for unplanned failures
• Capacity to support multiple machines or entire fleets

Experience and Reputation: Suppliers with extensive experience in mining applications demonstrate sustained capability:

• Years in business serving mining customers
• Reference accounts in similar mining operations
• Case studies of successful applications
• Industry recognition and certifications

8.3 The CQC TRACK Advantage for Mining Applications

CQC TRACK offers several distinct advantages for SANY mining excavator undercarriage procurement:

• Mining-Class Manufacturing Capability: Components engineered specifically for extreme-duty mining applications, with enhanced specifications beyond standard heavy-duty components
• Integrated Production Control: Full vertical integration from material sourcing through final assembly ensures consistent quality and complete traceability—essential for mining operations
• Material Excellence: Utilization of premium alloy steels (42CrMo, 40Cr, 50Mn) with controlled chemistry, achieving surface hardness of HRC 55-60 and case depths of 8-12 mm for optimal wear resistance in mining environments
• Mining-Grade Sealing: Advanced multi-stage sealing systems designed for extreme contamination environments
• Comprehensive Quality Assurance: Enhanced testing protocols including 100% ultrasonic inspection of critical forgings
• Application Expertise: Technical team with deep understanding of SANY mining excavator undercarriage systems and mining duty cycle requirements
• Global Supply Capability: Established distribution networks serving major mining regions worldwide with reliable lead times
• Competitive Economics: 30-50% cost savings compared to OEM components while maintaining mining-class quality

9. Market Analysis and Future Trends for Mining Undercarriage Components

9.1 Global Demand Patterns

The global market for mining-class excavator undercarriage components continues expanding, driven by:

Commodity Demand Growth: Increasing global demand for minerals, metals, and aggregates drives expansion of mining operations worldwide, creating demand for both new equipment and replacement parts.

Mining Fleet Modernization: Aging mining fleets require ongoing undercarriage maintenance and replacement, with many machines operating 40,000+ hours over their lifetimes.

New Mine Development: Major mining projects in Africa, South America, Australia, and Asia create demand for new equipment and establish ongoing parts requirements.

Infrastructure-Led Growth: Infrastructure development in emerging economies drives demand for aggregates and construction materials, supporting quarry operations that utilize large excavators.

9.2 Technological Advancements

Emerging technologies are transforming undercarriage component manufacturing for mining applications:

Advanced Materials Development: Research into nano-modified steels and advanced heat treatment cycles promises next-generation materials with enhanced wear resistance without sacrificing toughness—particularly valuable for mining applications where wear life directly impacts operating cost.

Induction Hardening Optimization: Advanced induction systems with real-time temperature monitoring and feedback control achieve unprecedented uniformity in case depth and hardness distribution, extending wear life while reducing energy consumption.

Automated Assembly and Inspection: Robotic assembly systems with integrated vision inspection ensure consistent seal installation and dimensional verification, eliminating human variability in critical processes.

Predictive Maintenance Technologies: Embedded sensors in undercarriage components can monitor temperature, vibration, and wear in real time, enabling predictive maintenance and reducing unplanned downtime—particularly valuable for remote mining operations.

Digital Twin Simulation: Advanced simulation tools enable manufacturers to model component performance under specific mining conditions, optimizing designs for particular applications and environments.

8.3 Sustainability and Remanufacturing

Growing emphasis on sustainability in mining operations is driving interest in remanufactured undercarriage components:

• Component Rebuilding: Processes for reclaiming and rebuilding worn upper rollers, extending component life and reducing environmental impact
• Material Recovery: Recycling of worn components for material recovery
• Life Extension Technologies: Advanced welding and heat treatment processes for component refurbishment
• Circular Economy Initiatives: Programs for core return and remanufacturing

CQC TRACK is developing capabilities in component remanufacturing to support mining customers’ sustainability goals while providing cost-effective replacement options.

10. Conclusion and Strategic Recommendations for Mining Operations

The SANY SY950 and SY980 track upper roller assembly represents a precision-engineered mining-class component whose performance directly impacts machine availability, operating cost, and mine productivity. Understanding the technical intricacies—from alloy selection (42CrMo/40Cr/50Mn) and forging methodology through precision machining, bearing systems, and multi-stage mining-grade seal design—enables mining equipment managers to make informed procurement decisions that balance initial cost against total cost of ownership in the most demanding applications.

For mining operations operating SANY’s largest excavators, the following strategic recommendations emerge from this comprehensive analysis:

1. Prioritize mining-grade specifications over standard heavy-duty components, verifying material grades (42CrMo preferred), heat treatment parameters (core 280-350 HB, surface HRC 55-60, case depth 8-12 mm), and seal system design for extreme contamination environments.
2. Verify sealing system robustness, recognizing that multi-stage mining seals with HNBR lip seals, heavy-duty floating seals, and labyrinth dust guards provide essential protection in mine site conditions.
3. Evaluate suppliers through mining-capability lens, seeking evidence of large-component forging capacity, modern CNC equipment, heat treatment capability for large sections, and comprehensive NDT facilities.
4. Demand material and process transparency, requesting and verifying material certifications, heat treatment records, and inspection reports—essential for components that must perform reliably under extreme loads.
5. Implement mining-appropriate maintenance protocols, including regular inspection for seal condition, tread wear, and flange integrity, with predictive techniques such as thermography and vibration analysis for early failure detection.
6. Adopt system-based replacement strategies, evaluating upper roller condition alongside track chain, track rollers, and idlers to optimize undercarriage performance and prevent accelerated wear of new components.
7. Develop strategic supplier partnerships with manufacturers like CQC TRACK that demonstrate mining-class technical competence, quality commitment, and supply chain reliability, transitioning from transactional purchasing to collaborative relationship management.
8. Consider total cost of ownership, evaluating aftermarket options that offer 30-50% cost savings while maintaining mining-class quality and performance parity with OEM components.

By applying these principles, mining operations can secure reliable, cost-effective undercarriage solutions that maintain excavator productivity while optimizing long-term operational economics—the ultimate objective of professional equipment management in today’s competitive mining environment.

CQC TRACK, as a specialized manufacturer with integrated production capabilities and comprehensive quality assurance for mining applications, represents a viable source for SANY SY950 and SY980 upper roller assemblies, offering mining-class quality with the cost advantages of specialized Chinese manufacturing.

Frequently Asked Questions (FAQ) for Mining Applications

Q: What is the typical service life of a SANY SY950/SY980 upper roller in mining applications?
A: Service life varies significantly with operating conditions: moderate mining 6,000-8,000 hours, typical mining 4,500-6,500 hours, severe mining 3,000-4,500 hours, extreme mining 2,500-3,500 hours.

Q: How can I verify that an aftermarket upper roller meets mining-class specifications?
A: Request material test reports (MTRs) certifying alloy chemistry (42CrMo preferred), hardness verification documentation (core 280-350 HB, surface HRC 55-60, case depth 8-12 mm), and dimensional inspection reports. Reputable manufacturers like CQC TRACK readily provide this documentation.

Q: What distinguishes mining-quality upper rollers from standard heavy-duty components?
A: Mining-quality components feature enhanced material specifications, increased hardened case depth (8-12 mm), more robust bearing selections, advanced sealing systems for extreme contamination, 100% non-destructive testing, and extended warranty coverage.

Q: How do I identify seal failure before catastrophic damage occurs in mining applications?
A: Regular inspection should check for grease leakage around seals (visible as wetness or accumulated debris). Thermographic imaging can identify bearing distress through temperature rise. Rough rotation detectable during maintenance checks also indicates seal compromise.

Q: What causes premature upper roller wear in mining applications?
A: Common causes include seal failure allowing contaminant ingress (most common), improper track tension, operation in highly abrasive materials, impact damage from mine debris, and mixing new rollers with worn track components.

Q: Should I replace upper rollers individually or in pairs on mining-class excavators?
A: Industry best practice recommends replacing upper rollers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts.

Q: What warranty should I expect from quality aftermarket suppliers for mining-class upper rollers?
A: Reputable aftermarket manufacturers typically offer 1-2 year warranties covering manufacturing defects, with coverage periods of 3,000-5,000 operating hours for mining applications.

Q: Can aftermarket upper rollers be customized for specific mining conditions?
A: Yes, experienced manufacturers like CQC TRACK offer customization options including enhanced seal systems for extreme contamination, modified material grades for specific ore types, and geometry adjustments for specialized applications.

Q: What are the critical wear indicators for mining excavator upper rollers?
A: Critical wear indicators include seal leakage, reduction in outside diameter (exceeding 10-15 mm), flange wear, abnormal play (exceeding 3-5 mm), rough rotation, and visible damage.

Q: How often should track tension be checked on SY950/SY980 class excavators in mining operations?
A: Track tension should be checked at every 250-hour service interval (weekly for continuous mining), after the first 10 hours on new components, when operating conditions change significantly, and whenever abnormal track behavior is observed.

Q: What are the advantages of sourcing from CQC TRACK for mining excavator components?
A: CQC TRACK offers competitive pricing (30-50% below OEM), mining-class manufacturing capability with 42CrMo alloys and HRC 55-60 surface hardness, enhanced sealing systems for extreme environments, comprehensive quality assurance (ISO 9001 certified), and engineering expertise in mining applications.

Q: How do mining operating conditions affect upper roller life?
A: Factors reducing roller life include: high quartz/silica content in ore (accelerated wear), water/mud exposure (seal stress), temperature extremes (lubricant degradation), impact loading (bearing fatigue), and continuous high-speed travel (heat generation).

Q: What maintenance practices extend upper roller life in mining operations?
A: Key practices include proper track tension maintenance, regular inspection for seal condition, avoidance of high-pressure washing at seals, prompt replacement at wear limits, and system-based replacement strategies.

Q: How do I select between different upper roller configurations for mining applications?
A: Selection depends on: track chain specifications (pitch, rail profile), machine application (mining type, terrain), operating conditions (contamination level, climate), and performance requirements (service life targets, cost constraints). Engineering support from manufacturers like CQC TRACK can guide optimal selection.

This technical publication is intended for professional equipment managers, procurement specialists, and maintenance personnel in mining operations. Specifications and recommendations are based on industry standards and manufacturer data available at time of publication. All manufacturer names, part numbers, and model designations are used for identification purposes only. Always consult equipment documentation and qualified technical professionals for application-specific decisions.
