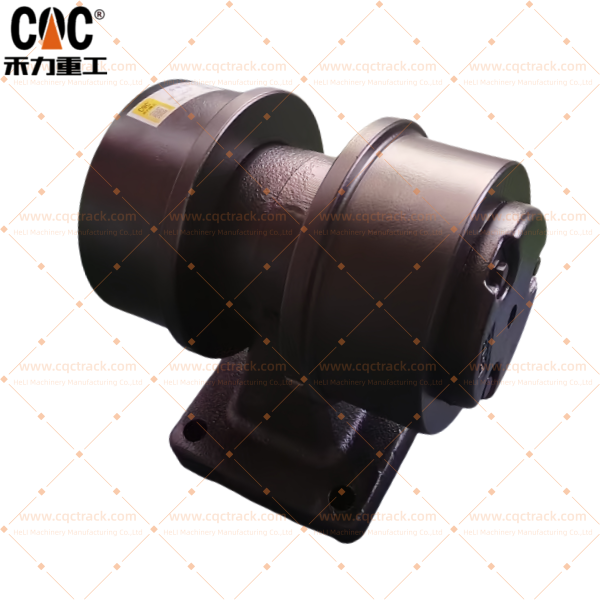

SANY SSY004701593 SY1250 Track Carrier Roller Assy / Track Upper Roller Group / Heavy duty crawler excavator chassis components source manufacturer – CQC TRACK based in China

Comprehensive Technical Analysis: SANY SSY004701593 SY1250 Track Carrier Roller Assembly – Track Upper Roller Group for Heavy Duty Crawler Excavator Chassis Components from CQC TRACK, China

Executive Summary

This technical publication delivers an exhaustive examination of the SANY SSY004701593 track carrier roller assembly—a mission-critical undercarriage component engineered for the SY1250 heavy-duty crawler excavator. The SY1250 represents SANY’s flagship 120-ton class mining excavator, deployed in the most demanding applications including large-scale open-pit mining operations, major infrastructure development, massive quarrying projects, and heavy earthmoving operations worldwide .

The carrier roller assembly (alternatively designated as upper roller, track carrier roller, or top roller group) serves the essential function of supporting the upper run of the track chain between the front idler and rear sprocket, preventing excessive track sag and maintaining proper engagement with the drive system. For operators of SANY’s 120-ton class mining excavators, understanding the engineering principles, material specifications, and manufacturing quality indicators of this component is essential for making informed procurement decisions that optimize total cost of ownership in extreme-duty mining applications.

This analysis examines the SANY SSY004701593 carrier roller through multiple technical lenses: functional anatomy, metallurgical composition for mining-class applications, advanced manufacturing process engineering, rigorous quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) as a specialized source manufacturer of heavy-duty crawler excavator chassis components based in Quanzhou, China, operating with over 20 years of manufacturing experience .

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application

The SANY SSY004701593 track carrier roller assembly is an OEM-specified undercarriage component engineered specifically for SANY’s SY1250 mining excavator. The part number SSY004701593 represents SANY’s proprietary identification code, corresponding to precise engineering drawings, dimensional tolerances, and material specifications developed through the original equipment manufacturer’s rigorous validation protocols.

This carrier roller assembly is compatible with the following SANY heavy-duty excavator model :

The SY1250 represents SANY’s large excavator flagship, extensively deployed in mining operations worldwide. The undercarriage system for this 120-ton class machine incorporates 3 carrier rollers per side, each supporting the upper run of the track chain between the front idler and rear sprocket .

1.2 Primary Functional Responsibilities

The carrier roller assembly in 120-ton class mining excavator applications performs three interconnected functions critical to machine performance and undercarriage longevity:

Track Chain Support: The carrier roller’s peripheral surface contacts the upper run of the track chain, supporting its weight between the front idler and rear sprocket. For 120-ton class machines with track chains weighing 300-400 kg per meter, the carrier rollers must support substantial static loads (typically 1,200-2,000 kg per roller) while accommodating dynamic loading during machine operation.

Chain Guidance: The roller maintains proper chain alignment, preventing lateral displacement that could cause the chain to contact the track frame or other undercarriage components. This guidance function is particularly critical during machine turning and operation on side slopes up to 30° in mining applications. Carrier rollers for these large machines feature robust double-flange configurations for positive track retention.

Shock Load Management: During travel over uneven terrain, the carrier roller absorbs impact loads transmitted through the track chain, protecting the track frame and final drive from shock-induced damage. This function demands both exceptional structural strength and controlled deflection characteristics.

1.3 Technical Specifications and Dimensional Parameters

While SANY’s exact engineering drawings remain proprietary, industry-standard specifications for 120-ton class excavator carrier rollers typically encompass the following parameters based on established manufacturing standards:

1.4 Component Anatomy and Design Architecture

The carrier roller assembly for SANY SY1250 comprises several key components engineered for extreme-duty mining operation:

Roller Body: The main wheel that contacts and supports the upper run of the track chain, manufactured from forged alloy steel with precision-machined tread surface and induction-hardened flange faces. The roller body incorporates precision-machined bearing bores and seal housing cavities with optimal geometry for load distribution.

Outer Rim Configuration: The outer rim features a precisely contoured tread surface with optimized crown profile to accommodate minor track misalignment and prevent edge loading. The dual-flange configuration provides positive track retention in both directions, essential for mining operations on uneven terrain.

Shaft: The stationary axle manufactured from high-strength alloy steel with precision-ground bearing journals (h6 tolerance) and surface treatments for enhanced durability. The shaft features precision-machined mounting interfaces for secure attachment to the track frame via robust brackets.

Bearing System: Matched sets of heavy-duty tapered roller bearings with dynamic load ratings appropriate for 120-ton class machines, featuring machined brass cages for superior shock load resistance and C4 internal clearance for thermal expansion accommodation in continuous mining operations.

Sealing System: Multi-stage contamination barriers including primary floating seals (HRC 58-64, flatness ≤1.0 µm), secondary HNBR lip seals, and external labyrinth dust guards with multiple chambers designed for extreme mining environments.

Mounting Bracket: Heavy-duty forged steel bracket that secures the roller assembly to the track frame, designed to withstand the full dynamic loads of mining operation with precision-machined mounting surfaces.

2. Metallurgical Foundation: Material Science for Mining-Class Excavator Applications

2.1 Premium Alloy Steel Selection Criteria for Extreme Duty

The service environment of a 120-ton class mining excavator carrier roller presents the most demanding material requirements in the heavy equipment industry. The component must simultaneously :

• Resist abrasive wear from continuous contact with the track chain and exposure to mining debris containing highly abrasive minerals such as quartz (hardness 7 Mohs), silicates, and granite
• Withstand impact loads from machine travel over rough mine terrain, crossing obstacles, and dynamic loading during excavation cycles
• Maintain structural integrity under cyclic loading exceeding 10⁷ cycles over the machine’s lifetime
• Preserve dimensional stability despite exposure to temperature extremes (-40°C to +50°C), moisture, and chemical contaminants including fuels, lubricants, and mining reagents

Premium manufacturers like CQC TRACK select specific premium alloy steel grades that achieve the optimal balance of hardness, toughness, and fatigue resistance for mining-class excavator applications :

SAE 4140 / 42CrMo Chromium-Molybdenum Alloy: This is the preferred material for extreme-duty carrier rollers in the SY1250 class. With carbon content of 0.38-0.45%, chromium of 0.90-1.20%, and molybdenum of 0.15-0.25%, SAE 4140 provides:

50Mn / 55Mn Manganese Steel: For applications where enhanced wear resistance is prioritized, 50Mn with carbon 0.45-0.55% and manganese 1.4-1.8% provides :

• Excellent surface hardenability (critical for large-diameter rollers)
• Good wear resistance from carbide formation
• Adequate toughness for most mining applications
• Boron micro-alloyed variants for enhanced hardenability in large sections

40CrNiMo Premium Alloy: For the most demanding applications requiring maximum toughness, nickel-alloyed steels provide enhanced hardenability for very large sections, superior toughness at high strength levels, and better low-temperature impact properties .

Material Traceability: Reputable manufacturers provide comprehensive material documentation, including Mill Test Reports (MTRs) certifying chemical composition with element-specific analysis (C, Si, Mn, P, S, Cr, Mo, Ni, B as applicable). Spectrographic analysis confirms alloy chemistry against certified specifications .

2.2 Forging vs. Casting: The Grain Structure Imperative

The primary forming method fundamentally determines the carrier roller’s mechanical properties and service life. While casting offers cost advantages for simple geometries, it produces an equiaxed grain structure with random orientation, potential porosity, and inferior impact resistance. Premium mining-class excavator carrier roller manufacturers exclusively employ closed-die hot forging for the roller body .

The forging process for SY1250 class components begins with cutting large-diameter steel billets (typically 300-400 mm diameter) to precise weight, heating them to approximately 1150-1250°C until fully austenitized, then subjecting them to high-pressure deformation between precision-machined dies in hydraulic presses capable of 8,000-15,000 tons of force .

This thermo-mechanical treatment produces continuous grain flow that follows the component contour, aligning grain boundaries perpendicular to principal stress directions. The resulting structure exhibits :

After forging, components undergo controlled cooling to prevent the formation of detrimental microstructures such as Widmanstätten ferrite or excessive grain boundary carbide precipitation.

2.3 Dual-Property Heat Treatment Engineering for Mining-Class Components

The metallurgical sophistication of a premium mining-class excavator carrier roller manifests in its precisely engineered hardness profile—an extremely hard, wear-resistant surface coupled with a tough, impact-absorbing core :

Quenching and Tempering (Q&T) : The entire forged roller body is austenitized at 840-880°C, then rapidly quenched in agitated water, oil, or polymer solution. This transformation produces martensite—providing maximum hardness but with associated brittleness. Immediate tempering at 500-650°C allows carbon to precipitate as fine carbides, relieving internal stresses and restoring toughness. The resulting core hardness typically ranges from 280-350 HB (29-38 HRC), providing optimal toughness for impact absorption in mining-class excavator applications.

Induction Surface Hardening: Following finish machining, the critical wear surfaces—specifically the tread diameter and flange faces—undergo localized induction hardening. A precision-designed multi-turn copper inductor coil surrounds the component, inducing eddy currents that rapidly heat the surface layer to austenitizing temperature (900-950°C) within seconds. Immediate water quenching produces a martensitic case of 10-15 mm depth with surface hardness of HRC 58-63, providing exceptional resistance to abrasive wear from track chain contact in mining environments .

Hardness Profile Verification: Quality manufacturers perform microhardness traverses on sample components to verify case depth compliance with specifications. The hardness gradient from surface through the hardened case to the core must follow a controlled transition to prevent spalling or case-core separation under impact loading. A typical hardness profile shows:

2.4 Comprehensive Quality Assurance Protocols for Mining Components

Manufacturers like CQC TRACK implement multi-stage quality verification throughout production, with enhanced protocols for mining-class excavator components :

• Spectroscopic Material Analysis: Confirms alloy chemistry against certified specifications at raw material receipt, with enhanced element verification for critical alloys. Chemistry must meet strict limits for all elements, particularly carbon (±0.03%), manganese (±0.05%), chromium (±0.05%), molybdenum (±0.03%), and nickel (±0.05%).
• Ultrasonic Testing (UT) : 100% inspection of critical forgings verifies internal soundness, detecting any centerline porosity, inclusions, or laminations that could compromise structural integrity under extreme mining loads. Testing follows ASTM A388 or equivalent standards with acceptance criteria of no indications exceeding 2 mm flat-bottom hole equivalent.
• Hardness Verification: Rockwell or Brinell hardness testing confirms both core hardness after Q&T treatment and surface hardness after induction hardening. Enhanced sampling rates for mining components (up to 100% for critical features) with full documentation.
• Magnetic Particle Inspection (MPI) : Examines critical areas—particularly flange roots, shaft transitions, and fillet radii—detecting any surface-breaking cracks or grinding burns with enhanced sensitivity. Testing follows ASTM E709 or equivalent standards with acceptance criteria of no linear indications.
• Dimensional Verification: Coordinate Measuring Machines (CMM) verify critical dimensions, with statistical process control maintaining process capability indices (Cpk) exceeding 1.33 for critical features. Full dimensional reports are provided with each shipment.
• Mechanical Testing: Sample components undergo tensile testing and impact testing (Charpy V-notch) at reduced temperatures (-20°C to -40°C) to verify toughness for cold-climate mining operations.
• Microstructural Evaluation: Metallographic examination verifies proper grain structure (ASTM grain size 5-8), case depth (10-15 mm), martensitic structure (minimum 90% martensite in case), and absence of detrimental phases such as retained austenite or grain boundary carbides.
• Running Test Validation: Assembled carrier rollers undergo running tests that simulate actual operating conditions, with staged loading from 20-30% to 110-120% of rated load, monitoring temperature rise, vibration spectra, and noise levels to verify performance before shipment.

3. Precision Engineering: Component Design and Manufacturing

3.1 Roller Geometry Optimization for Mining-Class Excavators

The carrier roller geometry for SY1250 class machines must precisely match the track chain specifications while accommodating the extreme loads of mining operation :

Outer Diameter: The 400-480 mm diameter is calculated to provide appropriate rotational speed and bearing L10 life at typical travel speeds (1.5-3 km/h in mining applications). The diameter must be maintained within tight tolerances (±0.10 mm) to ensure consistent chain support height and proper engagement.

Tread Profile Design: The contact surface incorporates an optimized crown profile (typically 1.0-2.0 mm radius) to accommodate minor track misalignment and prevent edge loading that could accelerate localized wear. The profile is developed through finite element analysis to ensure uniform pressure distribution across the contact patch under varying load conditions. Key design parameters include :

Flange Configuration: Carrier rollers for mining-class excavators feature robust double-flange designs that provide positive track retention in both directions—essential for mining operations on side slopes up to 30°. Critical flange design elements include :

Roller Width: The 150-200 mm overall width provides adequate contact surface with the track chain rail, distributing load to minimize contact pressure and wear. The tread width is typically 100-140 mm, with flanges extending beyond.

3.2 Shaft and Bearing System Engineering for Extreme Loads

The stationary shaft must withstand continuous bending moments and shear stresses while maintaining precise alignment with the rotating roller body. For SY1250 applications, shaft diameters typically range 110-130 mm, calculated based on :

• Static machine weight distributed to each carrier roller (1,200-2,000 kg per roller, depending on configuration)
• Dynamic load factors of 3.0-4.0 for mining applications (higher than construction due to impact)
• Track tension loads transmitted through the chain during operation
• Side loads during turning and slope operation (up to 30-40% of vertical load)

The bearing system for mining-class excavator carrier rollers employs matched sets of heavy-duty tapered roller bearings, specifically selected for extreme-duty applications :

Premium manufacturers source bearings from reputable suppliers such as Timken®, NTN, KOYO, SKF, or equivalent high-quality bearing manufacturers with proven performance in mining applications .

The shaft bearing journals are precision-ground to h6 tolerance (±0.015-0.025 mm) and surface-treated (e.g., chrome plating, nitriding, or induction hardening) for enhanced wear resistance and corrosion protection.

3.3 Advanced Multi-Stage Sealing Technology for Mining Environments

The seal system is the single most critical determinant of carrier roller longevity in mining-class excavator applications, where machines operate in environments with extreme contamination levels. Industry data indicates that over 80% of premature roller failures in mining originate from seal compromise .

Premium mining-class excavator carrier rollers from CQC TRACK employ multi-stage, mining-grade sealing systems specifically engineered for extreme contamination environments :

Primary Heavy-Duty Floating Seal: Precision-ground hardened iron or steel rings with lapped sealing faces achieving flatness within 0.5-1.0 µm. For mining applications, seal face materials and coatings are selected for:

Secondary Radial Lip Seal: Manufactured from premium elastomer materials with :

• HNBR (Hydrogenated Nitrile Butadiene Rubber) : Exceptional temperature resistance (-40°C to +150°C), chemical compatibility with EP greases, enhanced abrasion resistance
• FKM (Fluoroelastomer) : For high-temperature applications or chemical exposure (optional)
• Positive sealing pressure maintained by garter spring (stainless steel for corrosion resistance)
• Dust lip integrated design to exclude coarse contaminants

External Labyrinth-Style Dust Guard: Creates a tortuous path with multiple chambers that progressively trap coarse contaminants before they reach the primary seals. The labyrinth is :

• Packed with high-adhesion, extreme-pressure mining-grade grease
• Designed with expulsion channels for self-cleaning action during rotation
• Configured with multiple stages (typically 3-5 chambers) for maximum protection
• Protected by sacrificial wear rings that maintain seal alignment even as components wear

Grease Cavity: An intermediate cavity packed with mining-grade EP grease that acts as a barrier, expelling any potential contaminants that bypass the outer seals .

Pre-Lubrication: Modern carrier rollers are Lube-for-Life designs, meaning they are sealed, pre-greased at the factory, and require no routine maintenance greasing . The bearing cavity is pre-filled with mining-grade, high-adhesion, extreme pressure (EP) grease containing :

• Molybdenum disulfide (MoS₂) or graphite for boundary lubrication under extreme pressure
• Enhanced anti-wear additives for shock load protection
• Corrosion inhibitors for wet mining environment operation
• Oxidation stabilizers for extended service intervals (2,000+ hours)

3.4 Mounting Bracket and Track Frame Interface

The carrier roller mounts to the track frame via robust mounting brackets that must withstand the full dynamic loads of mining operation. For SY1250 class machines, these brackets are substantial components designed for extreme durability .

Critical design features include :

• Precision-Machined Mounting Surfaces: Ensure proper alignment and load distribution to the track frame. Surface flatness typically maintained within 0.1 mm over 100 mm.
• High-Strength Fasteners: Grade 12.9 bolts with controlled tightening specifications and appropriate locking features to prevent loosening under severe vibration.
• Forged Bracket Construction: Ensures optimal grain flow and maximum strength in load-bearing areas.
• Corrosion Protection: Heavy-duty paint systems (epoxy or polyurethane) or zinc-rich coatings for mine environment durability, applied after shot-blasting for optimal adhesion .

3.5 Precision Machining and Quality Control

Modern CNC machining centers achieve dimensional tolerances that directly correlate with service life in mining-class excavator applications. Critical parameters for SY1250 class carrier rollers include :

CNC-controlled turning and grinding processes guarantee precise geometry and surface finish for smooth track chain interaction. In-process dimensional verification with real-time feedback to machine operators enables immediate correction of process drift .

3.6 Assembly and Pre-Delivery Testing Protocols

Final assembly is performed in controlled conditions to prevent contamination—a critical requirement for components where even microscopic contaminants can initiate premature wear. Assembly protocols include :

• Component Cleaning: Thorough cleaning of all components before assembly to remove all machining residues, oils, and particulates.
• Controlled Environment: Clean assembly areas with contamination control and temperature/humidity management.
• Bearing Installation: Precision pressing with force monitoring to ensure proper seating; bearings may be heated for expansion to facilitate installation without damage.
• Preload Setting: Tapered roller bearings are adjusted to specified preload using specialized fixtures and torque measurement.
• Seal Installation: Specialized tools prevent damage to sealing lips and faces; seal faces are lubricated during installation with assembly grease.
• Lubrication: Measured grease fill with specified mining-grade lubricants; air pockets are eliminated during filling for Lube-for-Life designs .
• Rotation Testing: Verification of smooth rotation and correct bearing preload.

Pre-delivery testing for mining-class excavator carrier rollers includes :

• Rotational torque test to verify smooth rotation and correct bearing preload
• Seal integrity test with pressurized air to detect leakage paths
• Dimensional inspection of the assembled unit to verify all critical fits (CMM verification)
• Visual inspection of seal installation, fastener torque, and overall workmanship
• Running test on sample basis to verify performance under simulated loads

4. CQC TRACK: Manufacturer Profile Based in Quanzhou, China

4.1 Company Overview and Strategic Positioning

CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.) is a specialized industrial manufacturer and supplier of heavy-duty undercarriage systems and chassis components, operating on both ODM and OEM principles. Founded in the late 1990s, the company has grown in parallel with China’s construction machinery boom, systematically evolving from a specialized parts workshop into one of the top three undercarriage component manufacturers in the Quanzhou region, a key supply cluster for global earthmoving equipment .

Based in Quanzhou, Fujian Province—a premier industrial cluster for construction machinery manufacturing in China—the company has established itself as a significant player in the global undercarriage components market, with particular strength in mining-class excavator components. Quanzhou’s strategic location offers significant advantages for global export :

• Proximity to Major Ports: Efficient access to Xiamen Port and Quanzhou Port, two of China’s busiest international shipping hubs
• Industrial Ecosystem: Concentration of machinery manufacturing expertise, supply chain partners, and skilled workforce
• Logistics Infrastructure: Well-developed transportation networks facilitating efficient global distribution

With specialized focus on undercarriage components for global markets, CQC TRACK has developed comprehensive capabilities across the entire undercarriage product spectrum, including track rollers, carrier rollers, front idlers, sprockets, track chains, and track shoes for applications ranging from mini excavators to ultra-large mining-class machines up to 300 tons. The company serves as a source manufacturer for heavy-duty crawler excavator chassis components, supplying international distributors, mining operations, equipment dealers, and aftermarket networks worldwide .

4.2 Technical Capabilities and Engineering Expertise

Over 20 Years of Manufacturing Experience: With more than two decades of specialized focus on undercarriage components, CQC TRACK has cultivated deep technical expertise in metallurgy and tribology specific to track systems. This accumulated experience enables the company to deliver components that not only meet but often exceed OEM performance standards .

Integrated Heavy-Duty Manufacturing: CQC TRACK controls the full production cycle from material sourcing and forging to precision machining, heat treatment, assembly, and quality testing. For SANY SY1250 class components, this vertical integration ensures consistent quality and complete traceability throughout the manufacturing process—essential for components that must perform reliably under extreme mining conditions .

Advanced Metallurgical Expertise: The company’s technical team leverages advanced metallurgical knowledge and dynamic load simulation tools to design components for mining-class excavator duty cycles. For SY1250 class carrier rollers, this includes :

• Material Selection: Premium SAE 4140/42CrMo, 50Mn, and 40CrNiMo alloy steels with certified chemistry
• Heat Treatment: Quenched and tempered to core hardness 280-350 HB, followed by induction hardening to surface HRC 58-63 with case depth 10-15 mm
• Finite Element Analysis (FEA) : Stress distribution analysis under mining loads to optimize geometry and minimize stress concentration
• Fatigue Life Prediction: Based on mining duty cycle data with target L10 life of 10,000+ hours
• Sealing Technology: Multi-stage labyrinth seal or float seal configuration with premium HNBR elastomers for extreme contamination protection

Quality Assurance Protocols: Production is governed by a Quality Management System (QMS) aligned with international standards, including :

• ISO 9001:2015 Certified Quality Management System: Ensuring process discipline, continuous improvement, and documented procedures throughout all manufacturing operations
• Full Material and Process Traceability: Complete traceability from forging to final assembly is maintained for every production batch
• Comprehensive Testing: Including spectrometer analysis, UT, MPI, CMM verification, and running test validation
• Standards Compliance: Products engineered to meet or exceed international standards such as ISO 7452 (Test methods for track rollers) and other relevant OEM-equivalent specifications

Engineering Design Philosophy: CQC TRACK’s ODM development follows a “Failure-Mode-Driven” approach grounded in field data analysis :

1. Problem Identification: Analysis of returned parts from the field to identify root causes (seal lip wear-out, spalling, abnormal flange wear, etc.)
2. Solution Integration: Redesign of specific features—seal groove geometry, grease cavity volume, flange profile—to mitigate identified failures
3. Validation: Prototype testing ensuring design improvement delivers measurable life extension before mass production

4.3 Product Portfolio and Manufacturing Capabilities

CQC TRACK manufactures a comprehensive range of undercarriage components for heavy-duty excavators, including :

The company maintains tooling and production capability for multiple SANY mining excavator models, ensuring consistent supply for both current production and field support requirements .

4.4 Global Supply Capability from Quanzhou

CQC TRACK serves international markets with particular attention to major mining regions worldwide. With production facilities in Quanzhou and strategic partnerships across China’s undercarriage manufacturing ecosystem, the company offers :

5. SANY SY1250 Series Overview

5.1 Machine Classification and Applications

The SANY SY1250H represents the pinnacle of SANY’s large excavator lineup, designed and built for the most demanding mining and heavy construction applications worldwide :

These machines feature :

• Heavy-duty undercarriage systems designed for 20,000+ hour service life in mining conditions
• Mining-grade components throughout, including carrier rollers engineered for extreme duty
• Powerful QSK23 engine delivering 567 kW for maximum productivity
• Large bucket capacity of 8 m³ for high-volume material handling
• Advanced hydraulic systems for efficient operation
• Global service support through SANY’s worldwide dealer network

5.2 Undercarriage System Specifications

The undercarriage system for SY1250 class machines represents the state of the art in heavy-duty track design, featuring 8 track rollers and 3 carrier rollers per side :

The carrier rollers in this system must support track chain spans and maintain proper chain alignment during all phases of mining operation .

5.3 Mining Duty Cycle Considerations for SY1250 Excavators

Carrier rollers in mining applications experience duty cycles significantly more severe than construction applications:

• Continuous operation: Often 20+ hours per day, 6-7 days per week, with minimal downtime
• High travel distances: Frequent repositioning across mine sites
• Rough terrain: Operation on unimproved mine roads, blasted rock, and uneven benches
• Extreme temperatures: From arctic cold (-40°C) to desert heat (+50°C)
• Contamination: Exposure to abrasive dust (quartz, silicates), mud, water, and chemicals
• Impact loading: Travel over mine debris and rough terrain
• Side slope operation: Mining on benches with slopes up to 30°

These conditions demand carrier rollers with enhanced specifications, robust sealing, and quality assurance beyond standard heavy-duty components. The SSY004701593 carrier roller assembly is specifically engineered to meet these demanding requirements .

6. Performance Validation and Service Life Expectations for Mining Applications

6.1 Benchmarks for 120-Ton Class Excavator Carrier Rollers

Field data from diverse mining and heavy construction operations provides realistic performance expectations for SANY SY1250 class carrier rollers:

Premium aftermarket carrier rollers from reputable manufacturers like CQC TRACK demonstrate performance parity with OEM mining-class components, achieving 85-95% of OEM service life at significantly lower acquisition cost (typically 30-50% below OEM pricing) .

6.2 Common Failure Modes in Mining-Class Excavator Applications

Understanding failure mechanisms enables proactive maintenance and informed procurement decisions for mining operations :

Seal Failure and Contamination Ingress: The predominant failure mode in mining applications (70-80% of failures), seal compromise allows abrasive particles to enter the bearing cavity. Mining environments with high concentrations of quartz (hardness 7 Mohs) and silicates accelerate seal wear and contaminant ingress exponentially. Initial symptoms include :

• Grease leakage around seals (visible as wetness or accumulated debris)
• Increasing operating temperature (detectable by infrared thermography; 10-20°C above baseline)
• Rough rotation as contamination initiates bearing wear
• Progressive increase in running torque
• Grinding or rumbling noises during operation
• Eventually, seizure or catastrophic bearing failure

Flange Wear: Progressive wear on flange faces indicates inadequate surface hardness or improper track alignment. In mining applications, this can be accelerated by :

• Frequent operation on side slopes (mining benches up to 30°)
• Tight turning on abrasive surfaces
• Track misalignment from worn components or frame damage
• Impact damage from debris trapped between flange and track link

Critical wear indicators include thinning of flange width (reducing lateral constraint) and development of sharp edges (increasing stress concentration and risk of derailment). Replacement is indicated when flange thickness is reduced by more than 25-30% .

Tread Wear and Diameter Reduction: The roller tread gradually wears from continuous contact with track bushings. When tread diameter reduction exceeds specifications (typically 12-18 mm for this size class), several consequences occur :

Bearing Fatigue: After extended service, bearings may exhibit spalling due to subsurface fatigue, indicating the component has reached its natural life limit. In mining applications, this is often accelerated by:

• Higher-than-expected dynamic loading from severe terrain
• Contamination-induced surface distress from seal breaches
• Lubricant degradation from high operating temperatures
• Misalignment from frame deflection or worn components
• Impact loading from shock events

Roller Sticking: A flat side on the roller indicates that the carrier roller is stuck, usually caused by sand and/or mud between the roller and the undercarriage frame .

6.3 Wear Indicators and Inspection Protocols for Mining Operations

Regular inspection at 250-hour intervals (or weekly for continuous mining operations) should check for :

• Seal condition: Grease leakage, debris accumulation around seals, seal damage, evidence of recent purging
• Roller rotation: Smoothness, noise, binding, rotational resistance (check by hand with track raised). Rollers must turn freely—a seized roller will be quickly worn flat .
• Operating temperature: Comparison with baseline and sister rollers using infrared thermometer or thermal imaging camera
• Flange condition: Wear measurement (thickness), sharp edges, damage, cracks (visual and with calipers). Significant wear or cracking requires replacement .
• Tread condition: Wear pattern analysis, diameter measurement (using pi tape or large calipers), surface damage, spalling
• Mounting integrity: Fastener torque, bracket condition, alignment
• Visual damage: Look for cracks, deep gouges, or significant scoring on the roller shell
• Leakage: Any signs of grease leaking from the seal area indicate seal failure and imminent bearing failure
• Unusual noises: Grinding, squeaking, knocking, rumbling during operation

Advanced inspection techniques for mining operations may include:

• Ultrasonic thickness measurement of tread and flange sections to quantify remaining wear allowance
• Magnetic particle inspection (MPI) of shafts during major overhauls to detect fatigue cracks
• Thermographic imaging to identify bearing distress before failure
• Vibration analysis for predictive maintenance programs

7. Installation, Maintenance, and Service Life Optimization for Mining Applications

7.1 Professional Installation Practices for SANY Mining Excavators

Proper installation significantly impacts carrier roller service life in SY1250 class machines :

Track Frame Preparation: The mounting surfaces on the track frame must be clean, flat, and free of burrs, corrosion, or damage. Critical steps include:

• Thorough cleaning of mounting pads and bolt holes
• Inspection for cracks or damage around mounting areas
• Measurement of mounting surface flatness
• Inspection and replacement of worn wear plates or liners
• Verification of track frame alignment

Bracket Inspection and Preparation: The mounting brackets themselves should be inspected for:

• Wear or deformation of mounting surfaces
• Crack initiation at stress points
• Corrosion damage
• Thread condition in mounting holes
• Proper fit to track frame

Fastener Specifications: All mounting bolts must be:

• Grade 12.9 as specified
• Clean and lightly oiled before installation
• Tightened in proper sequence to specified torque using calibrated torque wrenches
• Equipped with appropriate locking features
• Marked after torquing for visual inspection
• Retorqued after initial operation (typically 50-100 hours)

Alignment Verification: After installation, verify that :

• The roller is properly aligned with the track chain path
• The roller contacts the track chain evenly across its width
• Flange clearances to track links are within specification
• The roller rotates freely without binding or interference

Track Tension Adjustment: After installation, verify proper track tension according to machine specifications. Operating with incorrect track tension places abnormal stress on the rollers and bearings, leading to premature failure .

7.2 Preventive Maintenance Protocols for Mining Operations

Regular Inspection Intervals: Visual inspection at 250-hour intervals (weekly for continuous mining operations) should check for all wear indicators previously described. More frequent inspection (daily walk-around) should include visual check for obvious seal leakage, damage, or unusual conditions .

Track Tension Management: Proper track tension directly impacts carrier roller life. Excessive tension increases bearing loads; insufficient tension allows chain slapping that accelerates seal deterioration and increases impact loads. Check tension :

• At every 250-hour service interval
• After the first 10 hours on new components
• When operating conditions change significantly
• When abnormal track behavior is observed

Cleaning Protocols: Although built for harsh conditions, operating in sticky, clay-like material that packs between the roller and the track frame can increase stress and accelerate wear. Periodic cleaning is recommended . However, proper cleaning must be performed correctly:

• Avoid high-pressure washing directed at seal areas, which can force contaminants past seals
• Use low-pressure water for general cleaning
• Remove accumulated debris from around rollers during daily inspections
• Allow components to dry thoroughly

Lubrication: For carrier rollers with sealed bearings (Lube-for-Life designs), no additional lubrication is required during service life .

Operating Practice Considerations: Operator practices significantly impact carrier roller life :

• Minimize high-speed travel over rough terrain
• Avoid sudden direction changes that impose high side loads
• Keep track tension properly adjusted for conditions
• Report unusual noises or handling immediately
• Avoid operation with severely worn track components

7.3 Replacement Decision Criteria for Mining Applications

Carrier rollers for SY1250 class machines should be replaced when :

• Seal leakage is evident and cannot be stopped
• Radial play exceeds manufacturer specifications (typically 4-6 mm)
• Axial play exceeds manufacturer specifications (typically 3-5 mm)
• Flange wear reduces guidance effectiveness (thickness reduction exceeding 25-30%)
• Flange damage includes cracks, spalling, or severe deformation
• Tread wear exceeds hardened case depth (diameter reduction exceeding 12-18 mm)
• Surface spalling affects more than 10-15% of contact area
• Bearing rotation becomes rough, noisy, or irregular
• Roller is stuck (flat side visible) due to contamination
• Visible damage includes cracks, impact damage, or deformation
• Mounting integrity is compromised by worn or damaged brackets

7.4 System-Based Replacement Strategy for Mining Operations

For optimal undercarriage performance and cost efficiency in mining applications, the carrier roller condition should be evaluated alongside :

• Track chain: Pin and bushing wear, rail condition, seal effectiveness, overall elongation
• Track rollers (bottom) : Seal condition, tread wear, bearing condition across all rollers
• Front idler: Tread and flange condition, bearing condition, yoke wear
• Sprocket: Tooth wear profile, segment condition, mounting integrity
• Track frame: Alignment, wear plate condition, structural integrity

Replacing severely worn components in a matched set is considered best practice to prevent accelerated wear on new parts. Industry best practice recommends :

• Replace in pairs: Carrier rollers on both sides together
• Consider system replacement: When multiple components show significant wear
• Schedule during major service: Plan during scheduled downtime

8. Strategic Sourcing Considerations for Mining Operations

8.1 The OEM vs. Aftermarket Decision for Mining-Class Excavators

Mining equipment managers must evaluate the OEM versus high-quality aftermarket decision through multiple lenses:

Cost Analysis: Aftermarket components from manufacturers like CQC TRACK typically offer 30-50% initial cost savings compared to OEM parts. For mining fleets with multiple SANY SY1250 class machines operating 5,000+ hours annually, this differential can represent substantial annual savings. Total cost of ownership calculations must factor in :

Quality Parity: Premium aftermarket manufacturers achieve performance parity with OEM mining-class components through :

• Equivalent material specifications (SAE 4140/42CrMo/50Mn with certified chemistry)
• Comparable heat treatment processes (core 280-350 HB, surface HRC 58-63, case depth 10-15 mm)
• Mining-grade sealing systems with multi-stage contamination protection
• Matched bearing sets from reputable bearing manufacturers
• Rigorous quality control with 100% NDT of critical components
• ISO 9001 certified quality management systems

CQC TRACK’s quality protocols ensure consistent quality suitable for the most demanding mining applications .

Warranty Considerations: Reputable aftermarket manufacturers offer comparable warranties covering manufacturing defects, with coverage periods appropriate for mining applications .

Availability and Lead Times: Aftermarket manufacturers with local production often deliver within 4-8 weeks, with emergency expediting available for critical situations—essential for mining operations where downtime costs can be substantial .

Technical Support: Aftermarket suppliers with mining engineering expertise can provide :

• Application engineering support for specific operating conditions
• Field service support for installation and troubleshooting
• Component life data for predictive maintenance planning
• Failure analysis services

8.2 Supplier Evaluation Criteria for Mining Applications

Procurement professionals for mining operations should apply rigorous evaluation frameworks when assessing potential carrier roller suppliers :

Manufacturing Capability Assessment: Facility evaluations should verify the presence of:

• Large-capacity forging equipment for mining-class components
• CNC machining centers with precision capability
• Heat treatment facilities with atmosphere control
• Induction hardening stations with process monitoring
• Clean assembly areas for seal installation
• Testing facilities (UT, MPI, CMM, metallurgical laboratory)

Quality Management Systems: ISO 9001:2015 certification represents the minimum acceptable standard for mining components .

Material and Process Transparency: Reputable manufacturers readily provide :

• Material certifications (MTRs) with full chemistry and mechanical properties
• Heat treatment process documentation and verification records
• Inspection reports for dimensional verification and NDT
• Sample testing capability for customer verification
• Metallurgical analysis upon request

Experience and Reputation: Suppliers with over 20 years of experience in mining applications demonstrate sustained capability. CQC TRACK’s 20+ years of focused manufacturing experience provides confidence in quality and reliability .

Financial Stability: Long-term supply relationships require financially stable partners with owned facilities and ongoing investment in manufacturing capabilities .

8.3 The CQC TRACK Advantage for SANY Mining Applications

CQC TRACK offers several distinct advantages for SANY mining excavator undercarriage procurement :

• 20+ Years Manufacturing Experience: Deep technical expertise in metallurgy and tribology specific to track systems
• Top Three Quanzhou Manufacturer: Recognized position in China’s premier undercarriage manufacturing cluster
• Mining-Class Manufacturing Capability: Components engineered specifically for extreme-duty mining applications
• Integrated Production Control: Full vertical integration ensures consistent quality and complete traceability
• Material Excellence: Premium SAE 4140/42CrMo alloy steel with surface hardness HRC 58-63, case depth 10-15 mm
• Mining-Grade Sealing: Advanced multi-stage sealing systems for extreme contamination environments
• Comprehensive Quality Assurance: Enhanced testing protocols including 100% UT inspection, MPI, CMM verification
• ISO 9001:2015 Certified: Internationally recognized quality management system
• Global Supply Capability: Reliable lead times from Quanzhou with efficient port access
• Competitive Economics: 30-50% cost savings while maintaining mining-class quality
• Engineering Support: Customization capabilities for specific operating conditions

9. Conclusion and Strategic Recommendations for Mining Operations

The SANY SSY004701593 track carrier roller assembly for SY1250 excavators represents a precision-engineered mining-class component whose performance directly impacts machine availability, operating cost, and mine productivity. Understanding the technical intricacies—from alloy selection (SAE 4140/42CrMo/50Mn) and forging methodology through precision machining, bearing systems, and multi-stage mining-grade seal design—enables mining equipment managers to make informed procurement decisions that balance initial cost against total cost of ownership in the most demanding applications .

For mining operations utilizing SANY’s 120-ton class excavators, the following strategic recommendations emerge from this comprehensive analysis:

1. Prioritize mining-grade specifications, verifying material grades (SAE 4140/42CrMo preferred), heat treatment parameters (core 280-350 HB, surface HRC 58-63, case depth 10-15 mm), and seal system design for extreme contamination environments .
2. Verify sealing system robustness, recognizing that multi-stage mining seals with floating seals, HNBR lip seals, and labyrinth dust guards provide essential protection in mine site conditions .
3. Evaluate suppliers through mining-capability lens, seeking evidence of large-component forging capacity, modern CNC equipment, heat treatment capability, and comprehensive NDT facilities .
4. Demand material and process transparency, requesting material certifications, heat treatment records, and inspection reports .
5. Confirm cross-reference accuracy when substituting aftermarket components for OEM part number SSY004701593, ensuring compatibility with specific SANY SY1250 model and production year .
6. Implement mining-appropriate maintenance protocols, including regular inspection for seal condition, tread wear, and flange integrity, with attention to preventing roller sticking from contamination .
7. Adopt system-based replacement strategies, evaluating carrier roller condition alongside track chain, bottom rollers, idler, and sprocket .
8. Develop strategic supplier partnerships with manufacturers like CQC TRACK that demonstrate mining-class technical competence, quality commitment, and supply chain reliability .
9. Consider total cost of ownership, evaluating aftermarket options that offer 30-50% cost savings while maintaining mining-class quality and performance parity with OEM components.
10. Establish component life tracking to develop site-specific performance data for predictive replacement planning.

By applying these principles, mining operations can secure reliable, cost-effective undercarriage solutions that maintain excavator productivity while optimizing long-term operational economics—the ultimate objective of professional equipment management in today’s competitive mining environment.

CQC TRACK, as a specialized manufacturer with over 20 years of experience, integrated production capabilities, and comprehensive quality assurance for mining applications based in Quanzhou, China, represents a viable source for SANY SSY004701593 carrier roller assemblies, offering mining-class quality with the cost advantages of specialized Chinese manufacturing .

Frequently Asked Questions (FAQ) for Mining Applications

Q: What is the typical service life of a SANY SSY004701593 carrier roller on SY1250 excavators in mining applications?
A: Service life varies with operating conditions: heavy construction 6,000-8,000 hours, quarry operations 5,000-7,000 hours, moderate mining 4,500-6,000 hours, severe mining 3,500-5,000 hours, extreme mining 2,500-4,000 hours.

Q: How can I verify that an aftermarket carrier roller meets SANY mining specifications?
A: Request material test reports (MTRs) certifying alloy chemistry (SAE 4140/42CrMo/50Mn preferred), hardness verification documentation (core 280-350 HB, surface HRC 58-63, case depth 10-15 mm), and dimensional inspection reports. Reputable manufacturers like CQC TRACK readily provide this documentation .

Q: What distinguishes mining-quality carrier rollers from standard heavy-duty components?
A: Mining-quality components feature enhanced material specifications (SAE 4140), increased hardened case depth (10-15 mm), more robust bearing selections with higher dynamic load ratings, advanced multi-stage sealing systems for extreme contamination, 100% non-destructive testing, and extended service life .

Q: How do I identify seal failure before catastrophic damage occurs in mining applications?
A: Regular inspection should check for grease leakage around seals (visible as wetness or accumulated debris). Thermographic imaging can identify bearing distress through temperature rise. Rough rotation during maintenance checks also indicates seal compromise .

Q: What causes premature carrier roller wear in mining applications?
A: Common causes include seal failure allowing contaminant ingress (most common), improper track tension, operation in highly abrasive materials, mixing new rollers with worn track components, and contamination buildup causing roller sticking .

Q: How do I identify a stuck carrier roller?
A: A flat side on the roller indicates that the carrier roller is stuck, usually caused by sand and/or mud between the roller and the undercarriage frame. Regular cleaning helps prevent this condition .

Q: Should I replace carrier rollers individually or in pairs on 120-ton class excavators?
A: Industry best practice recommends replacing carrier rollers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts .

Q: What warranty should I expect from quality aftermarket suppliers for mining-class carrier rollers?
A: Reputable aftermarket manufacturers like CQC TRACK typically offer 1-2 year warranties covering manufacturing defects, with coverage periods appropriate for mining applications .

Q: Can aftermarket carrier rollers be customized for specific mining conditions?
A: Yes, experienced manufacturers like CQC TRACK offer customization options including enhanced seal systems for extreme contamination, modified material grades for specific ore types, and geometry adjustments for specialized applications .

Q: What are the critical wear indicators for mining excavator carrier rollers?
A: Critical wear indicators include seal leakage, reduction in outside diameter (exceeding 12-18 mm), flange wear (thickness reduction exceeding 25-30%), abnormal radial play (exceeding 4-6 mm), rough rotation, roller sticking (flat side), and visible damage .

Q: How often should track tension be checked on SY1250 class excavators in mining operations?
A: Track tension should be checked at every 250-hour service interval (weekly for continuous mining operations), after new component installation, when operating conditions change, and whenever abnormal track behavior is observed .

Q: What are the advantages of sourcing from CQC TRACK for SANY mining excavator components?
A: CQC TRACK offers competitive pricing (30-50% below OEM), over 20 years of manufacturing experience , mining-class manufacturing capability with premium alloys and HRC 58-63 surface hardness, advanced multi-stage sealing systems, comprehensive quality assurance (ISO 9001 certified, 100% UT inspection), and engineering expertise in mining applications.

Q: What maintenance practices extend carrier roller life in mining operations?
A: Key practices include proper track tension maintenance, regular inspection for seal condition and early leakage detection, regular cleaning to prevent roller sticking, avoidance of high-pressure washing at seals, prompt replacement at wear limits, and system-based replacement strategies .

Q: Where is CQC TRACK located?
A: CQC TRACK is based in Quanzhou, Fujian Province, China—a premier industrial cluster for construction machinery manufacturing with strategic access to major international ports for efficient global distribution .

This technical publication is intended for professional equipment managers, procurement specialists, and maintenance personnel in mining and heavy construction operations. Specifications and recommendations are based on industry standards and manufacturer data available at time of publication. For specific application requirements and current product specifications, please consult CQC TRACK’s engineering team directly
