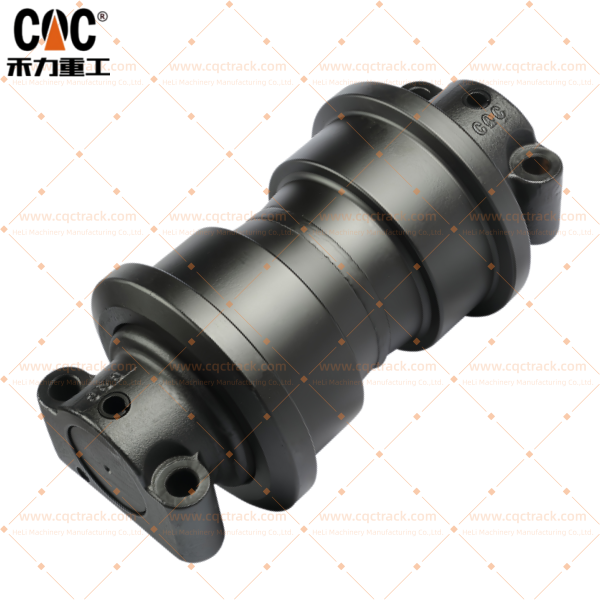

The KOMATSU PC600/PC650 Series Track Lower Roller Assembly—Heavy-Duty Crawler Excavator Undercarriage Engineering Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-KOMATSU-ROLLER-10
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Models: KOMATSU PC600, PC650; HITACHI ZX650; JOHN DEERE JD550; compatible heavy-duty excavators in the 50–70 ton class
Component Portfolio: KM3058, 4473719, 9109493, 21M3000100
Machine Weight Class: 50 – 70 tons (dependent on configuration and application)
Publication Date: March 2026
Classification: Technical Engineering Specification / Heavy-Duty Crawler Excavator Undercarriage Parts Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Professional Heavy-Duty Undercarriage Supplier for KOMATSU Applications

In the demanding realm of 50–70 ton class heavy-duty crawler excavator operations, the track lower roller assembly—alternatively designated as the track roller or bottom roller—represents a critical load-bearing element within the undercarriage system. This component performs the essential function of supporting the full machine weight (which can represent up to 50 percent of a machine’s maintenance expenses) , distributing ground-bearing pressure, and guiding the track chain during travel and working operations . For the KOMATSU PC600 and PC650 platforms—heavy-duty excavators widely deployed in mining, quarrying, heavy infrastructure, and large-scale earthmoving applications—the lower roller assembly stands as a mission-critical component determining machine stability, track alignment, and overall undercarriage longevity .

Heli Machinery (CQCTRACK) has established itself as a premier professional heavy-duty undercarriage parts supplier and factory, manufacturing components for KOMATSU and compatible applications . This technical white paper provides a comprehensive engineering deconstruction of the KOMATSU KM3058, 4473719, 9109493, and 21M3000100 Track Lower Roller Assemblies, specifically engineered for the PC600, PC650, ZX650, and JD550 excavator platforms and their variants .

By integrating rigorous material science (utilizing high-grade alloys such as 50Mn, 40MnB, and SAE 4140 equivalent steels) , precision closed-die forging technologies with optimized grain flow , advanced heat treatment protocols achieving optimal hardness gradients (52-58 HRC surface with tough core, 8-12mm case depth) , multi-stage sealing architecture validated for extreme contamination , and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers lower roller assemblies that achieve documented performance parity with—and in specific metrics beyond—original equipment specifications .

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership for their KOMATSU and compatible heavy-duty excavator fleets operating in severe mining and construction applications, this document serves as the definitive technical reference and sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

Component Classification: Track Lower Roller Assembly / Track Roller / Bottom Roller / Under Roller
Target Machines: KOMATSU PC600, PC600LC, PC650, PC650-5, PC650-6, PC650-7, PC650-8; HITACHI ZX650; JOHN DEERE JD550; compatible heavy-duty excavators
Operating Weight Range: 50,000 kg – 70,000 kg (dependent on configuration and year of manufacture)
Flange Configuration: Available in single-flange and double-flange configurations depending on position and machine specification
Primary Function: Support machine weight, distribute ground-bearing pressure, guide track chain
Secondary Function: Absorb impact loads, maintain track alignment during operation
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: Heavy-duty mining-grade replacement components engineered for 1:1 mechanical interchangeability without modification

2.1 System Integration within Undercarriage Assembly

The Track Lower Roller Assembly does not function as an isolated component but constitutes a critical load-bearing element within an integrated undercarriage system:

• Undercarriage Architecture: The lower rollers are mounted to the track roller frame (track frame) via shaft mounting brackets, positioned along the bottom of the undercarriage to support the machine weight and guide the track chain .
• Functional Context: These rollers carry a significant portion of the excavator’s operational weight (which can represent up to 50 percent of a machine’s maintenance expenses) , distributing ground-bearing pressure and ensuring machine stability during excavation, lifting, and travel operations .
• Flange Configuration: Depending on position within the undercarriage, rollers may be single-flange (mounted on outer positions) or double-flange (mounted on inner positions to provide lateral guidance) .
• Mounting Configuration: The assembly features precision-machined mounting interfaces (shaft ends with bolt holes or mounting brackets) that secure the roller to the track frame.

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK KOMATSU PC600/PC650 Heavy-Duty Lower Roller Assemblies

The performance longevity of any track lower roller assembly operating in heavy-duty mining applications is determined by the synergistic interaction of five critical engineering subsystems: the roller shell structure, shaft metallurgy, bearing system, sealing architecture, and lubrication regime . Heli CQCTRACK engineers each of these subsystems with precision appropriate for the 50–70 ton class excavator application in severe operating conditions .

3.1 Roller Shell Structure: Forged Metallurgy for Heavy-Duty Mining Applications

The roller shell forms the core structural element of the assembly, transmitting the full machine weight to the track chain while resisting abrasive wear from continuous ground contact and chain engagement.

3.1.1 Material Selection and Alloy Engineering

Heli CQCTRACK employs strategic material selection based on application requirements, utilizing high-grade alloy steels proven in demanding heavy-duty undercarriage applications:

• Primary Material Grade: 50Mn or 40MnB Manganese-Boron Alloy Steel—selected for exceptional hardenability and impact toughness characteristics essential for mining and heavy construction applications . These materials achieve the necessary wear-resistance and loading capacity through precision processing and special heat treatment techniques .
• Premium Grade Option: SAE 4140 equivalent alloy steel (UTS: 950 MPa) for applications requiring enhanced strength and fatigue resistance .
• Manganese Function: Improves hardenability and tensile strength; ensures hardness penetration depth during quenching rather than forming a thin, brittle surface layer.
• Boron Micro-Alloying: Even in minute concentrations (parts per million), boron acts as a hardenability catalyst, significantly increasing the steel’s capacity to achieve a hard, martensitic structure upon quenching without inducing brittleness .

Table 2: Material Grade Comparison for Heavy-Duty Lower Roller Applications

3.1.2 Forging versus Casting: A Critical Manufacturing Distinction

The manufacturing method fundamentally determines the internal grain structure and, consequently, the performance characteristics of the finished roller .

Warm Forging/Forged Construction (Heli CQCTRACK Standard):

• Process: Warm forging treatment creates distinguishing inner material fiber flow distribution architecture , providing superior grain alignment.
• Grain Structure Engineering: The forging process aligns the grain flow to follow the contour of the roller, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength . This optimized grain flow is critical for withstanding the cyclic loading inherent in heavy excavator operations.
• Internal Integrity: Eliminates internal voids, porosity, and micro-inclusions common in castings; produces a dense, continuous structure.
• Performance Advantage: Superior impact strength and fatigue resistance for high-load, abrasive mining environments; maximum extent loading capacity with excellent anti-cracking effects .

Casting/Welding Alternatives (Industry Options):

• Casting Process: Molten steel poured into a mold and allowed to solidify; may include cast and welded construction methods .
• Structural Limitations: Granular, potentially porous structure with possible micro-voids and non-uniform grain orientation.
• Performance Limitations: Lower tensile strength; more susceptible to cracking under high-stress cyclic loading.

Table 3: Forged versus Cast Lower Roller Comparison

3.1.3 Flange Geometry Engineering

The roller flanges provide critical lateral guidance to the track chain, preventing derailment during turning maneuvers and maintaining proper chain alignment .

• Single-Flange Configuration: Used on outer roller positions, providing guidance on one side while allowing some lateral compliance.
• Double-Flange Configuration: Used on inner roller positions, providing positive chain containment on both sides for maximum guidance .
• Profile Precision: Flange profiles are machined to exacting tolerances (±0.1mm) to interface precisely with the track link counterparts, ensuring proper chain engagement and minimizing wear .
• Hardened Flange Surfaces: Flange sides receive the same induction hardening treatment as the running surface to resist wear from lateral link contact under high side-load conditions typical in mining applications.

3.2 Shaft Metallurgy and Surface Engineering

The stationary shaft transmits the full dynamic loads of the excavator from the roller shell to the track roller frame mounting brackets.

• Material Selection: The shaft is machined from high-tensile 40Cr, 42CrMo, or 20CrMnTi alloy steel, selected for its exceptional strength-to-weight ratio and fatigue resistance . These materials provide the necessary yield strength to withstand the bending moments imposed by the cantilevered roller configuration in 50–70 ton class applications.
• Diameter Optimization: Heli CQCTRACK engineers have optimized shaft diameters based on KOMATSU PC600/PC650 load calculations, ensuring adequate safety margins for mining duty cycles.
• Surface Engineering: Following CNC turning, the shaft is precision-ground to a mirror-like surface finish (Ra ≤ 0.4 μm) at all bearing and seal contact areas. Critical seal zones may receive chrome plating to reduce friction and adhesive wear against seal lips, a critical factor in extending seal life in contaminated mining environments .

3.3 Bearing System: Heavy-Duty Rotational Interface

The bearing system enables smooth rotation of the roller shell about the stationary shaft under immense radial and some axial loads characteristic of mining operations.

• Bearing Type Selection: Heli CQCTRACK utilizes heavy-duty tapered roller bearings or spherical roller bearings depending on the specific application requirements . Tapered roller bearings provide superior capacity for combined radial and axial loads, while spherical roller bearings offer self-aligning capabilities that accommodate minor frame deflections.
• Heat-Treated Races: All bearing races are manufactured from premium-grade steel with induction-hardened raceways to resist Brinelling (surface denting) under impact loads. The heat treatment extends through the critical load zone, ensuring long-term dimensional stability.
• Load Rating Validation: Each bearing configuration is validated to withstand the static and dynamic loads generated by the 50–70 ton excavator during digging, lifting, travel, and swing operations in mining environments. Safety factors exceed industry standards for heavy-duty applications.
• Internal Clearance Optimization: Bearings are selected with controlled internal clearances to accommodate thermal expansion during continuous operation while maintaining proper load distribution.

3.4 Sealing Architecture: Fortified Tribological Interface for Mining Environments

Industry data consistently demonstrates that over 90% of premature undercarriage failures originate from contamination ingress leading to bearing failure—a failure mode dramatically accelerated in mining environments. Heli CQCTRACK addresses this failure mode through a multi-stage sealing architecture validated for extreme contamination .

3.4.1 Multi-Stage Sealing System

Heli CQCTRACK engineers utilize a proprietary Double-Cone Sealing + Labyrinth + Floating Face Seal architecture designed for long life and perfect performance under any working condition :

• Primary Defense (Labyrinth Path): A grease-purged labyrinth path uses complex geometry to centrifugally eject large particulate matter such as mud, coarse sand, and mining debris before it reaches the primary seal interface .
• Secondary Defense (Double-Cone Sealing): The design of double-cone sealing and lubrication for life makes the track roller have long life time and perfect performance under any working condition . This precision-engineered cone interface provides a self-aligning seal surface.
• Final Barrier (Floating Face Seal): High-performance floating face seals (mechanical face seals) consist of two precision-lapped metal sealing rings energized by toroidal rubber O-rings . These seals maintain air tightness even under extreme temperatures and contamination levels. The metal sealing rings are manufactured from wear-resistant cast iron or hardened steel with precision-lapped sealing faces achieving flatness tolerances within 0.5 light bands (interferometric measurement).

3.4.2 Seal Material Engineering

• Standard Material: Nitrile rubber (NBR) with operating temperature range -20°C to 110°C, suitable for general construction and mining applications .
• Premium Option: Fluoroelastomer (FKM/Viton®) for extreme temperature environments (-45°C to 130°C) or chemically aggressive mining conditions .
• Dust Lip: An external dust lip provides additional protection against coarse contaminants.

3.4.3 Seal Integrity Testing

Every Heli CQCTRACK roller assembly undergoes air pressure decay testing to validate seal performance before lubrication—a critical validation for mining applications where contamination is extreme .

3.5 Lubrication Engineering

• Lubrication Type: Designed as sealed and lubricated-for-life components, requiring no routine maintenance greasing . The internal cavity is pre-filled with high-viscosity lithium complex EP (Extreme Pressure) grease.
• Grease Capacity: Optimized grease volume ensures continuous lubrication of bearings throughout the service interval, even under high-load mining conditions.
• Operating Temperature Range: -30°C to +130°C, suitable for diverse climatic conditions from arctic to desert mining environments .
• Optional Grease Fitting: Some configurations include a grease fitting for periodic purging of the outer seal barrier in extreme applications.

3.6 Mounting Interface Engineering

The mounting interfaces (shaft ends) provide the critical connection to the excavator’s track roller frame.

• Mounting Bracket Design: Precision-machined mounting surfaces ensure proper alignment with the track frame.
• Bolt Hole Precision: Mounting holes are drilled to exact center-to-center tolerances ensuring even load distribution.
• Surface Flatness: Maintained within 0.1mm to ensure proper seating against the track frame and prevent mounting stress.

4. Heavy-Duty Manufacturing Process Engineering

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating variance introduced by subcontracted processes and ensuring consistent heavy-duty quality output suitable for KOMATSU PC600/PC650 mining applications .

4.1 Metallurgical Validation and Incoming Inspection

• Spectrochemical Analysis: Incoming steel billets undergo spectrochemical analysis to verify exact chemical composition—ensuring compliance with specifications for carbon, manganese, chromium, and boron content critical for hardenability .
• Ultrasonic Testing: Raw materials undergo ultrasonic inspection to detect any internal voids, inclusions, or discontinuities that could compromise structural integrity under mining loads .
• Grain Structure Verification: Metallurgical samples from forged components confirm proper grain flow alignment.

4.2 Precision Forging and Machining Sequence

The manufacturing process follows a carefully orchestrated sequence of operations with advanced international and domestic CNC machine tools as well as high/medium frequency heat treatment equipment :

4.2.1 Raw Material Preparation

• Steel billets are cut to precise dimensions based on roller size and weight requirements.
• Material traceability is established from the initial cutting stage.

4.2.2 Warm Forging

• Billets are heated to warm forging temperature (approximately 700-900°C).
• Closed-die forging under high-tonnage presses shapes the billet, creating distinguishing inner material fiber flow distribution architecture that follows the roller contour .
• Flash is trimmed, and the forged blank undergoes visual inspection.

4.2.3 Normalizing Heat Treatment

• Forged blanks undergo normalizing to refine grain structure and establish consistent mechanical properties .

4.2.4 Rough Machining

• The normalized blank is mounted on CNC vertical turning lathes.
• Rough machining establishes basic dimensions, including outside diameter, flange profiles, and internal bore .

4.2.5 Precision CNC Machining

• Outside Diameter Finishing: Precision turning achieves final diameter tolerances.
• Flange Profile Generation: Flange geometries are machined to exact specifications.
• Bore Machining: Internal bore is precision-machined for bearing and seal seating.
• Shaft Machining: The shaft is CNC turned and ground to final dimensions with surface finish Ra ≤ 0.4 μm at seal zones .
• Mounting Interface Machining: Mounting holes and surfaces are machined to tight tolerances .

4.2.6 Heat Treatment Protocol

Heli CQCTRACK employs a dual-stage heat treatment process to achieve optimal mechanical properties, utilizing high/medium frequency induction quenching technology :

Stage 1: Through-Hardening (Quenching and Tempering)

• Austenitizing: The roller body is heated to critical temperature (approximately 850-900°C) to transform the microstructure to austenite.
• Quenching: Rapid cooling in oil or polymer quenchant transforms the austenite to martensite—a hard, wear-resistant microstructure.
• Tempering: Controlled reheating to intermediate temperature (typically 400-600°C) relieves internal stresses while maintaining core toughness.

Stage 2: Induction Hardening (Surface Hardening)

• Selective Hardening: High-frequency induction hardening creates a deep, consistently hard case on the running surface and flange flanks .
• Computer-Controlled Processing: All parameters (power, frequency, traverse rate, quench flow) are digitally monitored to ensure consistent case depth and good anti-cracking effects .
• Differential Type of Quenching: Heli CQCTRACK employs differential type of quenching or through type of quenching heat treatment to ensure certain heat treatment hardness depth and so give good anti-cracking effects .

Achieved Specifications:

• Surface Hardness: 52 – 58 HRC (mining grade)
• Effective Case Depth: 8 – 12 mm minimum
• Core Hardness: 25 – 40 HRC (tough core)

Table 4: Hardness Specifications—KOMATSU PC600/PC650 Heavy-Duty Lower Roller Assembly

Engineering Rationale: The 52-58 HRC surface range provides optimal abrasion resistance against track chain bushings and ground debris in mining environments . The 8-12 mm case depth ensures that as the surface wears over thousands of operational hours in abrasive mining conditions, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals . The tough core absorbs shock loads, preventing spalling and structural failure under impact conditions characteristic of mining applications .

4.2.7 Final Finishing Operations

• Surface Grinding: After heat treatment, running surfaces may undergo grinding to achieve final dimensional accuracy and surface finish.
• Shot Blasting: Components undergo shot blasting to clean surfaces and improve paint adhesion .
• Final Dimensional Verification: All critical dimensions verified against specifications using high-precision detection equipment .

4.2.8 Assembly Process

Assembly follows strict protocols to ensure component integrity :

1. Component Cleaning: All parts are strictly inspected and cleaned before assembly.
2. Bearing Installation: Bearings are installed with proper preload settings.
3. Seal Assembly: Double-cone sealing elements and floating face seal rings are assembled in pairs; sealing surfaces are coated with grease; O-rings are installed without distortion.
4. Shaft Insertion: The shaft is inserted with mating surfaces coated with a small amount of engine oil.
5. End Cover Installation: End covers are installed with proper torque.
6. Axial Clearance Verification: Verified to ensure proper operation.
7. Rotational Check: The assembled roller should rotate smoothly by hand with some resistance torque but no jamming .

4.2.9 Surface Treatment and Coating

• Corrosion Protection: Components receive anti-corrosion treatment.
• Painting: Application of durable industrial paint (standard black or yellow, customizable per customer requirements) providing corrosion resistance and professional appearance .
• Paint Standards: Shot-blasted surfaces ensure excellent paint adhesion .

4.3 Quality Assurance Protocol

Every Heli CQCTRACK lower roller assembly undergoes rigorous multi-stage quality inspection :

1. Dimensional Inspection: 100% verification of critical mounting interfaces, running surfaces, flange profiles, and bearing bores using calibrated CMM (Coordinate Measuring Machine) equipment and precision gauges .
2. Hardness Verification: Rockwell hardness testing on running surfaces; case depth verification through destructive sampling from each production batch .
3. Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) detects any surface or subsurface defects in critical areas .
4. Seal Integrity Testing: Each assembled roller undergoes air pressure decay testing with submersion in water to validate seal performance .
5. Rotational Torque Verification: Consistent rotational torque is verified, confirming proper bearing pre-load and lubrication distribution.
6. Running-In Procedure: Selected samples undergo simulated load testing to verify smooth rotation and proper internal clearance under load conditions simulating mining duty cycles .
7. Contamination Testing: Sample units may undergo extended rotational endurance tests in abrasive slurry to validate sealing performance in mining conditions .
8. Traceability Marking: Permanent laser engraving or stamping with batch numbers and manufacturing date codes.
9. Export Packaging: Components secured in reinforced plywood crates or steel-framed pallets for international shipping protection .

5. Application-Specific Engineering for KOMATSU PC600, PC650, and Compatible Excavators

5.1 KOMATSU PC600 Platform Overview

The KOMATSU PC600 crawler excavator represents a 60-ton class heavy-duty platform widely deployed in mining, quarrying, and heavy construction applications . Key specifications include:

• Operating Weight Range: 55,000 kg – 65,000 kg (dependent on configuration, including PC600LC variants)
• Engine Power: Approximately 300-350 kW
• Undercarriage Type: Heavy-duty mining configuration
• Application: Production quarrying, heavy infrastructure, mining support

5.2 KOMATSU PC650 Platform Overview

The PC650 represents KOMATSU’s 65-ton class heavy-duty excavator platform with enhanced performance characteristics for severe mining applications :

• Operating Weight Range: 60,000 kg – 70,000 kg (dependent on configuration, including PC650-5, PC650-6, PC650-7, PC650-8 variants)
• Engine Power: Approximately 350-400 kW
• Undercarriage Design: Mining-grade durability features
• Application: Production mining, heavy quarrying, large-scale earthmoving

5.3 Cross-Brand Compatibility

These lower roller assemblies are also compatible with:

• HITACHI ZX650: Shares undercarriage architecture with KOMATSU PC600/PC650 class machines
• JOHN DEERE JD550: Compatible heavy-duty excavator application

5.4 Part Number Specific Engineering Considerations

Table 5: Application-Specific Engineering Features by Part Number

5.5 Compatibility Verification Requirements

Before ordering, verify the following machine parameters to ensure correct roller selection:

• Machine Serial Number (for precise model year and configuration)
• Undercarriage type and roller position (single-flange vs. double-flange requirements)
• Track shoe width and chain pitch
• Previous part number (if available for cross-reference)

6. Quality Certification and Supply Chain Assurance

Heli CQCTRACK’s commitment to heavy-duty manufacturing quality is validated through internationally recognized certification frameworks, with reference to ISO 9001 certification standards to constantly improve quality management levels .

6.1 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates with reference to international ISO 9001 certification standards, constantly improving quality management levels :

• Documented procedures for all manufacturing processes
• Regular internal and external audits
• Continuous improvement protocols
• Complete traceability of materials and processes

6.2 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including:

• Material certification reports (Mill Test Certificates per EN 10204 3.1)
• Heat treatment process logs with digital monitoring data
• Dimensional inspection reports
• Batch-specific test results and hardness verification records
• NDT reports (MPI, ultrasonic)

6.3 Warranty and Performance Commitment

Each KOMATSU KM3058, 4473719, 9109493, and 21M3000100 Track Lower Roller Assembly manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship, underwritten by certified manufacturing processes and rigorous quality control protocols .

7. Failure Mode Analysis and Heavy-Duty Mining Maintenance Integration

Understanding the mechanics of failure in 50–70 ton class excavator mining applications validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance .

7.1 Primary Failure Mode Analysis

Table 6: Failure Mode Analysis and Heli CQCTRACK Engineering Countermeasures

7.2 Recommended Heavy-Duty Mining Maintenance Practices

To maximize service life of Heli CQCTRACK lower roller assemblies in KOMATSU PC600/PC650 mining applications :

1. Regular Inspection Interval: Inspect rollers at 250-hour intervals (more frequently in severe mining applications) for evidence of grease leakage, abnormal wear patterns, flat spots, or visible damage .
2. Wear Measurement: Monitor roller diameter and flange height at regular intervals. Replace rollers when wear reduces diameter by 8-12mm or when flange height is reduced by 5-8mm, or when the hardened case depth has been consumed .
3. Rotation Check: Ensure all rollers turn freely—a seized roller will be visibly worn flat and cause accelerated track chain wear. Any roller exhibiting restricted rotation should be replaced immediately .
4. Track Tension Management: Maintain track tension per KOMATSU manufacturer specifications. Incorrect tension is a primary cause of accelerated roller wear—too tight increases bearing and tread wear; too loose causes track slap and impact damage .
5. Cleanliness Protocol: Remove accumulated debris around roller seals and mounting brackets during daily maintenance routines to prevent accelerated seal damage. In mining applications, high-pressure washing of the undercarriage should be performed regularly .
6. Alignment Check: Periodically verify proper roller alignment with the track frame. If rollers show uneven flange wear, this indicates misalignment requiring investigation .
7. Systematic Replacement Protocol: For optimal undercarriage economy in mining applications, assess roller wear in conjunction with track chain, sprocket, and idler condition. Replace severely worn components in matched sets to prevent accelerated wear on new components .
8. Roller Rotation Protocol: Where undercarriage configuration permits, rotate rollers between positions at 1,000-hour intervals to equalize wear patterns, though this practice is less common in sealed-for-life mining applications .

8. Technical Specifications Summary—KOMATSU PC600/PC650 Heavy-Duty Lower Roller Assemblies

Table 7: Technical Specifications Summary—Heli CQCTRACK KOMATSU PC600/PC650 Lower Rollers

9. Heavy-Duty Sourcing and Logistics Support

Heli CQCTRACK supports global mining and heavy construction procurement operations with comprehensive logistics capabilities designed for the demanding schedules of heavy equipment operations :

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports (EN 10204 3.1) provided with each shipment.
• Flexible Shipping Options:
  • Sea freight (FCL/LCL) for cost-effective bulk transport to mining regions worldwide
  • Air freight for urgent order fulfillment when mining operations face critical downtime
  • Express courier (DHL/FedEx/UPS) for sample or emergency small-volume orders
• Packaging: All products are securely packed using high-quality export cartons, reinforced wooden cases (fumigate seaworthy packing), or industry-standard palletized packaging to ensure maximum protection during transit .
• Port of Shipment: Xiamen, China (primary) with capability for other major ports based on customer requirements
• Lead Times: Standard production orders: 20-30 working days; stock items: 7-10 days for expedited shipping for mining emergency requirements
• Minimum Order Quantity: Flexible MOQ accommodating both trial orders and fleet-level bulk procurement for major mining enterprises
• Payment Terms: T/T (Telegraphic Transfer) standard; L/C (Letter of Credit) available for major mining contracts; other terms negotiable based on order volume and customer relationship

10. Conclusion: Heli CQCTRACK as the Professional Heavy-Duty Choice for KOMATSU PC600/PC650 Undercarriage Components

The Heli CQCTRACK manufacturing philosophy for the KOMATSU KM3058, 4473719, 9109493, and 21M3000100 Track Lower Roller Assemblies represents a definitive advancement in heavy-duty undercarriage technology. Through rigorous material selection (utilizing high-grade 50Mn/40MnB alloy steels) , precision warm forging with grain flow alignment , advanced induction heat treatment protocols achieving optimal 52-58 HRC surface hardness with 8-12 mm case depth , double-cone sealing architecture validated for extreme mining contamination , and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers lower roller assemblies that achieve and exceed OEM-quality performance standards for the most demanding KOMATSU PC600 and PC650 heavy-duty excavator applications .

For the equipment manager or procurement specialist managing KOMATSU PC600, PC650, HITACHI ZX650, and JOHN DEERE JD550 excavator fleets operating in mining, quarrying, heavy infrastructure, and large-scale earthmoving applications, the value proposition is clear: investing in Heli CQCTRACK heavy-duty lower roller components means investing in maximized machine availability, minimized unplanned downtime, extended component life in abrasive mining environments, and predictable, optimized total cost of ownership .

These are not generic replacement parts—they are heavy-duty engineered solutions validated through certified manufacturing processes, backed by comprehensive material traceability, and designed from the ground up to meet the demands of global mining and heavy construction applications where component failure is not an option .

11. References and Engineering Resources

For additional technical information, application engineering support, or to discuss heavy-duty OEM/ODM requirements:

• Engineering Consultation: Heli CQCTRACK applications engineers available to discuss specific mining duty cycles and recommend optimal component specifications.
• Technical Drawings: Detailed 2D and 3D CAD models available upon request for engineering verification.
• Installation Manuals: Comprehensive installation instructions aligned with KOMATSU service manual procedures available with each shipment.
• Material Certifications: Mill test reports and heat treatment certification available for each production batch.
• Fitment Support: Drawing or serial number verification available to confirm compatibility .

For technical specifications, heavy-duty OEM/ODM inquiries, pricing, or to place an order:

Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
*ISO 9001:2015 Certified • Heavy-Duty Crawler Excavator Undercarriage Parts Supplier and Factory • Global Supplier Since 2002*
Contact: Jack (International Sales Director)
Web: www.cqctrack.com
Product Range: Track Lower Rollers, Track Carrier Rollers, Front Idlers, Track Sprockets, Track Chains, and Complete Undercarriage Systems for 0.8T to 100T Excavators and Bulldozers

This technical document is provided for engineering and procurement reference. Specifications subject to change due to continuous product improvement for heavy-duty applications. All brand names and part numbers are referenced for cross-reference purposes only; Heli CQCTRACK is an independent professional manufacturer specializing in undercarriage components for mining, construction, and earthmoving applications. Always verify machine serial number and undercarriage configuration before ordering .
