Technical Analysis: HITACHI 9134282 71401320 9242964 EX200 EX215 EX255 ZX200 ZX210 Track Front Idler Wheel Assembly – OEM and ODM Quality Spare Parts from CQC TRACK

Executive Summary

This technical publication delivers an exhaustive examination of the HITACHI track front idler wheel assembly—a mission-critical undercarriage component engineered for EX and ZX series hydraulic excavators, including the EX200, EX215, EX255, ZX200, and ZX210 models. The part numbers 9134282, 71401320, and 9242964 represent OEM specifications for Hitachi’s 20-22 ton class machines, which are extensively deployed in general construction, infrastructure development, utility work, and medium-duty excavation applications across global markets.

The front idler assembly (alternatively designated as track adjuster idler, guide wheel, or tensioning idler) serves dual critical functions in excavator operation: it guides the track chain around the forward articulation point and provides the moving anchor point for the hydraulic track tensioning mechanism. For operators of Hitachi EX200/ZX200 class machines—typically 20-22 ton excavators representing one of the most popular size classes in the global equipment fleet—understanding the engineering principles, material specifications, and manufacturing quality indicators of this component is essential for making informed procurement decisions that optimize total cost of ownership.

This analysis examines the HITACHI idler assembly through multiple technical lenses: functional anatomy, metallurgical composition, manufacturing process engineering, quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (operating under HELI Group affiliation) as a specialized manufacturer and supplier of OEM and ODM quality excavator undercarriage components operating from Quanzhou, China .

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application

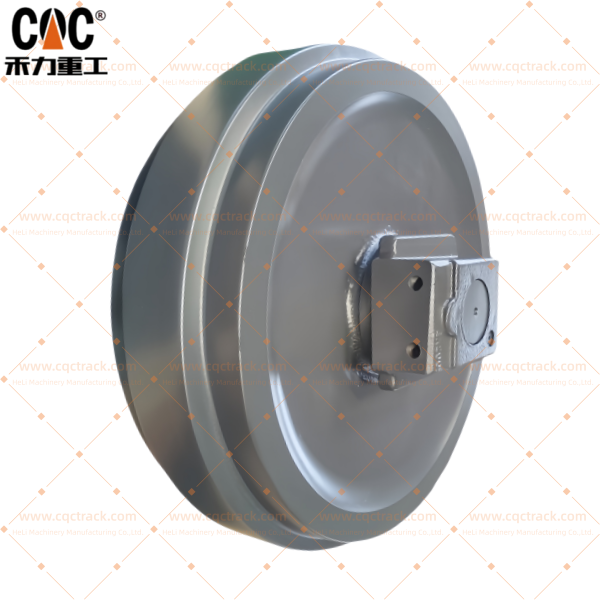

The HITACHI track front idler wheel assembly encompasses multiple OEM part numbers corresponding to specific excavator models and production series within the EX and ZX families. The primary part numbers addressed in this analysis include:



OEM Part Number	Compatible Models	Machine Class	Application Notes
9134282	EX200-1, EX200-2, EX200-3, EX200-4, EX200-5	20-22 ton	Primary idler for EX series
71401320	ZX200, ZX210, ZX225US	20-22 ton	Enhanced design for Zaxis series
9242964	EX215, EX255	21-22 ton	Heavy-duty variant with reinforced flanges

These part numbers represent Hitachi’s proprietary identification codes, corresponding to precise engineering drawings, dimensional tolerances, and material specifications developed through the original equipment manufacturer’s rigorous validation protocols. The Hitachi EX and ZX series excavators in the 20-22 ton class are among the most widely deployed machines globally, serving in applications ranging from residential construction and utility work to infrastructure development and quarry operations .

1.2 Primary Functional Responsibilities

The front idler assembly in medium-duty excavator applications performs three interconnected functions critical to machine performance and undercarriage longevity:

Track Guidance and Load Transfer: The idler’s peripheral surface contacts the track chain’s rail section, guiding the chain as it wraps around the forward articulation point. During forward travel, the idler experiences compressive forces; during reverse travel, it must withstand tensile loads transmitted through the chain. For 20-22 ton class machines with operating weights of 20,000-22,000 kg, static loads per idler typically range from 5,000-6,500 kg, with dynamic loads during excavation cycles reaching 2.5-3.0 times static values.

Track Tensioning Interface: The idler mounts on a sliding yoke connected to the track adjuster mechanism—typically a grease-filled hydraulic cylinder with relief valve. By moving the idler forward or backward, operators adjust track sag, maintaining optimal tension that balances wear reduction with mechanical efficiency. The adjustment stroke for 20-ton class excavator idlers typically ranges 90-120 mm.

Impact Load Management: During travel over uneven terrain, the idler absorbs and distributes initial contact shocks when the track chain rolls onto the undercarriage, protecting the track frame and final drive components from shock-induced damage. This function demands both structural strength and controlled deflection characteristics.

1.3 Technical Specifications and Dimensional Parameters

While Hitachi’s exact engineering drawings remain proprietary, industry-standard specifications for 20-22 ton class excavator front idlers typically encompass the following parameters based on CQC TRACK’s engineering data and cross-reference with Hitachi service information:

These parameters are established through reverse engineering of OEM components and direct collaboration with equipment manufacturers. Premium aftermarket suppliers like CQC TRACK achieve tolerances of ±0.02 mm on critical bearing journals and seal housing bores, ensuring proper fit and long-term reliability.

1.4 Cross-Brand Compatibility and Application Range

Hitachi excavators in the 20-22 ton class share certain undercarriage specifications across model generations, enabling parts interchangeability:

This compatibility across model generations enables fleet operators with mixed Hitachi equipment populations to rationalize inventory and sourcing strategies .

2. Metallurgical Foundation: Material Science for Medium-Duty Excavator Applications

2.1 Alloy Steel Selection Criteria

The service environment of a 20-ton class excavator front idler presents demanding material requirements. The component must simultaneously resist abrasive wear from continuous contact with soil, sand, and rock; withstand impact loads from excavation forces and machine travel over uneven terrain; maintain structural integrity under cyclic loading that can exceed 10⁷ cycles over the machine’s lifetime; and preserve dimensional stability despite exposure to temperature extremes, moisture, and chemical contaminants.

Premium manufacturers like CQC TRACK select specific alloy steel grades that achieve the optimal balance of hardness, toughness, and fatigue resistance for this application class:

35MnB Manganese-Boron Steel: This is a preferred material choice for medium-duty excavator idlers. With carbon content of 0.32-0.38% and manganese of 1.1-1.4%, 35MnB provides excellent hardenability enhanced by boron micro-alloying (0.0008-0.003%). Boron segregates to austenite grain boundaries, retarding transformation to softer microstructures during quenching, allowing full hardness achievement at greater section depths characteristic of 20-ton class components. Surface hardness of HRC 52-58 is typically achieved with this material .

40Mn2 / 50Mn Manganese Steel: Alternative material specifications utilize 40Mn2 (0.37-0.44% C, 1.4-1.8% Mn) or 50Mn (0.45-0.55% C, 1.4-1.8% Mn) for applications requiring enhanced core strength. The higher carbon content in 50Mn provides increased wear resistance but requires careful heat treatment control to maintain adequate toughness.

Material Traceability: Reputable manufacturers provide comprehensive material documentation, including Mill Test Reports (MTRs) certifying chemical composition with element-specific analysis (C, Si, Mn, P, S, B as applicable). Spectrographic analysis confirms alloy chemistry against certified specifications .

2.2 Forging vs. Casting: The Grain Structure Imperative

The primary forming method fundamentally determines the idler’s mechanical properties and service life. While casting offers cost advantages for simple geometries, it produces an equiaxed grain structure with random orientation, potential porosity, and inferior impact resistance. Premium excavator idler manufacturers exclusively employ closed-die hot forging for the idler wheel and yoke components.

The forging process begins with cutting steel billets to precise weight, heating them to approximately 1150-1250°C until fully austenitized, then subjecting them to high-pressure deformation between precision-machined dies. This thermo-mechanical treatment produces continuous grain flow that follows the component contour, aligning grain boundaries perpendicular to principal stress directions. The resulting structure exhibits 20-30% higher fatigue strength and significantly greater impact energy absorption compared to cast alternatives.

After forging, components undergo controlled cooling to prevent the formation of detrimental microstructures such as Widmanstätten ferrite or excessive grain boundary carbide precipitation.

2.3 Dual-Property Heat Treatment Engineering

The metallurgical sophistication of a quality excavator idler manifests in its precisely engineered hardness profile—a hard, wear-resistant surface coupled with a tough, impact-absorbing core:

Quenching and Tempering (Q&T) : The entire forged rim and yoke are austenitized at 840-880°C, then rapidly quenched in agitated water, oil, or polymer solution. This transformation produces martensite—providing maximum hardness but with associated brittleness. Immediate tempering at 500-650°C allows carbon to precipitate as fine carbides, relieving internal stresses and restoring toughness. The resulting core hardness typically ranges from 250-320 HB (25-35 HRC), providing optimal toughness for impact absorption in the 20-ton weight class.

Induction Surface Hardening: Following finish machining, the critical wear surfaces—specifically the tread diameter and flange faces—undergo localized induction hardening. A copper inductor coil surrounds the component, inducing eddy currents that rapidly heat the surface layer to austenitizing temperature (900-950°C) within seconds. Immediate water quenching produces a martensitic case of 5-10 mm depth with surface hardness of HRC 52-58, providing exceptional resistance to abrasive wear from track bushing contact .

Hardness Profile Verification: Quality manufacturers perform microhardness traverses on sample components to verify case depth compliance with specifications. The hardness gradient from surface (HRC 52-58) through the hardened case to the core (250-320 HB) must follow a controlled transition to prevent spalling or case-core separation under impact loading.

This differential hardening creates the ideal composite structure: a wear-resistant rim surface that withstands abrasive contact with track links and ground debris, supported by a tough core that absorbs impact loads without catastrophic fracture.

2.4 Quality Assurance Protocols

Manufacturers like CQC TRACK implement multi-stage quality verification throughout production:

• Spectroscopic Material Analysis: Confirms alloy chemistry against certified specifications at raw material receipt.
• Ultrasonic Testing (UT) : Verifies internal soundness of critical forgings, detecting any centerline porosity, inclusions, or laminations that could compromise structural integrity.
• Hardness Verification: Rockwell or Brinell hardness testing confirms both core hardness after Q&T treatment and surface hardness after induction hardening.
• Magnetic Particle Inspection (MPI) : Examines critical areas—particularly flange roots, shaft fillets, and yoke weldments—detecting any surface-breaking cracks or grinding burns.
• Dimensional Verification: Coordinate Measuring Machines (CMM) verify critical dimensions, with statistical process control maintaining process capability indices (Cpk) typically exceeding 1.33 for critical features.
• Mechanical Testing: Sample components may undergo tensile testing and impact testing (Charpy V-notch) to verify mechanical properties meet specifications .

3. Precision Engineering: Component Design and Manufacturing

3.1 Idler Rim Geometry for Medium-Duty Excavator Applications

The idler rim geometry for EX200/ZX200 class machines must precisely match the track link pitch and rail profile to ensure uniform contact pressure distribution. For 20-ton class excavators, typical track pitch is 171-190 mm, and the idler diameter is calculated to provide adequate wrap angle (typically 100-120°) while maintaining structural integrity under operational loads.

Flange geometry for medium-duty excavator applications incorporates design elements specific to this machine class:

• Flange-to-Flange Distance: Accommodates the track link width (typically 60-80 mm for 20-ton machines) with 3-5 mm clearance for free movement while maintaining guidance effectiveness.
• Flange Face Relief Angles: 5-10° relief facilitates debris ejection and prevents material packing that could induce derailment during side-slope operation.
• Flange Root Radii: Optimized to minimize stress concentration while providing adequate strength for anti-derailment function.
• Flange Height: The 20-25 mm height provides robust lateral constraint, preventing track derailment during turning or side-slope operation.

3.2 Shaft and Bearing System Engineering

The stationary shaft must withstand continuous bending moments and shear stresses while maintaining precise alignment with the rotating rim. For EX200/ZX200 applications, shaft diameters typically range 70-85 mm, calculated based on static weight, dynamic factors (typically 2.0-2.5 for excavator applications), and track tension loads that can exceed 10 tonnes.

The bearing system for medium-duty excavator idlers employs matched sets of tapered roller bearings, which are preferred because they can simultaneously support radial loads (from machine weight and track tension) and thrust loads (from lateral track forces during turning). Key characteristics include:

• High Radial and Axial Load Capacity: Tapered roller bearings are specifically selected for their ability to handle the combined stresses of machine weight and directional changes.
• Adjustable Preload: Tapered roller bearings allow precise preload to be set during assembly, minimizing internal clearance and extending bearing life under cyclic loading.
• Bearing Quality: Premium manufacturers source bearings from specialized bearing producers (e.g., NSK, NTN, KOYO, or equivalent Chinese bearing suppliers) with rigorous quality standards meeting ISO or JIS specifications.

The shaft bearing journals are precision-ground and often surface-treated (e.g., chrome plating or nitriding) for enhanced wear and corrosion resistance. The hub is designed as a monolithic forging with the shaft or is welded using automated processes with post-weld heat treatment to ensure structural integrity.

3.3 Advanced Multi-Stage Sealing Technology

The seal system is the single most critical determinant of idler longevity in excavator applications, where machines frequently operate in mud, dust, and highly abrasive environments. Industry data indicates that over 70% of premature idler failures originate from seal compromise, allowing abrasive contaminants to enter the bearing cavity and initiate rapid wear progression.

Premium excavator idlers from CQC TRACK employ multi-stage sealing systems comprising:

Primary Radial Lip Seal: Manufactured from HNBR (Hydrogenated Nitrile Butadiene Rubber) material for exceptional temperature resistance (-40°C to +150°C) and chemical compatibility with extreme pressure (EP) greases. The lip seal maintains continuous contact with the shaft, excluding fine contaminants while retaining lubricant.

Secondary Floating Seal: Precision-ground hardened iron or steel rings with lapped sealing faces achieving flatness within 0.5-1.0 µm. These rings rotate relative to each other, maintaining continuous metal-to-metal contact that creates an impenetrable barrier against abrasive particles.

External Labyrinth-Style Dust Guard: Creates a tortuous path that progressively traps coarse contaminants before they reach the primary seals. The labyrinth is packed with high-adhesion grease that captures and retains particles.

Pre-Lubrication: The bearing cavity is pre-filled with high-adhesion, extreme pressure (EP) grease, ensuring immediate lubrication upon installation and creating a positive pressure that further excludes contaminants.

3.4 Sliding Yoke and Track Tensioning Interface

The sliding yoke houses the idler shaft and connects to the track adjuster cylinder. For EX200/ZX200 applications, the yoke is a robust steel forging or casting weighing 30-50 kg, designed to transmit tension loads (typically 8-12 tonnes) from the idler to the adjuster while sliding smoothly on the track frame rails.

Critical design features include:

• Hardened Steel Wear Plates: Installed at the interface with the track frame’s adjustment slide, these serve as sacrificial components that protect the idler shaft and frame from wear, simplifying future maintenance.
• Induction-Hardened Sliding Surfaces: The yoke’s bearing surfaces are induction-hardened to resist wear from continuous sliding against the track frame.
• Grease Fittings: Equipped for scheduled re-lubrication of sliding interfaces, following OEM-recommended service intervals.
• Adjuster Mounting Configuration: Precision-machined mounting surface for the track adjuster cylinder, ensuring proper alignment and load transfer.

The interface with the track adjuster utilizes a hydraulic tensioning system: grease is pumped into a cylinder behind the yoke, pushing the idler forward and tensioning the track. A relief valve prevents over-tensioning.

3.5 Precision Machining and Quality Control

Modern CNC machining centers achieve dimensional tolerances that directly correlate with service life. Critical parameters for EX200/ZX200 class idlers include:

CNC-controlled turning and grinding processes guarantee precise concentricity, accurate flange dimensions, and optimal surface finish for smooth track chain interaction. In-process dimensional verification with real-time feedback to machine operators enables immediate correction of process drift.

3.6 Assembly and Pre-Delivery Testing

Final assembly is performed in clean-room conditions to prevent contamination. Bearings are carefully pressed into the rim using controlled force application, seals installed with specialized tools to avoid damage, and the shaft inserted with proper alignment. The assembly is then filled with specified grease and rotated to distribute lubricant.

Pre-delivery testing for excavator idlers includes:

• Rotational torque test to verify smooth rotation and correct bearing preload
• Seal integrity test to confirm proper seal installation and detect any leakage paths
• Dimensional inspection of the assembled unit to verify all critical fits
• Visual inspection of seal installation, fastener torque, and overall workmanship
• Mechanical run-in on sample basis to verify performance under simulated loads

4. CQC TRACK: Manufacturer Profile and Capabilities

4.1 Company Overview and Industry Position

CQC TRACK (operating under HELI Group affiliation) is a specialized industrial manufacturer and supplier of heavy-duty undercarriage systems and chassis components, operating on both ODM and OEM principles. Based in Quanzhou, Fujian Province—a region recognized for specialized expertise in customized undercarriage solutions—the company has established itself as a significant player in the global undercarriage components market .

With specialized focus on undercarriage components for global markets, CQC TRACK has developed comprehensive capabilities across the entire undercarriage product spectrum, including track rollers, carrier rollers, front idlers, sprockets, track chains, and track shoes for applications ranging from mini excavators to large mining-class machines. The company serves as a source factory for OEM and ODM quality spare parts, supplying international distributors and aftermarket networks worldwide.

4.2 Technical Capabilities and Engineering Expertise

Integrated Manufacturing: CQC TRACK controls the full production cycle from material sourcing and forging to precision machining, heat treatment, assembly, and quality testing. This vertical integration ensures consistent quality and complete traceability throughout the manufacturing process, enabling the company to maintain strict adherence to OEM specifications for Hitachi EX and ZX series components.

Advanced Metallurgical Expertise: The company’s technical team leverages advanced metallurgical knowledge and dynamic load simulation tools to design components for medium-duty excavator applications. For EX200/ZX200 class idlers, this includes rigorous fatigue analysis and impact testing to ensure structural resilience appropriate for the 20-22 ton class. Material selection emphasizes 35MnB and 40Mn2 alloy steels with controlled chemistry and heat treatment protocols achieving surface hardness of HRC 52-58 .

ODM/OEM Capabilities: CQC TRACK offers both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, enabling customers to source components manufactured to exact specifications or collaborate on custom designs for specialized applications. This flexibility is particularly valuable for customers requiring components for Hitachi excavators operating in unique conditions or seeking performance enhancements beyond standard specifications.

Quality Assurance Protocol: CQC TRACK implements a stringent quality management system (ISO 9001 certified). Production involves:

• Spectroscopic material analysis for alloy verification at raw material receipt
• Ultrasonic testing (UT) of critical forgings to verify internal soundness
• In-process dimensional checks using precision gauges and CMM
• Hardness verification at multiple production stages
• Final assembly testing for rotational smoothness and seal integrity

Engineering Support: The company’s engineering team provides technical support for application verification, ensuring correct part selection for specific Hitachi models and production series. Cross-reference expertise enables accurate substitution of OEM part numbers 9134282, 71401320, and 9242964 with equivalent aftermarket components.

4.3 Product Range for Hitachi Excavators

CQC TRACK manufactures a comprehensive range of undercarriage components for Hitachi excavators, including:

The company maintains tooling and production capability for multiple Hitachi model generations, ensuring consistent supply for both current production and legacy equipment support.

4.4 Global Supply Capability

CQC TRACK has strengthened its technical services in geographic areas closest to its customers, with particular attention to international markets including Asia, Europe, the Americas, and the Middle East. This strategy enables the company to develop optimized solutions for specific applications and environments in collaboration with customers worldwide.

With production facilities in Quanzhou and strategic partnerships across China’s undercarriage manufacturing ecosystem, CQC TRACK offers competitive lead times (typically 30-50 days for custom production) and flexible minimum order quantities suitable for both inventory stocking programs and just-in-time maintenance requirements .

5. Hitachi EX Series and Zaxis Series Overview

5.1 Hitachi EX200 Series Evolution

The Hitachi EX200 series represents one of the most successful excavator lines in the 20-ton class, with multiple generations produced over several decades:

The EX200 series established Hitachi’s reputation for reliability and performance in the medium excavator class, with many machines still operating today after 20-30 years of service. The consistent undercarriage design across generations enables parts interchangeability, simplifying aftermarket support for these legacy machines .

5.2 Hitachi ZX200 / ZX210 Series Evolution

The Zaxis series succeeded the EX line with significant design improvements while maintaining undercarriage compatibility in many cases:

The Zaxis series continues Hitachi’s leadership in the 20-ton class, with the ZX200 and ZX210 models remaining among the best-selling excavators globally. The continued use of the 71401320 idler part number across multiple generations demonstrates Hitachi’s commitment to design stability and parts commonality .

5.3 EX215 and EX255 Models

The EX215 and EX255 represent specialized variants within the EX series:

• EX215: Extended reach configuration with modified boom and arm geometry, often used in utility and pipeline applications requiring additional working range while maintaining stable undercarriage configuration.
• EX255: Heavy-duty variant with reinforced undercarriage and higher operating weight (approximately 25 tons), designed for more demanding applications including quarry work and heavy excavation.

These models utilize the 9242964 heavy-duty idler assembly, featuring reinforced flanges and enhanced bearing capacity to accommodate the increased loads associated with their specialized applications.

6. Performance Validation and Service Life Expectations

6.1 Benchmarks for Medium-Duty Excavator Applications

Field data from diverse operating environments provides realistic performance expectations for EX200/ZX200 class front idlers:

In general construction and residential development applications (moderate abrasivity, mixed terrain), properly manufactured OEM-grade idlers typically achieve 4,500-6,000 operating hours before requiring replacement. Under more severe conditions—continuous utility work in abrasive soils, quarry applications, or rental fleet usage with varied operators—service life may reduce to 3,000-4,500 hours.

Premium aftermarket idlers from reputable manufacturers like CQC TRACK demonstrate performance parity with OEM components, achieving 85-95% of OEM service life at significantly lower acquisition cost (typically 30-50% below OEM pricing). The use of 35MnB material with surface hardness of HRC 52-58 ensures wear resistance comparable to original Hitachi specifications .

6.2 Common Failure Modes in Medium-Duty Excavator Applications

Understanding failure mechanisms enables proactive maintenance and informed procurement decisions:

Seal Failure and Contamination Ingress: The most common failure mode in excavator idlers, seal compromise allows abrasive particles to enter the bearing cavity. EX200/ZX200 class machines operating in utility applications are particularly susceptible due to frequent exposure to excavation in mixed soils containing rocks, roots, and debris. Initial symptoms include grease leakage around seals, followed by increasingly rough rotation and eventual seizure.

Flange Wear: Progressive wear on flange faces indicates inadequate surface hardness or improper track alignment. Critical wear dimensions include thinning of the guidance flanges, which reduces lateral constraint and increases derailment risk. Regular measurement of flange thickness during inspections enables predictive replacement before derailment occurs.

Tread Wear and Diameter Reduction: The idler tread gradually wears from continuous contact with track bushings. When tread diameter reduction exceeds specifications (typically 10-15 mm), wrap angle decreases, increasing contact pressure and accelerating wear. Regular measurement of outside diameter during major service intervals is recommended.

Bearing Fatigue: After extended service, bearings may exhibit spalling due to subsurface fatigue, indicating the component has reached its natural life limit. This typically manifests as rough rotation, increased play, and eventually audible noise during operation.

Yoke Wear: Sliding surfaces of the yoke can wear over time, increasing clearance and causing idler misalignment—particularly in machines with high operating hours or those operating in abrasive environments where fine particles accumulate between sliding surfaces.

6.3 Wear Indicators and Inspection Protocols

Regular inspection at 250-hour intervals should check for:

• Grease leakage around seals (indicates seal compromise)
• Abnormal play in the idler (detected by prying vertically and horizontally with track raised)
• Uneven wear patterns on tread or flanges
• Reduction in idler wheel outside diameter
• Thinning of guidance flanges
• Yoke movement and clearance on track frame rails
• Condition of track adjuster grease fitting and cylinder
• Unusual noises (grinding, squeaking) from the undercarriage during operation
• Visible damage or deformation from impact with obstacles

7. Installation, Maintenance, and Service Life Optimization

7.1 Professional Installation Practices for Hitachi Excavators

Proper installation significantly impacts idler service life for EX200/ZX200 class machines:

Track Frame Preparation: The sliding surfaces of the track frame must be clean and free of burrs. Any damage to the frame rails should be repaired to ensure smooth yoke movement. Hardened wear plates or liners should be inspected and replaced if worn beyond service limits.

Yoke Installation: The yoke should slide freely on the frame rails; apply grease to sliding surfaces as recommended. Ensure proper alignment of the idler with the track chain path and verify that the yoke engages correctly with the track adjuster cylinder.

Fastener Torque Specifications: Mounting bolts or retaining plates must be tightened to manufacturer specifications using calibrated torque wrenches. Under-torquing allows movement that accelerates wear; over-torquing risks thread damage or bolt fatigue failure. For Hitachi applications, typical torque values range 350-450 Nm depending on bolt size and grade.

Track Tension Adjustment: After installation, adjust track tension according to the machine manual. For 20-ton class excavators, proper sag typically ranges 20-30 mm measured at the center of the track between carrier roller and idler. Check tension after a few hours of operation and readjust if necessary.

7.2 Preventive Maintenance Protocols

Regular Inspection Intervals: Visual inspection at 250-hour intervals should check for all wear indicators previously described. More frequent inspection (50-100 hours) is recommended in severe applications such as quarry work or demolition.

Track Tension Management: Proper track tension directly impacts idler life. Excessive tension increases bearing loads and accelerates wear; insufficient tension allows track slapping that accelerates seal deterioration and increases impact loads on the idler. Check tension regularly, especially after the first few hours on a new idler and when operating in changing ground conditions.

Cleaning Considerations: Avoid high-pressure washing directed at seal areas, which can force contaminants past seals into bearing cavities. If cleaning is necessary, use low-pressure water and allow components to dry before operation. Remove accumulated debris from around the idler and yoke areas during daily walk-around inspections.

Lubrication: Follow manufacturer’s recommendations for grease type and interval for any lubrication points on the yoke or adjuster mechanism. For sealed idler bearings, no additional lubrication is required during service life.

Track Alignment Verification: Periodically verify track alignment by observing track chain position relative to rollers and idler during straight-line travel. Misalignment indicates worn components or frame damage requiring correction before accelerated wear occurs.

7.3 Replacement Decision Criteria

Front idlers for EX200/ZX200 class machines should be replaced when:

• Seal leakage is evident and cannot be stopped by additional greasing
• Radial or axial play exceeds manufacturer specifications (typically 3-4 mm)
• Flange wear reduces guidance effectiveness or creates sharp edges
• Tread wear exceeds hardened case depth (typically when diameter reduction exceeds 10-15 mm)
• Tread outside diameter reduction impairs proper track wrap
• Bearing rotation becomes rough, noisy, or irregular
• Visible wear or damage to the idler wheel is apparent
• Yoke wear or deformation prevents proper sliding or alignment

7.4 System-Based Replacement Strategy

For optimal undercarriage performance and cost efficiency, the idler’s condition should be evaluated alongside the track chain (pins and bushings), sprocket, and bottom rollers. Replacing severely worn components in a matched set is considered best practice to prevent accelerated wear on new parts.

Industry best practice recommends replacing idlers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts. When one idler shows significant wear, the opposite side idler likely has similar wear accumulation and should be replaced simultaneously.

For machines with high utilization (exceeding 2,000 annual hours), comprehensive undercarriage inspection at 1,000-hour intervals enables predictive replacement planning, minimizing unplanned downtime and optimizing total cost of ownership.

8. Strategic Sourcing Considerations

8.1 The OEM vs. Aftermarket Decision for Medium-Duty Excavators

Fleet managers must evaluate the OEM versus high-quality aftermarket decision through multiple lenses:

Cost Analysis: Aftermarket components from manufacturers like CQC TRACK typically offer 30-50% initial cost savings compared to OEM parts. For fleets with multiple EX200/ZX200 class machines, this differential can represent significant annual savings. Total cost of ownership calculations must factor in expected service life, maintenance labor costs, and downtime impact.

Quality Parity: Premium aftermarket manufacturers achieve performance parity with OEM components through equivalent material specifications (35MnB/40Mn2), heat treatment processes (core hardness 250-320 HB, surface hardness HRC 52-58), and quality control protocols. CQC TRACK’s ISO 9001 certification and comprehensive testing procedures ensure consistent quality .

Warranty Considerations: OEM warranties typically cover 1-2 years or 2,000-3,000 hours, with strict installation requirements and parts sourcing through authorized dealer networks. Reputable aftermarket manufacturers offer comparable warranties covering manufacturing defects, with coverage periods of 1-2 years.

Availability and Lead Times: OEM parts may face extended lead times due to centralized distribution and potential supply chain disruptions. Aftermarket manufacturers with local production often deliver within 3-5 weeks—critical for minimizing downtime in revenue-producing equipment. CQC TRACK’s integrated manufacturing enables responsive order fulfillment for both standard and custom requirements .

Application Support: Aftermarket suppliers with engineering expertise can provide technical support for application verification, ensuring correct part selection for specific Hitachi models and production years. Cross-reference expertise is particularly valuable for legacy equipment where OEM documentation may be limited.

8.2 Supplier Evaluation Criteria

Procurement professionals should apply systematic evaluation frameworks when assessing potential front idler suppliers:

Manufacturing Capability Assessment: Facility evaluations should verify the presence of:

• Closed-die forging equipment for primary forming
• Modern CNC machining centers (preferably 5-axis capability)
• Automated heat treatment lines with atmosphere control
• Induction hardening stations with process monitoring
• Clean-room assembly areas for seal installation
• Comprehensive testing facilities (UT, MPI, CMM, hardness testers)

Quality Management Systems: ISO 9001:2015 certification represents the minimum acceptable standard, indicating documented processes and continuous improvement practices. Suppliers with additional certifications (ISO/TS 16949, CE marking) demonstrate enhanced commitment to quality.

Material and Process Transparency: Reputable manufacturers readily provide material certifications (MTRs), process documentation, and inspection reports. Requests for sample testing—including dimensional verification, hardness testing, and metallographic examination—should be accommodated professionally.

Production Capacity and Lead Times: Typical lead times for custom production range 35-50 days for standard components, with expedited production possible for urgent requirements. Suppliers maintaining finished goods inventory for common Hitachi models offer significant advantages for just-in-time maintenance programs.

Experience and Reputation: Suppliers with extensive experience in Hitachi undercarriage applications demonstrate sustained capability and market acceptance. Reference checking with existing customers provides valuable insight into reliability and service levels.

8.3 The CQC TRACK Advantage for Hitachi Applications

CQC TRACK offers several distinct advantages for Hitachi excavator undercarriage procurement:

• OEM/ODM Manufacturing Capability: Components engineered to match original equipment specifications exactly, with flexibility for custom modifications when required.
• Integrated Production Control: Full vertical integration from material sourcing through final assembly ensures consistent quality and complete traceability.
• Material Excellence: Utilization of 35MnB and 40Mn2 alloy steels with controlled chemistry, achieving surface hardness of HRC 52-58 for optimal wear resistance .
• Comprehensive Quality Assurance: Multi-stage testing protocols including spectroscopic analysis, ultrasonic testing, and dimensional verification.
• Application Expertise: Technical team with deep understanding of Hitachi EX and ZX series undercarriage systems, enabling accurate cross-reference of part numbers 9134282, 71401320, and 9242964.
• Global Supply Capability: Established distribution networks serving international markets with reliable lead times and competitive pricing .

9. Market Analysis and Future Trends

9.1 Global Demand Patterns

The global market for medium-duty excavator undercarriage components continues expanding, driven by:

Infrastructure Development: Major infrastructure initiatives across Southeast Asia, Africa, and the Middle East sustain demand for new equipment and replacement parts. EX200/ZX200 class machines, widely deployed in these regions, generate ongoing aftermarket requirements for idler assemblies and related components .

Urban Construction: The 20-ton excavator class remains the workhorse of urban construction and residential development projects worldwide, creating sustained demand for undercarriage maintenance and replacement parts.

Equipment Fleet Aging: Economic uncertainties have extended equipment retention periods, increasing aftermarket parts consumption as operators maintain older Hitachi machines rather than replacing them. Many EX200 series machines continue operating after 20+ years, requiring ongoing undercarriage support.

9.2 Technological Advancements

Emerging technologies are transforming undercarriage component manufacturing:

Induction Hardening Optimization: Advanced induction systems with real-time temperature monitoring and feedback control achieve unprecedented uniformity in case depth and hardness distribution, extending wear life while reducing energy consumption.

Automated Assembly and Inspection: Robotic assembly systems with integrated vision inspection ensure consistent seal installation and dimensional verification, eliminating human variability in critical processes.

Material Science Developments: Research into nano-modified steels and advanced heat treatment cycles promises next-generation materials with enhanced wear resistance without sacrificing toughness.

Digital Transformation: CQC TRACK is undergoing significant transformation aligned with Industry 4.0 standards, developing technologies that collect and evaluate field performance data to inform future product development .

9.3 Sustainability and Remanufacturing

Growing emphasis on sustainability in heavy equipment operation is driving interest in remanufactured undercarriage components. Quality manufacturers are developing processes for reclaiming and rebuilding idler assemblies, extending component life and reducing environmental impact. This trend is particularly relevant for Hitachi EX series machines, where original components may no longer be available through OEM channels.

10. Conclusion and Strategic Recommendations

The HITACHI 9134282 71401320 9242964 track front idler wheel assembly for EX200, EX215, EX255, ZX200, and ZX210 excavators represents a precision-engineered component whose performance directly impacts machine stability, track life, and operating cost. Understanding the technical intricacies—from alloy selection (35MnB/40Mn2) and forging methodology through precision machining, bearing systems, and multi-stage seal design—enables procurement professionals to make informed decisions that balance initial cost against total cost of ownership .

For Hitachi excavator fleet operators seeking optimal value, the following strategic recommendations emerge from this comprehensive analysis:

1. Prioritize material and process transparency, requesting and verifying documentation of steel grades (35MnB/40Mn2), heat treatment parameters (core 250-320 HB, surface HRC 52-58), and quality control protocols.
2. Verify sealing system specifications, recognizing that multi-stage seals with HNBR lip seals, floating seals, and labyrinth dust guards provide superior protection in the varied operating environments typical of 20-ton class excavators.
3. Evaluate suppliers through the lens of manufacturing capability, seeking evidence of forging operations, modern CNC equipment, heat treatment lines, and comprehensive testing facilities rather than relying solely on marketing claims.
4. Confirm cross-reference accuracy when substituting aftermarket components for OEM part numbers 9134282, 71401320, and 9242964, ensuring compatibility with specific Hitachi model and series.
5. Consider application-specific requirements—idlers for quarry and heavy excavation applications may benefit from enhanced seal packages or modified flange geometries compared to those for general construction.
6. Implement systematic maintenance protocols including regular inspection for seal leakage, flange wear, tread diameter reduction, and proper track tension—recognizing that even the finest idler will underperform without proper care.
7. Adopt system-based replacement strategies, evaluating idler condition alongside track chain, sprocket, and rollers to prevent accelerated wear of new components paired with worn counterparts.
8. Develop strategic supplier partnerships with manufacturers like CQC TRACK that demonstrate technical competence, quality commitment, and supply chain reliability, transitioning from transactional purchasing to collaborative relationship management .

By applying these principles, Hitachi excavator fleet operators can secure reliable, cost-effective undercarriage solutions that maintain machine productivity while optimizing long-term operational economics—the ultimate objective of professional equipment management in today’s competitive global environment.

CQC TRACK, as a specialized manufacturer with integrated production capabilities and comprehensive quality assurance, represents a viable source for Hitachi EX and ZX series idler assemblies, offering OEM and ODM quality with the cost advantages of specialized Chinese manufacturing .

Frequently Asked Questions (FAQ)

Q: What is the typical service life of a Hitachi EX200/ZX200 class front idler?
A: In general construction applications, properly maintained idlers typically achieve 4,500-6,000 operating hours. Severe conditions (continuous quarry operation, highly abrasive materials) may reduce life to 3,000-4,500 hours.

Q: How can I verify that an aftermarket front idler meets Hitachi OEM specifications?
A: Request material test reports (MTRs) certifying alloy chemistry (35MnB/40Mn2), hardness verification documentation (core 250-320 HB, surface HRC 52-58), and dimensional inspection reports. Reputable manufacturers like CQC TRACK readily provide this documentation .

Q: What are the differences between Hitachi part numbers 9134282, 71401320, and 9242964?
A: 9134282 is the primary idler for EX200 series (all generations). 71401320 is the enhanced design for ZX200/ZX210 Zaxis series. 9242964 is a heavy-duty variant for EX215/EX255 models with reinforced flanges and enhanced bearing capacity.

Q: Are Hitachi EX200 and ZX200 idlers interchangeable?
A: In many cases, yes—the undercarriage designs share common specifications, but verification against specific machine serial numbers is essential. The 71401320 part number used on ZX200 series is compatible with many EX200 applications, but confirmation with technical documentation is recommended.

Q: What are the advantages of sourcing from CQC TRACK for Hitachi excavator components?
A: CQC TRACK offers competitive pricing (30-50% below OEM), integrated manufacturing with full production control, material excellence with 35MnB alloy achieving HRC 52-58 surface hardness, comprehensive quality assurance (ISO 9001 certified), and engineering expertise in Hitachi undercarriage systems .

Q: How do I identify seal failure before catastrophic damage occurs?
A: Regular inspection should check for grease leakage around seals, appearing as wetness or accumulated debris. Rough rotation detectable by turning the idler by hand (with track raised) also indicates seal compromise or bearing wear.

Q: What causes premature idler wear in medium-duty excavator applications?
A: Common causes include seal failure allowing contaminant ingress, improper track tension (either too tight or too loose), operation in highly abrasive materials, and mixing new idlers with worn track components.

Q: Should I replace front idlers individually or in pairs on EX200/ZX200 class machines?
A: Industry best practice recommends replacing idlers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts.

Q: What warranty should I expect from quality aftermarket suppliers for Hitachi excavator idlers?
A: Reputable aftermarket manufacturers typically offer 1-2 year warranties covering manufacturing defects, with coverage periods of 2,000-3,000 operating hours.

Q: Can aftermarket idlers be customized for specific operating conditions?
A: Yes, experienced manufacturers like CQC TRACK offer customization options including enhanced seal systems for wet or dusty conditions, modified material grades for extreme abrasion, and flange geometry adjustments for specialized applications.

Q: What are the critical wear indicators for Hitachi excavator front idlers?
A: Critical wear indicators include reduction in outside diameter (exceeding 10-15 mm), thinning of guidance flanges, seal leakage, abnormal play (exceeding 3-4 mm), and rough rotation.

Q: How often should track tension be checked on EX200/ZX200 class excavators?
A: Track tension should be checked at every 250-hour service interval, after the first 10 hours of operation on new components, and whenever abnormal track behavior (slapping, squeaking, uneven wear) is observed.

This technical publication is intended for professional equipment managers, procurement specialists, and maintenance personnel. Specifications and recommendations are based on industry standards and manufacturer data available at time of publication. All manufacturer names, part numbers, and model designations are used for identification purposes only. Always consult equipment documentation and qualified technical professionals for application-specific decisions.
