CAT-E345B/E349D front idler assembly/1156366/2487255/heavy-duty construction excavator chassis components manufacture&supplier

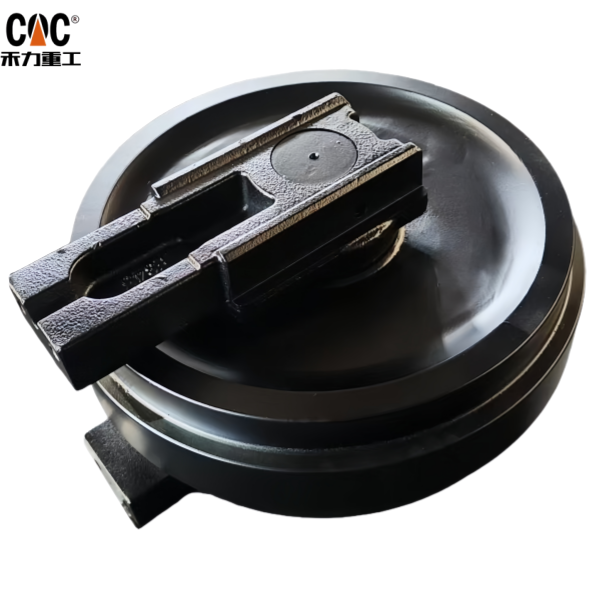

1. Overview of Front Idler Assembly

The front idler assembly is a critical component in the undercarriage system of Caterpillar E345 and E349 excavators. It serves as a guidance and tensioning mechanism for the tracks, ensuring smooth operation and proper alignment during excavation tasks. The idler assembly works in conjunction with the recoil spring and hydraulic track adjuster to maintain optimal track tension and absorb shocks during operation

Key components of the system include:

• Front Idler Wheel: The main guiding wheel that maintains track alignment.
• Recoil Spring: Absorbs impacts and reduces stress on the undercarriage.
• Hydraulic Track Adjuster: Allows for precise adjustment of track tension.
• Supporting Bearings and Seals: Ensure smooth rotation and prevent contamination.

Technical Specifications

Based on comparable Caterpillar models (like the 345C), the front idler assembly for E345/E349 likely shares similar characteristics:

• Weight: Approximately 589 kg (1300 lb) for the complete assembly (including idler, recoil spring, and hydraulic adjuster) .
• Material: Typically manufactured from high-strength steel such as 40Mn/45Mn, with a surface hardness of HRC 50-56 and a hardened depth of 5-8 mm to withstand abrasive environments .
• Axial End Play: Specifications from similar models suggest an axial clearance between 0.26 mm (0.010 in) minimum and 1.26 mm (0.050 in) maximum for proper operation 2.
• Lubrication: Requires SAE 30-CD oil (approximately 0.625 ± 0.30 liters) for internal lubrication, and specific grease (like 5P-0960 grease cartridge) for external bearing surfaces

Installation Procedures

Proper installation is crucial for longevity and performance. Here are the key steps based on Caterpillar’s guidelines:

1. Preparation: Clean all配合 surfaces thoroughly to remove dirt and debris. Ensure the idler, recoil spring supports, and hydraulic cylinder bearings are free from damage 1.
2. Lifting and Positioning: Use appropriate lifting equipment due to the heavy weights:
   • Recoil spring: ~279 kg (615 lb)
   • Hydraulic track adjuster: ~52 kg (115 lb)
   • Full assembly: ~589 kg (1300 lb)

Maintenance and Testing

Regular maintenance ensures reliability and extends service life:

• Pressure Testing: The idler assembly should maintain air pressure of 245-265 kPa (36-38 psi) for at least 30 seconds when tested through the pipe plug port. This checks the integrity of internal seals .
• Seal Inspection: During assembly, ensure rubber face seals are clean, dry, and not twisted. Metal seal rings must be square and seated properly. Lubricate O-rings with approved lubricant (6V-4876) .
• Lubrication: Use only recommended oils and greases. Improper lubrication can lead to premature wear and failure.
• Clearance Check: Regularly monitor axial end play to ensure it remains within specified tolerances
