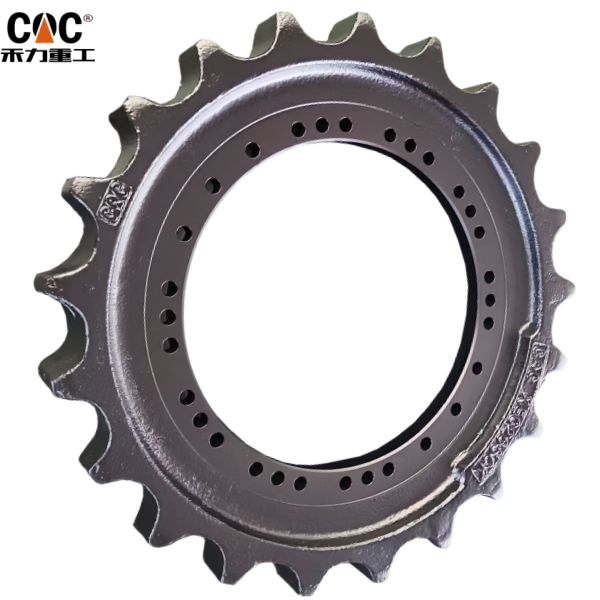

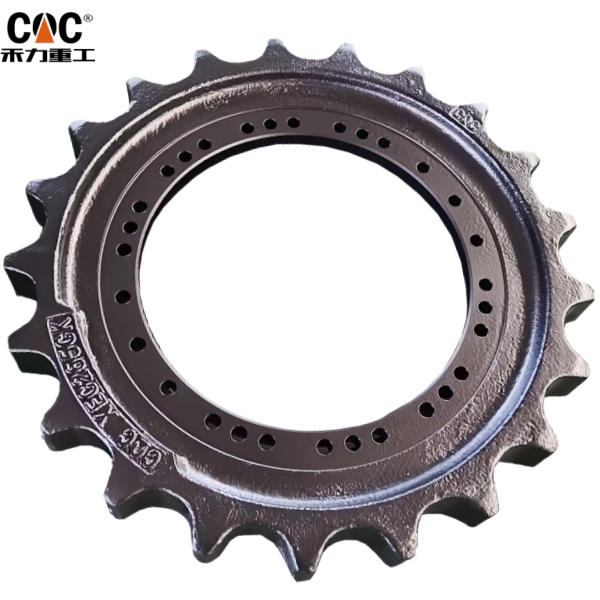

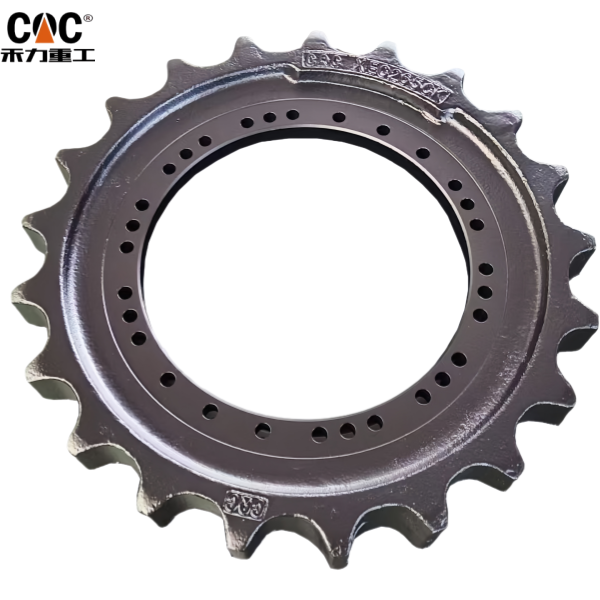

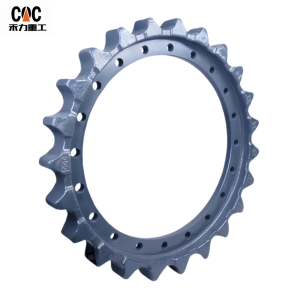

XCMG-XE265GK/XE270 Final Drive Sprocket Assembly/undercarriages manufacture-HELI-CQCTRACK

CQC’s XCMG XE265 Final Drive Sprocket Rim Assembly is a vital, high-wear component that is fundamental to the propulsion of the excavator. Its replaceable design offers a cost-effective solution for maintaining the final drive system. Its construction from premium heat-treated steel ensures durability and resistance to the extreme abrasion and impact inherent in excavator operation. Timely inspection and replacement of this assembly, in concert with the track chain, are essential practices for minimizing downtime, protecting the larger investment in the final drive, and ensuring the machine’s continued productivity and reliability.

1. Product Overview and Primary Function

The XCMG XE265 Final Drive Sprocket Rim Assembly is a critical wear component within the final drive system of the XCMG XE265 hydraulic excavator. Unlike a complete final drive assembly, this unit refers specifically to the sprocket rim—the outer, toothed ring that directly engages with the track chain—and its immediate attachment components. Its primary function is to transmit the immense torque generated by the final drive’s planetary reduction system into linear motion, thereby propelling the machine. It serves as the direct interface between the power train and the track chain, subject to extreme forces, abrasion, and impact loads.

2. Key Functional Roles

• Torque Transmission: Engages with the track chain pins and bushings to convert rotational force from the final drive into the tractive effort needed to move the excavator.
• Power Transfer Interface: Acts as the crucial link between the sealed planetary gear reduction system and the track chain, directly handling the stress of engagement.
• Abrasion and Impact Resistance: Designed to withstand the constant grinding wear from the track chain bushings and absorb the shock loads from engaging and disengaging under power, especially when turning or encountering obstacles.

3. Detailed Component Breakdown & Construction

The term “Rim Assembly” typically denotes a design where the sprocket is a separate, replaceable component bolted to a fixed hub, which is more cost-effective than replacing the entire final drive case. Key elements include:

• Sprocket Rim (Toothed Ring): The main wear component. This is a high-carbon, alloy steel ring with precisely machined teeth. The teeth are heat-treated (typically through induction hardening or similar processes) to achieve a very high surface hardness (58-62 HRC) for maximum resistance to abrasive wear from the track chain. The core of the teeth remains tougher to resist chipping and impact fractures. The rim often features a split or two-piece design, allowing for replacement without disassembling the entire final drive.
• Mounting Hub / Flange: The stationary component bolted directly to the output flange of the final drive’s planetary carrier. The sprocket rim is bolted to this hub. It is typically made from high-strength forged or cast steel to handle the torsional stresses.
• Hardware: High-strength, precision, cap screws or bolts that secure the sprocket rim to the hub. These are critical fasteners, torqued to exact specifications to prevent loosening under vibration and load.
• Wear Characteristics: The teeth are designed to engage smoothly with the track chain. As they wear, the tooth profile changes from a pointed to a flattened or “hooked” appearance, which is a key indicator for replacement to prevent damage to the track chain itself.

4. Material and Manufacturing Specifications

• Material: The sprocket rim is manufactured from high-quality alloy steel such as 42CrMo or similar, chosen for its excellent hardenability, strength, and wear resistance.
• Manufacturing Processes: The rim is often forged for superior grain structure, then machined to precise tolerances. The teeth are cut via gear hobbing and then heat-treated using induction hardening to create a hard, wear-resistant surface while maintaining a tough, shock-absorbent core.
• Surface Treatment: After machining and hardening, the assembly is usually shot-blasted and painted with XCMG’s standard yellow paint for corrosion protection on non-wearing surfaces.

5. Application and Compatibility

This specific rim assembly is designed for the XCMG XE265 excavator model. It is a consumable wear item designed for replacement during the life of the machine. Using the correct XCMG-specified part is essential for:

• Pitch Compatibility: The tooth pitch must perfectly match the pitch of the track chain links to ensure smooth engagement and prevent accelerated wear.
• Bolt Pattern Compatibility: The mounting hole pattern must exactly match the hub on the final drive.
• Dimensional Accuracy: Correct inner diameter and alignment are crucial to prevent undue stress on the final drive’s output bearings and seals.

6. Importance of Genuine or High-Quality Replacement Parts

Using a genuine XCMG or a certified high-quality equivalent rim assembly ensures:

• Precision Fit: Guaranteed compatibility with the hub and correct engagement with the track chain, preventing abnormal wear patterns.
• Material Integrity: Certified materials and precise heat treatment ensure the teeth will achieve their advertised service life without premature wear, spalling, or tooth breakage.
• Performance and Safety: A correctly manufactured sprocket ensures efficient power transfer and reduces the risk of catastrophic failure, which could damage the far more expensive final drive assembly.
• Warranty Protection: Often covered by the manufacturer’s warranty, safeguarding your investment.

7. Maintenance and Operational Considerations

• Regular Inspection: Frequently check the sprocket for wear patterns. Severe wear is indicated by:
  • Tooth Profile: Teeth becoming sharp, pointed, hooked, or flattened instead of their original rounded profile.
  • Root Cracking: Cracks appearing in the valleys between teeth.
• Synchronized Replacement: For optimal performance, the sprocket rim should be replaced in conjunction with a worn track chain. Installing a new sprocket on a badly worn chain (and vice versa) will lead to rapid, accelerated wear of both components.
• Bolt Integrity: During replacement, always use new, high-strength bolts torqued to the manufacturer’s specification. Apply a recommended thread-locking compound to prevent loosening.
• Seal Inspection: When replacing the sprocket rim, it is a critical best practice to inspect the final drive output shaft seal for leaks. A failed seal can allow gear oil to contaminate the track chain and abrasive particles to enter the final drive, causing catastrophic failure.
