Precision Undercarriage Power Transmission for XCMG XE900/XE950 Excavators: A Definitive Technical Analysis of the Track Drive Sprocket Assembly (Part Number 800358022) and the Manufacturing Excellence of CQC TRACK

Author: Jack
Date: April 5, 2026

1. Technical Overview: The Critical Role of the Drive Sprocket in Ultra-Class Mining Excavators

The track drive sprocket, also referred to as the final drive sprocket, sprocket rim, or drive wheel, is the final and most highly stressed component in an excavator‘s power transmission chain. Unlike idlers or rollers that guide or support the track chain, the drive sprocket is the active interface that converts rotational torque into linear motion, propelling the entire machine across mining sites and construction terrains. Positioned at the rear of the undercarriage and bolted directly to the final drive output flange, the sprocket engages with the track chain bushings, transmitting the immense torque generated by the excavator’s hydraulic system into tractive effort.

For operators of XCMG XE900 and XE950 excavators—90 to 95-ton ultra-class machines deployed in large-scale mining, quarrying, and mass earthmoving—the reliability of the drive sprocket assembly directly affects machine mobility, track chain life, and overall operational uptime. Industry data indicates that undercarriage components can represent over 30% of total equipment maintenance costs, making informed procurement decisions essential for optimizing total cost of ownership.

This publication delivers a comprehensive technical examination of the XCMG OEM part number 800358022, which represents the complete final drive sprocket rim assembly for the XE900 and XE950 large hydraulic excavator platforms. Particular focus is placed on CQC TRACK (HELI MACHINERY MANUFACTURING CO., LTD.), a vertically integrated manufacturer based in Quanzhou, China, with over two decades of specialization in heavy-duty undercarriage components, and why its position as a source factory matters for global procurement professionals seeking OEM-quality chassis components at competitive price points.

2. The XCMG XE900/XE950 Platform: Engineering for Extreme Mining Applications

2.1 Machine Specifications and Operating Environment

The XCMG XE900 and XE950 series are 90 to 95-ton class mining excavators engineered for the most demanding applications, including large-scale quarrying, open-pit mining, and major earthmoving projects. The XE950G, a representative model within this series, operates with the following verified specifications:

The XE950GPro variant features a Cummins M15 engine delivering 563 kW at 2,100 rpm, achieving loading efficiency of up to 640 m³/h, recognized as the industry-leading level for the 95-ton class. The XE950GA satisfies China Stage IV emission requirements and maintains stable performance even in high-altitude and extreme cold conditions, with an average availability rate exceeding 95% and low operating costs.

2.2 Undercarriage Configuration and Component Quantities

The XE900/XE950 undercarriage is designed for severe-duty applications, featuring reinforced longitudinal beams and H-frame for enhanced bearing capacity, and upgraded track links and track rollers for significantly increased load-carrying capability. The chassis adopts a box-structured lightweight design for the working device, with critical positions made of solid forgings, greatly reducing welding stress concentration and defects. Stress analysis and fatigue life testing guarantee sufficient strength and rigidity, meeting heavy-duty excavation and mining requirements.

The track chain pitch for the XE900/XE950 platform is approximately 260 mm (8.5 inches), a characteristic dimension for 90 to 100-ton class excavators that accommodates the higher torque loads generated by the 400–560 kW powertrain.

3. Part Number 800358022: Identification and Functional Architecture

3.1 OEM Part Number and Application

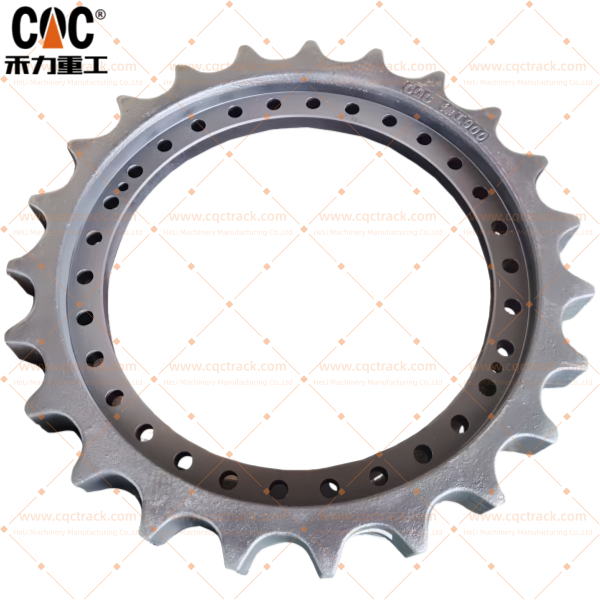

The XCMG 800358022 Final Drive Sprocket Rim Assembly is a precision-engineered component specifically designed for the XCMG XE900 and XE950 large hydraulic excavators. This assembly is fundamentally different from a simple idler or roller; it is a complex system that performs the critical dual function of final gear reduction and track propulsion. It converts the high-speed, low-torque rotation from the hydraulic motor into the low-speed, high-torque force required to move the immense weight of the machine and its load, while simultaneously engaging with the track chain links to propel the excavator.

3.2 Functional Responsibilities

The 800358022 drive sprocket assembly performs three mission-critical functions:

1. Power Transmission and Torque Multiplication: The assembly houses a multi-stage planetary gear reduction system that multiplies torque exponentially, enabling the machine to overcome extreme resistive forces during travel and digging operations. The planetary gear system consists of a sun gear driven by the input shaft, typically three or four planetary gears rotating around the sun gear and held by a planetary carrier, and a stationary internally toothed ring gear fixed within the drive case. The interaction between these components creates the massive torque multiplication required for heavy mining operations.

2. Track Propulsion and Engagement: The hardened sprocket teeth engage directly with the track chain links, pulling the track around the undercarriage to generate movement. The precision-machined tooth profile ensures optimal engagement with the track bushings, minimizing point contact and distributing contact stress over a larger area.

3. Structural Load Bearing: The assembly supports a significant portion of the machine‘s weight and transmits operational loads, including shock, digging, and travel stresses, through the track frame to the ground. It serves as the rigid mounting interface that connects the power of the hydraulic motor to the robust structure of the undercarriage.

3.3 Component Breakdown and Construction

The term “Final Drive Sprocket Assembly” indicates a fully enclosed, sealed unit that integrates multiple subsystems into a single, serviceable component. Key sub-components include:

4. Material Specifications and Heat Treatment Standards

4.1 Material Selection

Premium drive sprocket assemblies for XCMG XE900/XE950 excavators are manufactured from high-grade alloy steels selected for their exceptional yield strength, hardenability, and wear resistance. The primary material specified for the 800358022 assembly is high-carbon, high-alloy steel such as 42CrMo (AISI 4140 equivalent) or 40CrMnMo, chosen for its excellent hardenability, high fatigue strength, and superior wear resistance under extreme impact loads.

The drive wheel body utilizes a high-hardenability manganese alloy cast steel material. The base material undergoes quenching and tempering heat treatment, followed by full-tooth medium-frequency induction hardening. This process ensures uniform microstructure and refined grains in the surface hardening layer, while the base material maintains good toughness and strength, and the tooth surface achieves high wear resistance.

4.2 Heat Treatment Specifications

The performance of a drive sprocket depends critically on its heat treatment profile, which creates a gradient hardness structure optimized for both wear resistance and impact toughness:

The teeth undergo a rigorous heat treatment cycle involving quenching and tempering to achieve high surface hardness for exceptional wear resistance, while the core remains tough and ductile to withstand shock loads and prevent brittle fracture. The tooth flanks are often hardened to a greater depth than the tooth root to combat the primary wear mode.

4.3 Dimensional Specifications and Tolerances

5. CQC TRACK: A Specialized Manufacturer of XCMG Undercarriage Components

5.1 Corporate Profile and Manufacturing Heritage

CQC TRACK, operating under HELI MACHINERY MANUFACTURING CO., LTD., is a vertically integrated manufacturer based in Quanzhou, China—a region recognized as a key supply cluster for global earthmoving equipment. Founded in the late 1990s, HELI has systematically evolved into one of the top three undercarriage component manufacturers in the Quanzhou region, a premier industrial cluster for heavy machinery manufacturing.

The brand name CQC TRACK symbolizes three foundational commitments: Crawler systems, Quality assurance, and Commitment to durability under the most abrasive and high-impact environments encountered in mining, quarrying, and major infrastructure projects.

5.2 Quality Certifications and Standards

CQC TRACK operates under a multi-layered quality assurance framework, holding ISO 9001:2015 quality system recognition. As a member of the International Certification Network (IQNet), CQC‘s ISO 9001 certificates are recognized by 36 member organizations across 33 countries and regions. Every CQC TRACK undercarriage component is manufactured under ISO 9001:2015 certified processes, with full component traceability from raw material through finished assembly.

5.3 Manufacturing Capabilities and Quality Control

CQC TRACK’s manufacturing strength rests on complete vertical integration and controlled sequential processes:

CQC TRACK‘s comprehensive undercarriage parts portfolio includes track chains, shoes, sprockets, idlers, bottom rollers, and carrier rollers—engineered specifically for heavy-duty crawler excavators used in mining and construction worldwide. The company has documented cross-reference compatibility for its undercarriage components across multiple brands, including XCMG, Caterpillar, Komatsu, Hitachi, Doosan, SANY, Volvo, and Hyundai.

5.4 OEM and ODM Service Model

CQC TRACK operates a dual service model that accommodates both standardized replacement parts and customized engineering solutions:

• OEM Manufacturing: Production of components to exact client specifications, drawings, and quality standards. The factory is equipped for seamless integration into global supply chains, providing reliable volume production of sprockets, rollers, idlers, and track links.
• ODM Engineering: Collaborative development, design, and validation of improved or fully customized undercarriage solutions. Leveraging extensive field experience and deep technical expertise in metallurgy and tribology specific to track systems, the engineering team proactively addresses common failure modes, offering value-optimized designs that enhance performance and reduce total cost of ownership.

5.5 XCMG Product Portfolio

CQC TRACK manufactures a comprehensive range of undercarriage components for XCMG excavators, including:

CQC TRACK‘s XCMG XE265 Final Drive Sprocket Rim Assembly is described as a vital, high-wear component that is fundamental to the propulsion of the excavator. Its replaceable design offers a cost-effective solution for maintaining the final drive system, and its construction from premium heat-treated steel ensures durability and resistance to the extreme abrasion and impact inherent in excavator operation.

6. Factory-Direct Sourcing: Competitive Advantages

6.1 Supply Chain Value Proposition

Sourcing the XCMG 800358022 drive sprocket assembly directly from a source factory and manufacturer such as CQC TRACK offers distinct advantages over multi-tier distribution channels:

6.2 Lead Times and Logistics

For the XCMG 800358022 drive sprocket assembly, typical factory-direct lead times are:

• Stocked items: 5–10 business days (ready stock)
• Manufactured to order: 20–25 days after contract confirmation
• Express delivery: Available for urgent requirements

Standard shipping is FOB from Xiamen port, China, with door-to-door logistics available through established freight forwarding partnerships.

6.3 Estimated Cost Comparison

7. Installation, Maintenance, and Service Life Optimization

7.1 Pre-Installation Verification

Before installing a new drive sprocket assembly, verify the following critical parameters:

1. Bolt circle compatibility — Confirm bolt hole pattern and diameter match the final drive output flange
2. Pilot diameter — Ensure concentric fit with the final drive housing
3. Tooth profile and pitch — Verify matches the track chain bushing spacing (approximately 260 mm for XE900/XE950)
4. Track chain condition — Measure chain pitch elongation; if exceeding 3%, chain replacement should precede sprocket installation
5. Seal condition — Inspect the interface sealing surface for damage

7.2 Installation Procedure Summary

1. Securely support the machine on a firm, level surface with the track chain relieved of tension
2. Remove the existing sprocket assembly mounting bolts using appropriate torque tools
3. Clean the output flange mounting surface and inspect for damage or wear
4. Position the new sprocket assembly and install new high-strength mounting bolts (reusing old bolts is a safety risk)
5. Torque bolts to specification using a calibrated torque wrench (consult XCMG workshop manual for exact values)
6. Install or inspect the sealing system to protect internal planetary gear sets from contamination
7. Re-tension the track chain to manufacturer-specified sag
8. Operate the machine at low speed and inspect for proper sprocket engagement and smooth rotation

7.3 Maintenance Schedule

7.4 Failure Modes and Troubleshooting

7.5 Service Life Expectations

Under normal quarrying and heavy construction conditions, a quality aftermarket drive sprocket meeting HRC 58–62 tooth surface hardness specifications can achieve 4,000–6,000 operating hours before requiring replacement. In severe mining applications with highly abrasive materials (silica content > 30%) and continuous operation, service life may be reduced to 3,000–4,000 hours.

Critical Compatibility Note: Always replace track chains and sprockets as a matched set. Installing a new sprocket on a worn chain (or vice versa) accelerates wear on both components due to mismatched pitch geometry. The cost savings from partial replacement are quickly offset by dramatically reduced component life.

8. The Importance of Proper Sprocket Selection for Ultra-Class Mining

The drive sprocket is arguably the most heavily stressed component in an excavator undercarriage system. Unlike rollers that distribute weight across multiple points, the sprocket concentrates the full tractive effort of the machine at the point of tooth engagement with the track chain bushings. For XCMG XE900/XE950 excavators operating in mining and heavy construction—machines with operating weights approaching 95 tons and daily production demands measured in thousands of tons—selecting high-quality drive sprockets with proper material selection, heat treatment, and precision machining is essential.

CQC TRACK‘s 800358022 drive sprocket assembly incorporates:

• High-carbon, high-alloy steel construction (42CrMo, 40CrMnMo, or equivalent) for superior grain flow and impact resistance
• Induction-hardened tooth surfaces (58–62 HRC) with ≥4 mm case depth for exceptional wear resistance
• Through-hardened core (28–35 HRC) maintaining toughness to absorb shock loads
• Precision-machined tooth profiles for optimal engagement with track chain bushings
• Multi-stage sealing system protecting internal planetary gear sets from contamination
• ISO 9001:2015 certified manufacturing processes with full component traceability

These engineering features ensure that properly maintained drive sprockets will deliver reliable service throughout their design life in the world‘s most demanding mining environments.

9. Conclusion

For operators of XCMG XE900 and XE950 excavators deployed in mining, quarrying, heavy construction, and mass earthmoving—90 to 95-ton ultra-class machines with daily production demands—the drive sprocket / final drive sprocket rim assembly represented by part number 800358022 is a mission-critical component whose reliability directly affects machine mobility, track chain life, and operational uptime.

CQC TRACK distinguishes itself as a specialized manufacturer that combines over two decades of metallurgical expertise, vertical integration of forging and heat treatment processes, and a dual OEM/ODM service model to deliver undercarriage components that perform reliably under the most demanding conditions. As one of the top three undercarriage component manufacturers in the Quanzhou region—a premier industrial cluster for heavy machinery manufacturing—CQC TRACK has established itself as a leader in the design and production of heavy-duty crawler excavator undercarriage components.

With material specifications including premium 42CrMo, 40CrMnMo, and 40CrNiMo alloy steels; heat treatment achieving HRC 58–62 tooth surface hardness with ≥4 mm case depth and HRC 28–35 core hardness; ISO 9001:2015 quality certification with IQNet international recognition; and advanced multi-stage sealing systems, CQC TRACK provides fleet owners and procurement professionals with engineered solutions that meet or exceed OEM specifications.

By sourcing the XCMG 800358022 drive sprocket assembly directly from the factory, mining and construction operations gain access to consistent quality, direct technical support, competitive pricing (30–40% savings versus OEM), and transparent supply chain logistics—factors that collectively optimize total cost of ownership and maximize machine uptime in the world‘s toughest operating environments.

Author: Jack
Specializing in heavy equipment undercarriage systems, mining machinery reliability, and global sourcing strategies for construction equipment fleets.

Disclaimer: This publication is original content created for informational and technical reference purposes. All product numbers, brand names, and manufacturer references are used for identification and cross-reference only. Always verify compatibility with your machine‘s serial number and undercarriage configuration before ordering. Installation procedures summarized from industry standards are provided for reference; consult the complete original equipment documentation before performing any maintenance. Warranty information is representative and subject to confirmation with the manufacturer at the time of purchase.
