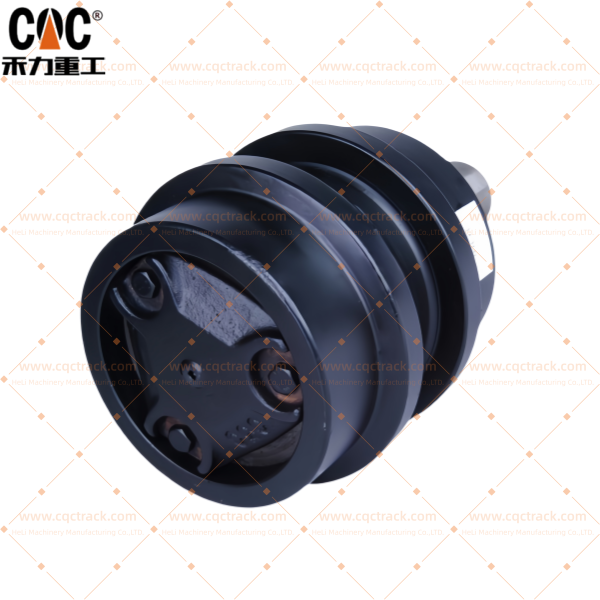

Comprehensive Technical Specification: VOLVO 14527124 / 14686477 EC460 / EC480 Track Carrier Roller (Upper Roller) Assembly – OEM-Grade Heavy Duty Undercarriage Solution by HELI CQCTRACK

1. Executive Summary: The Zenith of Upper Track Support Engineering

The VOLVO 14527124 / 14686477 Track Carrier Roller Assembly, commonly referred to as the Track Upper Roller or Top Roller, is a precision-engineered component critical to the stability and longevity of the undercarriage system on VOLVO EC460 and EC480 series crawler excavators. Positioned atop the track frame, this assembly’s primary mission is to support the upper strand of the track chain, preventing excessive sag, reducing whip-lash effect during travel, and ensuring the chain’s smooth return from the rear sprocket to the front idler.

HELI – CQCTRACK, operating as a source manufacturer and original supplier of heavy-duty excavator chassis components, produces this carrier roller assembly to meet and exceed rigorous Original Equipment Manufacturer (OEM) specifications. Through vertical integration—controlling the process from alloy steel forging and metallurgical heat treatment to precision CNC machining and hermetic sealing—CQCTRACK delivers a component that guarantees seamless interchangeability with Volvo parts numbers 14527124 and 14686477. This document provides a deep technical dive into the assembly’s architecture, material science, manufacturing philosophy, and operational advantages, solidifying its status as the premier choice for fleet managers seeking to minimize downtime and maximize return on investment in demanding applications .

2. System Function & Kinematic Dynamics

In the closed-loop undercarriage architecture of the VOLVO EC460/480, a 45-50 ton class heavy-duty excavator, the carrier roller serves a distinct and vital role compared to its bottom roller counterparts. While bottom rollers bear the machine’s weight, the Upper Carrier Roller addresses the dynamics of the upper track loop.

• Upper Track Chain Support & Sag Control: The gravitational force acting on the long length of the track chain between the drive sprocket and the front idler causes a natural sag. The carrier roller provides a critical support point, cradling the chain and maintaining a defined, straight path along the top of the track frame. This prevents the chain from flopping or slapping against the machinery deck during travel or oscillation .
• Reduction of Lateral Vibration (Whip-Lash): During high-speed travel or when the excavator traverses uneven terrain, the unsupported upper chain can experience severe lateral vibration or “whip-lash.” The carrier roller dampens these kinetic forces, absorbing energy and maintaining chain alignment. This directly reduces fatigue stress on the track chain pins, bushings, and the connection links .
• Load Distribution: By supporting the chain’s return run, the carrier roller ensures that the chain engages the drive sprocket and front idler at the correct angle. This proper engagement minimizes meshing resistance and distributes wear evenly across the entire undercarriage system .

3. Technical Specifications & Material Metallurgy

The operational environment for a VOLVO EC460/480—often in quarries, mines, and heavy construction sites—demands materials and processes that offer extreme abrasion resistance and structural toughness. The VOLVO 14527124 assembly from HELI-CQCTRACK is engineered using advanced ferrous metallurgy.

3.1 Core Material Selection

• Carrier Roller Wheel (Drum): The cylindrical drum is manufactured from high-strength, wear-resistant alloy steel, specifically 40Mn2 or equivalent high-hardenability alloy . This manganese-silicon alloy is selected for its superior toughness and its ability to work-harden under cyclic loading. Unlike lower-grade steels, 40Mn2 provides a robust matrix that resists plastic deformation under the impact forces transmitted by the moving track chain.
• Stationary Shaft: The axle about which the drum rotates is forged from high-tensile chromium alloy steel, typically 42CrMo or 40Cr. This material is characterized by its high fatigue strength and torsional resistance, essential for withstanding the constant radial loads and the moment forces exerted by the chain without bending or premature fatigue failure.

3.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between a wear-resistant surface and a ductile, impact-absorbing core is achieved through a precise, multi-stage thermal process :

• Induction Hardening: The outer diameter (raceway) of the drum, which interfaces directly with the track chain bushings, undergoes deep induction hardening. This process creates a metallurgically bonded, high-hardness case that resists abrasive wear. The target surface hardness is critical, typically falling within the range of HRC 48-55 .
• Through Hardening & Tempering (QT): The core of the drum and the shaft are subjected to quenching and tempering processes. This refines the grain structure and achieves a core hardness of approximately HRC 28-36. This retained ductility allows the component to absorb shock loads and high-frequency vibrations without initiating catastrophic cracks.
• Case Hardening: The bearing journals on the shaft are often case-hardened to provide a durable, low-friction surface that maintains dimensional stability under the rotational stresses of the internal bearings or bushings.

3.3 Dimensional Precision & Hardness Validation

• OEM Interchangeability: Manufactured strictly according to Volvo’s original blueprints, ensuring a direct “bolt-on” replacement for part numbers 14527124 and 14686477 without modification.
• Quality Assurance: Each assembly is subjected to rigorous testing, including Rockwell hardness testing on the raceway and flanges to confirm compliance with HRC specifications, ensuring the component meets the “heavy-duty excavator chassis components” standard .

4. Structural Anatomy: Deconstructing the Upper Roller Assembly

The VOLVO EC460/480 Carrier Roller is a sealed, lubricated-for-life module consisting of several high-precision sub-components, each engineered for a specific function.

5. The HELI – CQCTRACK Manufacturing Advantage: Source Manufacturer Philosophy

As an source manufacturer of heavy-duty excavator chassis components, HELI-CQCTRACK distinguishes itself from general trading companies through vertical integration and an uncompromising commitment to quality at every stage of production .

5.1 Source Factory Control

• Closed-Die Forging: The process begins with closed-die forging of the roller drum and shaft. This process aligns the metal’s grain flow with the component’s shape, significantly enhancing its structural integrity and fatigue resistance compared to cast or simply machined parts.
• CNC Precision Machining: Following heat treatment, Computer Numerical Control (CNC) lathes and machining centers execute all turning, boring, and drilling operations. This ensures that every assembly meets the tight tolerances required for perfect fit and function on the Volvo EC460/480 track frame.
• In-House Heat Treatment: Owning and controlling the heat treatment lines allows CQCTRACK to strictly adhere to the precise time-temperature cycles necessary to achieve the specified case depth and core hardness, guaranteeing metallurgical consistency across all production batches .

5.2 OEM-Grade Quality Assurance

The designation of “OEM Quality” is validated through a battery of tests:

• Dimensional Conformity: Each assembly is measured against master jigs and Coordinate Measuring Machines (CMM) to ensure 100% interchangeability with Volvo specifications.
• Hardness Profiling: Rockwell hardness testers verify the surface hardness (HRC 48-55) on the drum raceway and confirm the core toughness, ensuring the component can withstand the harsh realities of a mine or construction site .
• Seal Integrity Testing: The floating seal assembly is tested for leak-proof performance under simulated pressure and rotational conditions, ensuring the hermetic barrier is uncompromised.
• Load Testing: Representative samples are subjected to radial load tests that simulate the operational forces, validating the structural integrity of the shaft and the bearing system.

5.3 Adaptation to Heavy-Duty Applications

CQCTRACK understands that Volvo EC460/480 excavators operate globally in diverse, challenging environments. Their manufacturing process is adaptable, allowing for engineering adjustments—such as specifying enhanced corrosion-resistant coatings for marine applications or different material variants for extreme cold—while maintaining the core OEM footprint .

6. Failure Mode Analysis & Preventive Maintenance Protocol

Maximizing the service life of the carrier roller requires understanding potential failure modes and adhering to a strict maintenance regimen.

6.1 Common Failure Mechanisms

• Seal Failure & Contamination Ingress: The primary cause of premature roller failure. If the floating seal is compromised by debris or thermal degradation, lubricant escapes and abrasives enter the bearing cavity. This acts as a grinding paste, rapidly destroying the bearings, shaft, and drum bore .
• Raceway Wear / Flattening: Progressive wear on the outer diameter of the drum due to continuous friction with the track bushings. Excessive wear reduces the drum’s diameter, altering track tension and increasing the risk of chain derailment. Flattening can occur if the roller seizes.
• Bearing Fatigue: Eventually, the rolling elements or races can spall due to cyclic loading. This leads to increased internal clearance, causing the drum to wobble and run noisily, which in turn accelerates seal wear.
• Roller Seizure: Caused by catastrophic internal failure or severe contamination. The drum locks up and skids along the track chain, creating a flat spot and causing rapid, localized wear to both the roller and the chain links .

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Check for evidence of grease leakage around the hub (a tell-tale sign of seal failure). Listen for unusual noises like grinding or rumbling during operation.
• Rotation Check: During daily walk-around, manually spin the carrier roller (if safely accessible) to feel for roughness or binding, indicating bearing distress.
• Track Tension Management: Maintain correct track sag as per the Volvo EC460/480 manual. An over-tensioned track overloads the carrier roller bearings; an under-tensioned track causes the chain to slap the roller, leading to impact damage .
• Proactive Replacement: Carrier rollers should be replaced in sets on the same side of the machine to ensure consistent track alignment and load distribution. When one roller shows significant wear, its counterpart is likely nearing the end of its service life.

7. Compatibility & Application Scope

• Primary Models: VOLVO EC460, EC460B, EC460C, EC480, EC480D, and related variants in the 45-50 ton class.
• OEM Part Numbers: Direct replacement for VOLVO 14527124 and 14686477.
• Machine Class: Heavy-duty crawler excavators (40-50 metric tons).
• Applications: Engineered for extreme durability in:
  • Heavy construction and earthmoving
  • Quarrying and aggregate handling
  • Mining and overburden removal
  • Demolition and scrap handling
  • Infrastructure projects involving abrasive terrains .

8. Conclusion: The Benchmark for Undercarriage Reliability

The VOLVO 14527124 / 14686477 EC460 / EC480 Track Carrier Roller Assembly from HELI – CQCTRACK is more than a replacement part; it is a strategic investment in operational uptime. By combining advanced metallurgy, precision engineering, and the rigorous quality control of a true original manufacturer, CQCTRACK delivers a component that not only meets the exacting standards of Volvo heavy-duty excavators but is also engineered to surpass them in real-world, punishing conditions.

Choosing HELI-CQCTRACK means partnering with a source manufacturer that possesses deep domain expertise in heavy-duty excavator chassis components. It ensures that every critical element—from the forged 40Mn2 drum to the high-integrity floating seal and heavy-duty bearing system—works in perfect harmony to support the massive forces of the Volvo EC460/480, ensuring the track system remains reliable, efficient, and productive for thousands of operating hours.
