VOLVO 14520608 14527124 EC380 Carrier Roller Assy-Heavy duty excavator track chassis components source manufacturer-HELI(cqctrack)

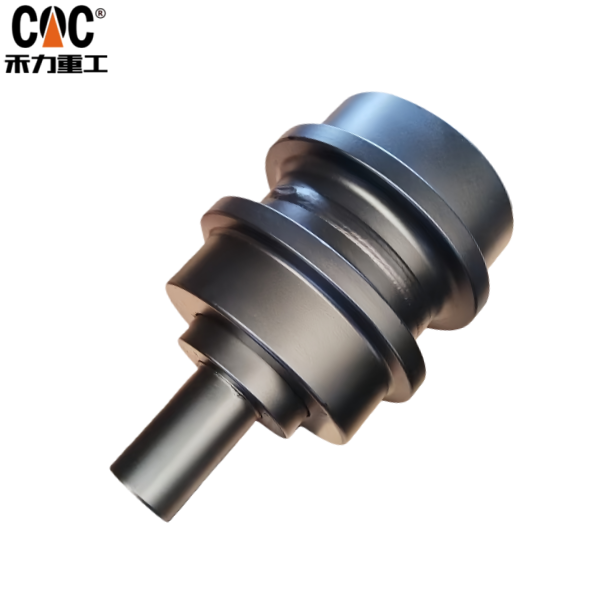

Comprehensive Technical Description: VOLVO EC380 Excavator Carrier Roller Assembly (P/N: 14520608, 14527124) Sourced from Manufacturer HELI (CQCTRACK)

1. Component Identification and Definition

The Carrier Roller Assembly is a critical, heavy-duty component within the undercarriage system of crawler-type excavators. Specifically designed for the VOLVO EC380 excavator model, this assembly is identified by the part numbers 14520608 and 14527124. These are authentic VOLVO part designations for which HELI (marketed under the brand CQCTRACK) acts as a qualified Original Equipment Manufacturer (OEM) or Aftermarket Replacement source manufacturer. The assembly is a quintessential track chassis component responsible for guiding, supporting, and maintaining proper tension and alignment of the excavator’s endless track chain.

2. Primary Function and Operational Role

The carrier roller, also known as a top roller or upper roller, performs several vital functions:

• Track Guidance: It guides the upper run (the return strand) of the track chain, preventing lateral slippage and ensuring smooth, linear travel over the undercarriage frame.
• Load Support: It supports the weight of the track chain itself on its return path, reducing sag and minimizing dynamic oscillations during high-speed travel.
• Track Tension Maintenance: By providing a fixed contact point for the track chain’s guiding guards or links, it helps maintain consistent track tension set by the front idler adjuster.
• Debris Mitigation: Its rotation helps shed dirt, mud, and other materials that may be carried up by the track, protecting other undercarriage components from excessive wear and packing.

3. Detailed Structural Composition and Materials

A heavy-duty carrier roller assembly from HELI (CQCTRACK) is engineered with precision and robustness, typically comprising:

• Outer Shell/Roller Body: Forged or fabricated from high-carbon, alloy steel (e.g., 50Mn, 60Si2Mn) and heat-treated (quenching and tempering) to achieve an exceptionally hard, wear-resistant outer surface (typically HRC 50-60) with a tough, shock-absorbing core.
• Integral Shaft: A high-strength steel shaft, precision-machined and often induction-hardened at the bearing journal areas to resist fretting and wear. It is permanently fixed within the roller body.
• Bearing System: Utilizes heavy-duty, sealed anti-friction roller bearings (typically tapered roller bearings or double-row spherical roller bearings). These are selected for their high radial and axial load capacity, essential for withstanding the multi-directional forces encountered in excavation and travel.
• Multi-Labyrinth Sealing System: A critical feature comprising multiple sealing rings (often nitrile rubber or polyurethane), dust lips, and labyrinth channels. This system is packed with high-temperature, high-water-resistant grease to create a formidable barrier against abrasive contaminants (dust, silt, sand) and moisture ingress, the primary causes of bearing failure.
• Flanges: Integrated or welded circumferential flanges on both sides of the roller body prevent the track chain from derailing laterally.
• Lubrication Fitting: A standard grease zerking (nipple) allows for routine injection of specialized track roller grease to replenish the internal cavity and purge potential contaminants.
• Mounting Bracket/Bushing: The assembly interfaces with the excavator’s track frame via hardened steel bushings or a dedicated bracket, secured with high-tensile bolts.

4. Technical Specifications and Performance Characteristics (HELI/CQCTRACK Standard)

• Dimensional Compliance: Manufactured to exact OEM specifications for the VOLVO EC380, ensuring perfect interchangeability regarding outer diameter, width, flange dimensions, bolt hole pattern (B.C.D.), and shaft diameter.
• Load Rating: Designed to withstand the dynamic and static loads specified for the EC380′s operating weight class (approx. 38-45 tons).
• Sealing Performance: Meets or exceeds IP rating standards for dust and water resistance, validated under simulated harsh environment testing.
• Material Certification: Raw materials are traceable and certified to meet international standards (e.g., ISO, DIN, JIS).
• Dynamic Balance: Precisely balanced to minimize vibration, reducing wear on the entire undercarriage and machine frame.

5. Manufacturer Profile: HELI (CQCTRACK)

HELI, operating within its undercarriage division under the brand CQCTRACK, is a globally recognized Chinese manufacturer specializing in heavy machinery undercarriage components. Key manufacturing capabilities include:

• Vertical Integration: Control over the entire production process from steel sourcing, forging, machining, heat treatment, assembly, to quality testing.
• Advanced Metallurgy: Utilization of state-of-the-art furnaces and heat treatment lines for precise control of material properties.
• CNC Machining Centers: Ensure micron-level tolerances on all critical surfaces.
• Automated Assembly & Sealing: Guarantees consistency and reliability in the sealing system installation.
• Stringent QC Protocol: Involves 100% dimensional inspection, hardness testing, rotational torque testing, seal pressure testing, and salt spray testing for corrosion resistance.

6. Application and Compatibility

• Primary Application: VOLVO EC380 Crawler Excavator.
• System Location: Mounted on the top of the track frame (traveling frame), typically in multiple units (2-4) per side, between the front idler and the sprocket.

7. Maintenance and Service Life Indicators

• Routine Maintenance: Periodic lubrication as per machine service manual recommendations.
• Wear Limit: The roller outer diameter has a specified wear limit (usually a 10-15% reduction from original). Excessive wear leads to poor track guidance and increased stress on other components.
• Failure Signs: Loss of rotation (seized), excessive lateral play, visible grease leakage from seals, or abnormal noise during track operation.
• Replacement Best Practice: Recommended to be replaced in sets (both sides of the machine) and in conjunction with inspecting and potentially replacing other undercarriage wear components (track chain, idlers, sprockets) to ensure balanced wear and optimal performance.

Conclusion

The VOLVO 14520608 / 14527124 EC380 Carrier Roller Assembly manufactured by HELI (CQCTRACK) represents a high-quality, engineered alternative to original parts. It embodies the necessary characteristics of durability, precision, and performance required for the severe service conditions of heavy-duty excavation. Its design focuses on maximizing service life through superior materials, advanced sealing technology, and rigorous manufacturing standards, making it a reliable component for maintaining the operational efficiency and structural integrity of the VOLVO EC380 excavator’s undercarriage system.
