VOLVO 14520148 14522943 14504091 5209256 485141 EC220D EC240D EC250D H11 HS842 C30 Track Bottom Roller Assembly / China Crawler excavator undercarriage parts OEM factory and manufacturer / CQCTRACK

Technical Engineering White Paper: VOLVO 14520148 / 14522943 / 14504091 / 5209256 / 485141 EC220D / EC240D / EC250D / H11 / HS842 / C30 Track Bottom Roller Assembly – CQCTRACK’s Certified OEM Manufacturing for Advanced Volvo Excavator Undercarriage Systems

Document ID: CQCTRACK-TWP-VOLVO-BTR-0313
Issue Date: March 13, 2026
Version: 1.0 (OEM Engineering Edition)
Manufacturer: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Product Classification: Volvo Crawler Excavator Undercarriage Components / Track Bottom Roller Systems
Target Audience: Global Procurement Professionals, Volvo Dealer Networks, Fleet Maintenance Managers, Heavy Equipment Distributors

Executive Summary: The OEM Source Advantage for Volvo Excavator Undercarriage Systems

In the precision-dependent world of Volvo construction equipment, the undercarriage represents the foundational interface between machine and terrain—a system where component integrity directly dictates operational availability and total cost of ownership. This technical document provides a comprehensive engineering exposition of the VOLVO 14520148 / 14522943 / 14504091 / 5209256 / 485141 Track Bottom Roller Assembly, manufactured by CQCTRACK as a certified OEM/ODM source facility with vertically integrated production capabilities.

The Volvo EC220D, EC240D, EC250D, H11, HS842, and C30 series excavators represent Volvo’s advanced D-series engineering philosophy—machines engineered for 7-10% fuel efficiency improvements over previous generations while delivering superior digging forces and cycle times . The EC250D, with an operating weight range of 24,600-28,000 kg and breakout force up to 166 kN in boost mode, demands undercarriage components capable of withstanding extreme dynamic loading, continuous abrasion, and severe environmental contamination .

CQCTRACK’s position as a qualified source factory—not merely a consolidator or trading entity—ensures that international buyers receive components manufactured with full process traceability, from raw material chemistry certification to final assembly validation. This white paper examines the engineering philosophy, metallurgical specifications, multi-model cross-compatibility, quality assurance protocols, and global supply chain advantages that define CQCTRACK’s approach to Volvo-compatible undercarriage manufacturing .

1. Component Identification and Volvo Model Cross-Reference

1.1 Comprehensive Part Number Traceability

The complexity of Volvo’s global parts numbering system requires precise cross-reference capabilities. CQCTRACK maintains full engineering documentation for the following Volvo OEM part numbers, ensuring accurate interchangeability across multiple model generations:

Volvo OEM Part Number	Component Description	Primary Model Application	Secondary Compatibility
14520148	Track Bottom Roller Assembly	EC250D, EC240D	H11 Series
14522943	Track Bottom Roller Assembly	EC220D, EC250D	HS842
14504091	Track Bottom Roller Assembly	EC240D, EC250D	C30 Crawler
5209256	Track Bottom Roller Assembly	H11 Series	EC240D
485141	Track Bottom Roller Assembly	HS842, C30	EC220D

1.2 Applicable Machine Platform Specifications

Understanding the target machine platforms is essential for proper component engineering. The Volvo D-series excavators covered in this specification share common undercarriage architecture with model-specific weight variations :

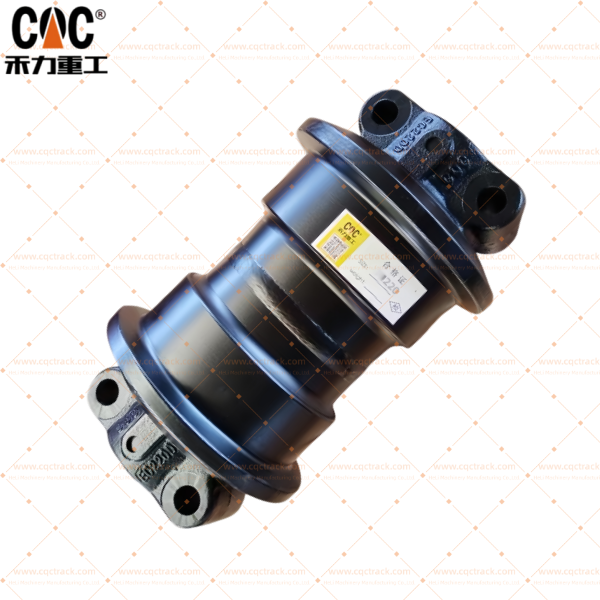

1.3 Functional Definition and Mechanical Role

The bottom roller assembly (also referred to as track roller or lower carrier roller) constitutes one of the most heavily stressed components in the entire undercarriage system. Its primary engineering functions include :

• Static and Dynamic Load Bearing: Transmits the excavator’s operating weight through the track chain to the ground surface. During digging operations, dynamic loading can exceed static ratings by factors of 2-3, requiring substantial safety margins in bearing selection and material properties.
• Track Chain Guidance: The precisely machined flanges maintain continuous contact with the track link sides, preventing lateral displacement during turning operations and side-slope work—critical for maintaining track alignment and preventing premature wear.
• Shock Load Absorption: Functions as the first-stage suspension element, absorbing impact energy from uneven terrain, rock obstacles, and excavation forces before transmission to the track frame and upper structure.
• Friction Reduction: The rotating assembly minimizes sliding friction between the machine and track chain, reducing parasitic power losses and contributing to Volvo’s fuel efficiency advantages .

2. Detailed Engineering Specifications and Material Metallurgy

2.1 Roller Body: Forged Alloy Steel Construction

CQCTRACK employs closed-die forging technology for all Volvo-compatible bottom roller bodies, representing a significant advancement over conventional casting processes .

Metallurgical Specifications:

• Base Material: High-strength, low-alloy (HSLA) steel, specifically 40Mn2 or 50Mn grade, selected for optimal balance of hardenability and impact toughness
• Alternative Material: 40SiMnTi fine-grain alloy steel for enhanced wear resistance in severe applications
• Forging Process: Hot forging at 1150-1200°C with subsequent controlled cooling to refine grain structure
• Grain Flow Orientation: Continuous grain flow follows the roller contour, eliminating stress concentration points common in cast structures
• Mechanical Properties:
  • Yield Strength: ≥ 685 MPa
  • Tensile Strength: ≥ 830 MPa
  • Elongation: ≥ 12%
  • Impact Toughness: ≥ 47 J at -20°C (critical for cold-climate operations)

2.2 Precision Heat Treatment Protocol

The durability of Volvo undercarriage components depends critically on the heat treatment regimen applied to wear surfaces. CQCTRACK utilizes computer-controlled induction hardening systems with real-time temperature monitoring .

Induction Hardening Parameters:

• Hardened Zones: Full circumference of tread surface and both flange faces
• Case Depth: 8-12 mm continuous hardened layer (verified by micro-hardness testing)
• Surface Hardness: HRC 52-58 (Rockwell C scale), optimized for abrasive wear resistance
• Core Hardness: HB 280-320 (Brinell), maintaining ductility for shock absorption
• Hardness Profile: Gradual transition from hard case to tough core prevents spalling or delamination under impact loading
• Deep-Case Capability: Achieves 58-62 HRC surface hardness with effective case depth of 8-12 mm for extreme abrasion environments

2.3 Bearing System Design and Capacity

The rotating interface between roller body and stationary shaft employs high-capacity tapered roller bearings, specifically selected for combined radial and axial load accommodation characteristic of excavator operations .

2.4 Advanced Multi-Stage Sealing Technology

Seal integrity represents the single most important factor determining bottom roller service life in Volvo applications, particularly given the machines’ capabilities in wet and muddy conditions . The Volvo-compatible assembly incorporates a triple-protection sealing system engineered for the most severe operating environments .

Primary Seal (Floating Face Seal):

• Configuration: Two precision-lapped alloy steel rings with mirror-finish sealing faces
• Actuation: Nitrile rubber O-rings (HNBR material) provide constant axial force
• Hardness: Seal faces hardened to HRC 58-62 with wear depth capacity
• Function: Metal-to-metal contact creates positive seal independent of shaft rotation; self-adjusting for wear

Secondary Seal (Radial Lip Seal):

• Material: Hydrogenated nitrile butadiene rubber (HNBR) with superior heat and oil resistance
• Design: Multiple sealing lips with garter spring loading
• Purpose: Primary barrier against fine particulate ingress; retains lubricant during static periods

Tertiary Protection (Labyrinth/Dust Lip):

• Configuration: Complex tortuous path between rotating and stationary components
• External Feature: Flexible dust lip deflects coarse contaminants (mud, sand, gravel)
• Grease Packing: Labyrinth cavity pre-filled with high-viscosity sealant grease

Pressure-Adaptive Design: The multi-stage labyrinth seal integrates a primary floating metal wear ring, multi-lip nitrile seal with patented spring design, and grease-purged labyrinth, maintaining integrity under both static pressure (deep mud immersion) and dynamic pressure (high-speed track rotation) .

2.5 Stationary Shaft Engineering

2.6 Dimensional Specifications and Fitment Data

100% Interchangeability Guarantee: All critical dimensions maintained within OEM specifications, ensuring direct bolt-on replacement across EC220D, EC240D, EC250D, H11, HS842, and C30 models without modification requirements .

3. CQCTRACK Manufacturing Capabilities and Quality Assurance

3.1 Vertically Integrated Production Infrastructure

CQCTRACK operates as a fully integrated manufacturing facility, maintaining control over every stage of the production process for Volvo-compatible undercarriage components :

• Steel Sourcing: Strategic partnerships with certified Chinese steel mills (including Baosteel Group and HBIS Group) with full material traceability and certification
• Forging Department: Multiple forging lines with capacity up to 10,000-ton presses for large undercarriage components
• Heat Treatment Facility: Computer-controlled carburizing and induction hardening lines with robotic handling and real-time parameter monitoring
• Machining Center: CNC turning centers, grinding machines, and machining centers with in-process gauging
• Assembly Lines: Controlled-environment assembly stations for bearing and seal installation
• Testing Laboratory: Metallurgical analysis, hardness testing, non-destructive examination, and seal pressure testing

3.2 Comprehensive Quality Control Protocol

Every Volvo-compatible bottom roller assembly undergoes rigorous inspection at multiple production stages, aligned with ISO 9001:2015 and CQC certification requirements :

Stage 1: Incoming Material Verification

• Chemical composition analysis (spectrometer verification against certified specifications)
• Mechanical property testing (tensile, yield, elongation)
• Ultrasonic inspection for internal soundness
• Grain size and microstructure evaluation
• Supplier certification review per CQC-mandated supplier management program

Stage 2: In-Process Inspection

• Forging dimensional verification (first-article inspection)
• Heat treatment hardness mapping (traverse testing for case depth verification)
• Post-machining dimensional certification (CMM verification)
• Surface finish measurement (profilometer verification of Ra ≤ 0.4 μm)

Stage 3: Assembly Verification

• Bearing rotation torque testing (smoothness verification)
• Seal integrity testing (air pressure decay method)
• Final dimensional audit (sampling per AQL standards)
• Visual inspection for surface defects and coating quality

Stage 4: Traceability Documentation

• Material test certificates (mill certificates with heat numbers)
• Heat treatment process records (time-temperature profiles)
• Dimensional inspection reports
• Final assembly test data
• 24-month minimum record retention for complete batch traceability

3.3 CQC Certification Framework Integration

CQCTRACK operates under a multi-layered certification umbrella, holding both ISO 9001:2015 quality system recognition and multiple CQC product certification credentials. This dual foundation mandates a factory quality assurance system encompassing :

3.4 Certification and Compliance

CQCTRACK maintains internationally recognized quality certifications applicable to Volvo undercarriage production:

• ISO 9001:2015 – Quality Management Systems
• CQC Product Certification – Multiple specific product certifications (e.g., CQC17704176145 reference)
• ISO 14001 – Environmental Management
• OHSAS 18001 – Occupational Health and Safety
• CE Certification – For European market compliance (applicable models)

4. Engineering Advantages for Volvo Applications

4.1 Multi-Model Cross-Compatibility

One of the primary engineering challenges in Volvo undercarriage supply is the subtle variations between model series. CQCTRACK’s engineering team has conducted comprehensive dimensional analysis of the EC220D through EC250D platform, identifying the common interface points that enable single part numbers to serve multiple models .

The 14520148 and 14522943 assemblies are engineered with mounting geometry and track gauge specifications that accommodate the operating weight variations between EC240D and EC250D applications, while maintaining proper track chain engagement.

4.2 Load Rating Optimization for Volvo Duty Cycles

Volvo excavators are engineered for specific duty cycles ranging from general construction to quarry operations . CQCTRACK offers bottom roller configurations optimized for:

• Standard Duty (EC220D/EC240D): Balanced bearing selection and case depth for general construction applications
• Heavy Duty (EC250D/H11): Enhanced bearing capacity and increased case depth for quarry and mining applications
• Severe Duty (HS842/C30): Maximum material specifications with additional seal protection for scrap handling and contaminated environments

4.3 Seal System Adaptation for European Standards

CQCTRACK’s sealing systems are validated to meet or exceed European IP rating standards for dust and water resistance, with testing protocols that simulate the severe operating conditions typical of Volvo applications in infrastructure and quarry projects .

5. International Trade and Supply Chain Advantages

5.1 Source Factory Benefits for Global Procurement

Direct engagement with CQCTRACK as the source factory offers significant commercial advantages for Volvo-compatible component procurement:

5.2 Export Logistics and Documentation

CQCTRACK provides comprehensive export documentation to facilitate smooth international transactions for Volvo undercarriage components:

Standard Export Documentation:

• Commercial Invoice (proforma and final)
• Packing List (detailed with weights and dimensions)
• Bill of Lading (sea freight) / Air Waybill (air freight)
• Certificate of Origin (COO) – China Chamber of Commerce
• Material Test Certificates (upon request, with heat numbers)
• Certificate of Conformity (manufacturer-issued)
• CQC certification documentation (where applicable)

Packaging Specifications:

• Standard Export Packaging: Heavy-duty wooden crates with steel strapping (heat-treated, ISPM 15 compliant for international shipment)
• Bulk Packaging: Steel-framed containers for full-set orders
• Individual Protection: Rust-preventive oil coating plus VCI (vapor corrosion inhibitor) film
• Labeling: Bilingual labels (Chinese/English) with part number, quantity, Volvo model reference, and handling instructions

5.3 Global Shipping and Delivery

Incoterms Availability: EXW, FOB (Xiamen/Shanghai/Ningbo ports), CIF, CFR, DAP – flexible terms to accommodate buyer preferences.

5.4 Minimum Order Quantities and Supply Flexibility

• Sample Orders: 1-2 pieces available for pre-qualification testing and fitment verification
• Small Quantity: 10-50 pieces (stock items) for distributor inventory
• Volume Production: Negotiable based on forecast and production scheduling
• Emergency Service: Expedited production (15-20 days) available for critical requirements

6. Operational Guidelines and Service Life Optimization

6.1 Installation Best Practices

Proper installation significantly extends bottom roller service life on Volvo excavators:

1. Track Tension Verification: Before installation, verify that track tension is within Volvo specifications (typically 280-320 mm sag at mid-point for D-series models)
2. Mounting Surface Preparation: Clean track frame mounting surfaces to remove debris, corrosion, and old gasket material
3. Bolt Torque Specifications: Tighten mounting bolts to Volvo-recommended torque values (consult EC220D/EC240D/EC250D service manual)
4. Rotation Check: After installation, verify free rotation of all rollers before track tensioning
5. Initial Operation: Monitor for unusual noise or heat generation during first hours of operation
6. Alignment Verification: Confirm proper track engagement with flanges after 10-20 hours of operation

6.2 Wear Monitoring and Replacement Indicators

Regular inspection should include:

• Outer Diameter Wear: Measure tread diameter; replacement recommended when wear reaches 8-10 mm from original
• Flange Thickness: Monitor flange wear; thin flanges (reduction >5 mm) indicate imminent derailment risk
• Seal Condition: Check for grease leakage (indicates seal failure requiring immediate replacement)
• Rotation Smoothness: Rough or noisy rotation suggests bearing damage
• Lateral Play: Excessive side-to-side movement (>3 mm) indicates bearing wear
• Surface Condition: Inspect for spalling, cracking, or galling on tread surface

6.3 Expected Service Life Factors

Actual service life varies significantly with operating conditions and machine application :

7. Comparative Analysis: CQCTRACK vs. Market Alternatives

8. Volvo-Specific Engineering Considerations

8.1 D-Series Undercarriage Architecture

The Volvo D-series excavators (EC220D, EC240D, EC250D) feature undercarriage designs optimized for the machines’ enhanced fuel efficiency and productivity characteristics :

• Track Gauge: Optimized for stability during digging operations
• Roller Configuration: Typically 7-9 bottom rollers per side depending on track length
• Carrier Rollers: 2 per side for upper track support
• Track Chain: Sealed and lubricated for extended wear life

CQCTRACK’s bottom roller assemblies are engineered to integrate seamlessly with this architecture, maintaining proper track alignment and load distribution.

8.2 H11 and HS842 Special Applications

The H11 series and HS842 material handlers present unique undercarriage challenges due to their specialized applications:

• H11: Heavy-duty excavator configuration requiring enhanced bearing capacity
• HS842: Scrap handling applications with increased contamination risk requiring superior seal protection

CQCTRACK addresses these requirements through material selection optimization and enhanced seal system validation.

9. Conclusion: The CQCTRACK Value Proposition for Volvo Undercarriage Systems

The VOLVO 14520148 / 14522943 / 14504091 / 5209256 / 485141 Track Bottom Roller Assembly manufactured by CQCTRACK represents a technically advanced, cost-effective solution for global buyers seeking to optimize their Volvo excavator undercarriage replacement strategies. Key differentiators include:

1. Source Factory Authenticity: Direct manufacturing capability with full process control ensures consistent quality and supply security across all Volvo models
2. Metallurgical Excellence: Forged alloy steel construction with precision heat treatment delivers wear resistance comparable to Volvo OEM components, with documented case depths of 8-12 mm and surface hardness of HRC 52-58
3. Advanced Seal Technology: Triple-protection sealing systems with pressure-adaptive design extend service life in severe operating environments typical of Volvo applications in quarry and construction
4. Multi-Model Compatibility: Engineering validation across EC220D, EC240D, EC250D, H11, HS842, and C30 platforms ensures correct fitment regardless of model variation
5. CQC Certification Framework Integration: Manufacturing processes validated under China Quality Certification protocols provide documented traceability and quality assurance
6. Global Supply Chain Readiness: Comprehensive export documentation, flexible shipping options, and responsive customer support facilitate international transactions
7. Cost Optimization: Factory-direct pricing provides significant savings (typically 40-60%) versus Volvo OEM alternatives without compromising quality or fitment

For procurement professionals, equipment distributors, and fleet managers worldwide, CQCTRACK offers a reliable, technically verified alternative to genuine Volvo parts—backed by the engineering expertise of a specialized undercarriage manufacturer with comprehensive certification credentials and decades of collective experience in heavy machinery components .

The ultimate value metric for heavy equipment—cost per operating hour—is optimized through CQCTRACK’s commitment to engineering excellence, material integrity, and process validation. By choosing CQCTRACK as your source factory for Volvo undercarriage components, you invest in documented quality, verified performance, and extended service life for your valuable Volvo excavator fleet.

10. Technical Support and Engineering Consultation

CQCTRACK maintains a dedicated engineering support team for Volvo undercarriage applications, available to assist with:

• Model-Specific Verification: Confirmation of correct part number for specific machine serial number ranges
• Application Engineering: Recommendations for heavy-duty or severe service configurations
• Installation Support: Technical guidance for proper fitment and maintenance
• Wear Analysis: Evaluation of failed components to identify root causes and optimize future replacements
• Custom Engineering: OEM/ODM capabilities for specialized requirements

Manufacturer: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Facility Location: Quanzhou City, Fujian Province, China
Product Inquiries: International Sales Department
Technical Support: Engineering Team (OEM/ODM inquiries welcome)

For specific pricing, current lead times, or to request material test certificates and dimensional drawings, please contact the CQCTRACK sales team directly with your Volvo machine model, serial number, and part requirements.

Appendix: Volvo Model and Part Number Cross-Reference Matrix

● = Primary Application | – = Not Applicable / Verify Compatibility

Keywords: VOLVO EC250D, EC240D, EC220D, H11, HS842, C30, 14520148, 14522943, 14504091, 5209256, 485141, Track Bottom Roller Assembly, Crawler Excavator Undercarriage Parts, CQCTRACK, China OEM Factory, Source Manufacturer, Heavy-Duty Track Roller, Forged Alloy Steel, Induction Hardening, Floating Face Seal, Tapered Roller Bearings, CQC Certification, Volvo D-Series Excavator, Undercarriage Wear Parts, International Trade, Construction Machinery Components

*This technical white paper is based on CQCTRACK’s standard manufacturing specifications and Volvo EC220D/EC240D/EC250D published technical data . While every effort has been made to ensure accuracy, specific product configurations may vary. Buyers are encouraged to verify compatibility using their machine’s model and serial number before ordering. Volvo product names and part numbers are used for reference purposes only and do not imply that CQCTRACK products are original Volvo parts. CQCTRACK is an independent manufacturer of high-quality replacement components. Copyright © 2026 Heli Machinery Manufacturing Co., Ltd. All rights reserved. This document contains proprietary information and may not be reproduced without written permission.*
