VOLVO 1181-00540 SA1181.00620 VOE14532415 VOE14654961 ECR48 ECR58 EC55 EC60 Track idler Assy / High quality Mini crawler excavator undercarriage parts supplier and manufacturer-HELI CQCTRACK

 Comprehensive Technical Specification: VOLVO 1181-00540 / SA1181.00620 / VOE14532415 / VOE14654961 ECR48 / ECR58 / EC55 / EC60 Track Idler Assembly – Precision Mini Excavator Undercarriage Engineering by HELI CQCTRACK

1. Executive Summary: The Apex of Compact Excavator Track Guidance Engineering

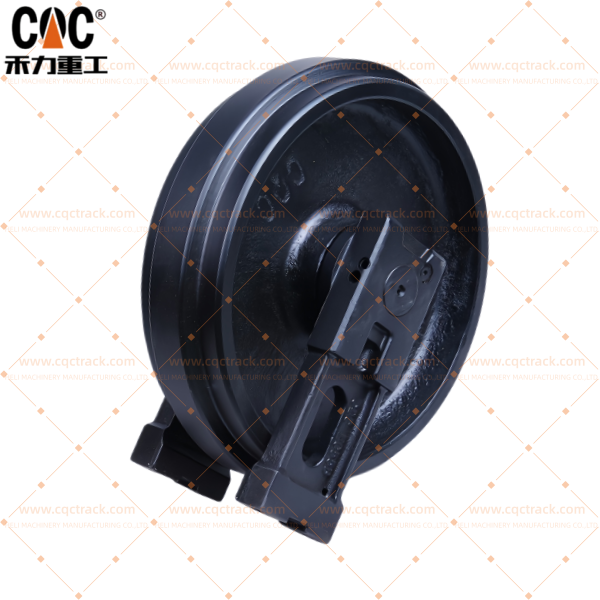

The VOLVO Track Idler Assembly—encompassing OEM cross-reference numbers 1181-00540, SA1181.00620,VOE14532415, VOE14654961—is a mission-critical structural component engineered for the VOLVO ECR48, ECR58, EC55, and EC60 series compact crawler excavators. As a fundamental element of the track undercarriage system, this assembly performs the vital functions of guiding the track chain, maintaining precise track tension, and absorbing the dynamic and impact loads characteristic of urban construction, landscaping, and utility operations in confined spaces .

HELI – CQCTRACK, operating as a premier source manufacturer and supplier of high-quality mini crawler excavator undercarriage parts, produces this idler assembly to meet and exceed rigorous Original Equipment Manufacturer (OEM) specifications. By leveraging vertical manufacturing integration—from raw material sourcing and closed-die forging to precision CNC machining and advanced heat treatment—CQCTRACK delivers components with unparalleled structural integrity, wear resistance, and seamless compatibility with VOLVO’s compact excavator series . This document provides a comprehensive technical exposition of the assembly’s engineering philosophy, material metallurgy, manufacturing precision, and operational superiority, solidifying its status as the definitive choice for equipment owners demanding maximum uptime in demanding urban and construction environments .

2. System Function & Operational Dynamics: The Vanguard of the Compact Track System

In the closed-loop undercarriage architecture of VOLVO’s 4-6 ton class compact excavators—including the ECR48 (zero-tail-swing), ECR58, EC55, and EC60 models—the front idler assembly is positioned at the opposite end of the track frame from the drive sprocket. It is not merely a rolling component; it is the structural vanguard of the track system, performing three primary mechanical functions with precision :

• Track Guidance & Derailment Prevention: The idler features integrally forged and precision-machined flanges that serve as a continuous rail. These flanges interface precisely with the inner surfaces of the track links, providing positive lateral control of the track chain. This guidance is critical during counter-rotation turns or operations on sloped terrains, preventing lateral displacement (de-tracking) which can cause catastrophic damage and costly downtime in confined urban job sites .
• Dynamic Tension Maintenance: The idler assembly serves as the movable anchor point for the track tensioning mechanism (a grease cylinder). By maintaining the prescribed track sag as per VOLVO specifications, it ensures optimal engagement between the drive sprocket teeth and the track bushings. Proper tension is paramount for optimizing undercarriage component life and power transfer efficiency, especially in compact machines operating in variable terrain conditions .
• Primary Load Bearing & Shock Absorption: The idler wheel rolls along the ground-contacting portion of the track chain, supporting a significant percentage of the machine’s operating weight. Critically, as the machine traverses obstacles or engages in digging, the idler is the first component to encounter impact forces. It acts as the primary shock absorber, transmitting these reaction forces through the track frame to the excavator’s main body while protecting the integrity of the track chain and sprocket .

3. Technical Specifications & Material Metallurgy: The Science of Compact Excavator Durability

The operational lifespan of a front idler for a 4-6 ton class compact excavator is dictated by advanced material science and precise thermal treatment. The VOLVO ECR48/ECR58/EC55/EC60 assemblies from HELI-CQCTRACK exemplify state-of-the-art metallurgical engineering for mini excavator applications .

3.1 Core Material Selection: Forged for Fortitude

• Idler Wheel Material: The wheel is forged from high-grade, wear-resistant alloy steel, specifically 50Mn or 40MnB . These manganese-boron alloys are selected for their exceptional toughness and dynamic work-hardening characteristics. When subjected to the continuous impact and rolling contact from the track chain, the surface of the material undergoes micro-structural densification, actually increasing its hardness and wear resistance in the field. The closed-die forging process ensures a continuous grain flow, superior impact resistance, and exceptional fatigue strength compared to cast components .
• Idler Shaft Material: The stationary axle is precision-machined from high-tensile alloy steel, typically 40Cr or 42CrMo . These chromium-molybdenum alloys provide supreme fatigue limit, torsional strength, and resistance to bending under cyclic loads, ensuring the shaft maintains perfect geometric alignment throughout its service life. The shaft journals are precision-ground to a fine surface finish to ensure optimal performance and longevity of the bearing system .

3.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between an abrasion-resistant surface and a tough, impact-absorbing core is achieved through a precise, multi-stage thermal process :

• Core Treatment – Quenching & Tempering (Q&T): The entire forging undergoes quenching and tempering to achieve a uniform, tough core structure with high impact resistance. This provides essential ductility for absorbing shock loads without catastrophic cracking, ensuring the component yields elastically rather than fracturing plastically under impact .
• Wear Surface Treatment – Deep Induction Hardening: The outer diameter running surface and the flange guide paths undergo computer-controlled, deep-case induction hardening. For these VOLVO compact excavator rollers, this creates a metallurgically bonded, high-hardness case with an effective depth of 8-12mm, achieving a surface hardness of HRC 53-58 . This creates a virtually impenetrable barrier against abrasive wear from track bushings and construction debris while maintaining core ductility.
• Precision Machining: Following heat treatment, precision CNC machining achieves tolerance levels within IT7-IT8 grade on critical surfaces, including the journal for bearings and the wheel tread. The running surface achieves a fine ground finish to minimize friction with the track bushings and prevent micro-welding under extreme pressures .

3.3 Dimensional Precision & Quality Metrics

• OEM Interchangeability: Manufactured strictly according to VOLVO’s original engineering blueprints, guaranteeing direct, “bolt-on” replacement for the complete series of OEM part numbers—including 1181-00540, SA1181.00620, VOE14532415, and VOE14654961—on the ECR48, ECR58, EC55, and EC60 models without modification .
• Critical Dimensions: All interface dimensions—shaft diameter, mounting configuration, overall width, and flange profile—are held to stringent tolerances (IT7-IT8 grade), with concentricity maintained within tight limits to ensure perfect track alignment.

4. Structural Anatomy: Deconstructing the VOLVO Compact Excavator Idler Assembly

The VOLVO ECR48/ECR58/EC55/EC60 Idler Assembly is a precision-engineered assembly consisting of several high-performance sub-components, each designed for a specific function in the demanding compact excavator environment .

5. The HELI – CQCTRACK Manufacturing Advantage: Source Manufacturer Philosophy

As a dedicated source manufacturer and supplier of high-quality mini crawler excavator undercarriage parts, HELI-CQCTRACK distinguishes itself through vertical integration and an uncompromising commitment to quality at every stage of production. Operating under rigorous quality management systems, CQCTRACK delivers components engineered to match or exceed OEM performance benchmarks .

5.1 Source Factory Control

• Closed-Die Forging: The manufacturing process begins with closed-die forging of idler blanks from selected steel billets (50Mn/40MnB), heated to precise forging temperature and formed into near-net-shape blanks using high-tonnage forging presses . This critical process aligns the metal’s grain flow with the component’s shape, significantly enhancing structural integrity, fatigue resistance, and impact strength compared to cast alternatives.
• CNC Precision Machining: Following heat treatment, state-of-the-art Computer Numerical Control (CNC) turning centers, grinding machines, and machining centers execute all turning, boring, and grinding operations . Critical tolerances (IT7-IT8 grade) are consistently achieved, with surface finishes optimized for seal longevity and rolling contact under varying loads.
• In-House Heat Treatment: Owning and controlling automated heat treatment lines allows CQCTRACK to strictly adhere to the precise time-temperature cycles necessary for Q&T processing, followed by CNC-controlled induction hardening machines to apply the wear-resistant case precisely to specified depths (8-12mm) . This guarantees metallurgical consistency across all production batches—essential for compact excavator durability.
• Controlled Assembly Environment: Bearings and seals are installed in a controlled, clean environment to prevent contamination during assembly. The unit is pressurized with a precise volume of grease to ensure complete cavity fill and proper seal seating .

5.2 High-Quality Assurance Protocol

The designation of “High Quality” for mini excavator applications is validated through a battery of rigorous tests :

• Dimensional Conformity: 100% verification via Coordinate Measuring Machines (CMM) for all critical dimensions, ensuring perfect interchangeability with VOLVO specifications.
• Hardness Profiling: Rockwell hardness testers verify surface hardness (HRC 53-58) on the raceway and flanges, and confirm core toughness, ensuring the component can withstand harsh job site realities .
• Seal Integrity Testing: The seal cavity is pressurized to verify the hermetic barrier is uncompromised, with sample assemblies undergoing rotational torque testing to ensure smooth operation.
• Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) of forgings detects subsurface flaws that could lead to premature failure.
• Performance Validation: Rotational torque testing to confirm smooth bearing operation and correct seal function post-assembly; run-out testing to ensure smooth operation under load .
• Comprehensive Documentation: Full traceability for each production batch ensures transparency for warranty and quality assurance.

5.3 Adaptation to VOLVO Compact Excavator Applications

CQCTRACK understands that VOLVO ECR48/ECR58/EC55/EC60 excavators operate globally in diverse, challenging environments—from urban construction sites to landscaping projects. Their manufacturing process is adaptable, allowing for engineering precision while maintaining the core OEM footprint required for these popular compact models .

6. Failure Mode Analysis & Preventive Maintenance Protocol

Maximizing the service life of VOLVO compact excavator idlers requires understanding potential failure modes and adhering to a strict maintenance regimen .

6.1 Common Failure Mechanisms

• Seal Failure & Contamination Ingress: The primary cause of premature idler failure in compact excavator applications . If the floating seal is compromised by debris impact or thermal degradation, lubricant escapes and abrasives (mud, sand) enter the bearing cavity. This acts as a grinding paste, rapidly destroying the bearings, shaft, and idler bore. Signs include grease leakage or visible contamination around seal area .
• Raceway Wear / Flattening: Progressive wear on the outer diameter due to continuous friction with track bushings in abrasive conditions . Excessive wear reduces idler diameter, alters track geometry, and increases derailment risk. Visible excessive wear or scoring on the outer shell indicates need for replacement.
• Brinelling: Surface indentations on the raceway caused by impact loads exceeding material’s elastic limit—common in demolition or rough terrain applications—leading to rough rotation and accelerated wear.
• Flange Wear: Gradual thinning of guide flanges due to constant contact with track links. This reduces guidance capability, leading to de-tracking risks during side-loading operations on slopes.
• Bearing Failure: Results from fatigue, contamination, or inadequate lubrication. Rolling elements or races spall due to cyclic loading, leading to increased internal clearance, causing idler to wobble and run noisily. Signs include significant play or wobble when pried, or unusual grinding/squealing noises during operation .
• Structural Cracks: Visible cracks in the idler wheel rim or bracket, typically caused by high-cycle fatigue or single-event overstress from high-impact shocks .

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Check for evidence of grease leakage around hub (tell-tale sign of seal failure). Listen for unusual grinding or squealing noises during operation. Inspect flange and raceway profiles for visible wear or damage .
• Track Tension Management: Maintain correct track sag as per VOLVO specifications for ECR48/ECR58/EC55/EC60 models. Over-tensioned track overloads idler bearings and seals; under-tensioned track causes chain slap, leading to impact damage and accelerated wear .
• Rotation Check: During daily walk-around where safely accessible, observe idler for smooth rotation without wobble or roughness. Manually rotate (when safe) to feel for binding indicating bearing distress .
• Clean Debris Regularly: Regularly check for and clean debris around the idler area. Avoid long-term idle exposure to acid, alkali, or wet soil environments which can accelerate corrosion .
• Wear Limit Measurement: Periodically measure outer diameter and flange thickness using appropriate gauges. Replace assembly when wear reaches manufacturer’s recommended limit to prevent damage to more expensive track chain .
• Undercarriage System Inspection: When replacing an idler, inspect the entire undercarriage as a system—check track chain for excessive pitch elongation, rollers for wear, and sprocket for damage. Installing a new idler on a severely worn system will drastically shorten its life .
• Proper Installation: Use correct lifting techniques and torque all mounting bolts to specified values. Avoid damaging delicate seal surfaces during handling .
• Serial Number Verification: Before ordering, verify the correct part number using machine’s specific Serial Number (S/N) to ensure proper fitment, as variations may exist based on configuration or manufacturing updates .

7. Compatibility & Application Scope

• Primary Models:
  • VOLVO ECR48, ECR58 (Compact/Zeta series, zero-tail-swing models)
  • VOLVO EC55, EC55B, EC55C
  • VOLVO EC60, EC60C
• OEM Part Numbers: Direct replacement for comprehensive cross-reference list including:
  • 1181-00540
  • SA1181.00620
  • VOE14532415
  • VOE14654961
• Machine Class: Compact crawler excavators (4-6 metric tons) .
• Undercarriage Configuration: Designed for mini excavator undercarriage systems with rubber or steel track options, depending on application requirements .
• Quality Warranty: Components are backed by performance warranty underwritten by certified manufacturing processes and extensive documentation, providing objective basis for confidence in longevity for compact excavator applications .
• Applications: Engineered for durability in:
  • Urban construction and confined space excavation
  • Landscaping and site preparation
  • Utility installation and trenching
  • Residential and commercial development
  • Light demolition and material handling
  • Operations requiring low ground pressure and minimal site disturbance

8. Conclusion: The Benchmark for VOLVO Compact Excavator Undercarriage Reliability

The VOLVO 1181-00540 / SA1181.00620 / VOE14532415 / VOE14654961 ECR48 / ECR58 / EC55 / EC60 Track Idler Assembly from HELI – CQCTRACK represents the pinnacle of compact excavator undercarriage engineering. It is not merely a replacement part; it is a strategic investment in operational uptime and total cost of ownership reduction for VOLVO compact excavator fleets operating in demanding urban and construction environments worldwide.

By combining advanced metallurgy (50Mn/40MnB forged bodies, 40Cr/42CrMo shafts), closed-die forging, precision CNC machining, and the rigorous quality control of a true source manufacturer, CQCTRACK delivers components that not only meet the exacting standards of VOLVO’s compact excavator specifications but are engineered to surpass them in real-world, punishing conditions . The deep induction hardening to HRC 53-58 with 8-12mm case depth ensures exceptional wear resistance against construction abrasives, while the high-integrity multi-stage floating seal system protects the precision bearing assembly from the relentless assault of mud, dust, and debris .

The maintenance-free sealed design means no daily greasing is required—only periodic visual checks as part of routine undercarriage inspection, reducing maintenance overhead for equipment owners and fleet managers .

Choosing HELI-CQCTRACK means partnering with a source manufacturer that possesses deep domain expertise in high-quality mini crawler excavator undercarriage parts. It ensures that every critical element—from the forged 50Mn idler body to the case-hardened 42CrMo shaft and heavy-duty bearing system—works in perfect harmony to support the dynamic forces of VOLVO’s ECR48, ECR58, EC55, and EC60 excavators, ensuring the track system remains reliable, efficient, and productive for thousands of operating hours on construction sites, landscaping projects, and urban infrastructure developments worldwide
