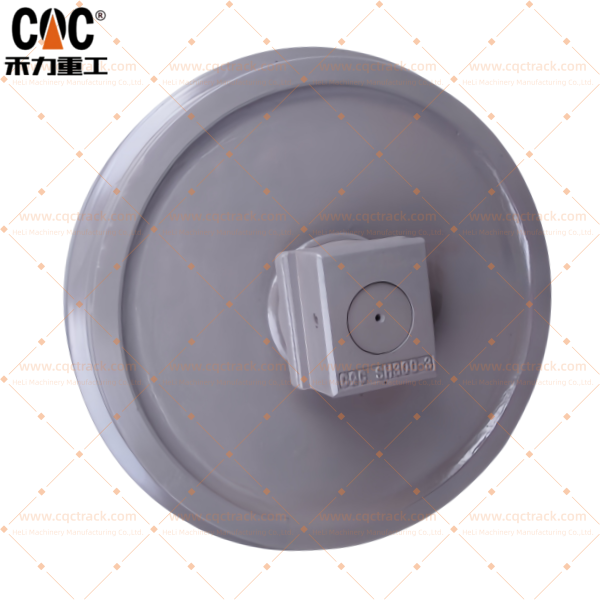

SUMITOMO JSA0101 JSA0131 KSA1027 E2A0061 SH300 JS330 Track Idler Wheel Assembly / Heavy duty excavator undercarriage parts Supplier and factory / CQC TRACK

SUMITOMO JSA0101 JSA0131 KSA1027 E2A0061 SH300 JS330 Track Idler Wheel Assembly – Heavy Duty Excavator Undercarriage Parts from CQC TRACK

Executive Summary

This technical publication delivers an exhaustive examination of the SUMITOMO track idler wheel assembly—a mission-critical undercarriage component engineered for SH-series and compatible heavy-duty excavators, including the SH300, JS330, and related models. The part numbers JSA0101, JSA0131, KSA1027, and E2A0061 represent OEM specifications for Sumitomo’s 30-33 ton class machines, which are widely deployed in infrastructure development, quarry operations, and heavy construction projects across global markets.

The front idler assembly (alternatively designated as track adjuster idler, guide wheel, or tensioning idler) serves dual critical functions in excavator operation: it guides the track chain around the forward articulation point and provides the moving anchor point for the hydraulic track tensioning mechanism. For operators of Sumitomo SH300 and JCB JS330 class machines—typically 30-33 ton excavators—understanding the engineering principles, material specifications, and manufacturing quality indicators of this component is essential for making informed procurement decisions that optimize total cost of ownership.

This analysis examines the SUMITOMO idler assembly through multiple technical lenses: functional anatomy, metallurgical composition, manufacturing process engineering, quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (operating under HELI Group affiliation) as a specialized manufacturer and supplier of heavy-duty excavator undercarriage components operating from Quanzhou, China .

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application

The SUMITOMO track idler wheel assembly encompasses multiple OEM part numbers corresponding to specific excavator models and production series. The primary part numbers addressed in this analysis include:



OEM Part Number	Compatible Models	Machine Class	Application Notes
JSA0101	SH300, SH330, JS330	30-33 ton	Primary idler for standard configuration
JSA0131	SH300-5, SH330-5	30-33 ton	Enhanced sealing variant for severe duty
KSA1027	SH300, SH350	30-35 ton	Heavy-duty configuration with reinforced flanges
E2A0061	SH300A-3, SH330A-3	30-33 ton	Earlier series compatibility

These part numbers represent Sumitomo’s proprietary identification codes, corresponding to precise engineering drawings, dimensional tolerances, and material specifications developed through the original equipment manufacturer’s rigorous validation protocols .

The SH300 and JS330 class excavators—typically 30-33 ton operating weight machines—are extensively deployed in medium to heavy construction, quarry operations, infrastructure development, and mining support applications. Their undercarriage systems must withstand continuous operation in abrasive environments while maintaining precise track alignment for optimal machine stability and performance .

1.2 Primary Functional Responsibilities

The front idler assembly in heavy-duty excavator applications performs three interconnected functions critical to machine performance and undercarriage longevity:

Track Guidance and Load Transfer: The idler’s peripheral surface contacts the track chain’s rail section, guiding the chain as it wraps around the forward articulation point. During forward travel, the idler experiences compressive forces; during reverse travel, it must withstand tensile loads transmitted through the chain. For 30-33 ton class machines with operating weights of 30,000-33,000 kg, static loads per idler typically range from 8,000-10,000 kg, with dynamic loads during excavation cycles reaching 2.5-3.0 times static values .

Track Tensioning Interface: The idler mounts on a sliding yoke connected to the track adjuster mechanism—typically a grease-filled hydraulic cylinder with relief valve. By moving the idler forward or backward, operators adjust track sag, maintaining optimal tension that balances wear reduction with mechanical efficiency. The adjustment stroke for 30-ton class excavator idlers typically ranges 100-150 mm.

Impact Load Management: During travel over uneven terrain, the idler absorbs and distributes initial contact shocks when the track chain rolls onto the undercarriage, protecting the track frame and final drive components from shock-induced damage. This function demands both structural strength and controlled deflection characteristics .

1.3 Technical Specifications and Dimensional Parameters

While Sumitomo’s exact engineering drawings remain proprietary, industry-standard specifications for 30-33 ton class excavator front idlers typically encompass the following parameters based on CQC TRACK’s engineering data :

These parameters are established through reverse engineering of OEM components and direct collaboration with equipment manufacturers. Premium aftermarket suppliers like CQC TRACK achieve tolerances of ±0.02 mm on critical bearing journals and seal housing bores, ensuring proper fit and long-term reliability .

2. Metallurgical Foundation: Material Science for Heavy-Duty Excavator Applications

2.1 Alloy Steel Selection Criteria

The service environment of a 30-ton class excavator front idler presents exceptionally demanding material requirements. The component must simultaneously resist abrasive wear from continuous contact with soil, sand, and rock; withstand impact loads from excavation forces and machine travel over uneven terrain; maintain structural integrity under cyclic loading that can exceed 10⁷ cycles over the machine’s lifetime; and preserve dimensional stability despite exposure to temperature extremes, moisture, and chemical contaminants .

Premium manufacturers like CQC TRACK select specific alloy steel grades that achieve the optimal balance of hardness, toughness, and fatigue resistance for this application class:

50Mn / 50MnB Manganese Steel: This is the predominant material choice for heavy-duty excavator idlers. With carbon content of 0.45-0.55% and manganese of 1.4-1.8%, 50Mn provides excellent hardenability—the ability to achieve uniform hardness at depth during heat treatment. Boron micro-alloyed variants (50MnB) incorporate 0.001-0.003% boron to further enhance hardenability, allowing full hardness achievement at greater section depths characteristic of 30-ton class components .

40Cr / 42CrMo Chromium-Molybdenum Alloys: For applications demanding enhanced fatigue resistance and through-hardening capability, chromium-molybdenum steels such as 40Cr (similar to AISI 5140) or 42CrMo (AISI 4140/4142) are specified. Chromium content of 0.80-1.10% improves hardenability and provides moderate corrosion resistance; molybdenum refines grain structure and increases high-temperature strength during heat treatment.

Material Traceability: Reputable manufacturers provide comprehensive material documentation, including Mill Test Reports (MTRs) certifying chemical composition with element-specific analysis (C, Si, Mn, P, S, Cr, B as applicable) .

2.2 Forging vs. Casting: The Grain Structure Imperative

The primary forming method fundamentally determines the idler’s mechanical properties and service life. While casting offers cost advantages for simple geometries, it produces an equiaxed grain structure with random orientation, potential porosity, and inferior impact resistance. Premium heavy-duty excavator idler manufacturers exclusively employ closed-die hot forging for the idler wheel and yoke components .

The forging process begins with cutting steel billets to precise weight, heating them to approximately 1150-1250°C until fully austenitized, then subjecting them to high-pressure deformation between precision-machined dies. This thermo-mechanical treatment produces continuous grain flow that follows the component contour, aligning grain boundaries perpendicular to principal stress directions. The resulting structure exhibits 20-30% higher fatigue strength and significantly greater impact energy absorption compared to cast alternatives .

After forging, components undergo controlled cooling to prevent the formation of detrimental microstructures such as Widmanstätten ferrite or excessive grain boundary carbide precipitation.

2.3 Dual-Property Heat Treatment Engineering

The metallurgical sophistication of a quality heavy-duty excavator idler manifests in its precisely engineered hardness profile—a hard, wear-resistant surface coupled with a tough, impact-absorbing core :

Quenching and Tempering (Q&T) : The entire forged rim and yoke are austenitized at 840-880°C, then rapidly quenched in agitated water, oil, or polymer solution. This transformation produces martensite—providing maximum hardness but with associated brittleness. Immediate tempering at 500-650°C allows carbon to precipitate as fine carbides, relieving internal stresses and restoring toughness. The resulting core hardness typically ranges from 280-350 HB (29-38 HRC), providing optimal toughness for impact absorption in the 30-ton weight class.

Induction Surface Hardening: Following finish machining, the critical wear surfaces—specifically the tread diameter and flange faces—undergo localized induction hardening. A copper inductor coil surrounds the component, inducing eddy currents that rapidly heat the surface layer to austenitizing temperature (900-950°C) within seconds. Immediate water quenching produces a martensitic case of 5-10 mm depth with surface hardness of HRC 58-62, providing exceptional resistance to abrasive wear from track bushing contact .

This differential hardening creates the ideal composite structure: a wear-resistant rim surface that withstands abrasive contact with track links and ground debris, supported by a tough core that absorbs impact loads without catastrophic fracture.

2.4 Quality Assurance Protocols

Manufacturers like CQC TRACK implement multi-stage quality verification throughout production :

• Spectroscopic Material Analysis: Confirms alloy chemistry against certified specifications.
• Ultrasonic Testing (UT) : Verifies internal soundness of critical forgings, detecting any centerline porosity, inclusions, or laminations.
• Hardness Verification: Rockwell or Brinell hardness testing confirms both core hardness after Q&T treatment and surface hardness after induction hardening. Microhardness traverses on sample components verify case depth compliance with specifications.
• Magnetic Particle Inspection (MPI) : Examines critical areas—particularly flange roots, shaft fillets, and yoke weldments—detecting any surface-breaking cracks or grinding burns.
• Dimensional Verification: Coordinate Measuring Machines (CMM) verify critical dimensions, with statistical process control maintaining process capability indices (Cpk) typically exceeding 1.33 for critical features .

3. Precision Engineering: Component Design and Manufacturing

3.1 Idler Rim Geometry for Heavy-Duty Excavator Applications

The idler rim geometry for SH300/JS330 class machines must precisely match the track link pitch and rail profile to ensure uniform contact pressure distribution. For 30-ton class excavators, typical track pitch is 190-216 mm, and the idler diameter is calculated to provide adequate wrap angle (typically 100-120°) while maintaining structural integrity under heavy loads .

Flange geometry for heavy-duty excavator applications incorporates design elements specific to this machine class :

• Flange-to-Flange Distance: Accommodates the track link width (typically 70-90 mm for 30-ton machines) with 3-6 mm clearance for free movement while maintaining guidance effectiveness.
• Flange Face Relief Angles: 5-10° relief facilitates debris ejection and prevents material packing that could induce derailment during side-slope operation.
• Flange Root Radii: Optimized to minimize stress concentration while providing adequate strength for anti-derailment function, particularly important during operation on uneven terrain.
• Flange Height: The 22-28 mm height provides robust lateral constraint, preventing track derailment during aggressive turning or side-slope operation.

3.2 Shaft and Bearing System Engineering

The stationary shaft must withstand continuous bending moments and shear stresses while maintaining precise alignment with the rotating rim. For SH300/JS330 applications, shaft diameters typically range 80-95 mm, calculated based on static weight, dynamic factors (typically 2.0-2.5 for excavator applications), and track tension loads that can exceed 15 tonnes .

The bearing system for heavy-duty excavator idlers employs matched sets of tapered roller bearings (TRB) , which are preferred because they can simultaneously support radial loads (from machine weight and track tension) and thrust loads (from lateral track forces during turning). Key characteristics include :

• High Radial and Axial Load Capacity: Tapered roller bearings are specifically selected for their ability to handle the combined stresses of machine weight and directional changes.
• Adjustable Preload: Tapered roller bearings allow precise preload to be set during assembly, minimizing internal clearance and extending bearing life under cyclic loading.
• Bearing Quality: Premium manufacturers source bearings from specialized bearing producers (e.g., NSK, SKF, or equivalent Chinese bearing suppliers) with rigorous quality standards.

The shaft bearing journals are precision-ground and often surface-treated (e.g., chrome plating or nitriding) for enhanced wear and corrosion resistance. The hub is designed as a monolithic forging with the shaft or is welded using automated processes with post-weld heat treatment to ensure structural integrity .

3.3 Advanced Multi-Stage Sealing Technology

The seal system is the single most critical determinant of idler longevity in heavy-duty excavator applications, where machines frequently operate in mud, dust, and highly abrasive environments. Industry data indicates that over 70% of premature idler failures originate from seal compromise, allowing abrasive contaminants to enter the bearing cavity and initiate rapid wear progression .

Premium heavy-duty excavator idlers from CQC TRACK employ multi-stage, cartridge-type sealing systems comprising :

Primary Radial Lip Seal: Manufactured from HNBR (Hydrogenated Nitrile Butadiene Rubber) material for exceptional temperature resistance (-40°C to +150°C) and chemical compatibility with extreme pressure (EP) greases. The lip seal maintains continuous contact with the shaft, excluding fine contaminants while retaining lubricant.

Secondary Floating Seal: Precision-ground hardened iron or steel rings with lapped sealing faces achieving flatness within 0.5-1.0 µm. These rings rotate relative to each other, maintaining continuous metal-to-metal contact that creates an impenetrable barrier against abrasive particles.

External Labyrinth-Style Dust Guard: Creates a tortuous path that progressively traps coarse contaminants before they reach the primary seals. The labyrinth is packed with high-adhesion grease that captures and retains particles.

Pre-Lubrication: The bearing cavity is pre-filled with high-adhesion, extreme pressure (EP) grease, ensuring immediate lubrication upon installation and creating a positive pressure that further excludes contaminants .

3.4 Sliding Yoke and Track Tensioning Interface

The sliding yoke houses the idler shaft and connects to the track adjuster cylinder. For SH300/JS330 applications, the yoke is a heavy-duty steel forging weighing 40-60 kg, designed to transmit tension loads (typically 10-15 tonnes) from the idler to the adjuster while sliding smoothly on the track frame rails .

Critical design features include :

• Hardened Steel Bushings or Wear Rings: Installed at the interface with the track frame’s adjustment slide, these serve as sacrificial components that protect the idler shaft and frame from wear, simplifying future maintenance.
• Induction-Hardened Sliding Surfaces: The yoke’s bearing surfaces are induction-hardened to resist wear from continuous sliding against the track frame.
• Grease Fittings: Equipped for scheduled re-lubrication of sliding interfaces, following OEM-recommended service intervals.

The interface with the track adjuster utilizes a hydraulic tensioning system: grease is pumped into a cylinder behind the yoke, pushing the idler forward and tensioning the track. A relief valve prevents over-tensioning.

3.5 Precision Machining and Quality Control

Modern CNC machining centers achieve dimensional tolerances that directly correlate with service life. Critical parameters for SH300/JS330 class idlers include :

CNC-controlled turning and grinding processes guarantee precise concentricity, accurate flange dimensions, and optimal surface finish for smooth track chain interaction .

3.6 Assembly and Pre-Delivery Testing

Final assembly is performed in clean-room conditions to prevent contamination. Bearings are carefully pressed into the rim, seals installed with specialized tools to avoid damage, and the shaft inserted. The assembly is then filled with specified grease and rotated to distribute lubricant .

Pre-delivery testing for heavy-duty excavator idlers includes :

• Rotational torque test to verify smooth rotation and correct bearing preload
• Seal integrity test to confirm proper seal installation
• Dimensional inspection of the assembled unit
• Visual inspection of seal installation and overall workmanship

4. CQC TRACK: Manufacturer Profile and Capabilities

4.1 Company Overview and Industry Position

CQC TRACK (operating under HELI Group affiliation) is a specialized industrial manufacturer and supplier of heavy-duty undercarriage systems and chassis components, operating on both ODM and OEM principles. Based in Quanzhou, Fujian Province—a region recognized for specialized expertise in customized undercarriage solutions—the company has established itself as a significant player in the global undercarriage components market .

With specialized focus on undercarriage components for global markets, CQC TRACK has developed comprehensive capabilities across the entire undercarriage product spectrum, including track rollers, carrier rollers, front idlers, sprockets, track chains, and track shoes for applications ranging from mini excavators to large mining-class machines .

The company is recognized as one of Quanzhou’s “Top Three Chassis Components” manufacturers, reflecting its position among the leading suppliers in China’s competitive undercarriage manufacturing sector .

4.2 Technical Capabilities and Engineering Expertise

Integrated Manufacturing: CQC TRACK controls the full production cycle from material sourcing and forging to precision machining, heat treatment, assembly, and quality testing. This vertical integration ensures consistent quality and complete traceability throughout the manufacturing process .

Advanced Metallurgical Expertise: The company’s technical team leverages advanced metallurgical knowledge and dynamic load simulation tools to design components for extreme duty cycles. For SH300/JS330 applications, this includes rigorous fatigue analysis and impact testing to ensure structural resilience appropriate for the 30-ton class .

Quality Assurance Protocol: CQC TRACK implements a stringent quality management system (ISO 9001 certified). Production involves :

• Spectroscopic material analysis for alloy verification
• Ultrasonic testing (UT) of critical forgings
• In-process dimensional checks using precision gauges and CMM
• Final assembly testing for rotational smoothness and seal integrity

Supply Chain Role: Serves as a direct manufacturer and supplier to international distributors and aftermarket networks, providing a reliable source for high-compatibility replacement parts that balance performance, durability, and value .

4.3 Product Range for Sumitomo Excavators

CQC TRACK manufactures a comprehensive range of undercarriage components for Sumitomo excavators, including :

The company’s engineering team can provide technical support for custom applications, such as modified flange profiles for specific ground conditions or enhanced seal packages for severe duty environments .

5. Cross-Brand Compatibility: Sumitomo and JCB Applications

5.1 JCB JS330 Compatibility

The JCB JS330 excavator—a 33-ton class machine—shares undercarriage component specifications with Sumitomo SH300 series in certain configurations. Industry cross-reference data indicates that undercarriage components for these models may be interchangeable, reflecting common sourcing or shared design standards among manufacturers .

The JS330 idler assembly (referenced with part numbers such as JSA0049, JSA0147) demonstrates compatibility with Sumitomo SH300 applications, enabling fleet operators with mixed equipment populations to rationalize inventory and sourcing .

5.2 Application Verification

Given the complexity of undercarriage systems and potential variations between machine series and production years, verification against specific machine serial numbers is essential before procurement. Reputable suppliers like CQC TRACK provide technical support to confirm compatibility for specific applications .

6. Performance Validation and Service Life Expectations

6.1 Benchmarks for Heavy-Duty Excavator Applications

Field data from diverse operating environments provides realistic performance expectations for SH300/JS330 class front idlers :

In mixed terrain construction applications (moderate abrasivity, varied ground conditions), properly manufactured OEM-grade idlers typically achieve 5,000-7,000 operating hours before requiring replacement. Under severe conditions—continuous quarry operation, highly abrasive materials, or mining support applications—service life may reduce to 3,500-5,000 hours.

Premium aftermarket idlers from reputable manufacturers like CQC TRACK demonstrate performance parity with OEM components, achieving 85-95% of OEM service life at significantly lower acquisition cost (typically 30-50% below OEM pricing) .

6.2 Common Failure Modes in Heavy-Duty Excavator Applications

Understanding failure mechanisms enables proactive maintenance and informed procurement decisions :

Seal Failure and Contamination Ingress: The most common failure mode in heavy-duty excavators, seal compromise allows abrasive particles to enter the bearing cavity. SH300/JS330 machines are particularly susceptible due to frequent operation in mines, quarries, and demolition sites. Initial symptoms include grease leakage around seals, followed by increasingly rough rotation and eventual seizure.

Flange Wear: Progressive wear on flange faces indicates inadequate surface hardness or improper track alignment. Critical wear dimensions include thinning of the guidance flanges, which reduces lateral constraint and increases derailment risk .

Tread Wear and Diameter Reduction: The idler tread gradually wears from continuous contact with track bushings. When tread diameter reduction exceeds specifications, wrap angle decreases, increasing contact pressure and accelerating wear. Regular measurement of outside diameter is recommended .

Bearing Fatigue: After extended service, bearings may exhibit spalling due to subsurface fatigue, indicating the component has reached its natural life limit.

Yoke Wear: Sliding surfaces of the yoke can wear over time, increasing clearance and causing idler misalignment—particularly in machines with high operating hours.

6.3 Wear Indicators and Inspection Protocols

Regular inspection at 250-hour intervals should check for :

• Grease leakage around seals (indicates seal compromise)
• Abnormal play in the idler (detected by prying vertically and horizontally)
• Uneven wear patterns on tread or flanges
• Reduction in idler wheel outside diameter
• Thinning of guidance flanges
• Yoke movement and clearance on track frame rails
• Condition of track adjuster grease fitting
• Unusual noises (grinding, squeaking) from the undercarriage during operation

7. Installation, Maintenance, and Service Life Optimization

7.1 Professional Installation Practices for Heavy-Duty Excavators

Proper installation significantly impacts idler service life for SH300/JS330 class machines :

Track Frame Preparation: The sliding surfaces of the track frame must be clean and free of burrs. Any damage to the frame rails should be repaired to ensure smooth yoke movement. Hardened steel bushings or wear rings should be inspected and replaced if worn .

Yoke Installation: The yoke should slide freely on the frame rails; apply grease to sliding surfaces as recommended. Ensure proper alignment of the idler with the track chain path.

Fastener Torque Specifications: Mounting bolts must be tightened to manufacturer specifications using calibrated torque wrenches. Under-torquing allows movement that accelerates wear; over-torquing risks thread damage or bolt fatigue failure.

Track Tension Adjustment: After installation, adjust track tension according to the machine manual. For 30-ton class excavators, proper sag typically ranges 20-35 mm measured at the center of the track. Check tension after a few hours of operation and readjust if necessary .

7.2 Preventive Maintenance Protocols

Regular Inspection Intervals: Visual inspection at 250-hour intervals should check for all wear indicators previously described. More frequent inspection (50-100 hours) is recommended in severe applications .

Track Tension Management: Proper track tension directly impacts idler life. Excessive tension increases bearing loads and accelerates wear; insufficient tension allows track slapping that accelerates seal deterioration and increases impact loads on the idler. Check tension regularly, especially after the first few hours on a new idler.

Cleaning Considerations: Avoid high-pressure washing directed at seal areas, which can force contaminants past seals into bearing cavities. If cleaning is necessary, use low-pressure water and allow components to dry before operation.

Lubrication: Follow manufacturer’s recommendations for grease type and interval for any lubrication points on the yoke or adjuster mechanism. For sealed idler bearings, no additional lubrication is required during service life .

7.3 Replacement Decision Criteria

Front idlers for SH300/JS330 class machines should be replaced when :

• Seal leakage is evident and cannot be stopped by additional greasing
• Radial or axial play exceeds manufacturer specifications (typically 3-5 mm)
• Flange wear reduces guidance effectiveness or creates sharp edges
• Tread wear exceeds hardened case depth (typically when diameter reduction exceeds 10-15 mm)
• Tread outside diameter reduction impairs proper track wrap
• Bearing rotation becomes rough, noisy, or irregular
• Visible wear or damage to the idler wheel is apparent

7.4 System-Based Replacement Strategy

For optimal undercarriage performance and cost efficiency, the idler’s condition should be evaluated alongside the track chain (pins and bushings), sprocket, and bottom rollers. Replacing severely worn components in a matched set is considered best practice to prevent accelerated wear on new parts. Industry best practice recommends replacing idlers in pairs on each side to maintain balanced track performance .

8. Strategic Sourcing Considerations

8.1 The OEM vs. Aftermarket Decision for Heavy-Duty Excavators

Fleet managers must evaluate the OEM versus high-quality aftermarket decision through multiple lenses :

Cost Analysis: Aftermarket components from manufacturers like CQC TRACK typically offer 30-50% initial cost savings compared to OEM parts. For fleets with multiple SH300/JS330 class machines, this differential can represent significant annual savings. However, total cost of ownership calculations must factor in expected service life, maintenance labor costs, and downtime impact .

Quality Parity: Premium aftermarket manufacturers achieve performance parity with OEM components through equivalent material specifications, heat treatment processes, and quality control protocols. CQC TRACK’s ISO 9001 certification and comprehensive testing procedures ensure consistent quality .

Warranty Considerations: OEM warranties typically cover 1-2 years or 2,000-3,000 hours, with strict installation requirements. Reputable aftermarket manufacturers like CQC TRACK offer comparable warranties, with coverage periods of 1-2 years covering manufacturing defects .

Availability and Lead Times: OEM parts may face extended lead times due to centralized distribution and potential supply chain disruptions. Aftermarket manufacturers with local production often deliver within 3-5 weeks—critical for minimizing downtime in revenue-producing equipment. VemaTrack notes that aftermarket suppliers typically offer fast delivery and competitive pricing .

8.2 Supplier Evaluation Criteria

Procurement professionals should apply systematic evaluation frameworks when assessing potential front idler suppliers :

Manufacturing Capability Assessment: Facility evaluations should verify the presence of:

• Closed-die forging equipment for primary forming
• Modern CNC machining centers (preferably 5-axis capability)
• Automated heat treatment lines with atmosphere control
• Induction hardening stations with process monitoring
• Clean-room assembly areas for seal installation
• Comprehensive testing facilities (UT, MPI, CMM)

Quality Management Systems: ISO 9001:2015 certification represents the minimum acceptable standard. Suppliers with additional certifications (ISO/TS 16949, CE marking) demonstrate enhanced commitment to quality .

Material and Process Transparency: Reputable manufacturers readily provide material certifications, process documentation, and inspection reports. Requests for sample testing—including dimensional verification, hardness testing, and metallographic examination—should be accommodated professionally .

Production Capacity and Lead Times: Typical lead times for custom production range 35-50 days for standard components, with expedited production possible for urgent requirements. Suppliers maintaining finished goods inventory for common models offer significant advantages for just-in-time maintenance programs.

Experience and Reputation: Suppliers with extensive experience (15-30+ years) in undercarriage manufacturing demonstrate sustained capability and market acceptance. Companies like Shandong Jiarun Precision Machinery (15+ years) and Quanzhou K&H Parts (since 1986) exemplify the experience level available in Chinese manufacturing .

8.3 The CQC TRACK Advantage

CQC TRACK offers several distinct advantages for Sumitomo excavator undercarriage procurement :

• OEM Specification Manufacturing: Components engineered to match original equipment specifications exactly, ensuring direct interchangeability.
• Integrated Production Control: Full vertical integration from material sourcing through final assembly ensures consistent quality and traceability.
• Comprehensive Quality Assurance: Multi-stage testing protocols including spectroscopic analysis, ultrasonic testing, and dimensional verification.
• Application Expertise: Technical team with deep understanding of Sumitomo undercarriage systems and cross-brand compatibility.
• Global Supply Capability: Established distribution networks serving international markets with reliable lead times.

9. Market Analysis and Future Trends

9.1 Global Demand Patterns

The global market for heavy-duty excavator undercarriage components continues expanding, driven by :

Infrastructure Development: Major infrastructure initiatives across Southeast Asia, Africa, and the Middle East sustain demand for new equipment and replacement parts. SH300/JS330 class machines, widely deployed in these regions, generate ongoing aftermarket requirements.

Mining Sector Growth: Commodity price stability and increased mining activity in resource-rich regions drive demand for heavy-duty undercarriage components capable of withstanding severe operating conditions.

Equipment Fleet Aging: Economic uncertainties have extended equipment retention periods, increasing aftermarket parts consumption as operators maintain older machines rather than replacing them.

9.2 Technological Advancements

Emerging technologies are transforming undercarriage component manufacturing :

Induction Hardening Optimization: Advanced induction systems with real-time temperature monitoring and feedback control achieve unprecedented uniformity in case depth and hardness distribution, extending wear life while reducing energy consumption.

Automated Assembly and Inspection: Robotic assembly systems with integrated vision inspection ensure consistent seal installation and dimensional verification, eliminating human variability in critical processes.

Material Science Developments: Research into nano-modified steels and advanced heat treatment cycles promises next-generation materials with enhanced wear resistance without sacrificing toughness.

Digital Transformation: CQC TRACK is undergoing significant transformation aligned with Industry 4.0 standards, developing patented technologies including Intelligent Chassis systems that collect and evaluate field performance data to inform future product development .

10. Conclusion and Strategic Recommendations

The SUMITOMO JSA0101 JSA0131 KSA1027 E2A0061 track idler wheel assembly for SH300, JS330, and compatible heavy-duty excavators represents a precision-engineered component whose performance directly impacts machine stability, track life, and operating cost. Understanding the technical intricacies—from alloy selection and forging methodology through precision machining, bearing systems, and multi-stage seal design—enables procurement professionals to make informed decisions that balance initial cost against total cost of ownership.

For heavy-duty excavator fleet operators seeking optimal value, the following strategic recommendations emerge from this comprehensive analysis:

1. Prioritize material and process transparency, requesting and verifying documentation of steel grades (50Mn/50MnB/40Cr), heat treatment parameters (core hardness 280-350 HB, surface hardness HRC 58-62), and quality control protocols .
2. Evaluate suppliers through the lens of manufacturing capability, seeking evidence of forging operations, modern CNC equipment, heat treatment lines, and comprehensive testing facilities rather than relying solely on marketing claims.
3. Verify sealing system specifications, recognizing that multi-stage cartridge-type seals with HNBR lip seals, floating seals, and labyrinth dust guards provide superior protection in severe duty applications .
4. Consider application-specific requirements—idlers for mining and quarry applications demand enhanced seal packages and potentially modified flange geometries compared to those for general construction.
5. Implement systematic maintenance protocols including regular inspection for seal leakage, flange wear, tread diameter reduction, and proper track tension—recognizing that even the finest idler will underperform without proper care .
6. Adopt system-based replacement strategies, evaluating idler condition alongside track chain, sprocket, and rollers to prevent accelerated wear of new components paired with worn counterparts .
7. Develop strategic supplier partnerships with manufacturers like CQC TRACK that demonstrate technical competence, quality commitment, and supply chain reliability, transitioning from transactional purchasing to collaborative relationship management .

By applying these principles, heavy-duty excavator fleet operators can secure reliable, cost-effective undercarriage solutions that maintain machine productivity while optimizing long-term operational economics—the ultimate objective of professional equipment management in today’s competitive global environment.

CQC TRACK, as a specialized manufacturer with integrated production capabilities and comprehensive quality assurance, represents a viable source for Sumitomo SH300 and JCB JS330 class idler assemblies, offering OEM-specification quality with the cost advantages of Chinese manufacturing .

Frequently Asked Questions (FAQ)

Q: What is the typical service life of a SUMITOMO SH300/JS330 class front idler?
A: In general construction applications, properly maintained idlers typically achieve 5,000-7,000 operating hours. Severe conditions (continuous quarry operation, highly abrasive materials) may reduce life to 3,500-5,000 hours .

Q: How can I verify that an aftermarket front idler meets OEM specifications?
A: Request material test reports (MTRs) certifying alloy chemistry (typically 50Mn/50MnB/40Cr), hardness verification documentation (core 280-350 HB, surface HRC 58-62), and dimensional inspection reports. Reputable manufacturers like CQC TRACK readily provide this documentation .

Q: What are the advantages of sourcing from CQC TRACK for Sumitomo excavator components?
A: CQC TRACK offers competitive pricing (30-50% below OEM), integrated manufacturing with full production control, comprehensive quality assurance (ISO 9001 certified), and engineering expertise in Sumitomo undercarriage systems .

Q: How do I identify seal failure before catastrophic damage occurs?
A: Regular inspection should check for grease leakage around seals, appearing as wetness or accumulated debris. Rough rotation detectable by turning the idler by hand (with track raised) also indicates seal compromise or bearing wear .

Q: What causes premature idler wear in heavy-duty excavator applications?
A: Common causes include seal failure allowing contaminant ingress, improper track tension (either too tight or too loose), operation in highly abrasive materials, and mixing new idlers with worn track components .

Q: Should I replace front idlers individually or in pairs on SH300/JS330 class machines?
A: Industry best practice recommends replacing idlers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts .

Q: What warranty should I expect from quality aftermarket suppliers for heavy-duty excavator idlers?
A: Reputable aftermarket manufacturers typically offer 1-2 year warranties covering manufacturing defects, with coverage periods of 2,000-3,000 operating hours .

Q: Can aftermarket idlers be customized for specific operating conditions?
A: Yes, experienced manufacturers like CQC TRACK offer customization options including enhanced seal systems for wet or dusty conditions, modified material grades for extreme abrasion, and flange geometry adjustments for specialized applications .

Q: What are the critical wear indicators for front idlers?
A: Critical wear indicators include reduction in outside diameter, thinning of guidance flanges, seal leakage, abnormal play, and rough rotation .

Q: How often should track tension be checked on SH300/JS300 class excavators?
A: Track tension should be checked at every 250-hour service interval, after the first 10 hours of operation on new components, and whenever abnormal track behavior (slapping, squeaking, uneven wear) is observed .

This technical publication is intended for professional equipment managers, procurement specialists, and maintenance personnel. Specifications and recommendations are based on industry standards and manufacturer data available at time of publication. Always consult equipment documentation and qualified technical professionals for application-specific decisions. All manufacturer names, part numbers, and model designations are used for identification purposes only.
