1. Product Overview and Primary Function

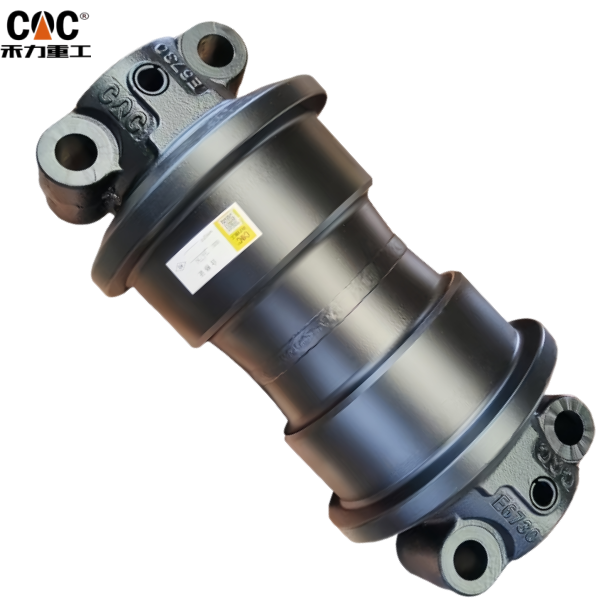

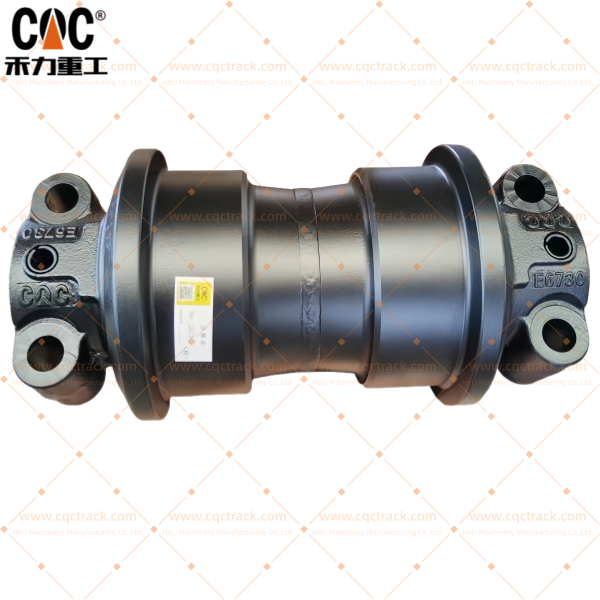

The SDLG LG973L Track Bottom Roller Assembly is a fundamental load-bearing component within the undercarriage system of the SDLG LG973L wheel loader. Its primary function is to support the weight of the machine and facilitate the smooth travel of the track chain over the lower segment of the track frame. Positioned between the front idler and the sprocket, these rollers bear the brunt of the machine’s operational weight and distribute ground contact loads evenly across the track chain, ensuring stability, traction, and efficient power transmission during operation.

2. Key Functional Roles

• Primary Load Support: Directly supports the majority of the machine’s weight, transferring it through the track chain to the ground. They are constantly subjected to high static and dynamic loads during lifting, loading, and travel.
• Track Guidance: Helps to maintain the alignment of the track chain on the lower track frame, preventing lateral derailment.
• Impact and Vibration Absorption: Absorbs shock loads and vibrations from uneven terrain and ground obstacles, protecting the more structural components of the undercarriage and the mainframe from excessive stress.
• Smooth Travel: By providing a continuous, rotating surface, they minimize friction as the track chain moves, contributing to efficient operation and reduced power loss.

3. Detailed Component Breakdown & Construction

The Bottom Roller Assembly is a robust, sealed mechanical unit designed for durability in abrasive environments. Key sub-components include:

• Roller Shell (Body): The outer cylindrical component that makes direct contact with the track chain links. It is typically manufactured from high-carbon, high-strength steel. The outer surface is precision-machined and undergoes induction hardening to achieve a high surface hardness (typically 55-60 HRC) for extreme abrasion resistance, while the core remains tough to absorb impacts.
• Shaft (Spindle or Journal): A hardened, high-tensile steel shaft that serves as the stationary axle. It is securely mounted to the track frame via bolts through the mounting bosses. The roller rotates around this stationary shaft on bearings.
• Bearing System: Utilizes two large, heavy-duty tapered roller bearings pressed into each end of the roller shell. These bearings are specifically selected to handle the immense radial loads generated by the machine’s weight and operational forces.
• Sealing System: A critical component for longevity. SDLG employs a multi-lip, positive-action seal system. This typically consists of:
  • Primary Lip Seal: Prevents the escape of lubricating grease from the bearing cavity.
  • Secondary Dust Lip: Acts as a barrier to exclude abrasive contaminants like dirt, mud, sand, and water.
  • Metal Seal Case: Provides a rigid, press-fit housing for the seals within the roller, ensuring a secure fit and heat dissipation.
    Most modern assemblies, including those for SDLG, are Lube-for-Life, meaning they are sealed, pre-greased at the factory, and require no routine maintenance greasing.
• Flanges: Integral, massive double flanges are machined onto both ends of the roller shell. These flanges are crucial for guiding the track chain and preventing lateral derailment. They are also hardened to resist wear from contact with the track links.
• Mounting Bosses: The forged or cast brackets integrated at each end of the shaft, featuring precisely drilled holes for the mounting bolts that secure the entire assembly to the track frame.

4. Material and Manufacturing Specifications

• Material: The roller shell and shaft are constructed from high-grade alloy steel (e.g., 50Mn or 42CrMo), chosen for its excellent strength, hardenability, and impact resistance.
• Manufacturing Processes: The production involves forging the shell for superior grain structure, precision CNC machining, induction hardening of the running surface and flanges, grinding of critical surfaces, and automated pressing of bearings and seals.
• Surface Treatment: The assembly is shot-blasted to remove scale and improve paint adhesion before being primed and painted with SDLG’s standard yellow paint for corrosion protection.

5. Application and Compatibility

This specific assembly is designed for the SDLG LG973L wheel loader. Bottom rollers are high-wear items due to their constant contact with the track chain and exposure to abrasive materials. They are typically inspected regularly and replaced in sets to ensure even performance and wear across the entire undercarriage. Correct compatibility is essential for maintaining proper track alignment, tension, and overall machine stability.

6. Importance of Genuine or High-Quality Replacement Parts

Using a certified SDLG or premium-quality aftermarket equivalent assembly ensures:

• Dimensional Accuracy: Guarantees perfect fitment with the track chain and correct alignment on the track frame, preventing abnormal wear patterns.
• Material Integrity: Certified materials and precise heat treatment ensure the roller can withstand rated loads without premature failure or excessive wear.
• Seal Reliability: High-quality seals are the most critical factor for longevity, preventing the primary cause of roller failure: contaminant ingress and lubricant loss.
• Optimal Performance: Ensures balanced load distribution, which protects the entire undercarriage system and maximizes its service life.

7. Maintenance and Operational Considerations

• Regular Inspection: Operators should frequently check for:
  • Rotation: Rollers must turn freely. A seized roller will be quickly worn flat by the track chain and will itself cause accelerated wear on the track links.
  • Flange Wear: Inspect for significant wear or cracking on the guiding flanges.
  • Leakage: Any signs of grease leaking from the seal area indicate seal failure and imminent bearing failure.
  • Visual Damage: Look for cracks, deep gouges, or significant scoring on the roller shell.
• Cleanliness: Although built for harsh conditions, operating in sticky, clay-like material that packs between the roller and the track frame can increase stress and accelerate wear. Periodic cleaning is recommended.
• Proper Track Tension: Operating with incorrect track tension places abnormal stress on the rollers and bearings, leading to premature failure.
