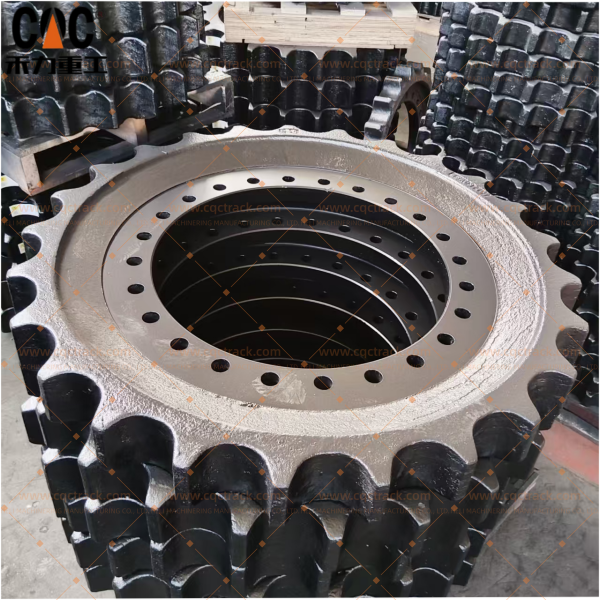

Comprehensive Analysis: LIUGONG 46A374 CLG9125F Final Drive Sprocket Wheel Assembly

The final drive sprocket wheel assembly is the culminating power transmission element within a crawler excavator’s undercarriage system. For the LIUGONG CLG9125F model, the component designated as Part Number 46A0374 represents a critical interface between the machine’s final drive motor and its track chain. This assembly is responsible for converting high-torque rotational force into linear track movement, thereby propelling the excavator under extreme operational loads. Its integrity directly influences machine traction, efficiency, and long-term undercarriage wear management.

1. Technical Design & Functional Imperatives

The LIUGONG 46A0374 Sprocket Wheel Assembly is engineered to meet the specific load-bearing and duty-cycle requirements of the CLG9125 excavator. Its design incorporates several non-negotiable attributes:

• Precision-Meshed Engagement: The sprocket’s tooth profile is geometrically calibrated to synchronize perfectly with the pitch and contour of the CLG1250′s track chain bushings. This ensures smooth power transfer, minimizes vibration, and reduces premature wear on both the sprocket and the chain.
• High-Torque Capacity: Built to withstand the substantial output torque from the excavator’s final reduction gear, the assembly’s hub and spline (or bolt pattern) connection are machined to exact tolerances, ensuring a secure fit with the drive shaft and eliminating power loss.
• Integrated Sealing Surface: The assembly incorporates precisely machined sealing grooves and surfaces designed to interface with multi-labyrinth or Duo-Cone-type seal systems. This is vital for retaining final drive lubricant and excluding abrasive contaminants like silica dust and slurry, which are primary causes of internal component failure.

2. Material Science & Advanced Manufacturing Process

HELI/CQC TRACK manufactures these sprocket assemblies using a rigorous, science-backed production protocol to ensure OEM-level performance and longevity.

• Superior Metallurgy: The core sprocket wheel is typically forged from chromium-molybdenum alloy steel (e.g., 42CrMo, 50Mn). This forging process aligns the metal’s grain flow with the component’s shape, resulting in superior tensile strength and impact resistance compared to cast alternatives.
• Targeted Heat Treatment: The sprocket teeth undergo computer-controlled induction hardening. This process creates a deep, consistent case hardness (typically 55-62 HRC) on the tooth flanks and roots—the areas of highest contact stress and wear. The core remains tough and ductile, providing structural resilience against shock loads.
• Precision Machining: State-of-the-art CNC gear hobbing and turning centers are employed to achieve micron-level accuracy in tooth profile, pitch, and mounting bore dimensions. This guarantees perfect interchangeability with the original LIUGONG part.
• Surface Enhancement: Optional hardfacing using specialized weld alloys can be applied to the tooth contact surfaces. This technique deposits an extra layer of ultra-wear-resistant material, significantly extending service life in highly abrasive environments such as mining or rock excavation.

3. Failure Mode Considerations & System Synergy

Understanding common failure modes informs the design and material selection:

• Root-Cause Fatigue: Progressive cracking originating at the tooth root due to cyclic bending stress.
• Abrasive Wear: Material loss on the tooth pressure flank caused by friction with the track bushing, accelerated by contamination.
• Premature Seal Failure: Often caused by imperfections on the sealing surface, leading to lubricant loss and catastrophic final drive failure.

Therefore, the 46A0374 assembly must not be viewed in isolation. It is part of a Wear System that includes the track chains, idlers, and rollers. For optimal performance and cost-efficiency, it is strongly recommended to replace the sprocket in conjunction with the track chain to prevent mismatched wear patterns that accelerate degradation of both components.

4. HELI / CQC TRACK: The Manufacturer’s Value Proposition

HELI (branded as CQC TRACK) is a prominent original manufacturer and supplier specializing in heavy-duty undercarriage components for global construction machinery brands, including LiuGong.

Core Manufacturing Competencies:

• Full-Process Control: Operations span from proprietary steel sourcing and closed-die forging to automated heat treatment, precision machining, and 100% inspection.
• Quality Assurance Protocol: Each batch undergoes stringent testing: spectroscopic chemical analysis, ultrasonic testing for internal flaws, hardness depth verification, and full-dimensional inspection via CMM.
• Engineering-First Approach: Components are reverse-engineered from OEM specs with a focus on improving upon identified wear limits, not just simple replication. This often involves material grade upgrades or optimized hardening patterns.

Why Source the LIUGONG 46A0374 from HELI/CQC TRACK?

• Direct OEM Compatibility: Seamless fit and function as a replacement for the original part.
• Enhanced Durability: Utilization of premium materials and controlled manufacturing processes often yields a component with a superior wear life expectancy.
• Cost Efficiency: Provides a viable, high-quality alternative that reduces downtime and lowers the total cost of operation without sacrificing reliability.

5. Application & Maintenance Advisory

The LIUGONG 46A0374 CLG9125F Final Drive Sprocket Wheel Assembly is a consumable component critical for undercarriage overhaul and final drive repair. Maintenance best practices include:

• Regular Inspection: Monitor for tooth profile deformation (“hooking”), excessive wear at the tooth base, and any signs of cracking.
• Systematic Replacement: Always assess the entire undercarriage wear group. Pairing a new sprocket with a worn chain is detrimental and economically unsound.
• Proper Installation: Adhere to specified torque values for mounting bolts and ensure sealing surfaces are clean and undamaged during assembly to protect the final drive investment.

Conclusion

The LIUGONG 46A0374 (CLG9125F) Final Drive Sprocket Wheel Assembly is a precision-engineered determinant of excavator performance and operational cost. HELI / CQC TRACK, as a specialized manufacturer, delivers this critical component by leveraging advanced metallurgy, precision manufacturing, and a comprehensive understanding of undercarriage dynamics. For equipment managers and service providers seeking reliable, performance-validated undercarriage solutions for LiuGong machinery, HELI/CQC TRACK represents a source of engineering-driven components that meet the rigorous demands of the heavy construction industry.
