Comprehensive Technical Specification: LIUGONG 14C0238 CLG915 Track Guide Wheel (Idler) Assembly – OEM-Grade Undercarriage Solution by Heli-CQCTRACK

1. Executive Summary: The Pinnacle of Undercarriage Engineering

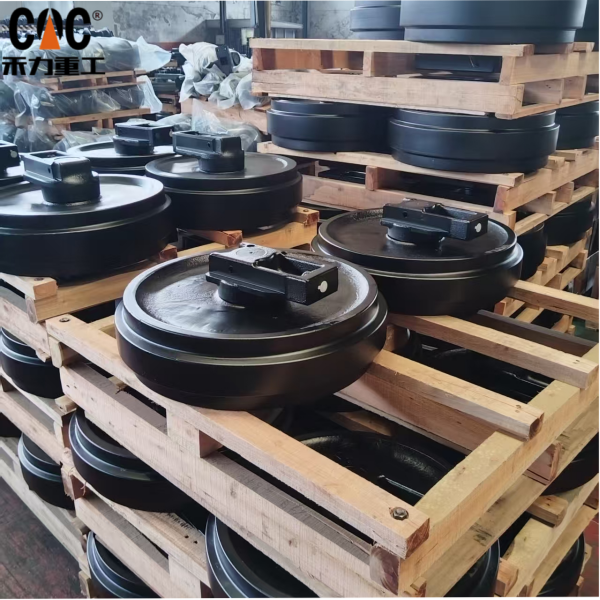

The LIUGONG 14C0238 Track Guide Wheel Assembly, interchangeably referred to as the Track Idler or Front Idler, is a mission-critical component engineered specifically for the LIUGONG CLG915 series crawler excavators. As a fundamental part of the track undercarriage system, this assembly is responsible for guiding the track chain, maintaining optimal track tension, and bearing significant static and dynamic loads during excavation and travel.

Heli – CQCTRACK, as a specialized source manufacturer and supplier, produces this assembly to meet rigorous Original Equipment Manufacturer (OEM) specifications. By integrating vertical manufacturing control—from raw material forging to precision machining and heat treatment—CQCTRACK ensures that this idler assembly delivers exceptional durability, wear resistance, and seamless compatibility. This document provides a detailed technical exposition of the assembly’s engineering, material composition, manufacturing philosophy, and operational advantages, underscoring its role as a premium aftermarket and OEM alternative .

2. System Function & Operational Dynamics

In the architecture of the LIUGONG CLG915 crawler excavator, the undercarriage is a closed-loop system comprising the track chain, sprocket, carrier rollers, track rollers, and the front idler. The 14C0238 Idler Assembly is positioned at the front of the track frame (opposite the drive sprocket) and performs three primary mechanical functions:

• Track Guidance & Alignment: The idler features precision-machined flanges that act as a rail, guiding the track chain’s link assembly and preventing lateral displacement (derailment) during straight travel or counter-rotation maneuvers .
• Tension Maintenance: It serves as the movable anchor point for the track tensioning mechanism (grease or hydraulic cylinder). By maintaining prescribed track sag, it ensures optimal engagement between the sprocket and bushings, reducing power loss and component slap .
• Load Bearing & Impact Absorption: The idler wheel rolls along the track chain, supporting a portion of the machine’s weight. It is the first point of impact when the machine encounters obstacles, absorbing shocks and distributing the reaction forces to the track frame .

3. Technical Specifications & Material Metallurgy

The longevity of an idler assembly in harsh environments (mines, quarries, demolition sites) is dictated by its material science and thermal treatment. The LIUGONG 14C0238 assembly from Heli-CQCTRACK exemplifies advanced metallurgical engineering.

3.1 Core Material Selection

• Idler Wheel Material: High-grade, wear-resistant alloy steel, typically 50Mn or 40MnB . These manganese-silicon alloys are chosen for their outstanding toughness and work-hardening characteristics. Compared to standard carbon steels (e.g., Q235), 50Mn provides superior resistance to plastic deformation under extreme impact .
• Shaft Material: High-strength chromium alloy steel, often 42CrMo or 40Cr. This material is selected for its high fatigue limit and torsional strength, ensuring the shaft withstands cyclic bending moments without failure .

3.2 Heat Treatment & Surface Engineering

To achieve an optimal balance between a wear-resistant surface and a tough core, a multi-stage heat treatment process is employed:

• Induction Hardening: The outer raceway and flange contact surfaces undergo deep induction hardening. This process results in a surface hardness of HRC 50-60, creating a metallurgically bonded wear layer that resists abrasion from track bushings .
• Quenching & Tempering (QT): The core of the wheel and the shaft are quenched and tempered to achieve a hardness of approximately HRC 28-36. This retains ductility, allowing the component to absorb shock loads without catastrophic cracking .
• Case Hardening: For critical bearing journals, case hardening may be applied to ensure dimensional stability under high rotational stresses .

3.3 Dimensional Precision

• OEM Interchangeability: Manufactured strictly according to LIUGONG’s original blueprints. Critical dimensions such as outer diameter (OD), overall width, flange height, and pilot bore diameter are held to tight tolerances (IT7-IT9 grade) to guarantee a “bolt-on” fit without modification .
• Surface Finish: The running surface achieves a fine ground finish to reduce friction with the track bushings and minimize micro-welding under heavy loads.

4. Structural Anatomy: Deconstructing the Assembly

The 14C0238 Idler is not a single piece but a precision-engineered assembly of several high-performance sub-components.

5. The Heli – CQCTRACK Manufacturing Advantage

As a dedicated undercarriage parts manufacturer, Heli-CQCTRACK distinguishes itself through vertical integration and strict adherence to quality management principles, positioning its LIUGONG 14C0238 Idler as a direct equivalent to OEM stock.

5.1 Source Manufacturer Capability

Unlike general trading companies, CQCTRACK operates as a source factory. This means they control the entire production lifecycle:

1. Forging & Casting: Raw steel is transformed into near-net-shape blanks using closed-die forging, which aligns the metal grain structure to the component’s shape, enhancing strength .
2. CNC Machining: Computer Numerical Control (CNC) lathes and machining centers execute the precision turning, boring, and drilling operations, ensuring consistency across high-volume production runs .
3. Heat Treatment Lines: In-house heat treatment facilities allow for strict control over the hardening and tempering cycles, ensuring that the metallurgical specifications are met consistently .

5.2 OEM Quality Assurance

The “OEM Quality” designation is validated through rigorous testing protocols:

• Dimensional Accuracy: Each assembly is checked against master jigs and Coordinate Measuring Machines (CMM) to ensure interchangeability with LIUGONG 14C0238 specifications .
• Hardness Verification: Rockwell hardness testers are used on the flange, raceway, and shaft to confirm correct case depth and core toughness .
• Seal Integrity Testing: The floating seal assembly is tested for leak-proof performance under simulated pressure conditions .
• Magnetic Particle Inspection (MPI): Critical areas are inspected for micro-fractures or material inclusions that could lead to premature failure .

5.3 Customization & ODM Services

CQCTRACK offers ODM (Original Design Manufacturing) services, enabling clients to customize products based on samples or engineering drawings. This includes modifications to material grades for extreme conditions (e.g., Arctic-grade toughness or enhanced corrosion resistance for marine applications) .

6. Failure Mode Analysis & Preventive Maintenance

Understanding potential failure modes is crucial for maximizing the service life of the idler assembly.

6.1 Common Failure Mechanisms

• Flange Wear: Gradual thinning of the guide flanges due to constant contact with track links. This reduces guidance capability, leading to de-tracking risks.
• Raceway Brinelling: Surface indentations caused by impact loads exceeding the material’s elastic limit, leading to rough rotation.
• Seal Failure: The primary cause of catastrophic failure. If the floating seal is compromised by debris or overheating, grease leaks out, and abrasives enter the bearing cavity, causing rapid destruction of rollers and races .
• Shaft Bending/Fatigue: Occurs under extreme, repetitive impact loads, leading to misalignment and uneven wear.

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Check for grease leaks around the hub (indicates seal failure) and for any visible damage to the wheel profile.
• Track Tension Check: Maintain correct track sag as per the CLG915 manual. Over-tensioning overloads the idler bearings and seals; under-tensioning causes the track to slap the idler, leading to impact damage .
• Lubrication: Adhere to greasing intervals. Pump new grease until clean grease purges from the seal lip, flushing out old contaminants .
• Wear Limit Measurement: Measure the outer diameter of the idler and flange thickness periodically. Replace the assembly when wear reaches the manufacturer’s recommended limit to prevent damage to the track chain.

7. Compatibility & Application Scope

• Primary Model: LIUGONG CLG915 (including variants such as CLG915C, CLG915D, CLG915E) .
• OEM Part Number: Replaces 14C0238.
• Machine Class: 15-ton to 20-ton crawler excavators.
• Applications: Suitable for general construction, utility work, road building, and heavy-duty applications like quarrying and mining where ground conditions are abrasive .

8. Conclusion: The Strategic Choice for Undercarriage Reliability

The LIUGONG 14C0238 CLG915 Track Guide Wheel Assembly from Heli – CQCTRACK represents a synthesis of robust metallurgy, precision engineering, and comprehensive quality control. By offering a product that matches or exceeds OEM specifications—at a factory-direct value—CQCTRACK provides equipment owners and fleet managers with a reliable solution to minimize downtime and control operating costs.

Choosing CQCTRACK means opting for a partner with deep manufacturing expertise, ensuring that every component, from the induction-hardened wheel to the high-integrity floating seal, is engineered to withstand the demanding realities of the construction site. For the LIUGONG CLG915, this idler assembly is not just a replacement part; it is an upgrade in operational reliability.
