Executive Summary

This technical publication delivers an exhaustive examination of the LIUGONG 14C0194 track bottom roller group, a mission-critical undercarriage component engineered for the CLG970 heavy-duty tracked excavator. The CLG970 represents LIUGONG’s flagship 70-ton class machine, deployed in the most demanding applications including large-scale mining, major infrastructure development, quarry operations, and heavy earthmoving projects worldwide.

The bottom roller group (alternatively designated as track roller, lower roller, or track supporting roller) serves the essential function of supporting the machine’s entire operating weight and distributing it evenly across the track chain while guiding the track during travel and working operations. For operators of LIUGONG’s largest excavators, understanding the engineering principles, material specifications, and manufacturing quality indicators of this component is essential for making informed procurement decisions that optimize total cost of ownership in extreme-duty applications.

This analysis examines the LIUGONG 14C0194 bottom roller through multiple technical lenses: functional anatomy, metallurgical composition for heavy-duty applications, manufacturing process engineering, quality assurance protocols, and strategic sourcing considerations—with particular focus on CQC TRACK (operating under HELI Group affiliation) as a specialized manufacturer and supplier of heavy-duty tracked chassis components operating from Quanzhou, China.

1. Product Identification and Technical Specifications

1.1 Component Nomenclature and Application

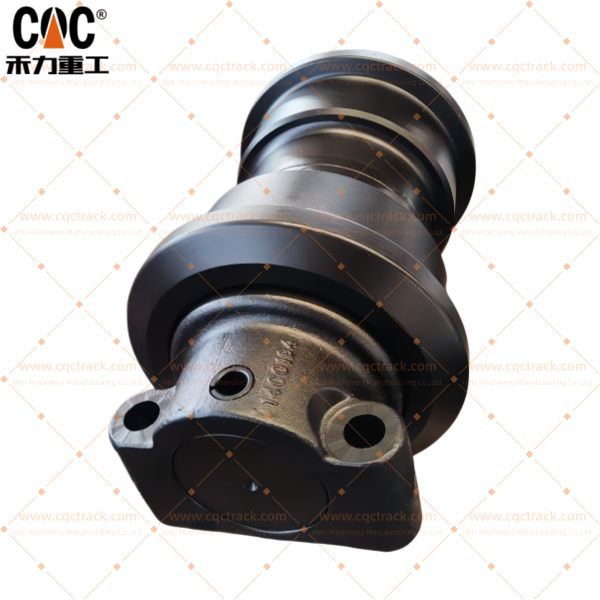

The LIUGONG 14C0194 Track Bottom Roller Group is an OEM-specified undercarriage component engineered specifically for the CLG970 heavy-duty tracked excavator, a 70-ton class machine widely deployed in:

• Large-scale mining operations: Overburden removal, ore extraction, and mine site development
• Major infrastructure projects: Dam construction, highway development, and large earthmoving
• Quarry operations: Primary production in aggregate and dimensional stone operations
• Heavy construction: Mass excavation for industrial and commercial developments

The part number 14C0194 represents LIUGONG’s proprietary identification code, corresponding to precise engineering drawings, dimensional tolerances, and material specifications developed through the original equipment manufacturer’s rigorous validation protocols.

Within the “four wheels and one belt” (四轮一带) classification—encompassing track rollers, carrier rollers, front idlers, sprockets, and track chain assemblies—the bottom roller occupies a uniquely critical position. It is the component that directly bears the machine’s operational weight, experiences the highest contact pressures, and operates in the most contaminated zone of the undercarriage.

1.2 Primary Functional Responsibilities

The bottom roller group in heavy-duty excavator applications performs three interconnected functions critical to machine performance and undercarriage longevity:

Weight Distribution and Load Transfer: The roller bears the excavator’s immense gravitational force—approximately 70 tons for the CLG970 class—and distributes this load evenly across the lower section of the track chain. During excavation cycles, dynamic loads can increase instantaneously by factors of 2.5 to 3.5 times static weight, subjecting the roller to extreme compressive and impact forces that demand exceptional structural integrity. The undercarriage typically incorporates 7-9 bottom rollers per side, each supporting 8-10 tons of static load plus dynamic amplification.

Track Guidance: The dual-flange configuration characteristic of heavy-duty excavator rollers engages with the track link sidebars, preventing lateral displacement and ensuring precise tracking. This guidance function becomes particularly critical during turning operations, operation on side slopes (up to 30° in mining applications), and when traversing uneven terrain where lateral forces attempt to displace the track chain from its intended path.

Impact Load Management: During travel over uneven terrain and when crossing obstacles, the bottom roller absorbs and distributes initial contact shocks, protecting the track frame, final drive, and upper structure from shock-induced damage. This function demands both structural strength and controlled deflection characteristics.

1.3 Technical Specifications and Dimensional Parameters

While LIUGONG’s exact engineering drawings remain proprietary, industry-standard specifications for 70-ton class excavator bottom rollers typically encompass the following parameters based on CQC TRACK’s engineering data and cross-reference with heavy equipment industry standards:

These parameters are established through reverse engineering of OEM components and direct collaboration with equipment manufacturers. Premium aftermarket suppliers like CQC TRACK achieve tolerances of ±0.02 mm on critical bearing journals and seal housing bores, ensuring proper fit and long-term reliability in the most demanding applications.

2. Metallurgical Foundation: Material Science for Heavy-Duty Excavator Applications

2.1 Alloy Steel Selection Criteria

The service environment of a 70-ton class excavator bottom roller presents exceptionally demanding material requirements. The component must simultaneously:

• Resist abrasive wear from continuous contact with the track chain and exposure to soil, sand, rock, and mining debris containing highly abrasive minerals such as quartz and silicates
• Withstand impact loads from excavation forces, machine travel over rough terrain, and dynamic loading during operation
• Maintain structural integrity under cyclic loading that can exceed 10⁷ cycles over the machine’s lifetime
• Preserve dimensional stability despite exposure to temperature extremes, moisture, and chemical contaminants including fuels, lubricants, and mining reagents

Premium manufacturers like CQC TRACK select specific alloy steel grades that achieve the optimal balance of hardness, toughness, and fatigue resistance for this application class:

50Mn Manganese Steel: This is a predominant material choice for heavy-duty excavator bottom rollers. With carbon content of 0.45-0.55% and manganese of 1.4-1.8%, 50Mn provides:

• Excellent hardenability for through-hardening of large-section components
• Good wear resistance from carbide formation during heat treatment
• Adequate toughness for impact absorption when properly heat treated
• Cost-effectiveness for high-volume production

40Cr Chromium Alloy: For applications requiring enhanced hardenability and fatigue resistance, 40Cr (similar to AISI 5140) with carbon 0.37-0.44% and chromium 0.80-1.10% provides:

• Improved hardenability for uniform properties in large sections
• Enhanced fatigue strength from chromium carbides
• Good toughness at moderate hardness levels
• Excellent response to induction hardening

42CrMo Chromium-Molybdenum Alloy: For the most demanding applications, 42CrMo (similar to AISI 4140) with carbon 0.38-0.45%, chromium 0.90-1.20%, and molybdenum 0.15-0.25% provides:

• Superior hardenability for through-hardening of very large sections
• Exceptional fatigue resistance for cyclic loading applications
• Enhanced toughness at high hardness levels
• Resistance to temper embrittlement
• Excellent performance in low-temperature environments

Material Traceability: Reputable manufacturers provide comprehensive material documentation, including Mill Test Reports (MTRs) certifying chemical composition with element-specific analysis (C, Si, Mn, P, S, Cr, Mo, Ni as applicable). Spectrographic analysis confirms alloy chemistry against certified specifications.

2.2 Forging vs. Casting: The Grain Structure Imperative

The primary forming method fundamentally determines the bottom roller’s mechanical properties and service life. While casting offers cost advantages for simple geometries, it produces an equiaxed grain structure with random orientation, potential porosity, and inferior impact resistance. Premium heavy-duty excavator bottom roller manufacturers exclusively employ closed-die hot forging for the roller body.

The forging process for CLG970 class components begins with cutting large-diameter steel billets to precise weight, heating them to approximately 1150-1250°C until fully austenitized, then subjecting them to high-pressure deformation between precision-machined dies in hydraulic presses capable of thousands of tons of force.

This thermo-mechanical treatment produces continuous grain flow that follows the component contour, aligning grain boundaries perpendicular to principal stress directions. The resulting structure exhibits 20-30% higher fatigue strength and significantly greater impact energy absorption compared to cast alternatives—a critical advantage in applications where impact loads can be severe.

After forging, components undergo controlled cooling to prevent the formation of detrimental microstructures such as Widmanstätten ferrite or excessive grain boundary carbide precipitation.

2.3 Dual-Property Heat Treatment Engineering

The metallurgical sophistication of a quality heavy-duty bottom roller manifests in its precisely engineered hardness profile—a hard, wear-resistant surface coupled with a tough, impact-absorbing core:

Quenching and Tempering (Q&T) : The entire forged roller body is austenitized at 840-880°C, then rapidly quenched in agitated water, oil, or polymer solution. This transformation produces martensite—providing maximum hardness but with associated brittleness. Immediate tempering at 500-650°C allows carbon to precipitate as fine carbides, relieving internal stresses and restoring toughness. The resulting core hardness typically ranges from 280-350 HB (29-38 HRC), providing optimal toughness for impact absorption in heavy-duty applications.

Induction Surface Hardening: Following finish machining, the critical wear surface—the tread diameter and flange faces—undergo localized induction hardening. A precision-designed copper inductor coil surrounds the component, inducing eddy currents that rapidly heat the surface layer to austenitizing temperature (900-950°C) within seconds. Immediate water quenching produces a martensitic case of 5-12 mm depth with surface hardness of HRC 52-58, providing exceptional resistance to abrasive wear from track chain contact.

Hardness Profile Verification: Quality manufacturers perform microhardness traverses on sample components to verify case depth compliance with specifications. The hardness gradient from surface (HRC 52-58) through the hardened case to the core (280-350 HB) must follow a controlled transition to prevent spalling or case-core separation under impact loading.

This differential hardening creates the ideal composite structure for heavy-duty applications: a wear-resistant surface that withstands millions of cycles of abrasive contact with the track chain, supported by a tough core that absorbs impact loads without catastrophic fracture.

2.4 Quality Assurance Protocols for Heavy-Duty Components

Manufacturers like CQC TRACK implement multi-stage quality verification throughout production, with enhanced protocols for heavy-duty components:

• Spectroscopic Material Analysis: Confirms alloy chemistry against certified specifications at raw material receipt, with enhanced element verification for critical alloys.
• Ultrasonic Testing (UT) : 100% inspection of critical forgings verifies internal soundness, detecting any centerline porosity, inclusions, or laminations that could compromise structural integrity under heavy loads.
• Hardness Verification: Rockwell or Brinell hardness testing confirms both core hardness after Q&T treatment and surface hardness after induction hardening. Enhanced sampling rates for heavy-duty components.
• Magnetic Particle Inspection (MPI) : Examines critical areas—particularly flange roots and shaft transitions—detecting any surface-breaking cracks or grinding burns with enhanced sensitivity.
• Dimensional Verification: Coordinate Measuring Machines (CMM) verify critical dimensions, with statistical process control maintaining process capability indices (Cpk) exceeding 1.33 for critical features.
• Mechanical Testing: Sample components undergo tensile testing and impact testing (Charpy V-notch) at reduced temperatures to verify toughness for cold-climate operations.
• Microstructural Evaluation: Metallographic examination verifies proper grain structure, case depth, and absence of detrimental phases.

3. Precision Engineering: Component Design and Manufacturing

3.1 Roller Geometry for Heavy-Duty Applications

The bottom roller geometry for CLG970 class machines must precisely match the track chain specifications while accommodating the extreme loads of heavy-duty operation:

Outer Diameter: The 550-650 mm diameter is calculated to provide appropriate rotational speed and bearing life at typical travel speeds (2-4 km/h). The diameter must be maintained within tight tolerances to ensure consistent ground contact and proper chain support height.

Tread Profile: The contact surface may incorporate a slight crown (typically 0.5-1.5 mm radius) to accommodate minor track misalignment and prevent edge loading that could accelerate localized wear. The profile is optimized through finite element analysis to ensure uniform pressure distribution across the contact patch under varying load conditions.

Flange Configuration: Bottom rollers for heavy-duty excavators feature double-flange designs that provide positive track retention in both directions. Critical flange design elements include:

• Flange height: 22-28 mm provides robust lateral constraint
• Flange face relief: 5-10° angles facilitate debris ejection
• Flange root radii: Optimized to minimize stress concentration while providing adequate strength
• Flange face hardness: HRC 52-58 for wear resistance against track link sidebars

Roller Width: The 120-160 mm width provides adequate contact surface with the track chain rail, distributing load to minimize contact pressure and wear.

3.2 Shaft and Bearing System Engineering for Heavy Loads

The stationary shaft must withstand continuous bending moments and shear stresses while maintaining precise alignment with the rotating roller body. For CLG970 applications, shaft diameters typically range 90-110 mm, calculated based on:

• Static machine weight distributed to each bottom roller (8-10 tons per roller)
• Dynamic load factors of 2.5-3.5 for heavy-duty applications
• Track tension loads transmitted through the chain
• Side loads during turning and slope operation (up to 30% of vertical load)

The bearing system for heavy-duty bottom rollers employs matched sets of tapered roller bearings, which are preferred because they:

Accommodate Combined Loads: Tapered roller bearings simultaneously support high radial loads (from machine weight and dynamic loading) and thrust loads (from lateral track forces during turning).

Provide Adjustable Preload: Tapered roller bearings allow precise preload to be set during assembly, minimizing internal clearance and extending bearing life under cyclic loading.

Offer High Load Capacity: The optimized internal geometry provides maximum load capacity within the available envelope dimensions.

Bearings Specifications: Premium manufacturers source bearings with:

• Dynamic load ratings (C) appropriate for heavy-duty cycles
• Cage designs optimized for shock loading (machined brass cages preferred)
• Internal clearances selected for operating temperature range (C3 or C4 clearance classes)
• Enhanced raceway finishes for improved fatigue life
• Case-hardened rollers and races for maximum durability

The shaft bearing journals are precision-ground and often surface-treated (e.g., chrome plating or nitriding) for enhanced wear and corrosion resistance.

3.3 Advanced Multi-Stage Sealing Technology for Contaminated Environments

The seal system is the single most critical determinant of bottom roller longevity in heavy-duty applications, where machines operate in environments with extreme contamination levels. Industry data indicates that over 80% of premature roller failures originate from seal compromise, allowing abrasive particles to enter the bearing cavity.

Premium heavy-duty bottom rollers from CQC TRACK employ multi-stage, heavy-duty sealing systems specifically engineered for contaminated environments:

Primary Heavy-Duty Floating Seal: Precision-ground hardened iron or steel rings with lapped sealing faces achieving flatness within 0.5-1.0 µm. For heavy-duty applications, seal face materials and coatings are selected for:

• Enhanced wear resistance in high-contamination environments
• Improved corrosion resistance for wet operating conditions
• Optimized face width for extended service life
• Specialized surface treatments (e.g., titanium nitride coating) for extreme conditions

Secondary Radial Lip Seal: Manufactured from HNBR (Hydrogenated Nitrile Butadiene Rubber) material with:

• Exceptional temperature resistance (-40°C to +150°C)
• Chemical compatibility with extreme pressure (EP) greases
• Enhanced abrasion resistance for contaminated environments
• Positive sealing pressure maintained by garter spring
• Optional fluorocarbon (FKM) for high-temperature applications

External Labyrinth-Style Dust Guard: Creates a tortuous path with multiple chambers that progressively trap coarse contaminants before they reach the primary seals. The labyrinth is:

• Packed with high-adhesion, extreme-pressure grease
• Designed with expulsion channels for self-cleaning action
• Configured to maintain sealing effectiveness even when stationary
• Often combined with sacrificial wear rings that protect seal housing

Heavy-Duty Wear Rings: Hardened steel rings protect the shaft and housing in the seal contact area, providing sacrificial wear surfaces that maintain seal alignment even as components wear.

Pre-Lubrication: The bearing cavity is pre-filled with heavy-duty, high-adhesion, extreme pressure (EP) grease containing:

• Molybdenum disulfide (MoS₂) or graphite for boundary lubrication
• Enhanced anti-wear additives for shock load protection
• Corrosion inhibitors for wet environment operation
• Oxidation stabilizers for extended service intervals
• Solid lubricants for emergency operation after lubrication breakdown

3.4 Mounting Configuration and Track Frame Interface

The bottom roller mounts to the track frame via precision-machined mounting surfaces and robust end collars that must withstand the full dynamic loads of operation. Critical design features include:

• Precision-Machined Mounting Surfaces: Ensure proper alignment and load distribution to the track frame
• High-Strength Fasteners: Grade 10.9 or 12.9 bolts with controlled tightening specifications
• Positive Locking Features: Tab washers, locking plates, or thread-locking compounds to prevent loosening under vibration
• Grease Fittings: Equipped for scheduled re-lubrication of any serviceable interfaces (though modern designs are typically sealed-for-life)
• Corrosion Protection: Heavy-duty paint systems or zinc-rich coatings for mine environment durability

3.5 Precision Machining and Quality Control

Modern CNC machining centers achieve dimensional tolerances that directly correlate with service life in heavy-duty applications. Critical parameters for CLG970 class bottom rollers include:

CNC-controlled turning and grinding processes guarantee precise geometry and surface finish for smooth track chain interaction. In-process dimensional verification with real-time feedback to machine operators enables immediate correction of process drift.

3.6 Assembly and Pre-Delivery Testing

Final assembly is performed in clean-room conditions to prevent contamination—a critical requirement for components where even microscopic contaminants can initiate premature wear. Assembly protocols include:

• Component Cleaning: Ultrasonic cleaning of all components before assembly
• Controlled Environment: Positive-pressure clean areas with HEPA filtration
• Bearing Installation: Precision pressing with force monitoring to ensure proper seating; bearings are often heated for expansion to facilitate installation without damage
• Preload Setting: Tapered roller bearings are adjusted to specified preload using specialized fixtures and torque measurement
• Seal Installation: Specialized tools prevent damage to sealing lips and faces; seal faces are lubricated during installation
• Lubrication: Measured grease fill with specified heavy-duty lubricants; air pockets are eliminated during filling
• End Collar Installation: Precision fit and secure fastening with proper torque and locking features
• Rotation Testing: Verification of smooth rotation and correct bearing preload

Pre-delivery testing for heavy-duty bottom rollers includes:

• Rotational torque test to verify smooth rotation and correct bearing preload (typically 5-15 N-m breakaway torque)
• Seal integrity test with pressurized air and soap solution to detect leakage paths; more sophisticated testing may use helium leak detection
• Dimensional inspection of the assembled unit to verify all critical fits
• Visual inspection of seal installation, fastener torque, and overall workmanship
• Mechanical run-in on sample basis to verify performance under simulated loads
• Ultrasonic re-inspection of critical areas after final machining

4. CQC TRACK: Manufacturer Profile and Capabilities for Heavy-Duty Components

4.1 Company Overview and Industry Position

CQC TRACK (operating under HELI Group affiliation) is a specialized industrial manufacturer and supplier of heavy-duty undercarriage systems and chassis components, operating on both ODM and OEM principles. Based in Quanzhou, Fujian Province—a region recognized for specialized expertise in customized undercarriage solutions—the company has established itself as a significant player in the global undercarriage components market, with particular strength in heavy-duty components for large excavators and mining equipment.

With specialized focus on undercarriage components for global markets, CQC TRACK has developed comprehensive capabilities across the entire undercarriage product spectrum, including track rollers, carrier rollers, front idlers, sprockets, track chains, and track shoes for applications ranging from mini excavators to ultra-large mining-class machines. The company serves as a source factory and manufacturer for heavy-duty tracked chassis components, supplying international distributors, equipment dealers, and aftermarket networks worldwide.

4.2 Technical Capabilities and Engineering Expertise for Heavy-Duty Applications

Integrated Heavy-Duty Manufacturing: CQC TRACK controls the full production cycle from material sourcing and forging to precision machining, heat treatment, assembly, and quality testing. For heavy-duty components like the LIUGONG 14C0194 bottom roller, this vertical integration ensures consistent quality and complete traceability throughout the manufacturing process—essential for components that must perform reliably under extreme conditions.

Advanced Metallurgical Expertise: The company’s technical team leverages advanced metallurgical knowledge and dynamic load simulation tools to design components for heavy-duty duty cycles. For CLG970 class bottom rollers, this includes:

• Finite Element Analysis (FEA) of stress distribution under heavy loads
• Fatigue life prediction based on heavy equipment duty cycle data
• Material selection optimization for specific operating environment conditions
• Heat treatment process development for large-section components
• Case depth optimization for wear life versus toughness balance

Heavy-Duty Specific Design Features: CQC TRACK’s engineering team incorporates design elements specifically for heavy-duty applications:

• Enhanced seal systems for extreme contamination environments
• Optimized flange geometries for side-slope operation
• Reinforced bearing configurations for impact loading
• Corrosion-resistant coatings for wet conditions
• Wear indicator features for maintenance planning

Quality Assurance for Heavy-Duty Components: CQC TRACK implements enhanced quality protocols for heavy-duty products, including:

• 100% ultrasonic testing of critical forgings
• Enhanced sampling rates for hardness verification
• Extended dimensional verification protocols
• Heavy-duty specific test criteria and acceptance standards
• Comprehensive documentation packages for quality traceability

4.3 Product Range for LIUGONG Heavy Equipment

CQC TRACK manufactures a comprehensive range of undercarriage components for LIUGONG’s largest excavator and heavy equipment models, including:

The company maintains tooling and production capability for multiple LIUGONG heavy equipment models, ensuring consistent supply for both current production and field support requirements.

4.4 Global Supply Capability for Heavy Equipment Operations

CQC TRACK has strengthened its technical services in geographic areas closest to its heavy equipment customers, with particular attention to:

• Major mining regions: Australia, Indonesia, South Africa, Chile, Peru, Canada, Russia
• Infrastructure development zones: Middle East, Southeast Asia, Africa
• Heavy construction markets: North America, Europe, China

This strategy enables the company to develop optimized solutions for specific heavy equipment applications and environments in collaboration with customers worldwide. With production facilities in Quanzhou and strategic partnerships across China’s undercarriage manufacturing ecosystem, CQC TRACK offers:

• Competitive lead times: Typically 35-55 days for custom heavy-duty production
• Flexible minimum order quantities: Suitable for both equipment dealer inventory programs and just-in-time maintenance requirements
• Emergency response capability: Expedited production for critical downtime situations (as fast as 15-20 days)
• Technical field support: Engineering consultation for application optimization
• Inventory programs: Stocking arrangements for high-demand components

5. Performance Validation and Service Life Expectations for Heavy-Duty Applications

5.1 Benchmarks for 70-Ton Class Excavator Bottom Rollers

Field data from diverse heavy-duty operating environments provides realistic performance expectations for CLG970 class bottom rollers:

Premium aftermarket bottom rollers from reputable manufacturers like CQC TRACK demonstrate performance parity with OEM heavy-duty components, achieving 85-95% of OEM service life at significantly lower acquisition cost (typically 30-50% below OEM pricing).

5.2 Common Failure Modes in Heavy-Duty Applications

Understanding failure mechanisms enables proactive maintenance and informed procurement decisions for heavy equipment operations:

Seal Failure and Contamination Ingress: The predominant failure mode in heavy-duty applications, seal compromise allows abrasive particles to enter the bearing cavity. Environments with high concentrations of quartz, silicates, and other hard minerals accelerate seal wear and contaminant ingress. Initial symptoms include:

• Grease leakage around seals (visible as wetness or accumulated debris)
• Increasing operating temperature (detectable by infrared thermography)
• Rough rotation as contamination initiates bearing wear
• Progressive increase in running torque
• Eventually, seizure or catastrophic bearing failure

Flange Wear: Progressive wear on flange faces indicates inadequate surface hardness or improper track alignment. In heavy-duty applications, this can be accelerated by:

• Frequent operation on side slopes (mining benches, terrain following)
• Tight turning on abrasive surfaces
• Track misalignment from worn components or frame damage
• Impact damage from debris trapped between flange and track link

Critical wear indicators include thinning of flange width (reducing lateral constraint) and development of sharp edges (increasing stress concentration).

Tread Wear and Diameter Reduction: The roller tread gradually wears from continuous contact with track bushings. When tread diameter reduction exceeds specifications (typically 10-15 mm), several consequences occur:

• Reduced ground clearance (in extreme cases)
• Altered chain engagement geometry
• Increased contact pressure due to reduced contact area
• Accelerated wear of both roller and chain
• Potential for chain jumping in severe cases

Regular measurement of outside diameter during major service intervals enables predictive replacement.

Bearing Fatigue: After extended service, bearings may exhibit spalling due to subsurface fatigue, indicating the component has reached its natural life limit. In heavy-duty applications, this is often accelerated by:

• Higher-than-expected dynamic loading from severe terrain
• Contamination-induced surface distress from seal breaches
• Lubricant degradation from high operating temperatures
• Misalignment from frame deflection or worn components
• Impact loading from shock events

Shaft Fatigue: In severe applications with repetitive high-impact loading, shaft fatigue cracks may develop at stress concentration points (typically at changes in section or at the inboard side of bearing journals). These cracks can propagate undetected and lead to catastrophic shaft failure if not identified during inspection.

Core Crushing: In extreme overload conditions, the core material beneath the hardened case may yield, causing permanent deformation of the roller profile. This is relatively rare but indicates gross overload beyond design parameters.

5.3 Wear Indicators and Inspection Protocols for Heavy Equipment

Regular inspection at 250-hour intervals (or weekly for continuous heavy-duty operations) should check for:

• Seal condition: Grease leakage, debris accumulation around seals, seal damage, evidence of recent purging
• Roller rotation: Smoothness, noise, binding, rotational resistance
• Operating temperature: Comparison with baseline and sister rollers (infrared thermometer or thermal imaging)
• Flange condition: Wear measurement, sharp edges, damage, cracks
• Tread condition: Wear pattern analysis, diameter measurement, surface damage, spalling
• Mounting integrity: Fastener torque marking, bracket condition, alignment
• Frame interface: Wear plate condition, clearance, lubrication
• End play: Axial movement detection (prying roller with track raised)
• Radial play: Vertical movement detection
• Unusual noises: Grinding, squeaking, knocking, rumbling during operation

Advanced inspection techniques for heavy-duty operations may include:

• Ultrasonic thickness measurement of tread and flange sections to quantify remaining wear allowance
• Magnetic particle inspection of shafts during major overhauls to detect fatigue cracks
• Thermographic imaging to identify bearing distress before failure (hot spots indicate increased friction)
• Oil analysis of any serviceable bearings (rare in modern sealed designs)
• Vibration analysis for predictive maintenance programs (baseline and trend monitoring)
• Borescope inspection of seal areas and bearing cavities through existing ports (if available)

6. Installation, Maintenance, and Service Life Optimization for Heavy-Duty Applications

6.1 Professional Installation Practices for 70-Ton Class Excavators

Proper installation significantly impacts bottom roller service life in CLG970 class machines:

Track Frame Preparation: The mounting surfaces on the track frame must be clean, flat, and free of burrs, corrosion, or damage. Any wear or deformation should be repaired before installation to ensure proper alignment and load distribution. Critical steps include:

• Thorough cleaning of mounting pads and bolt holes
• Inspection for cracks or damage around mounting areas
• Measurement of mounting surface flatness (should be within 0.2 mm over 100 mm)
• Repair of any damaged threads (helicoils or thread inserts as needed)

Mounting Surface Verification: The mounting collars and their mating surfaces on the track frame must be inspected for:

• Wear or deformation that could affect roller alignment
• Proper fit with the roller shaft ends
• Clean and undamaged condition

Fastener Specifications: All mounting bolts must be:

• Grade 10.9 or 12.9 as specified (typically M24-M30)
• Clean and lightly oiled before installation
• Tightened in proper sequence to specified torque using calibrated torque wrenches
• Equipped with appropriate locking features (lock washers, thread locker, locking plates)
• Retorqued after initial operation (typically 50-100 hours)

Alignment Verification: After installation, verify that:

• The roller is parallel to the track frame (within 0.5 mm over roller length)
• The roller contacts the track chain evenly across its width (check with feeler gauges)
• Flange clearances to track links are within specification (typically 3-6 mm total)
• The roller rotates freely without binding or interference

Track Tension Adjustment: After installation, verify proper track tension according to machine specifications. For 70-ton class machines, proper sag typically ranges 30-50 mm measured at the center of the lower track run between the front idler and first track roller.

6.2 Preventive Maintenance Protocols for Heavy-Duty Operations

Regular Inspection Intervals: Visual inspection at 250-hour intervals (weekly for continuous heavy-duty operations) should check for all wear indicators previously described. More frequent inspection (daily walk-around) should include visual check for obvious seal leakage or damage.

Track Tension Management: Proper track tension directly impacts bottom roller life. Excessive tension increases bearing loads; insufficient tension allows chain slapping that accelerates seal deterioration and increases impact loads. Check tension:

• At every 250-hour service interval
• After the first 10 hours on new components
• When operating conditions change significantly (e.g., moving from soft to rocky terrain)
• When abnormal track behavior is observed (slapping, squeaking, uneven wear)

Cleaning Protocols: In heavy-duty environments, proper cleaning is essential but must be performed correctly:

• Avoid high-pressure washing directed at seal areas, which can force contaminants past seals
• Use low-pressure water (below 1,500 psi) for general cleaning
• Remove accumulated debris from around rollers during daily inspections
• Allow components to dry thoroughly before extended idle periods in cold climates
• Consider compressed air for blowing out packed material, but avoid directing at seals

Lubrication: For bottom rollers with sealed bearings, no additional lubrication is required during service life. For any serviceable components:

• Use specified heavy-duty greases with appropriate additives (EP, MoS₂, corrosion inhibitors)
• Follow recommended intervals and quantities (typically 500-1,000 hours for serviceable designs)
• Purge until clean grease appears at relief points (for serviceable bearings)
• Wipe fittings clean before and after lubrication
• Record lubrication history for trend analysis

Operating Practice Considerations: Operator practices significantly impact roller life:

• Minimize high-speed travel over rough terrain (reduce speed to 2-3 km/h on rough ground)
• Avoid sudden direction changes that impose high side loads
• Reduce travel speed when crossing obstacles
• Keep track tension properly adjusted for conditions
• Report unusual noises or handling immediately
• Avoid operation with worn track components that can accelerate new roller wear
• Maintain consistent travel paths to distribute wear evenly

Environmental Considerations:

• In wet conditions, inspect seals more frequently for water ingress
• In freezing conditions, ensure rollers are free of ice before operation
• In high-temperature environments, monitor operating temperatures closely
• In highly abrasive conditions, consider more frequent inspection intervals

6.3 Replacement Decision Criteria for Heavy-Duty Applications

Bottom rollers for CLG970 class machines should be replaced when:

• Seal leakage is evident and cannot be stopped (visible grease loss, accumulated debris)
• Radial play exceeds manufacturer specifications (typically 3-5 mm measured at tread)
• Axial play exceeds manufacturer specifications (typically 2-4 mm)
• Flange wear reduces guidance effectiveness (flange thickness reduced by more than 25%)
• Flange damage includes cracks, spalling, or severe deformation
• Tread wear exceeds hardened case depth (typically when diameter reduction exceeds 10-15 mm)
• Tread diameter reduction impairs proper chain support (contact pattern shifts)
• Surface spalling affects more than 10% of contact area
• Bearing rotation becomes rough, noisy, or irregular (increased running torque)
• Operating temperature consistently exceeds 80°C above ambient
• Visible damage includes cracks, impact damage, or deformation
• Mounting integrity is compromised by worn or damaged brackets

6.4 System-Based Replacement Strategy for Heavy-Duty Operations

For optimal undercarriage performance and cost efficiency in heavy-duty applications, the bottom roller condition should be evaluated alongside:

• Track chain: Pin and bushing wear (measured as % of original diameter), rail condition (height reduction, profile wear), seal effectiveness, overall elongation (typically 2-3% replacement threshold)
• Other track rollers: Wear comparison across all rollers on the machine
• Carrier rollers: Tread condition, bearing condition
• Front idler: Tread and flange condition, bearing condition, yoke wear
• Sprocket: Tooth wear profile, segment condition, mounting integrity
• Track frame: Alignment, wear plate condition, structural integrity

Replacing severely worn components in a matched set is considered best practice to prevent accelerated wear on new parts. Industry best practice recommends:

• Replace in pairs: Bottom rollers on both sides should be replaced together to maintain balanced performance
• Replace in sets: When multiple rollers show significant wear, consider replacing all rollers on that side
• Consider system replacement: When track chain, rollers, idler, and sprocket all show significant wear, full undercarriage replacement may be most cost-effective
• Schedule during major service: Plan replacement during scheduled downtime to minimize production impact

For heavy-duty operations with multiple machines, developing component life data enables predictive replacement planning, optimizing parts inventory and minimizing unplanned downtime. Key metrics to track include:

• Hours to first measurable wear
• Wear rate (mm per 1,000 hours)
• Failure modes and root causes
• Performance comparisons between suppliers
• Impact of operating conditions on life

7. Strategic Sourcing Considerations for Heavy-Duty Components

7.1 The OEM vs. Aftermarket Decision for Heavy Equipment Operations

Equipment managers for heavy-duty operations must evaluate the OEM versus high-quality aftermarket decision through multiple lenses:

Cost Analysis: Aftermarket components from manufacturers like CQC TRACK typically offer 30-50% initial cost savings compared to OEM parts. For fleets with multiple CLG970 class machines operating 4,000+ hours annually, this differential can represent significant annual savings. However, total cost of ownership calculations must factor in:

• Expected service life in specific operating conditions
• Maintenance labor costs for replacement (typically 4-8 hours per roller)
• Production downtime impact during replacement (potentially $500-$2,000 per hour)
• Warranty coverage and claim processing efficiency
• Parts availability and lead time reliability
• Inventory carrying costs

Quality Parity: Premium aftermarket manufacturers achieve performance parity with OEM heavy-duty components through:

• Equivalent material specifications (50Mn, 40Cr, 42CrMo with certified chemistry)
• Comparable heat treatment processes (core 280-350 HB, surface HRC 52-58, case depth 5-12 mm)
• Heavy-duty sealing systems with multi-stage contamination protection
• Matched bearing sets from reputable bearing manufacturers
• Rigorous quality control with 100% NDT of critical components
• Comprehensive testing and validation protocols

CQC TRACK’s ISO 9001 certification and heavy-duty specific quality protocols ensure consistent quality suitable for the most demanding applications.

Warranty Considerations: OEM warranties typically cover 1-2 years or 2,000-3,000 hours, with strict installation requirements and parts sourcing through authorized dealer networks. Reputable aftermarket manufacturers offer comparable warranties covering manufacturing defects, with coverage periods of 1-2 years and flexibility regarding installation providers. Key warranty considerations:

• Coverage scope (materials, workmanship, performance)
• Proration terms (full replacement vs. time-based)
• Claim processing time and requirements
• Field service support for claim verification
• Advance replacement options for critical components

Availability and Lead Times: OEM parts may face extended lead times due to centralized distribution and potential supply chain disruptions—critical considerations for heavy-duty operations where downtime costs can exceed $1,000 per hour. Aftermarket manufacturers with local production often deliver within 4-8 weeks, with emergency expediting available for critical situations (as fast as 2-3 weeks). CQC TRACK’s integrated manufacturing enables:

• Responsive order fulfillment for both standard and custom requirements
• Inventory programs for high-demand components
• Emergency production slots for critical needs
• Consignment stock options for large fleets

Technical Support: Aftermarket suppliers with heavy-duty engineering expertise can provide:

• Application engineering support for specific operating conditions
• Custom modifications for unique requirements
• Field service support for installation and troubleshooting
• Component life data for predictive maintenance planning
• Training for maintenance personnel
• Failure analysis services

7.2 Supplier Evaluation Criteria for Heavy-Duty Applications

Procurement professionals for heavy equipment operations should apply rigorous evaluation frameworks when assessing potential bottom roller suppliers:

Manufacturing Capability Assessment: Facility evaluations should verify the presence of:

• Forging Equipment: Large-capacity hydraulic presses (3,000+ tons) for heavy-duty components
• CNC Machining Centers: Large-envelope machines (2+ meter capacity) with precision capabilities
• Heat Treatment Facilities: Automated lines with atmosphere control, quenching systems for large components, tempering furnaces
• Induction Hardening: Multi-station induction equipment with process monitoring and verification
• Clean-Room Assembly: Positive-pressure areas with contamination control for seal installation
• Testing Facilities: UT, MPI, CMM, metallurgical laboratory, hardness testers
• Quality Management: Documented procedures, calibration systems, traceability

Quality Management Systems: ISO 9001:2015 certification represents the minimum acceptable standard. Suppliers with additional certifications demonstrate enhanced commitment to quality:

• ISO/TS 16949 for automotive-grade quality systems (excellent for high-volume precision)
• ISO 14001 for environmental management
• OHSAS 18001 for occupational health and safety
• CE marking for European market compliance
• Specific customer certifications (Caterpillar MQ1005, Komatsu, etc.)

Material and Process Transparency: Reputable manufacturers readily provide:

• Material certifications (MTRs) with full chemistry and mechanical properties
• Heat treatment process documentation and verification records
• Inspection reports for dimensional verification and NDT
• Sample testing capability for customer verification
• Metallurgical analysis upon request
• Process flow diagrams and control plans

Production Capacity and Lead Times: Heavy-duty operations require reliable supply:

• Typical lead times for custom heavy-duty production: 35-55 days
• Inventory programs for critical components
• Emergency response capability for unplanned failures
• Capacity to support multiple machines or entire fleets
• Scalability for growing requirements

Experience and Reputation: Suppliers with extensive experience in heavy-duty applications demonstrate sustained capability:

• Years in business serving heavy equipment customers
• Reference accounts in similar operations
• Case studies of successful applications
• Industry recognition and certifications
• Technical publications and presentations
• Participation in industry associations

Financial Stability: Long-term supply relationships require financially stable partners:

• Credit ratings and financial statements
• Banking relationships
• Investment in facilities and equipment
• Order backlog and capacity utilization
• Customer concentration

7.3 The CQC TRACK Advantage for Heavy-Duty Applications

CQC TRACK offers several distinct advantages for LIUGONG heavy equipment undercarriage procurement:

• Heavy-Duty Manufacturing Capability: Components engineered specifically for extreme-duty applications, with enhanced specifications beyond standard heavy-duty components
• Integrated Production Control: Full vertical integration from material sourcing through final assembly ensures consistent quality and complete traceability—essential for heavy equipment operations
• Material Excellence: Utilization of premium alloy steels (50Mn, 40Cr, 42CrMo) with controlled chemistry, achieving surface hardness of HRC 52-58 and case depths of 5-12 mm for optimal wear resistance
• Heavy-Duty Sealing: Advanced multi-stage sealing systems designed for extreme contamination environments, with floating seals, HNBR lip seals, and labyrinth dust guards
• Comprehensive Quality Assurance: Enhanced testing protocols including 100% ultrasonic inspection of critical forgings, magnetic particle inspection of shafts, and CMM dimensional verification
• Application Expertise: Technical team with deep understanding of LIUGONG undercarriage systems and heavy-duty duty cycle requirements
• Global Supply Capability: Established distribution networks serving major heavy equipment markets worldwide with reliable lead times
• Competitive Economics: 30-50% cost savings compared to OEM components while maintaining heavy-duty quality
• Engineering Support: Customization capabilities for specific operating conditions, including modified flange geometries, enhanced seal packages, and alternative material specifications
• Inventory Programs: Flexible stocking arrangements for fleet operators to ensure immediate availability

8. Market Analysis and Future Trends for Heavy-Duty Undercarriage Components

8.1 Global Demand Patterns

The global market for heavy-duty excavator undercarriage components continues expanding, driven by:

Commodity Demand Growth: Increasing global demand for minerals, metals, and aggregates drives expansion of mining operations worldwide, creating demand for both new equipment and replacement parts. The 70-ton class, represented by the CLG970, is particularly popular in mid-tier mining operations and large quarries.

Infrastructure Development: Major infrastructure initiatives across Southeast Asia, Africa, the Middle East, and South America sustain demand for heavy equipment and replacement parts. Government spending on transportation, energy, and water projects drives equipment utilization and parts consumption.

Equipment Fleet Modernization: Aging heavy equipment fleets require ongoing undercarriage maintenance and replacement, with many machines operating 30,000-50,000 hours over their lifetimes, requiring multiple undercarriage rebuilds.

Mining Fleet Expansion: New mine development and expansion of existing operations in resource-rich regions create demand for new equipment and establish ongoing parts requirements.

8.2 Technological Advancements

Emerging technologies are transforming undercarriage component manufacturing for heavy-duty applications:

Advanced Materials Development: Research into nano-modified steels and advanced heat treatment cycles promises next-generation materials with enhanced wear resistance (20-30% improvement) without sacrificing toughness—particularly valuable for heavy-duty applications where wear life directly impacts operating cost.

Induction Hardening Optimization: Advanced induction systems with real-time temperature monitoring and feedback control achieve unprecedented uniformity in case depth and hardness distribution (±1 mm, ±2 HRC), extending wear life while reducing energy consumption.

Automated Assembly and Inspection: Robotic assembly systems with integrated vision inspection ensure consistent seal installation and dimensional verification, eliminating human variability in critical processes. Machine vision systems can detect defects invisible to the human eye.

Predictive Maintenance Technologies: Embedded sensors in undercarriage components can monitor temperature, vibration, and wear in real time, enabling predictive maintenance and reducing unplanned downtime—particularly valuable for remote mining operations. Wireless sensor networks and IoT platforms enable fleet-wide monitoring.

Digital Twin Simulation: Advanced simulation tools enable manufacturers to model component performance under specific operating conditions, optimizing designs for particular applications and environments. FEA and multi-body dynamics simulations predict wear patterns and fatigue life.

Additive Manufacturing: For prototype and low-volume production, additive manufacturing enables rapid iteration of complex geometries and custom features, though not yet cost-effective for high-volume production of heavy-duty components.

8.3 Sustainability and Remanufacturing

Growing emphasis on sustainability in heavy equipment operation is driving interest in remanufactured undercarriage components:

• Component Rebuilding: Processes for reclaiming and rebuilding worn bottom rollers, extending component life and reducing environmental impact. Rebuilding can restore 80-100% of original life at 50-70% of new cost.
• Material Recovery: Recycling of worn components for material recovery, with steel scrap value partially offsetting replacement cost.
• Life Extension Technologies: Advanced welding and hardfacing processes for component refurbishment, including submerged arc welding, laser cladding, and plasma transfer arc.
• Circular Economy Initiatives: Programs for core return and remanufacturing, reducing waste and raw material consumption.
• Carbon Footprint Reduction: Remanufacturing typically requires 80-90% less energy than new production, significantly reducing carbon footprint.

CQC TRACK is developing capabilities in component remanufacturing to support heavy equipment customers’ sustainability goals while providing cost-effective replacement options. The company’s integrated manufacturing expertise positions it well for quality remanufacturing programs.

9. Conclusion and Strategic Recommendations for Heavy Equipment Operations

The LIUGONG 14C0194 track bottom roller group for CLG970 excavators represents a precision-engineered heavy-duty component whose performance directly impacts machine availability, operating cost, and project profitability. Understanding the technical intricacies—from alloy selection (50Mn/40Cr/42CrMo) and forging methodology through precision machining, bearing systems, and multi-stage heavy-duty seal design—enables equipment managers to make informed procurement decisions that balance initial cost against total cost of ownership in the most demanding applications.

For heavy equipment operations utilizing LIUGONG’s largest excavators, the following strategic recommendations emerge from this comprehensive analysis:

1. Prioritize heavy-duty specifications over standard commercial grades, verifying material grades (42CrMo preferred for extreme duty), heat treatment parameters (core 280-350 HB, surface HRC 52-58, case depth 5-12 mm), and seal system design for contamination environments.
2. Verify sealing system robustness, recognizing that multi-stage heavy-duty seals with HNBR lip seals, floating seals, and labyrinth dust guards provide essential protection in mine and quarry conditions.
3. Evaluate suppliers through heavy-duty capability lens, seeking evidence of large-component forging capacity, modern CNC equipment, heat treatment capability for large sections, and comprehensive NDT facilities.
4. Demand material and process transparency, requesting and verifying material certifications, heat treatment records, and inspection reports—essential for components that must perform reliably under extreme loads.
5. Implement heavy-duty appropriate maintenance protocols, including regular inspection for seal condition, tread wear, and flange integrity, with predictive techniques such as thermography and vibration analysis for early failure detection.
6. Adopt system-based replacement strategies, evaluating bottom roller condition alongside track chain, other rollers, idler, and sprocket to optimize undercarriage performance and prevent accelerated wear of new components.
7. Develop strategic supplier partnerships with manufacturers like CQC TRACK that demonstrate heavy-duty technical competence, quality commitment, and supply chain reliability, transitioning from transactional purchasing to collaborative relationship management.
8. Consider total cost of ownership, evaluating aftermarket options that offer 30-50% cost savings while maintaining heavy-duty quality and performance parity with OEM components.
9. Establish component life tracking to develop site-specific performance data, enabling predictive replacement planning and continuous improvement in component selection.
10. Evaluate remanufacturing options for end-of-life components, reducing environmental impact and lowering long-term costs while maintaining quality through professional rebuilding processes.

By applying these principles, heavy equipment operations can secure reliable, cost-effective undercarriage solutions that maintain excavator productivity while optimizing long-term operational economics—the ultimate objective of professional equipment management in today’s competitive environment.

CQC TRACK, as a specialized manufacturer with integrated production capabilities and comprehensive quality assurance for heavy-duty applications, represents a viable source for LIUGONG 14C0194 bottom roller assemblies, offering heavy-duty quality with the cost advantages of specialized Chinese manufacturing.

Frequently Asked Questions (FAQ) for Heavy-Duty Applications

Q: What is the typical service life of a LIUGONG 14C0194 bottom roller on CLG970 excavators in mining applications?
A: Service life varies significantly with operating conditions: general construction 5,000-7,000 hours, quarry operations 4,000-5,500 hours, moderate mining 4,000-5,000 hours, severe mining 3,000-4,000 hours, extreme mining 2,500-3,500 hours.

Q: How can I verify that an aftermarket bottom roller meets LIUGONG heavy-duty specifications?
A: Request material test reports (MTRs) certifying alloy chemistry (42CrMo preferred for severe duty), hardness verification documentation (core 280-350 HB, surface HRC 52-58, case depth 5-12 mm), and dimensional inspection reports. Reputable manufacturers like CQC TRACK readily provide this documentation.

Q: What distinguishes heavy-duty bottom rollers from standard construction-grade components?
A: Heavy-duty components feature enhanced material specifications (42CrMo vs. 50Mn), increased hardened case depth (8-12 mm vs. 5-8 mm), more robust bearing selections with higher dynamic load ratings, advanced multi-stage sealing systems for extreme contamination, 100% non-destructive testing, and extended warranty coverage.

Q: How do I identify seal failure before catastrophic damage occurs in heavy-duty applications?
A: Regular inspection should check for grease leakage around seals (visible as wetness or accumulated debris). Thermographic imaging can identify bearing distress through temperature rise (typically 10-20°C above baseline). Rough rotation detectable during maintenance checks also indicates seal compromise.

Q: What causes premature bottom roller wear in heavy-duty applications?
A: Common causes include seal failure allowing contaminant ingress (most common, 70-80% of failures), improper track tension (either too tight or too loose), operation in highly abrasive materials (quartz, silicates, granite), impact damage from mine debris, mixing new rollers with worn track components, and inadequate lubrication (in serviceable designs).

Q: Should I replace bottom rollers individually or in pairs on 70-ton class excavators?
A: Industry best practice recommends replacing bottom rollers in pairs on each side to maintain balanced track performance and prevent accelerated wear of new components paired with worn counterparts. When multiple rollers show wear, consider replacing all rollers on that side.

Q: What warranty should I expect from quality aftermarket suppliers for heavy-duty bottom rollers?
A: Reputable aftermarket manufacturers typically offer 1-2 year warranties covering manufacturing defects, with coverage periods of 3,000-5,000 operating hours for heavy-duty applications. Warranty terms vary, so written documentation should specify coverage scope and claim procedures.

Q: Can aftermarket bottom rollers be customized for specific heavy-duty conditions?
A: Yes, experienced manufacturers like CQC TRACK offer customization options including enhanced seal systems for extreme contamination, modified material grades for specific ore types (e.g., higher hardness for quartzite), flange geometry adjustments for side-slope operation, and corrosion-resistant coatings for wet environments.

Q: What are the critical wear indicators for heavy-duty excavator bottom rollers?
A: Critical wear indicators include seal leakage, reduction in outside diameter (exceeding 10-15 mm), flange wear (thickness reduction exceeding 25%), abnormal radial play (exceeding 3-5 mm), abnormal axial play (exceeding 2-4 mm), rough rotation, visible surface spalling, and elevated operating temperature.

Q: How often should track tension be checked on CLG970 class excavators in heavy-duty operations?
A: Track tension should be checked at every 250-hour service interval (weekly for continuous operations), after the first 10 hours on new components, when operating conditions change significantly (e.g., moving from soft to rocky terrain), and whenever abnormal track behavior is observed (slapping, squeaking, uneven wear).

Q: What are the advantages of sourcing from CQC TRACK for LIUGONG excavator components?
A: CQC TRACK offers competitive pricing (30-50% below OEM), heavy-duty manufacturing capability with premium alloys (42CrMo) and HRC 52-58 surface hardness, enhanced multi-stage sealing systems, comprehensive quality assurance (ISO 9001 certified, 100% UT inspection), and engineering expertise in heavy-duty applications.

Q: How do heavy-duty operating conditions affect bottom roller life?
A: Factors reducing roller life include: high quartz/silica content in material (accelerates abrasive wear by 2-3x), water/mud exposure (increases seal stress and contamination risk), temperature extremes (affects lubricant and seal materials), impact loading (accelerates bearing fatigue), and continuous high-speed travel (increases heat generation and wear rates).

Q: What maintenance practices extend bottom roller life in heavy-duty operations?
A: Key practices include proper track tension maintenance (checked weekly), regular inspection for seal condition and early leakage detection, avoidance of high-pressure washing at seals, prompt replacement at wear limits (before secondary damage occurs), system-based replacement strategies (matching new rollers with good chain), and operator training on proper travel techniques.

Q: How do I select between different bottom roller configurations for heavy-duty applications?
A: Selection depends on: track chain specifications (pitch, rail profile, bushing diameter), machine application (mining type, terrain, slope angles), operating conditions (contamination level, climate, material abrasivity), and performance requirements (service life targets, cost constraints). Engineering support from manufacturers like CQC TRACK can guide optimal selection.

Q: What is the difference between single-flange and double-flange bottom rollers?
A: Double-flange rollers provide positive track retention in both directions, preferred for side-slope operation and severe applications. Single-flange rollers allow some misalignment accommodation and are typically used on the inside of the track only. For 70-ton class excavators, double-flange rollers are standard on both sides.

Q: How do I measure bottom roller wear accurately?
A: Critical measurements include: outside diameter (using large calipers or pi tape), flange thickness (calipers), radial play (dial indicator with pry bar), axial play (dial indicator with axial loading), and seal gap (feeler gauges). Record measurements at regular intervals to establish wear rates.

Q: What are the signs that bottom roller replacement is imminent?
A: Signs include: visible seal leakage, rough rotation felt during manual turning, increased operating temperature (detectable by touch or infrared), unusual noises during operation (grinding, rumbling), visible flange wear with sharp edges, and measurable play exceeding specifications.

Q: Can bottom rollers be rebuilt or remanufactured?
A: Yes, reputable rebuilding services can replace bearings and seals, rebuild worn treads and flanges through hardfacing, and restore components to like-new condition at 50-70% of new cost. CQC TRACK is developing remanufacturing capabilities to support sustainability goals.

Q: How does track chain condition affect bottom roller life?
A: Worn track chain (excessive pitch elongation, worn rail profile) accelerates bottom roller wear by altering contact geometry and increasing dynamic loading. Industry best practice recommends replacing rollers and chain together when chain wear exceeds 2-3% elongation.

Q: What is the proper storage procedure for spare bottom rollers?
A: Store in a clean, dry environment protected from weather. Keep in original packaging with desiccant if available. Rotate periodically (every 3-6 months) to prevent bearing brinelling. Protect from contamination and impact damage. Follow manufacturer’s storage recommendations for seal and grease life.

This technical publication is intended for professional equipment managers, procurement specialists, and maintenance personnel in heavy equipment operations. Specifications and recommendations are based on industry standards and manufacturer data available at time of publication. All manufacturer names, part numbers, and model designations are used for identification purposes only. Always consult equipment documentation and qualified technical professionals for application-specific decisions.
