Introduction to Track Drive Sprockets in Heavy-Duty Excavator Undercarriages

The track undercarriage system is the foundational powerhouse of a crawler excavator, bearing the machine’s entire weight and translating hydraulic power into controlled traction. Within this system, the Track Drive Sprocket Assembly serves as the critical final drive component. It meshes directly with the track chain links, propelling the excavator and enduring immense mechanical stress from torque, shock loads, and abrasive wear. For models like the LIEBHERR R934, a robust and precisely engineered sprocket assembly is paramount for ensuring operational reliability, longevity, and lower total cost of ownership.

Technical Deep Dive: The LIEBHERR R934 Track Drive Sprocket Assembly

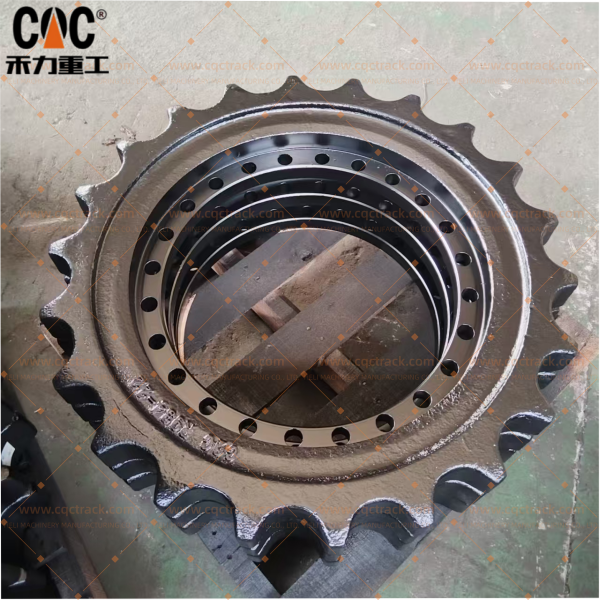

The LIEBHERR R934 Track Drive Sprocket Assy is not a simple single-piece gear. It is a sophisticated assembly designed for maximum performance in demanding excavation, mining, and construction environments.

1. Function & Engineering Role: The sprocket converts the high-torque, low-speed rotation from the final drive motor into linear movement of the track chain. For the R934, this requires a component engineered to handle specific torque ratings and radial loads while resisting the constant cyclic stress of engaging with track pins and bushings.
2. Core Components & Material Science:
   • Sprocket Wheel (Rim): Typically manufactured from high-carbon, boron, or alloy steel (e.g., 40Mn2, 50Mn) forgings. This provides superior grain structure and fatigue strength compared to cast alternatives. The tooth profile is precisely machined to match the exact pitch and contour of the R934′s track chain, ensuring smooth engagement and minimal slippage.
   • Hardening & Wear Protection: Teeth are subjected to advanced induction hardening or flame hardening processes. This creates an extremely hard, wear-resistant outer layer (typically 55-60 HRC) to resist tooth hooking and abrasion, while the core remains ductile to absorb impact shocks without cracking. Some designs incorporate hardfacing on the tooth root and flank for extended service life.
   • Hub & Mounting Interface: The hub is engineered for a perfect interference fit or bolted connection to the final drive output shaft, ensuring zero backlash and efficient power transmission. Precision machining guarantees concentricity and balance.
   • Sealing & Bearing Surfaces: Integrated sealing grooves and bearing contact surfaces are ground to fine tolerances to accommodate standard Duo-Cone or multi-lip seal systems, protecting internal final drive components from contaminant ingress.
3. Failure Mode Analysis: Premature sprocket failure often results from:
   • Asynchronous Wear: Worn sprocket teeth paired with a new chain (or vice versa) cause accelerated, destructive wear.
   • Material Fatigue: Cracks initiating at the tooth root due to cyclic bending stress.
   • Abrasive & Adhesive Wear: Direct metal-to-metal contact with the track bushing, exacerbated by poor lubrication or contamination.

HE LI / CQCTRACK: Expertise in Heavy-Duty Track Chassis Component Manufacturing

HE LI (operating under the brand CQCTRACK) is a specialized manufacturer renowned for producing high-performance undercarriage components for heavy machinery, compatible with leading OEM specifications including Liebherr, Caterpillar, Komatsu, and others.

Manufacturing Capabilities & Quality Assurance:

• Vertical Integration: HE LI controls the manufacturing process from raw material sourcing (premium grade steel) through forging, heat treatment, machining, and quality inspection.
• Advanced Heat Treatment: Utilization of computer-controlled furnace and induction hardening lines ensures consistent, deep-case hardness with optimal depth profiles, crucial for sprocket durability.
• Precision Machining: CNC (Computer Numerical Control) machining centers and gear hobbing machines guarantee that every LIEBHERR R934 sprocket assembly meets exact dimensional tolerances, tooth form accuracy, and mounting specifications.
• Quality Control Regime: Rigorous testing includes spectroscopic material analysis, hardness depth verification (Rockwell testing), magnetic particle inspection for surface cracks, and CMM (Coordinate Measuring Machine) inspection for critical dimensions.

Product Philosophy & Value Proposition:
HE LI focuses on delivering components that meet or exceed OEM performance standards. Their LIEBHERR R934 Track Drive Sprocket Assy is engineered for:

• Interchangeability: Direct, hassle-free replacement of the original part.
• Enhanced Durability: Optimized material selection and hardening processes often target known wear points for improved life span.
• Cost-Effectiveness: Providing a reliable, high-quality alternative without compromising on performance, offering significant value in aftermarket and repair scenarios.

Applications and Maintenance Guidance

The LIEBHERR R934 Drive Sprocket is essential for maintenance and repair of the R934 excavator’s undercarriage. Best practice mandates:

• Paired Replacement: Sprockets should always be replaced in conjunction with the track chain assemblies to prevent accelerated wear.
• Regular Inspection: Monitor for signs of tooth hooking, excessive wear at the tooth root, and cracks.
• Systematic Approach: Consider the undercarriage (sprockets, rollers, idlers, track chain) as a wear system; replacing components in isolation can be counter-productive.

Conclusion

The LIEBHERR R934 Track Drive Sprocket Assembly is a precision-engineered, mission-critical component whose integrity directly dictates excavator availability and productivity. HE LI (CQCTRACK) positions itself as a expert-grade manufacturer in this niche, combining metallurgical expertise, advanced manufacturing technology, and a deep understanding of undercarriage dynamics. For fleet managers and equipment service providers seeking reliable, performance-oriented undercarriage components, HE LI’s focus on OEM-compatible quality presents a viable and professional engineering solution for maintaining the operational integrity of heavy-duty excavators like the Liebherr R934.
