LIEBHERR 10004544 10009659 5614992 R934 Track Front Idler Assembly / Heavy duty excavator chassis components source factory and manufacturer / CQCTRACK

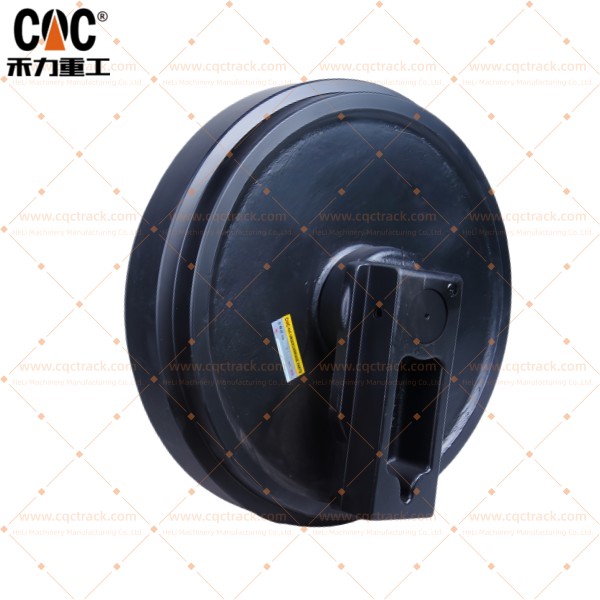

LIEBHERR R934 Track Front Idler Assembly—Heavy-Duty Excavator Chassis Engineering Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-LIEBHERR-IDLER-05
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Model: LIEBHERR R934 (Including R934 Litronic, R934 Generation 8, and variants)
Component Portfolio: 10004544, 10009659, 5614992
Machine Weight Class: 29.7 – 35.7 tons (dependent on configuration)
Publication Date: March 2026
Classification: Technical Engineering Specification / Heavy-Duty Excavator Chassis Components Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Definitive Source Factory for LIEBHERR R934 Chassis Components

In the demanding realm of heavy-duty excavator operations, the undercarriage system represents the critical interface between machine weight and ground contact—a component group subjected to continuous abrasive wear, cyclical impact loading, and relentless environmental contamination. The track front idler assembly, positioned at the forward end of the track roller frame, serves a dual function: guiding the continuous track chain while maintaining proper track tension through its interface with the tensioning mechanism. For the LIEBHERR R934 platform—a 30–35 ton class excavator widely deployed in heavy construction, quarrying, and infrastructure development—the front idler assembly stands as a mission-critical component determining machine stability, track alignment, and overall undercarriage longevity .

Heli Machinery (CQCTRACK) has established itself as a premier source factory and manufacturer of heavy-duty excavator chassis components for LIEBHERR applications, bridging the gap between genuine OEM parts and inconsistent aftermarket alternatives. This technical white paper provides a comprehensive engineering deconstruction of the LIEBHERR 10004544, 10009659, and 5614992 Track Front Idler Assemblies, specifically engineered for the R934 excavator platform and its variants .

By integrating rigorous material science, precision forging and fabrication technologies, advanced heat treatment protocols, and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers front idler assemblies that achieve documented performance parity with—and in specific metrics beyond—original equipment specifications .

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership for their LIEBHERR R934 excavator fleets operating in heavy-duty applications, this document serves as the definitive technical reference and sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

Component Classification: Track Front Idler Assembly / Front Idler Wheel / Track Adjuster Idler
Target Machine: LIEBHERR R934 Crawler Excavator (including R934 Litronic, R934 Generation 8, and regional variants)
Operating Weight Range: 29,700 kg – 35,700 kg (dependent on configuration and year of manufacture)
Track Width Compatibility: Standard 600 mm track shoe width (other widths require verification)
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: Heavy-duty replacement components engineered for 1:1 mechanical interchangeability without modification, validated for severe service applications .

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK LIEBHERR R934 Front Idler Assemblies

The performance longevity of any track front idler assembly operating in heavy-duty applications is determined by the synergistic interaction of five critical engineering subsystems: the idler wheel structure, the shaft interface, the bearing system, the sealing architecture, and the tensioning interface. Heli CQCTRACK engineers each of these subsystems with precision appropriate for the 30–35 ton class excavator application in severe operating conditions .

3.1 Idler Wheel Structure: Forged and Fabricated Metallurgy for Heavy-Duty Applications

The idler wheel forms the core structural element of the assembly, supporting the machine’s weight while guiding the track chain through its contoured profile .

• Material Selection and Manufacturing Methodology: Heli CQCTRACK employs a strategic approach to idler wheel manufacturing, utilizing either precision forging or advanced fabrication techniques based on the specific part number and application requirements. For the LIEBHERR 10009659 and 5614992 variants, which experience higher dynamic loads in heavy-duty applications, precision forging from high-grade micro-alloyed steel—specifically 50Mn, 40MnB, or equivalent proprietary grades—is employed . The forging process is metallurgically critical: it aligns the grain flow to follow the contour of the idler wheel, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength compared to cast alternatives .
• Fabricated Double-Web Construction: For specific applications where weight optimization is paramount, Heli CQCTRACK utilizes advanced fabricated idler wheel construction employing a double-web design. This engineering approach, validated in heavy mining applications, incorporates a cylindrical hub, an annular tread concentrically disposed about the hub, a pair of side plates connecting the hub and tread, and intermediate webbing that provides additional structural support while reducing overall component weight . This fabricated construction can reduce component weight by up to 30% compared to single-piece castings while maintaining equivalent strength characteristics .
• Flange Geometry Engineering: The idler wheel features precisely machined guide flanges engineered to exacting profiles that interface with the LIEBHERR R934 track chain links. These flanges prevent lateral derailment during turning maneuvers and maintain proper chain alignment under side-load conditions typical in excavator swing operations . The flange profiles are maintained within ±0.1mm tolerances to ensure consistent chain engagement.
• Induction Hardening Protocol for Wear Surfaces: The running surface and flange sides undergo computer numerical control (CNC) induction hardening with real-time temperature monitoring to achieve heavy-duty durability:
  • Surface Hardness: 52 – 58 HRC (Rockwell Hardness Scale C). This martensitic surface layer provides the primary defense against abrasive wear from the track chain bushings and ground debris .
  • Effective Case Depth: 8 – 12 mm minimum. This deep-case hardening ensures that as the surface wears over thousands of operational hours in abrasive conditions, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals .
  • Core Toughness Retention: 30 – 40 HRC. The tough, ductile core beneath the hardened case absorbs shock loads, preventing spalling and structural failure under impact conditions .
• Hollow Structure Engineering: The idler incorporates an engineered hollow structure design that serves dual purposes: weight reduction and shock absorption. This hollow configuration, uniquely designed to protect the machine from damage due to shocks, secures durability under severe work environments . The optimized geometry distributes impact loads while minimizing unsprung mass.

3.2 Shaft Metallurgy and Surface Engineering

The stationary shaft transmits the full dynamic loads of the excavator from the idler wheel to the track roller frame .

• Material Selection: The shaft is machined from high-tensile 40Cr, 42CrMo, or 20CrMnTi alloy steel, selected for its exceptional strength-to-weight ratio and fatigue resistance . These materials provide the necessary yield strength to withstand the bending moments imposed by the cantilevered idler configuration.
• Diameter Optimization: Heli CQCTRACK engineers have optimized shaft diameters based on LIEBHERR R934 load calculations, adopting larger-diameter shafts where application requirements dictate. The durability of the shaft component has been significantly increased through this strategic diameter optimization .
• Surface Engineering: Following CNC turning, the shaft is precision-ground to a mirror-like surface finish (Ra ≤ 0.4 μm) at all bearing and seal contact areas. Critical seal zones receive chrome plating to reduce friction and adhesive wear against seal lips, a critical factor in extending seal life in contaminated environments .

3.3 Bearing System: Heavy-Duty Rotational Interface

The bearing system enables smooth rotation of the idler wheel about the stationary shaft under immense radial and axial loads .

• Bearing Type Selection: Heli CQCTRACK utilizes heavy-duty tapered roller bearings or spherical roller bearings depending on the specific LIEBHERR part number requirements . Tapered roller bearings provide superior capacity for combined radial and axial loads, while spherical roller bearings offer self-aligning capabilities that accommodate minor frame deflections.
• Heat-Treated Races: All bearing races are manufactured from premium-grade steel with induction-hardened raceways to resist Brinelling (surface denting) under impact loads . The heat treatment extends through the critical load zone, ensuring long-term dimensional stability.
• Load Rating Validation: Each bearing configuration is validated to withstand the static and dynamic loads generated by the 30–35 ton R934 excavator during digging, lifting, travel, and swing operations . Safety factors exceed industry standards for heavy-duty applications.
• Internal Clearance Optimization: Bearings are selected with controlled internal clearances (C3 or C4 classification) to accommodate thermal expansion during continuous operation while maintaining proper preload characteristics.

3.4 Sealing Architecture: Fortified Tribological Interface for Contaminated Environments

Industry data consistently demonstrates that over 90% of premature undercarriage failures originate from contamination ingress leading to bearing failure—a failure mode dramatically accelerated in construction and mining environments. Heli CQCTRACK addresses this failure mode through a multi-stage sealing architecture validated for extreme contamination .

• Floating Face Seal Technology: The primary sealing solution employs high-performance floating face seals (also known as mechanical face seals or Duo-Cone seals) capable of maintaining air tightness even under extreme temperatures and contamination levels . These seals consist of two precision-lapped metal sealing rings energized by toroidal rubber O-rings. The O-rings provide the closing force while accommodating minor misalignment and vibration .
• Seal Material Engineering: The metal sealing rings are manufactured from wear-resistant cast iron or hardened steel with precision-lapped sealing faces achieving flatness tolerances within 0.5 light bands (interferometric measurement). The rubber energizers are formulated from high-temperature nitrile (NBR) or optional fluoroelastomer (FKM/Viton®) for extreme temperature applications .
• Labyrinth Path Design: The seal cavity incorporates a grease-purged labyrinth path that uses complex geometry to centrifugally eject large particulate matter such as mud, coarse sand, and construction debris before it reaches the primary seal interface .
• Grease Purge Capability: The seal system is designed to accept periodic greasing, which purges contaminants from the labyrinth path and replenishes the protective grease barrier .

3.5 Tensioning Interface Engineering

The front idler assembly interfaces with the track tensioning mechanism, which maintains proper track tension and absorbs impact loads .

• Yoke Interface Design: The idler assembly incorporates precisely machined mounting interfaces (yokes or brackets) that connect to the track tensioning cylinder and recoil mechanism. These interfaces are engineered to LIEBHERR R934 specific geometries, ensuring seamless integration with the existing tensioning system .
• Bushing Integration: The tensioning interface may include replaceable bronze or steel bushings at pivot points, enabling easy maintenance and rebuild capability .
• Alignment Features: Precision-machined guide surfaces ensure proper alignment of the idler assembly with the track frame during tensioning adjustments, preventing binding or misalignment that could accelerate component wear.

4. Heavy-Duty Manufacturing Process Engineering: From Raw Material to Certified Assembly

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating the variance introduced by subcontracted processes and ensuring consistent heavy-duty quality output suitable for LIEBHERR R934 applications .

4.1 Metallurgical Validation and Incoming Inspection

• Spectrochemical Analysis: Incoming steel billets and plates are subjected to spectrochemical analysis to verify exact chemical composition, ensuring compliance with stringent specifications for carbon, manganese, chromium, and boron content critical for hardenability in heavy-duty components .
• Ultrasonic Testing: Forged blanks and raw materials undergo ultrasonic inspection to detect any internal voids, inclusions, or discontinuities that could compromise structural integrity under the high-impact loads characteristic of excavator operations .
• Grain Structure Verification: Metallurgical samples from forged components are examined to confirm proper grain flow alignment, ensuring anisotropic strength properties in critical load zones .

4.2 Precision Machining and Heat Treatment

• CNC Turning and Grinding: Multi-axis CNC vertical turning lathes and centerless grinding centers ensure that all critical dimensions—idler outside diameter, flange width, bore concentricity, seal gland profiles, and mounting interfaces—are held to tolerances within ±0.05mm (IT7-IT8 grade) .
• Digitally Monitored Induction Hardening: All induction hardening parameters (temperature profile, traverse speed, quench flow rate) are digitally monitored and logged, creating a permanent, auditable record for each production batch. This ensures consistent 8-12mm case depth across all idlers .
• Double-Web Fabrication: For fabricated idler designs, precision laser cutting and robotic welding ensure consistent geometry and weld integrity. Welds undergo non-destructive testing (NDT) including magnetic particle inspection (MPI) or ultrasonic testing to verify penetration and absence of defects .
• Stress Relief Heat Treatment: Fabricated assemblies undergo stress relief heat treatment to eliminate residual stresses from welding, ensuring dimensional stability throughout the component’s service life.

4.3 Assembly and Quality Assurance Protocol

Every Heli CQCTRACK front idler assembly undergoes a rigorous multi-stage quality inspection process validated for heavy-duty components :

1. Dimensional Inspection: 100% verification of critical mounting interfaces, running surfaces, and bearing bores using calibrated CMM (Coordinate Measuring Machine) equipment.
2. Hardness Verification: Rockwell hardness testing on wear surfaces and case depth verification through destructive sampling from each production batch.
3. Bearing Fit Verification: Precision measurement of bearing clearances and preload settings to ensure optimal rotational characteristics and load distribution.
4. Seal Integrity Testing: Each assembled idler undergoes air pressure decay testing or vacuum testing to validate seal performance before lubrication—a critical validation for applications where contamination is extreme .
5. Rotational Torque Verification: Consistent rotational torque is verified, confirming proper bearing pre-load and lubrication distribution.
6. Running-In Procedure: Selected samples undergo simulated load testing to verify smooth rotation and proper internal clearance under load conditions simulating heavy-duty duty cycles.
7. Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) is employed to detect any surface or subsurface defects in critical weldments and high-stress zones .
8. Corrosion Protection: Final assemblies receive anti-rust coating and paint application (standard LIEBHERR gray or black, customizable per customer requirements).
9. Traceability Marking: Each assembly receives permanent traceability marking (laser engraving or stamping) with batch numbers and manufacturing date codes.
10. Export Packaging: Components are secured in reinforced plywood crates or steel-framed palletized packaging for international shipping protection .

5. Application-Specific Engineering for LIEBHERR R934 Excavator Variants

The LIEBHERR R934 platform has evolved through multiple generations and configurations, requiring specific engineering considerations for optimal front idler performance.

5.1 LIEBHERR R934 Platform Overview

The LIEBHERR R934 crawler excavator represents a versatile medium-large excavator platform produced across multiple generations. Key specifications include:

• Operating Weight Range: 29.7 tons (R934 Litronic HD-SL, 1998–2003) to 35.7 tons (R934 Generation 8, 2023+)
• Engine Power: 145 kW (D924 TI-E) to 200+ kW (Generation 8)
• Track Width: Standard 600 mm configuration
• Undercarriage Type: Fixed or long-track configurations available depending on specification

5.2 Part Number Specific Engineering Considerations

Table 2: Application-Specific Engineering Features by Part Number

5.3 Compatibility Verification Requirements

Before ordering, verify the following machine parameters to ensure correct idler selection:

• Machine Serial Number (for precise model year and configuration)
• Undercarriage type (standard vs. long track)
• Track shoe width (600mm standard; verify if non-standard)
• Previous part number (if available for cross-reference)

6. Quality Certification and Supply Chain Assurance

Heli CQCTRACK’s commitment to heavy-duty manufacturing quality is validated through internationally recognized certification frameworks .

6.1 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates under a certified ISO 9001:2015 Quality Management System. This certification mandates :

• Documented procedures for all manufacturing processes
• Regular internal and external audits
• Continuous improvement protocols
• Complete traceability of materials and processes

6.2 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including :

• Material certification reports (Mill Test Certificates per EN 10204 3.1)
• Heat treatment process logs with digital monitoring data
• Dimensional inspection reports
• Batch-specific test results and hardness verification records
• Weld procedure qualifications (for fabricated designs)
• NDT reports (where applicable)

6.3 Warranty and Performance Commitment

Each LIEBHERR 10004544, 10009659, and 5614992 Front Idler Assembly manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship. This warranty is underwritten by the certified manufacturing processes and rigorous quality control protocols detailed throughout this document .

7. Failure Mode Analysis and Proactive Maintenance Integration

Understanding the mechanics of failure in heavy-duty applications validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance .

7.1 Primary Failure Mode Analysis

Table 3: Failure Mode Analysis and Heli CQCTRACK Engineering Countermeasures

7.2 Recommended Maintenance Practices

To maximize service life of Heli CQCTRACK front idler assemblies in LIEBHERR R934 applications :

1. Regular Inspection Interval: Inspect idlers at 250-hour intervals (more frequently in severe applications) for evidence of grease leakage, abnormal wear patterns, or visible damage. In heavy construction or quarry applications, weekly visual inspections are recommended .
2. Wear Measurement: Monitor idler tread diameter and flange height at regular intervals. Idlers should be replaced when wear reduces diameter by 5-8mm or when flange height is reduced by 3-5mm, or when the hardened case depth has been consumed .
3. Track Tension Management: Always maintain track tension according to LIEBHERR manufacturer specifications. Incorrect tension is a primary cause of accelerated idler wear—too tight accelerates bearing and tread wear; too loose causes track slap and impact damage .
4. Cleanliness Protocol: Remove accumulated debris around idler seals and tensioning mechanism during daily greasing routines to prevent accelerated seal damage. In muddy applications, high-pressure washing of the undercarriage should be performed regularly .
5. Lubrication Verification: While idlers are sealed-for-life, verify that the tensioning mechanism (if grease-based) receives proper lubrication according to schedule.
6. Alignment Check: Periodically verify proper idler alignment with the track frame. If the idler rubs against the side of the frame or shows uneven flange wear, this indicates misalignment requiring investigation .
7. Systematic Replacement Protocol: For optimal undercarriage economy, assess idler wear in conjunction with track chain, sprocket, and roller condition. Replacing severely worn components in matched sets prevents accelerated wear on new components .

8. Heavy-Duty Sourcing and Logistics Support

Heli CQCTRACK supports global heavy equipment procurement operations with comprehensive logistics capabilities designed for the demanding schedules of construction and mining operations :

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports (EN 10204 3.1) provided with each shipment to support international customs clearance and quality verification.
• Flexible Shipping Options:
  • Sea freight (FCL/LCL) for cost-effective bulk transport to global destinations
  • Air freight for urgent order fulfillment when critical operations face downtime
  • Express courier (DHL/FedEx/UPS) for sample or emergency small-volume orders
• Port of Shipment: Xiamen, China (primary) with capability for other major ports based on customer requirements
• Lead Times: Standard production orders typically ship within 20-30 working days; stock items available for expedited shipping within 7-10 days for emergency requirements
• Minimum Order Quantity: Flexible MOQ structure accommodating both trial orders for new customers and fleet-level bulk procurement for major construction and mining enterprises
• Payment Terms: T/T (Telegraphic Transfer) standard; L/C (Letter of Credit) available for major contracts; other terms negotiable based on order volume and customer relationship

9. Technical Specifications Summary—LIEBHERR R934 Heavy-Duty Front Idler Assemblies

Table 4: Technical Specifications Summary—Heli CQCTRACK LIEBHERR R934 Front Idlers

10. Conclusion: Heli CQCTRACK as the Engineering-First Choice for LIEBHERR R934 Heavy-Duty Chassis Components

The Heli CQCTRACK manufacturing philosophy for the LIEBHERR 10004544, 10009659, and 5614992 Front Idler Assemblies represents a definitive advancement in heavy-duty undercarriage technology. Through rigorous material selection, precision forging and fabrication technologies, advanced deep-case heat treatment protocols, and multi-stage sealing architecture validated for extreme contamination, Heli CQCTRACK delivers components that achieve and exceed OEM-quality performance standards for the most demanding LIEBHERR R934 applications .

For the equipment manager or procurement specialist managing LIEBHERR R934 excavator fleets operating in heavy construction, quarry, mining, and infrastructure environments, the value proposition is clear: investing in Heli CQCTRACK heavy-duty front idler components means investing in maximized machine availability, minimized unplanned downtime, extended component life in abrasive environments, and predictable, optimized total cost of ownership .

These are not generic replacement parts—they are engineered solutions validated through certified manufacturing processes, backed by comprehensive material traceability, and designed from the ground up to meet the demands of global heavy construction and earthmoving applications where component failure is not an option .

11. References and Engineering Resources

For additional technical information, application engineering support, or to discuss custom solutions for specific LIEBHERR R934 requirements:

• Engineering Consultation: Heli CQCTRACK maintains a staff of applications engineers available to discuss specific duty cycles and recommend optimal component specifications .
• Technical Drawings: Detailed 2D and 3D CAD models available upon request for engineering verification.
• Installation Manuals: Comprehensive installation instructions aligned with LIEBHERR service manual procedures available with each shipment .
• Material Certifications: Mill test reports and heat treatment certification available for each production batch.

For technical specifications, heavy-duty OEM/ODM inquiries, pricing, or to place an order:
