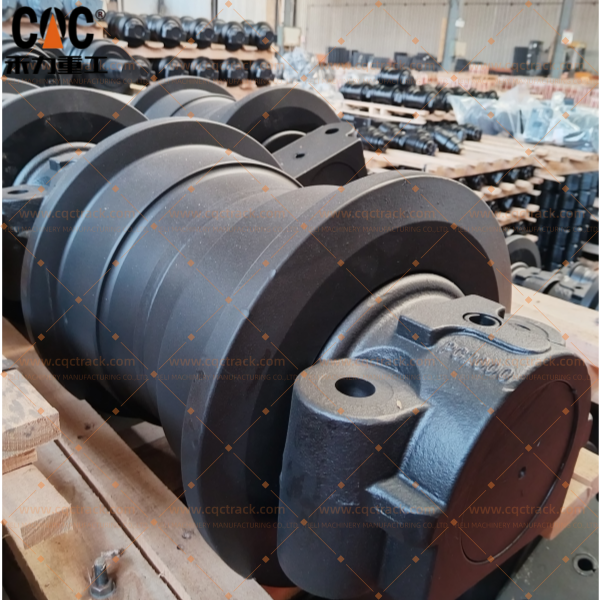

KOMATSU PC2000 Track Roller Assembly (21T-30-00213, 21T-30-00211, 21T-30-00420) | Heavy-Duty Excavator Undercarriage Manufacturer | HELI CQCTRACK

OEM-grade KOMATSU PC2000 track lower roller assemblies (21T-30-00213, 21T-30-00211, 21T-30-00420). Source directly from HELI CQCTRACK, a specialist manufacturer of ultra-heavy-duty excavator undercarriage components for mining and large-scale excavation.

Content:

Introduction to Track Lower Rollers in Ultra-Heavy-Duty Excavator Undercarriages

For mining-class excavators like the KOMATSU PC2000, the undercarriage system operates under exponentially greater stresses than standard equipment. Supporting machine weights exceeding 200 tons and enduring relentless cycles in abrasive, high-impact environments, each component must embody peak engineering resilience. The Track Roller Assembly (Track Lower Roller Group) forms the primary load-bearing interface between the track chain and the machine’s mainframe. These rollers bear the brunt of the excavator’s static and dynamic loads, making their integrity non-negotiable for machine stability, travel performance, and overall structural health. Parts 21T-30-00213, 21T-30-00211, and 21T-30-00420 represent critical roller configurations within the PC2000′s robust track system.

Engineering Analysis: KOMATSU PC2000 Track Lower Roller Assemblies

The designated part numbers correspond to specific positions and build configurations within the PC2000 undercarriage group, potentially indicating variations such as single-flange, double-flange, or center guide designs. Their design philosophy prioritizes maximum load capacity and longevity under extreme duress.

1. Core Function & Operational Stress Profile:
   • Primary Role: To continuously support the machine’s immense weight by rolling along the lower section of the track chain (on the track bushings), distributing ground reaction forces evenly across the track frame.
   • Stress Environment: Subjected to extreme radial loads from machine weight, impact shocks from uneven rock piles, and severe abrasive wear from fine particulate matter (e.g., mine dust, slurry) that infiltrates the rolling contact surfaces. High operational temperatures from continuous travel further challenge material and lubricant integrity.
2. Advanced Design and Material Specifications:
   • Forged Steel Construction: These rollers are invariably manufactured from high-alloy, vacuum-degassed steel forgings (e.g., alloy grades like 42CrMo). Forging ensures a continuous grain flow that follows the contour of the part, providing superior fatigue resistance and impact strength compared to castings—a critical factor for mining-duty components.
   • Optimized Hardening Process: The rolling surface and flanges undergo a precisely controlled deep-case induction hardening process. This results in a hardened layer depth of 8-12mm or more, achieving a surface hardness of 58-62 HRC to resist spalling and deformation, while maintaining a tough, ductile core (typically 30-40 HRC) to absorb catastrophic impact forces without catastrophic fracture.
   • Heavy-Duty Bearing & Seal System:
     • Bearings: Utilize large-diameter, high-capacity tapered roller bearings in a staggered or optimized arrangement to handle unparalleled radial and axial loads. Bearing races are precision-ground to micron-level tolerances.
     • Sealing Technology: Employs a multi-stage, pressurised labyrinth seal system. This advanced seal combines hardened alloy steel wear rings, multiple labyrinth channels, and reinforced, high-temperature Viton® or equivalent fluoropolymer seals. This creates a formidable barrier against contaminant ingress and retains high-performance lithium-complex grease, even under the flexing and pressure washing common in mining.
   • Robust Mechanical Design: Features massive, high-integrity alloy steel shafts and reinforced roller housings. The flange design is engineered for maximum guide strength to prevent track derailment under severe side loads.
3. Failure Mode Considerations for Mining-Class Rollers:
   • Subsurface Fatigue (Spalling): Initiated by cyclic Hertzian contact stresses exceeding material endurance limits, leading to pit formation on the rolling surface.
   • Seal Degradation in Extreme Conditions: Exposure to extreme temperatures, corrosive agents, and ultra-fine abrasives can compromise seal integrity, the primary failure initiator.
   • Bearing Cage or Race Fracture: Resulting from shock overloads or progressive contamination after seal failure.
   • Flange Wear from Track Misalignment: Accelerated by worn chain bushings or improper track tension adjustment.

HELI CQCTRACK: Manufacturing Expertise for Ultra-Heavy-Duty Undercarriage Components

HELI, under its industrial brand CQCTRACK, specializes in the design and manufacture of undercarriage systems for the most demanding applications. Their production of KOMATSU PC2000-compatible track roller assemblies demonstrates capability at the highest tier of off-road equipment manufacturing.

Precision Manufacturing and Quality Assurance Processes:

• Forging & Metallurgical Control: HELI sources premium-grade alloy steel billets and employs closed-die forging under precise thermal controls to achieve optimal mechanical properties and material density.
• CNC Machining & Grinding: Multi-axis CNC machines and profile grinding equipment ensure the roller’s outer diameter, flange profiles, and internal bearing seats are finished to exact OEM specifications, guaranteeing perfect fit and function.
• Thermochemical Processing: Beyond standard hardening, processes like carbonitriding may be utilized to enhance surface hardness and wear resistance further. Computerized tempering ensures stress relief and stabilizes the microstructure.
• Seal Chamber Precision: The sealing surfaces are machined to mirror-like finishes, allowing the multi-component seal to function with minimal friction and maximum exclusion efficiency.
• Integrated Testing Protocol: Each assembly undergoes a battery of tests, including: rotational torque measurement to verify proper bearing preload and seal drag; pressure decay testing of the sealed cavity to confirm seal integrity; and 100% dimensional inspection via CMM for critical interfaces.

Value Proposition of HELI CQCTRACK PC2000 Track Rollers:

• Engineered for Parity: Designed to match or exceed the dimensional, mechanical, and performance specifications of the original Komatsu parts (21T-30-00213, 21T-30-00211, 21T-30-00420).
• Proactive Durability Enhancements: Focus on seal technology and hardening depth often addresses field-identified wear points, targeting extended mean time between failures (MTBF) in harsh cycles.
• Total Cost of Ownership (TCO) Focus: By providing a reliable, high-capacity alternative, HELI helps mining operations reduce downtime costs and extend undercarriage rebuild intervals, directly impacting operational profitability.
• Full-System Support: As a manufacturer of the complete undercarriage “wear package” (rollers, idlers, sprockets, chains), HELI ensures systemic compatibility and balanced wear characteristics.

Application and Maintenance Guidelines for Large Mining Excavators

1. Correct Identification: Always cross-reference the part numbers (21T-30-00213, etc.) with the specific PC2000 serial number and undercarriage arrangement. Position-specific rollers (front, center, rear) are not interchangeable.
2. Systematic Replacement: Due to the capital intensity of mining equipment, replace track rollers in complete sets per side to maintain uniform load distribution and prevent accelerated wear on new components installed alongside old ones.
3. Pre-Installation Inspection: Before installing new rollers, conduct a thorough inspection of the track chain (bushing wear, pitch elongation), sprockets, and idlers. Installing new rollers into a worn system is inefficient and damaging.
4. Professional Installation: Adhere strictly to OEM torque specifications and procedures for shaft bolts and seals. Improper installation is a leading cause of premature seal failure.

Conclusion

The KOMATSU PC2000 Track Roller Assemblies (21T-30-00213, 21T-30-00211, 21T-30-00420) represent the pinnacle of undercarriage component engineering, where failure is not an option. Sourcing these critical parts from a dedicated, technologically proficient manufacturer like HELI CQCTRACK provides mine operators and heavy equipment managers with a viable, high-integrity alternative. Their commitment to material science, precision manufacturing, and understanding of extreme-duty failure modes ensures that these components deliver the required performance, safety, and reliability, thereby supporting the continuous operation of some of the world’s most productive and demanding mining excavators.
