Introduction to Upper and Carrier Rollers in Excavator Undercarriage Systems

The undercarriage of a crawler excavator is a complex, interdependent system where each component plays a vital role in distributing weight, guiding the track, and ensuring efficient power transfer. Among these, Upper Rollers (Top Rollers) and Carrier Rollers (Track Rollers) are critical for supporting the machine’s mass and maintaining track alignment and tension. For Komatsu excavators, specified by part numbers such as 21T3000223, 21T3000420, and 21T3000221, these rollers must be engineered to withstand extreme radial loads, shock impacts, and constant exposure to abrasive contaminants.

Technical Specifications & Functional Analysis of KOMATSU Roller Assemblies

These part numbers refer to specific roller assemblies designed for compatibility with various Komatsu excavator models (e.g., PC200, PC210, PC220 classes and their equivalents). It is crucial to confirm the exact model compatibility before procurement.

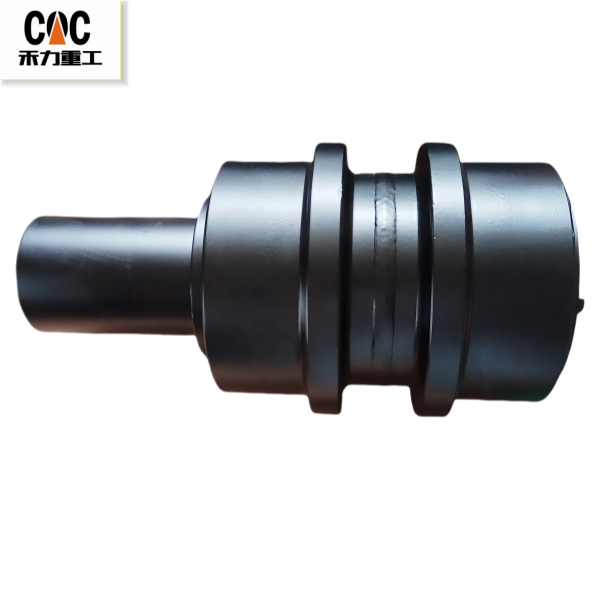

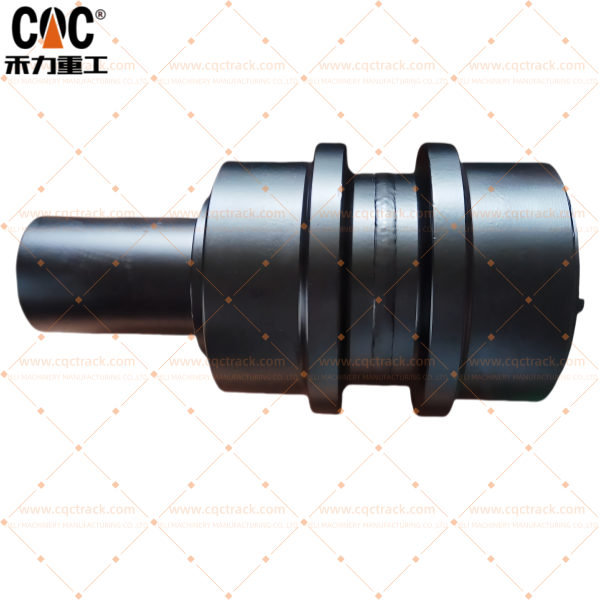

1. Upper Roller Assemblies (e.g., 21T3000223, 21T3000420):
   • Primary Function: Guide the track chain’s return (upper) section, maintaining proper track alignment and preventing lateral slippage or excessive whip during high-speed travel. They also help control track tension dynamically.
   • Design & Load Profile: Typically smaller in diameter than carrier rollers, they endure less direct ground-induced shock but significant lateral and radial forces from the track’s movement. They incorporate a double-flange design to securely guide the track chain link.
   • Sealing System: Utilize a multi-labyrinth seal combined with high-performance grease seals to create a robust barrier against mud, sand, and moisture, protecting the internal tapered roller bearings.
2. Carrier Roller Assembly (e.g., 21T3000221):
   • Primary Function: Support the excavator’s primary weight directly on the track shoe’s ground-engaging section. They roll along the lower track chain, distributing the machine’s load and absorbing vertical shocks from uneven terrain.
   • Design & Load Profile: Characterized by a larger diameter and robust construction to handle immense radial loads. Most carrier rollers for heavy-duty applications feature a single-flange or double-flange design to keep the track chain aligned.
   • Durability Features: The rolling surface is often through-hardened or induction hardened to a significant depth (e.g., 58-62 HRC) to resist pitting, spalling, and abrasion from the track bushings.
3. Common Engineering Characteristics (for both types):
   • Core Material: Forged or specially rolled high-carbon chromium steel (e.g., SAE 1055, 1060) for superior fatigue strength.
   • Bearing System: Tapered roller bearings are standard for their excellent capacity to handle combined radial and axial loads.
   • Lubrication: Pre-filled with high-temperature, high-pressure lithium-complex grease. Many modern designs are lubrication-free (sealed-for-life) to reduce maintenance and contamination risk.
   • Shaft & Housing: The shaft is hardened and precision-ground, while the housing is manufactured to exact tolerances to ensure perfect bearing alignment and seal integrity.

Failure Mode Analysis and Importance of System Compatibility

Premature roller failure is a major cause of unscheduled downtime. Key failure modes include:

• Seal Failure: The primary cause. Once seals are compromised, abrasive particles enter the bearing cavity, leading to rapid bearing wear, loss of lubrication, and eventual roller seizure or jamming.
• Bearing Fatigue: Caused by excessive loads, misalignment, or contamination.
• Flange Wear & Fracture: Resulting from severe track misalignment or impact with hard objects.
• Rolling Surface Wear: Normal abrasive wear is accelerated by improper track tension or a worn track chain.

Replacing rollers in matched sets and ensuring compatibility with the existing track chain and sprockets is essential to prevent accelerated, uneven wear across the entire undercarriage system.

HELI (CQCTRACK) as Your Source Manufacturer for Undercarriage Components

HELI, operating under the brand CQCTRACK, is a specialized industrial manufacturer focused on producing high-performance undercarriage components for global heavy machinery brands, including Komatsu-compatible parts.

Manufacturing and Quality Assurance Protocol:

• Material Integrity: Strict sourcing of certified forging-grade alloy steels. Chemical composition is verified via spectrometry.
• Precision Machining: Utilization of CNC lathes and grinding machines ensures dimensional accuracy for the roller body, shaft, and housing, guaranteeing interchangeability.
• Advanced Heat Treatment: Computer-controlled induction hardening processes create a deep, consistent hardened layer on the rolling surface and flanges, optimizing the balance between surface hardness and core toughness.
• Sealing Technology: Employment of proprietary multi-stage sealing systems. These often combine a labyrinth passage, wear-resistant seal rings, and reinforced nitrile rubber (NBR) seals to outperform basic designs in harsh environments.
• Rigorous Testing: Every batch undergoes dimensional checks, hardness testing, rotational torque tests, and seal pressure tests to validate performance under simulated load conditions.

Value Proposition of HELI CQCTRACK Roller Assemblies:

• OEM Dimensional Compatibility: Designed to match the original specifications for bolt patterns, shaft diameters, and overall geometry.
• Enhanced Durability Features: Potential improvements in seal design or hardening depth target known failure points, aiming to extend service intervals.
• Cost Efficiency: Provides a reliable, high-quality alternative that reduces total operating costs without sacrificing equipment availability or performance.
• System Expertise: HELI CQCTRACK manufactures a full range of undercarriage components (sprockets, idlers, track chains, shoes), ensuring a systemic understanding of wear interactions.

Selection and Maintenance Guidance

When sourcing KOMATSU 21T3000223, 21T3000420, or 21T3000221 assemblies:

1. Verify Machine Model: Confirm the exact compatibility with your excavator’s model and serial number.
2. Inspect in Pairs/Sets: Plan to replace upper or carrier rollers in pairs (or full sets for each side) to maintain balance and even load distribution.
3. Check Adjacent Components: Before installation, inspect the track chain, pins, bushings, and sprockets for excessive wear. Installing new rollers on a severely worn chain will lead to rapid damage.
4. Follow OEM Torque Specifications: Use correct procedures and torque values during installation to avoid seal damage or bearing preload issues.

Conclusion

Upper and carrier roller assemblies like the KOMATSU 21T3000223, 21T3000420, and 21T3000221 are fundamental to the structural integrity and efficient operation of an excavator’s undercarriage. Selecting components from a dedicated manufacturer like HELI (CQCTRACK) ensures access to products built with material science expertise, precision engineering, and a focus on durability. For fleet managers and equipment service centers, this represents a strategic sourcing solution that prioritizes mechanical reliability, minimizes lifecycle costs, and supports the demanding performance expected from Komatsu heavy-duty excavators.
