Comprehensive Technical Specification: KOMATSU 21T-30-00381 / 21T-30-00481 PC2000 Track Idler (Tensioning Wheel) Assembly – Mining-Grade Undercarriage Excellence by HeLi-CQCTRACK

1. Executive Summary: The Pinnacle of Mining Excavator Track Guidance Engineering

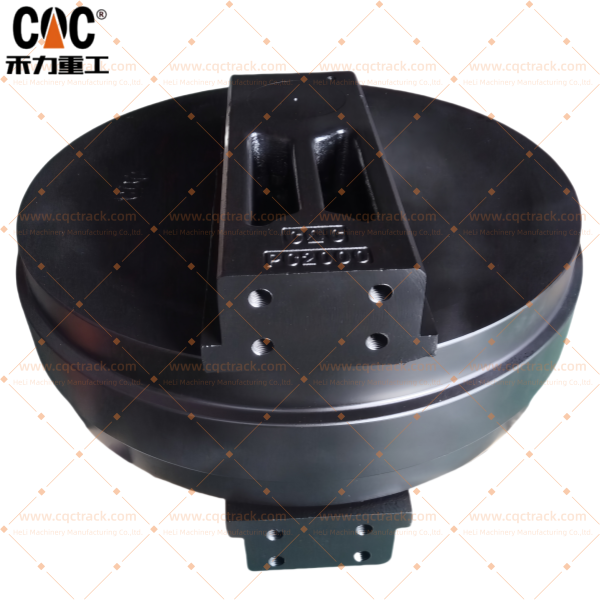

The KOMATSU 21T-30-00381 / 21T-30-00481 Track Idler Wheel Assembly, technically classified as the Front Idler or Tensioning Wheel, is a mission-critical structural component engineered for the KOMATSU PC2000 series mining-class crawler excavators. As a cornerstone of the heavy-duty track undercarriage system—which can account for up to 50% of a mining excavator’s total maintenance costs —this assembly performs the vital functions of guiding the massive track chain, maintaining precise track tension, and absorbing the immense dynamic and impact loads characteristic of open-pit mining and large-scale earthmoving operations.

HeLi – CQCTRACK, operating as a premier source manufacturer and supplier of heavy-duty crawler excavator undercarriage parts, produces this idler assembly to meet and exceed rigorous Original Equipment Manufacturer (OEM) specifications. By leveraging vertical manufacturing integration—from raw material sourcing and closed-die forging to precision CNC machining and advanced heat treatment—CQCTRACK ensures that this component delivers unparalleled structural integrity, wear resistance, and seamless compatibility with the KOMATSU PC2000. This document provides a comprehensive technical exposition of the assembly’s engineering philosophy, material metallurgy, manufacturing precision, and operational superiority, solidifying its status as the definitive choice for mining operations demanding maximum uptime in the most punishing environments.

2. System Function & Operational Dynamics: The Vanguard of the PC2000 Track System

In the closed-loop undercarriage architecture of the KOMATSU PC2000, a 200-ton class mining excavator, the front idler assembly is positioned at the opposite end of the track frame from the drive sprocket. It is not merely a rolling component; it is the structural vanguard of the track system, performing three primary mechanical functions with extreme precision :

• Track Guidance & Derailment Prevention: The idler features integrally forged and precision-machined flanges that serve as a continuous rail. These flanges interface precisely with the inner surfaces of the track links, providing positive lateral control of the track chain. This guidance is critical during counter-rotation turns or operations on sloped mine terrains, preventing lateral displacement (de-tracking) which can cause catastrophic damage and costly downtime. Industry experience indicates that wear in the guide wheel’s moving parts and central shaft can cause lateral swinging, leading to track deviation and the need for replacement .
• Dynamic Tension Maintenance: The idler assembly serves as the movable anchor point for the track tensioning mechanism (a heavy-duty hydraulic or grease cylinder). By maintaining the prescribed track sag—typically 50–60 mm for the PC2000 —it ensures optimal engagement between the drive sprocket teeth and the track bushings. Optimal engagement minimizes power loss due to friction, reduces chordal action (the polygon effect), and extends the service life of the entire undercarriage system by mitigating component slap and vibration. Research shows that over-tightening can increase wear by up to 40%, while under-tightening can lead to derailments on rocky terrain .
• Primary Load Bearing & Shock Absorption: The idler wheel rolls along the ground-contacting portion of the track chain, supporting a significant percentage of the machine’s operating weight. Critically, as the machine traverses obstacles or engages in digging, the idler is the first component to encounter impact forces. It acts as the primary shock absorber, transmitting these immense reaction forces through the track frame to the excavator’s main body while protecting the integrity of the track chain and sprocket. The idler also bears a certain weight, increasing the contact area of track links and reducing ground pressure .

3. Technical Specifications & Material Metallurgy: The Science of Mining-Grade Durability

The operational lifespan of a front idler for a 200-ton class excavator like the PC2000 is dictated by advanced material science and precise thermal treatment. The KOMATSU 21T-30-00381/00481 assembly from HeLi-CQCTRACK exemplifies state-of-the-art metallurgical engineering for mining applications.

3.1 Core Material Selection: Forged for Fortitude

• Idler Wheel Material: The wheel is forged from high-grade, wear-resistant alloy steel, specifically 35SiMn or equivalent high-hardenability manganese-silicon alloy . These alloys are selected for their exceptional toughness and dynamic work-hardening characteristics. When subjected to the continuous impact and rolling contact from the track chain, the surface of the material undergoes micro-structural densification, actually increasing its hardness and wear resistance in the field. This ensures the idler maintains its structural profile far longer than components made from lower-grade steels.
• Idler Shaft Material: The stationary axle is forged from ultra-high-strength chromium-molybdenum alloy steel, typically 42CrMo . This material is the industry standard for critical load-bearing shafts in mining equipment due to its supreme fatigue limit, torsional strength, and resistance to bending under extreme cyclic loads. It ensures the shaft maintains perfect geometric alignment throughout its service life.

3.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between an abrasion-resistant surface and a tough, impact-absorbing core is achieved through a precise, multi-stage thermal process:

• Deep Induction Hardening: The outer raceway and flange contact surfaces undergo deep induction hardening. This process creates a metallurgically bonded, high-hardness case of significant depth. For the PC2000 idler, the target surface hardness is HRC 55-58 with a case depth of 6-8mm , creating a virtually impenetrable barrier against abrasive wear from track bushings and debris.
• Quenching & Tempering (QT): The core of the wheel and the entire shaft are subjected to a rigorous quenching and tempering process. This refines the grain structure and achieves a core hardness that maintains ductility—essential for absorbing massive shock loads without catastrophic cracking, ensuring the component yields elastically rather than fracturing plastically.
• Precision Machining: Following heat treatment, precision CNC machining ensures dimensional accuracy within tight tolerances, guaranteeing perfect interchangeability with original KOMATSU specifications .

3.3 Dimensional Specifications

The PC2000 idler assembly is engineered to precise dimensions to ensure proper fit and function within the massive track frame:

4. Structural Anatomy: Deconstructing the PC2000 Idler Assembly

The 21T-30-00381 / 21T-30-00481 Idler is a complex, precision-engineered assembly consisting of several high-performance sub-components, each designed for a specific function in the mining environment.

5. The HeLi – CQCTRACK Manufacturing Advantage: Source Manufacturer Philosophy

As a dedicated source manufacturer and supplier of heavy-duty crawler excavator undercarriage parts, HeLi-CQCTRACK distinguishes itself through vertical integration and an uncompromising commitment to quality at every stage of production.

5.1 Source Factory Control

• Closed-Die Forging: The manufacturing process begins with closed-die forging of the idler wheel and shaft. This process aligns the metal’s grain flow with the component’s shape, significantly enhancing its structural integrity, fatigue resistance, and impact strength compared to cast or simply machined parts .
• CNC Precision Machining: Following heat treatment, state-of-the-art Computer Numerical Control (CNC) lathes and machining centers execute all turning, boring, and drilling operations. This ensures that every assembly meets the tight tolerances required for perfect fit and flawless function on the KOMATSU PC2000 track frame .
• In-House Heat Treatment: Owning and controlling the heat treatment lines allows CQCTRACK to strictly adhere to the precise time-temperature cycles necessary to achieve the specified case depth and core hardness, guaranteeing metallurgical consistency across all production batches.

5.2 Mining-Grade Quality Assurance

The designation of “OEM Quality” for mining applications is validated through a battery of rigorous tests:

• Dimensional Conformity: Each assembly is measured against master jigs and advanced Coordinate Measuring Machines (CMM) to ensure 100% interchangeability with KOMATSU specifications .
• Hardness Profiling: Rockwell hardness testers verify the surface hardness (HRC 55-58) on the raceway and flanges, while also confirming the core toughness, ensuring the component can withstand the harsh realities of open-pit mining .
• Seal Integrity Testing: The floating seal assembly is tested for leak-proof performance under simulated pressure and rotational conditions, ensuring the hermetic barrier is uncompromised.
• Load Testing: Representative samples are subjected to radial load tests that simulate the operational forces of the PC2000, validating the structural integrity of the shaft and the bearing system under extreme conditions.
• Traceability: All products receive unique ID numbers, enabling complete quality traceability from raw material to finished component. When issues arise, the corresponding QC test statements can be reviewed to identify problems and implement solutions .

5.3 Adaptation to Mining Applications

CQCTRACK understands that KOMATSU PC2000 excavators operate globally in diverse, challenging mining environments. Their manufacturing process is adaptable, allowing for engineering adjustments—such as specifying enhanced corrosion-resistant coatings for high-moisture environments or specialized low-temperature material variants for Arctic mining operations—while maintaining the core OEM footprint.

6. Failure Mode Analysis & Preventive Maintenance Protocol

Maximizing the service life of the PC2000 idler requires understanding potential failure modes and adhering to a strict maintenance regimen, as undercarriage parts can account for up to 50% of a mining excavator’s total maintenance costs .

6.1 Common Failure Mechanisms

• Seal Failure & Contamination Ingress: The primary cause of premature idler failure. If the floating seal is compromised by debris impact or thermal degradation, lubricant escapes and abrasives enter the bearing cavity. This acts as a grinding paste, rapidly destroying the bearings, shaft, and wheel bore .
• Raceway Wear / Flattening: Progressive wear on the outer diameter due to continuous friction with the track bushings. Excessive wear reduces the idler’s diameter, alters track tension, and increases the risk of chain derailment.
• Shaft Wear / Misalignment: Wear in the moving parts and central shaft of the guide wheel can cause the idler to swing left and right, causing the track to deviate from its path . This necessitates immediate replacement.
• Brinelling: Surface indentations on the raceway caused by impact loads exceeding the material’s elastic limit, leading to rough rotation and accelerated wear.
• Bearing Fatigue: Eventually, the rolling elements or races can spall due to cyclic loading. This leads to increased internal clearance, causing the wheel to wobble and run noisily, which in turn accelerates seal wear and can lead to catastrophic failure.
• Flange Wear: Gradual thinning of the guide flanges due to constant contact with track links. This reduces guidance capability, leading to de-tracking risks, especially during side-loading operations on slopes.

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Check for evidence of grease leakage around the hub (a tell-tale sign of seal failure). Listen for unusual noises like grinding or rumbling during operation. Inspect the flange and raceway profile for visible wear or damage .
• Track Tension Management: Maintain correct track sag at 50–60 mm as per KOMATSU PC2000 specifications . An over-tensioned track increases wear by up to 40% and overloads the idler bearings and seals; an under-tensioned track causes the chain to slap the idler, leading to impact damage and derailment risks.
• Scheduled Inspections: Conduct weekly inspections of track chains for bushing wear and side float, and daily checks for loose bolts or bent plates . Track tension should be checked every 200 operating hours, especially in variable conditions such as wet or loose soil .
• Rotation Check: During daily walk-around, where safely accessible, observe the idler for smooth rotation without wobble or roughness.
• Wear Limit Measurement: Periodically measure the outer diameter and flange thickness of the idler. Replace the assembly when wear reaches the manufacturer’s recommended limit to prevent damage to the more expensive track chain.
• Proactive Replacement: Idlers should be replaced in pairs on the same machine to ensure consistent track alignment and load distribution. When one idler shows significant wear, its counterpart is likely nearing the end of its service life.

7. Compatibility & Application Scope

• Primary Models: KOMATSU PC2000, PC2000-8, and related variants in the 200-ton mining excavator class .
• OEM Part Numbers: Direct replacement for KOMATSU 21T-30-00381 and 21T-30-00481.
• Machine Class: Heavy-duty mining crawler excavators (180-220 metric tons).
• Quality Warranty: Industry-leading warranty periods of 24 months are available for mining-grade components .
• Applications: Engineered for extreme durability in:
  • Open-pit mining and overburden removal
  • Large-scale quarrying and aggregate handling
  • Major infrastructure and earthmoving projects
  • Operations involving highly abrasive terrains and severe impact loads.

8. Conclusion: The Benchmark for Mining-Grade Undercarriage Reliability

The KOMATSU 21T-30-00381 / 21T-30-00481 PC2000 Track Idler Wheel / Tensioning Wheel Assembly from HeLi – CQCTRACK represents the pinnacle of heavy-duty undercarriage engineering for mining applications. It is not merely a replacement part; it is a strategic investment in operational uptime and total cost of ownership reduction for KOMATSU PC2000 excavator fleets operating in the world’s most demanding environments.

By combining advanced metallurgy (35SiMn/42CrMo), closed-die forging, precision engineering, and the rigorous quality control of a true source manufacturer, CQCTRACK delivers a component that not only meets the exacting standards of KOMATSU’s mining-class excavator but is also engineered to surpass them in real-world, punishing conditions. The deep induction hardening to HRC 55-58 with 6-8mm case depth ensures exceptional wear resistance, while the high-integrity floating seal system protects the internal bearing assembly from the relentless assault of abrasive mining debris.

Choosing HeLi-CQCTRACK means partnering with a source manufacturer that possesses deep domain expertise in heavy-duty crawler excavator undercarriage parts. It ensures that every critical element—from the forged 35SiMn wheel to the 42CrMo shaft and heavy-duty bearing system—works in perfect harmony to support the massive forces of the PC2000, ensuring the track system remains reliable, efficient, and productive for thousands of operating hours in open-pit mines, quarries, and major infrastructure projects worldwide.
