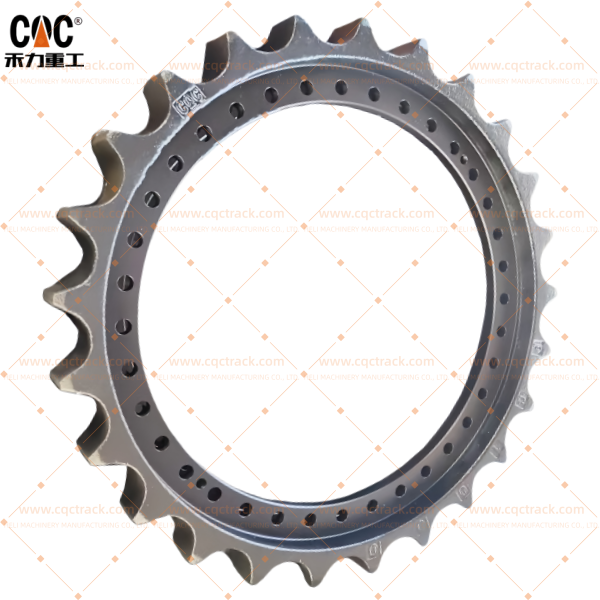

Drive Wheel / Sprocket Assembly | P/N 21N-271-1171

A Direct Replacement for Komatsu PC1000 | Engineered & Manufactured by CQCTRACK

• OEM Part No.: 21N-271-1171
• Compatible with: Komatsu PC1000-6, PC1000-7
• Built to Endure Extreme Mining & Quarry Conditions

Product Overview

The Komatsu 21N-271-1171 Drive Wheel Assembly is the cornerstone of your PC1000′s mobility, enduring immense stress with every cycle. Sourcing a reliable replacement is critical to protecting your investment and avoiding catastrophic final drive failure.

This assembly is proudly manufactured by CQCTRACK, a specialist in heavy-duty undercarriage components. We don’t just source parts; we engineer and forge them to exacting standards. Our 21N-271-1171 is a precision-engineered, direct OEM replacement that delivers exceptional wear life and impact resistance, ensuring your Komatsu PC1000 remains operational in the world’s most challenging environments.

Key Features & Engineering Advantages

• CQCTRACK Forged Alloy Steel Core
  • Feature: Constructed from superior 41CrMo4 Alloy Steel using a closed-die forging process under intense pressure.
  • Benefit: This creates a continuous grain flow, resulting in unparalleled toughness and fatigue strength, virtually eliminating the risk of tooth breakage under high-impact loads.
• Advanced Induction Hardening Process
  • Feature: Sprocket teeth undergo computer-controlled induction hardening to achieve an optimal hardened case depth of 5-8mm with a surface hardness of 55-60 HRC.
  • Benefit: Provides maximum resistance to the abrasive wear caused by track bushing rotation, significantly extending service life and preventing premature sprocket “hooking.”
• Precision CNC Machining for Guaranteed Fit
  • Feature: Critical interfaces—including the spline bore, pilot diameter, and mounting flange—are machined on advanced CNC systems.
  • Benefit: Ensures a perfect, direct bolt-on fit with the final drive and perfect alignment with the track chain. This eliminates installation issues and protects adjacent components from abnormal wear.
• Integrated Seal & Protection System
  • Feature: Designed with precise grooves and surfaces to ensure compatibility with OEM seal kits, protecting the final drive interface from contaminants.
  • Benefit: Safeguards your final drive investment by ensuring a secure, sealed connection that keeps abrasive particles out.

Technical Specifications & Compatibility

The CQCTRACK Quality Difference

1. Vertical Manufacturing: We control the entire process from raw material to finished product, ensuring consistent quality and traceability.
2. Full Material Certification: Every batch comes with complete mill certificates and heat treatment documentation.
3. Rigorous Non-Destructive Testing: 100% of our drive wheels undergo Magnetic Particle Inspection (MPI) to detect any surface or sub-surface flaws before they leave our factory.
4. Proven Field Performance: CQCTRACK components are trusted by mine operators and heavy equipment fleet owners globally for their reliability and cost-effectiveness.
5. Global Logistics Expertise: We are adept at handling the packaging and shipping of oversized parts to any destination, ensuring timely delivery to your site.

Frequently Asked Questions (FAQ)

Q1: Is this CQCTRACK sprocket a direct fit for my Komatsu PC1000?
A: Yes, absolutely. The CQCTRACK 21N-271-1171 is engineered to be a direct, bolt-for-bolt replacement for the original Komatsu part. It matches all OEM dimensional, spline, and hardness specifications.

Q2: How does CQCTRACK’s forging process benefit my operation?
A: Forging aligns the steel’s grain structure to the shape of the sprocket, creating a part with superior impact and fatigue strength. For a machine as powerful as the PC1000, this means exceptional resistance to shock loads from tramming over rock, leading to greater reliability and a lower risk of unexpected failure.

Q3: Do you offer a matched undercarriage set?
A: Yes, we highly recommend it. For the longest service life and optimal performance, replacing the sprocket, track chain, and bottom rollers as a matched set is best practice. We can provide a competitive package quote for a complete CQCTRACK undercarriage system.

Q4: What is the packaging and lead time?
A: The drive wheel is securely packaged with VCI anti-rust protection and robust wooden crating for safe transit. Lead times are competitive; please contact our sales team with your requirements for an accurate timeline and freight quote.

Call to Action Section

Partner with CQCTRACK for Unmatched Reliability

Don’t compromise on the component that drives your productivity. Choose CQCTRACK for a PC1000 Drive Wheel Assembly built to perform. Contact us today for a competitive quote and discover the CQCTRACK difference.
