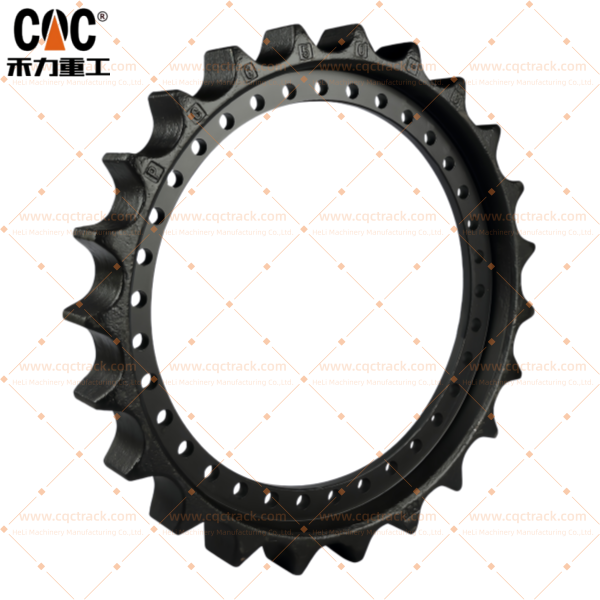

KOMATSU 21M2711220 2092751170 PC650-8 Track Sprocket Assy / Track Final Drive Sprocket Assembly / Professional heavy duty crawler excavator undercarriage parts source manufacturer / CQC TRACK

The KOMATSU PC650-8 Track Sprocket Assembly—Heavy-Duty Crawler Excavator Final Drive Engineering Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-KOMATSU-SPROCKET-11
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Model: KOMATSU PC650-8 Heavy-Duty Crawler Excavator
Component Portfolio: 21M-27-11220, 209-27-51170
Machine Weight Class: 60 – 70 tons (dependent on configuration)
Publication Date: March 2026
Classification: Technical Engineering Specification / Heavy-Duty Crawler Excavator Undercarriage Parts Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Professional Heavy-Duty Source Manufacturer for KOMATSU PC650-8 Undercarriage Components

In the demanding realm of 60–70 ton class heavy-duty crawler excavator operations, the track sprocket assembly—alternatively designated as the drive wheel assembly or final drive sprocket—represents the critical terminus of the power transmission chain. This component performs the essential function of converting hydraulic motor torque, through the final drive reduction gearing, into linear tractive force via direct mechanical engagement with the track chain bushings . For the KOMATSU PC650-8 platform—a 70+ ton class excavator widely deployed in mining, quarrying, heavy infrastructure, and large-scale earthmoving applications—the sprocket assembly stands as a mission-critical component determining propulsion efficiency, track alignment, and overall undercarriage longevity .

Heli Machinery (CQCTRACK) has established itself as a premier professional heavy-duty undercarriage parts source manufacturer, producing components for KOMATSU PC650-8 and compatible applications. This technical white paper provides a comprehensive engineering deconstruction of the KOMATSU 21M-27-11220 and 209-27-51170 Track Sprocket Assemblies, specifically engineered for the PC650-8 excavator platform and its variants .

By integrating rigorous material science (utilizing high-grade alloys such as 50Mn, 35MnB, and SCMn3A equivalent steels) , precision closed-die forging technologies with optimized grain flow, advanced heat treatment protocols achieving optimal hardness gradients (52-58 HRC surface with tough core, 8-12mm case depth), segmental design engineering for serviceability, and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers sprocket assemblies that achieve documented performance parity with—and in specific metrics beyond—original equipment specifications.

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership for their KOMATSU PC650-8 heavy-duty excavator fleets operating in severe mining and construction applications, this document serves as the definitive technical reference and sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

Component Classification: Track Sprocket Assembly / Drive Wheel Assembly / Final Drive Sprocket / Sprocket Wheel Assembly
Target Machine: KOMATSU PC650-8 Heavy-Duty Crawler Excavator (also compatible with PC600-8, PC600LC-8, PC550-8 variants)
Operating Weight Range: 60,000 kg – 70,000 kg (dependent on configuration)
Primary Function: Transfer power from final drive to track chain via positive tooth engagement; propel the machine
Secondary Function: Withstand heavy loads and dynamic forces from digging, lifting, and traveling over rough terrain
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: Heavy-duty mining-grade replacement components engineered for 1:1 mechanical interchangeability without modification

2.1 Cross-Reference and Compatibility

The 21M-27-11220 sprocket assembly is widely referenced under alternative indices including KM3076, KM3096, and UR228K023 . It is compatible with multiple machine models beyond the PC650-8, including:

• KOMATSU PC550-8, PC600-8, PC600LC-8, PC600-6, PC600-7, PC650LC
• Machines requiring 228mm pitch and 23-tooth configuration

Critical Note: Always verify machine serial number when ordering, as minor revisions may exist .

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK KOMATSU PC650-8 Sprocket Assemblies

The performance longevity of any track sprocket assembly operating in heavy-duty mining applications is determined by the synergistic interaction of critical engineering subsystems: the sprocket wheel structure, tooth geometry, heat treatment profile, and mounting interface. Heli CQCTRACK engineers each of these subsystems with precision appropriate for the 60–70 ton class excavator application in severe operating conditions.

3.1 Sprocket Wheel Structure: Forged Metallurgy for Heavy-Duty Mining Applications

The sprocket wheel forms the core structural element of the assembly, transmitting the full tractive torque while resisting abrasive wear from continuous chain bushing engagement.

3.1.1 Material Selection and Alloy Engineering

Heli CQCTRACK employs strategic material selection based on application requirements, utilizing high-grade alloy steels proven in demanding heavy-duty undercarriage applications:

• Primary Material Grade: 50Mn or 35MnB Manganese-Boron Alloy Steel—selected for exceptional hardenability and impact toughness characteristics essential for mining and heavy construction applications . These materials achieve the necessary wear-resistance and loading capacity through precision processing and special heat treatment techniques.
• Alternative High-Performance Grade: SCMn3A equivalent alloy steel (manganese-chromium composition) with deep hardening capability . This material specification is commonly referenced for heavy-duty sprocket applications.
• Manganese Function: Improves hardenability and tensile strength; ensures hardness penetration depth during quenching rather than forming a thin, brittle surface layer.
• Boron Micro-Alloying: Enhances hardenability, significantly increasing the steel’s capacity to achieve a hard, martensitic structure upon quenching without inducing brittleness.

Table 2: Material Grade Comparison for Heavy-Duty Sprocket Applications

3.1.2 Forging versus Casting: A Critical Manufacturing Distinction

The manufacturing method fundamentally determines the internal grain structure and, consequently, the performance characteristics of the finished sprocket.

Forged Construction (Heli CQCTRACK Standard):

• Process: A solid steel billet is shaped under immense pressure at elevated temperatures through closed-die forging.
• Grain Structure Engineering: The forging process aligns the grain flow to follow the contour of the sprocket teeth, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength. This optimized grain flow is critical for withstanding the cyclic loading inherent in heavy excavator propulsion.
• Internal Integrity: Eliminates internal voids, porosity, and micro-inclusions common in castings; produces a dense, continuous structure.
• Performance Advantage: Superior impact strength and fatigue resistance for high-torque, abrasive mining environments.

Cast Construction (Industry Alternative):

• Process: Molten steel poured into a mold and allowed to solidify.
• Structural Limitations: Granular, potentially porous structure with possible micro-voids and non-uniform grain orientation.
• Performance Limitations: Lower tensile strength; more susceptible to cracking under high-stress cyclic loading.

Table 3: Forged versus Cast Sprocket Comparison

3.1.3 Tooth Profile and Pitch Engineering

The sprocket teeth represent the critical wear interface with the track chain bushings, requiring precision geometry for optimal load distribution.

• Tooth Count: 23 teeth (standard configuration for PC650-8)
• Pitch: 228mm (matching the track chain pitch)
• Profile Geometry: Precision-machined with involute or modified trapezoidal profile engineered for optimal engagement with the track bushing (chain pin). The tooth profile is generated through CNC machining operations to ensure accuracy.
• Tooth Reversibility: The crowns of these sprockets are designed with reversibility in mind, allowing for the transfer of sprockets to the opposite sides of the machine, extending the lifespan of the sprocket .
• Contact Stress Distribution: The engineered profile minimizes point contact, distributing immense contact stresses over a larger area to reduce localized wear.
• Tooth Flank Engineering: Flanks receive enhanced hardening depth compared to root areas to combat the primary wear mode—abrasive friction against rotating chain bushings.

3.2 Heat Treatment Protocol: Achieving Optimal Hardness Gradient

The heat treatment process transforms the forged steel from its relatively soft state into a wear-resistant component capable of enduring thousands of operational hours in mining environments.

3.2.1 Deep Hardening Technology

Heli CQCTRACK employs precision heat treatment protocols designed to achieve nearly twice the hardening depth compared to regular steel :

• Selective Hardening Process: High-frequency induction hardening creates a deep, consistently hard case on tooth flanks and wear surfaces.
• Computer-Controlled Processing: All parameters (power, frequency, traverse rate, quench flow) are digitally monitored to ensure consistent case depth.
• Low-Temperature Tempering: Following induction hardening, components undergo low-temperature tempering to relieve internal stresses while preserving hardness.

3.2.2 Dual Hardness Engineering

The sprocket achieves a dual hardness structure that optimizes both wear resistance and impact toughness:

• Surface Hardness: 50 – 58 HRC (Rockwell Hardness Scale C) on tooth flanks and wear surfaces . This martensitic surface layer provides the primary defense against abrasive wear from track chain bushings.
• Core Toughness: The tough, ductile core maintains lower hardness to absorb shock loads and prevent catastrophic tooth fracture under impact conditions.
• Hardening Depth: Deep hardening ensures that as the surface wears over thousands of operational hours in abrasive mining conditions, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals .

Table 4: Hardness Specifications—KOMATSU PC650-8 Sprocket Assembly

Engineering Rationale: The 50-58 HRC surface range provides optimal abrasion resistance against track chain bushings in mining environments . The deep-hardened case ensures extended service life under severe operating conditions.

3.3 Mounting Interface Engineering

The sprocket-to-final drive interface is critical for power transmission integrity and alignment maintenance.

• Bolt Pattern: A multi-bolt flange that mates precisely with the final drive output hub
• Bolt Circle Precision: Machined to exact center-to-center tolerances (±0.05mm) ensuring even load distribution across all mounting bolts
• Pilot Diameter: Precisely machined pilot ensures perfect concentricity with final drive output flange, eliminating run-out and uneven load distribution
• Counterbore Design: Engineered counterbores ensure proper bolt head seating and clamping force distribution
• Mounting Hardware: Designed for high-tensile alloy cap screws installed with controlled torque and thread-locking compound per manufacturer specifications

4. Heavy-Duty Manufacturing Process Engineering

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating variance introduced by subcontracted processes and ensuring consistent heavy-duty quality output suitable for KOMATSU PC650-8 mining applications.

4.1 Metallurgical Validation and Incoming Inspection

• Spectrochemical Analysis: Incoming steel billets undergo spectrochemical analysis to verify exact chemical composition—ensuring compliance with specifications for carbon, manganese, chromium, and boron content critical for hardenability.
• Ultrasonic Testing: Raw materials undergo ultrasonic inspection to detect any internal voids, inclusions, or discontinuities that could compromise structural integrity under mining loads.
• Grain Structure Verification: Metallurgical samples from forged components confirm proper grain flow alignment.

4.2 Precision Forging and Machining Sequence

The manufacturing process follows a carefully orchestrated sequence of operations with advanced international and domestic CNC machine tools as well as high/medium frequency heat treatment equipment:

4.2.1 Raw Material Preparation

• Steel billets are cut to precise dimensions based on sprocket size and weight requirements.
• Material traceability is established from the initial cutting stage.

4.2.2 Hot/Warm Forging

• Billets are heated to forging temperature (approximately 1100-1200°C for hot forging; 700-900°C for warm forging).
• Closed-die forging under high-tonnage presses shapes the billet, creating grain flow that follows the tooth contour.
• Flash is trimmed, and the forged blank undergoes visual inspection.

4.2.3 Normalizing Heat Treatment

• Forged blanks undergo normalizing to refine grain structure and establish consistent mechanical properties.

4.2.4 Rough Machining

• The normalized blank is mounted on CNC vertical turning lathes.
• Rough machining establishes basic dimensions, including tooth profile, mounting surfaces, and bolt hole locations.

4.2.5 Precision CNC Machining

• Tooth Profile Generation: CNC hobbing or shaping machines cut the precise tooth profile, ensuring accurate pitch (228mm) and pressure angle .
• Mounting Surface Machining: All mounting interfaces are machined to tight tolerances.
• Bolt Hole Drilling: Mounting holes are drilled on CNC drilling centers with precision fixturing to ensure exact hole spacing.
• Counterboring: Mounting holes receive counterbores for proper bolt head seating.

4.2.6 Induction Hardening

Heli CQCTRACK employs precision induction hardening to achieve optimal surface characteristics:

• Selective Hardening Process: High-frequency induction hardening creates a deep, consistently hard case on tooth flanks and wear surfaces, achieving nearly twice the hardening depth of regular steel .
• Computer-Controlled Processing: All parameters (power, frequency, traverse rate, quench flow) are digitally monitored to ensure consistent case depth.
• Low-Temperature Tempering: Following induction hardening, components undergo tempering at 150-250°C to relieve stresses while maintaining hardness.

4.2.7 Final Finishing Operations

• Surface Grinding: After heat treatment, mounting surfaces may undergo grinding to achieve final dimensional accuracy.
• Shot Blasting: Components undergo shot blasting to clean surfaces and improve paint adhesion.
• Final Dimensional Verification: All critical dimensions verified against specifications using CMM equipment.

4.2.8 Quality Assurance and Non-Destructive Testing

• Magnetic Particle Inspection (MPI): Non-destructive testing detects any surface or subsurface defects in critical areas.
• Hardness Verification: Rockwell hardness testing on tooth surfaces; case depth verification through destructive sampling from each production batch.
• Dimensional Certification: CMM reports provided for critical dimensions.

4.2.9 Surface Treatment and Coating

• Corrosion Protection: Components receive anti-corrosion treatment.
• Painting: Application of durable industrial paint (standard black or yellow, customizable per customer requirements) providing corrosion resistance and professional appearance .

5. Application-Specific Engineering for KOMATSU PC650-8 Excavator

5.1 KOMATSU PC650-8 Platform Overview

The KOMATSU PC650-8 crawler excavator represents a 65-70 ton class heavy-duty platform widely deployed in mining, quarrying, and heavy construction applications . Key specifications include:

• Operating Weight Range: 60,000 kg – 70,000 kg (dependent on configuration)
• Engine Power: Approximately 350-400 kW
• Undercarriage Type: Heavy-duty mining configuration
• Track Chain Pitch: 228mm (standard for this weight class)
• Sprocket Teeth: 23 teeth
• Application: Production mining, heavy quarrying, large-scale earthmoving

5.2 Part Number Specific Engineering Considerations

Table 5: Application-Specific Engineering Features by Part Number

5.3 Compatibility Verification Requirements

Before ordering, verify the following machine parameters to ensure correct sprocket selection:

• Machine Serial Number (for precise model year and configuration)
• Track chain pitch (confirm 228mm specification)
• Number of teeth (23 teeth standard)
• Previous part number (if available for cross-reference)

6. Quality Certification and Supply Chain Assurance

Heli CQCTRACK’s commitment to heavy-duty manufacturing quality is validated through internationally recognized certification frameworks, with reference to ISO 9001 certification standards to constantly improve quality management levels .

6.1 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates with reference to international ISO 9001 certification standards, constantly improving quality management levels :

• Documented procedures for all manufacturing processes
• Regular internal and external audits
• Continuous improvement protocols
• Complete traceability of materials and processes

6.2 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including:

• Material certification reports (Mill Test Certificates per EN 10204 3.1)
• Heat treatment process logs with digital monitoring data
• Dimensional inspection reports
• Batch-specific test results and hardness verification records
• NDT reports (MPI, ultrasonic)

6.3 Warranty and Performance Commitment

Each KOMATSU 21M-27-11220 and 209-27-51170 Track Sprocket Assembly manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship, underwritten by certified manufacturing processes and rigorous quality control protocols . Industry standard warranty periods include 12 months or 2,000+ operational hours depending on application .

7. Failure Mode Analysis and Heavy-Duty Mining Maintenance Integration

Understanding the mechanics of failure in 60–70 ton class excavator mining applications validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance.

7.1 Primary Failure Mode Analysis

Table 6: Failure Mode Analysis and Heli CQCTRACK Engineering Countermeasures

7.2 Recommended Heavy-Duty Mining Maintenance Practices

To maximize service life of Heli CQCTRACK sprocket assemblies in KOMATSU PC650-8 mining applications:

1. Regular Inspection Interval: Inspect sprocket at 250-hour intervals (more frequently in severe mining applications) for evidence of abnormal wear patterns, tooth hooking, cracking, or visible damage .
2. Wear Pattern Diagnosis:
   • Normal Wear: Gradual, uniform reduction in tooth profile.
   • Hooked Teeth: Indicates worn track chain bushings requiring replacement. Classic sign of severe wear that also damages the track chain .
   • Asymmetric Wear: Indicates misalignment or track tension issues.
   • Tooth Pointing: Advanced wear requiring immediate replacement.
3. Track Tension Management: Maintain track tension per KOMATSU manufacturer specifications. Incorrect tension is a primary cause of accelerated sprocket wear—too tight increases tooth loading; too loose causes track slap and impact damage.
4. Paired Replacement Protocol: Replace sprockets in pairs (both left and right sides). A new sprocket on one side and a worn one on the other will cause uneven travel and put extra stress on the undercarriage .
5. Systematic Replacement: Worn sprockets are often part of a “worn system.” Installing a new sprocket on a severely worn track chain will cause rapid and premature failure of the new sprocket. Always inspect the entire undercarriage (track chain, rollers, idlers) and replace components as a matched set when necessary .
6. Bolt Torque Verification: Periodically verify sprocket mounting bolt torque per manufacturer specifications. Bolts should be secured with thread-locking compound and replaced if worn or stretched.
7. Reversibility Utilization: Take advantage of sprocket reversibility—sprockets can be transferred to opposite sides of the machine to extend lifespan .
8. Systematic Replacement Threshold: Replace sprocket when:
   • Tooth wear exceeds 8-12mm reduction from original profile
   • Teeth exhibit hooking or pointing
   • Any tooth shows cracking or chipping
   • Wear pattern indicates case depth consumption (hardened layer worn through)

8. Technical Specifications Summary—KOMATSU PC650-8 Track Sprocket Assembly

Table 7: Technical Specifications Summary—Heli CQCTRACK KOMATSU PC650-8 Sprocket Assembly

9. Heavy-Duty Sourcing and Logistics Support

Heli CQCTRACK supports global mining and heavy construction procurement operations with comprehensive logistics capabilities designed for the demanding schedules of heavy equipment operations:

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports (EN 10204 3.1) provided with each shipment.
• Flexible Shipping Options:
  • Sea freight (FCL/LCL) for cost-effective bulk transport to mining regions worldwide
  • Air freight for urgent order fulfillment when mining operations face critical downtime
  • Express courier (DHL/FedEx/UPS) for sample or emergency small-volume orders
• Packaging: All products are securely packed using high-quality export cartons, reinforced wooden cases (fumigate seaworthy packing), or industry-standard palletized packaging to ensure maximum protection during transit .
• Port of Shipment: Xiamen, China (primary) with capability for other major ports based on customer requirements
• Lead Times: Standard production orders: 20-30 working days; stock items: 7-10 days for expedited shipping for mining emergency requirements
• Minimum Order Quantity: Flexible MOQ accommodating both trial orders and fleet-level bulk procurement for major mining enterprises
• Payment Terms: T/T (Telegraphic Transfer) standard; L/C (Letter of Credit) available for major mining contracts; other terms negotiable based on order volume and customer relationship

10. Conclusion: Heli CQCTRACK as the Professional Heavy-Duty Choice for KOMATSU PC650-8 Undercarriage Components

The Heli CQCTRACK manufacturing philosophy for the KOMATSU 21M-27-11220 and 209-27-51170 Track Sprocket Assemblies represents a definitive advancement in heavy-duty undercarriage technology. Through rigorous material selection (utilizing high-grade 50Mn/35MnB alloy steels) , precision closed-die forging with grain flow alignment, advanced induction heat treatment protocols achieving optimal 50-58 HRC surface hardness with deep case depth (nearly twice standard) , precision 23-tooth configuration with 228mm pitch , and ISO 9001:2015 certified manufacturing processes , Heli CQCTRACK delivers sprocket assemblies that achieve and exceed OEM-quality performance standards for the most demanding KOMATSU PC650-8 heavy-duty excavator applications.

For the equipment manager or procurement specialist managing KOMATSU PC650-8, PC600-8, and compatible excavator fleets operating in mining, quarrying, heavy infrastructure, and large-scale earthmoving applications, the value proposition is clear: investing in Heli CQCTRACK heavy-duty sprocket components means investing in maximized machine availability, minimized unplanned downtime, extended component life in abrasive mining environments, and predictable, optimized total cost of ownership .

These are not generic replacement parts—they are heavy-duty engineered solutions validated through certified manufacturing processes, backed by comprehensive material traceability, and designed from the ground up to meet the demands of global mining and heavy construction applications where component failure is not an option.

11. References and Engineering Resources

For additional technical information, application engineering support, or to discuss heavy-duty OEM/ODM requirements:

• Engineering Consultation: Heli CQCTRACK applications engineers available to discuss specific mining duty cycles and recommend optimal component specifications.
• Technical Drawings: Detailed 2D and 3D CAD models available upon request for engineering verification.
• Installation Manuals: Comprehensive installation instructions aligned with KOMATSU service manual procedures available with each shipment .
• Material Certifications: Mill test reports and heat treatment certification available for each production batch.
• Fitment Support: Drawing or serial number verification available to confirm compatibility .

For technical specifications, heavy-duty OEM/ODM inquiries, pricing, or to place an order:

Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
*ISO 9001:2015 Certified • Heavy-Duty Crawler Excavator Undercarriage Parts Source Manufacturer • Global Supplier Since 2002*
Contact: Jack (International Sales Director)
Web: www.cqctrack.com
Product Range: Track Sprockets, Track Rollers, Carrier Rollers, Front Idlers, Track Chains, and Complete Undercarriage Systems for 0.8T to 300T Excavators and Bulldozers

This technical document is provided for engineering and procurement reference. Specifications subject to change due to continuous product improvement for heavy-duty applications. All brand names and part numbers are referenced for cross-reference purposes only; Heli CQCTRACK is an independent professional manufacturer specializing in undercarriage components for mining, construction, and earthmoving applications . Always verify machine serial number and undercarriage configuration before ordering
