KOMATSU 20Y-3000011 / 20Y30K1800 Single Flange Track Bottom Roller Assembly for PC200 | Mining-Grade Undercarriage | Manufacturer HE LI

Premium mining-grade single flange track bottom roller assembly for Komatsu PC200 excavators (P/N :20Y-3000011 / 20Y30K1800). Discover HE LI’s heavy-duty manufacturing for extreme-service undercarriage components.

Introduction: The Critical Role of Track Rollers in Heavy-Duty Excavator Undercarriages

In the severe operating environment of mining and heavy excavation, the undercarriage system is subjected to unparalleled levels of stress, abrasion, and impact. Track rollers, particularly the bottom rollers (also known as lower rollers), are fundamental to this system’s integrity and performance. They bear the direct weight of the machine, guide and support the track chain undercarriage, and are constantly exposed to shock loads, mineral abrasives, and mud. For a high-productivity machine like the Komatsu PC200 in mining configuration, utilizing a mining-quality undercarriage component is not an option—it is a necessity for operational continuity and cost management.

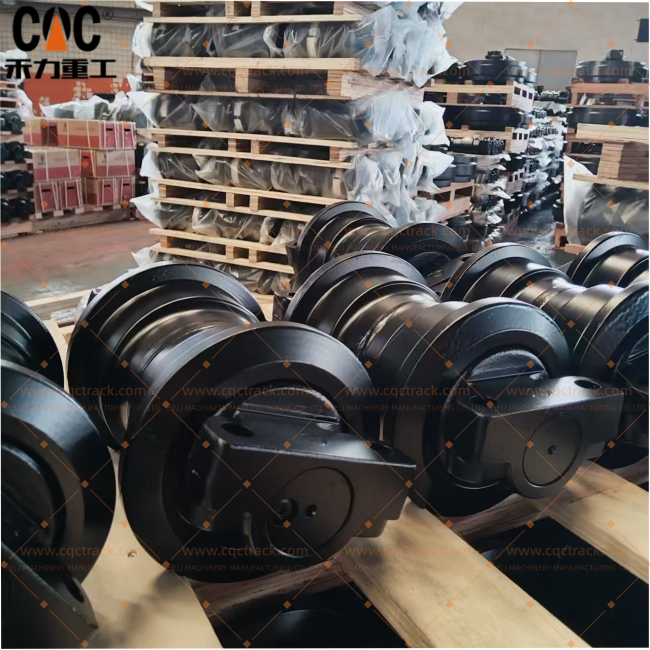

Technical Specification: Komatsu 20Y-3000011 / 20Y30K1800 Single Flange Track Bottom Roller Assembly

This specific assembly is engineered for Komatsu PC200-series excavators designated for severe-duty cycles. The part number 20Y-3000011 (also referenced as 20Y30K1800) identifies a Single Flange design bottom roller, a configuration that provides critical lateral guidance to the track chain while optimizing ground clearance and material shedding.

Design & Engineering for Mining Applications:

1. Function & Load Dynamics: The bottom roller supports the excavator’s weight on the lower track strand, distributing load to the track links and bushings. In mining, loads are constant and extreme. The roller’s internal diameter and wall thickness are substantially engineered to resist bending and deformation under maximum gross vehicle weight and dynamic shock.
2. Flange Design – Single vs. Double: The Single Flange design features one integral protruding flange. This configuration is strategically used in specific roller positions within the undercarriage to control track chain lateral movement (track “guidance”), prevent derailment, and reduce contact points where material (clay, mud, crushed rock) can accumulate, compared to double-flange rollers.
3. Material Science & Metallurgy: HE LI manufactures these rollers for mining service using:
   • Forged Alloy Steel Housings: The main roller body is forged from high-grade alloy steel (e.g., 40Mn2, 42CrMo), providing superior tensile strength and fatigue resistance over cast components.
   • Precision-Ground & Hardened Shaft: The inner shaft is manufactured from high-strength steel, precision-ground to micron-level tolerances, and hardened to resist bending and wear at the bearing interface.
   • Mining-Specific Hardfacing: Critical wear surfaces, particularly the flange face and roller tread path, often receive automatic submerged arc hardfacing with premium chromium carbide or similar alloy wires. This builds a wear-resistant layer significantly thicker than standard-duty rollers, extending service life in highly abrasive conditions.
4. Sealing & Bearing Technology: The core of durability lies in the internal sealing system, which protects the roller’s bearings from contamination—the primary cause of premature roller failure.
   • Multi-Labyrinth Seal Design: Incorporates multiple seal rings and protective flanges to create an extended, tortuous path for contaminants.
   • Heavy-Duty Grease Purge System: Utilizes robust, oversized sealing components and a grease channel that allows for positive pressure purging, actively expelling invading particles during routine maintenance.
   • Large-Diameter Roller Bearings: Specially selected or manufactured bearings with high dynamic load ratings to handle continuous high-load operation.

HE LI Manufacturing Focus: Heavy-Duty Excavator Chassis Components

HE LI specializes in the design and production of undercarriage components built not just to OEM specifications, but to the heightened demands of mining-quality (often referred to as “X-type” or “extended life”) service.

Key Manufacturing and Quality Processes:

• Forging & Heat Treatment: Components undergo closed-die forging for optimal grain flow, followed by normalized or quenched and tempered heat treatment to achieve the required core toughness and hardness profile.
• Automated Hardfacing: Robotic hardfacing cells ensure consistent, uniform weld deposition on wear surfaces, with precise control over dilution and heat input to preserve the base metal’s properties.
• Advanced Machining: CNC turning and boring guarantee precise dimensional accuracy for the roller bore, seal galleries, and flange profiles, ensuring perfect interchangeability and seal performance.
• Sealing System Assembly: Clean-room assembly procedures for the seal and bearing cartridge prevent initial contamination. Each assembly is pressure-tested for seal integrity.
• Comprehensive QC: The process is governed by dimensional checks, ultrasonic testing for forgings, hardness testing across tread and flange, and final run-out and rotational torque inspection.

Value Proposition & Application Guidance

HE LI’s 20Y-3000011 / 20Y30K1800 Single Flange Bottom Roller Assembly offers a direct, high-performance replacement for Komatsu PC200 excavators in mining, quarrying, and other severe applications.

• Performance Promise: Engineered to deliver extended service life through enhanced materials, superior hardfacing, and contaminant exclusion, directly targeting reduced cost-per-hour in the most punishing environments.
• System Compatibility: Designed for seamless integration with other undercarriage components. For optimal results and wear matching, it is recommended to evaluate the entire track chain, sprockets, and idlers as a system during major undercarriage refurbishment.
• Maintenance Advice: Regular inspection of the roller flange for wear and the roller body for scoring or groove formation is critical. Proper track tension and routine grease purging per manufacturer guidelines are essential to realize the full lifecycle of these heavy-duty components.

Conclusion

The Komatsu 20Y-3000011 (20Y30K1800) Single Flange Track Bottom Roller Assembly represents a critical wear component where engineering and material quality directly translate to machine availability. HE LI, with its dedicated focus on heavy-duty excavator chassis components manufacturing, applies specialized metallurgy, precision manufacturing, and a deep understanding of mining-cycle demands to this product. For equipment managers operating Komatsu PC200 excavators in severe conditions, selecting a mining-grade roller from a focused manufacturer like HE LI is a strategic decision aimed at maximizing uptime and optimizing long-term undercarriage costs.
