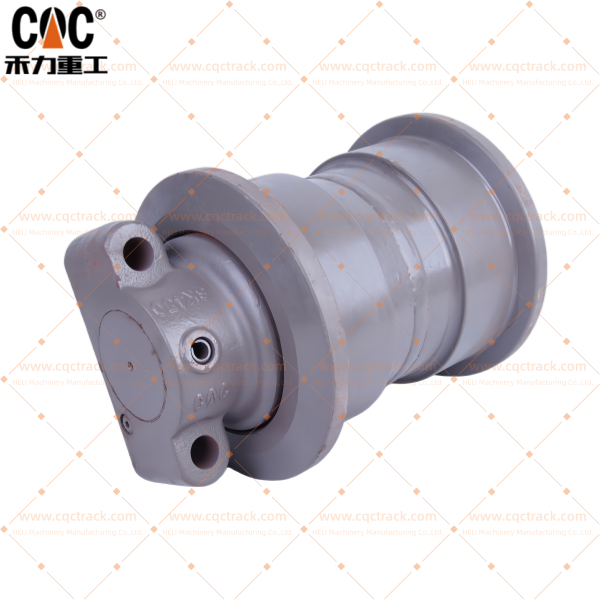

KOBELCO 24100N7039F3 24100N8642F2 72216674 SK450 SK460 SK480 SK520 Excavator Track Bottom Roller Assembly Heavy duty construction equipments spare parts source manufacturer / HeLi cqctrack

Comprehensive Technical Profile: KOBELCO 24100N7039F3 / 24100N8642F2 / 72216674 Track Bottom Roller Assemblies for SK450 / SK460 / SK480 / SK520 Excavators

Manufacturer: HELI (Brand: CQCTRACK) – Heavy-Duty Construction Equipment Spare Parts Specialist

Publication Date: 2024
Target Audience: Fleet Managers, Procurement Specialists, Heavy Equipment Dealers, Maintenance Engineers
Keywords: KOBELCO Track Roller, SK450 Bottom Roller, SK460 Undercarriage Parts, SK480 Track Roller Assy, SK520 Carrier Roller, 24100N7039F3, 24100N8642F2, 72216674, Excavator Chassis Parts, HELI CQCTRACK, Heavy-Duty Undercarriage, ODM Manufacturer, Mining Excavator Parts.

1. Executive Summary: The Critical Role of the Bottom Roller Assembly

The track bottom roller assembly (also known as the track carrier roller or lower roller) is the foundational component of any crawler excavator”s undercarriage system. Positioned along the bottom of the track frame, these assemblies bear the entire static and dynamic weight of the machine during operation, traveling, and digging. For heavy-duty construction and mining applications, the failure of a single bottom roller can lead to catastrophic track derailment, extensive downtime, and accelerated wear of the track chain and sprocket.

HELI (CQCTRACK) specializes in the precision manufacturing of these critical components. This profile details the KOBELCO-compatible track bottom roller assemblies—specifically referencing OEM part numbers 24100N7039F3, 24100N8642F2, and 72216674—engineered for the KOBELCO SK450, SK460, SK480, and SK520 large excavator series. As a direct source manufacturer, HELI provides heavy-duty equipment spare parts that meet or exceed OEM specifications, ensuring structural integrity and longevity in the world”s most demanding job sites .

2. Product Identification & Machine Compatibility

Ensuring precise dimensional and load-matching is paramount in undercarriage systems. The following assemblies are engineered as direct replacement units for specific KOBELCO models.

2.1 Reference Part Numbers

• 24100N7039F3: Standard heavy-duty bottom roller assembly.
• 24100N8642F2: Variant specification, often featuring enhanced seal technology for wet or abrasive environments.
• 72216674: Alternative OEM reference number, fully interchangeable with the above.

2.2 Target Machine Models

These assemblies are specifically designed to fit the following KOBELCO crawler excavator models:

• KOBELCO SK450
• KOBELCO SK460
• KOBELCO SK480
• KOBELCO SK520

Note: Due to variations in series (e.g., SK460 LC, SK480 LC), verification of track gauge, roller diameter, and mounting bolt patterns against the machine”s serial number is recommended.

3. Technical Engineering & Heavy-Duty Design Features

HELI’s manufacturing philosophy for these KOBELCO rollers focuses on three core tenets: Wear Resistance, Impact Absorption, and Contaminant Exclusion. Each assembly is a masterpiece of metallurgical engineering, designed for the punishing loads of mining and quarry operations .

3.1 Metallurgical Composition & Heat Treatment

• Raw Material: The roller body is constructed from high-carbon alloy steel (such as 50Mn or 40Cr), selected for its superior hardenability and toughness .
• Induction Hardening Process: The outer raceway (tread) and flange surfaces undergo a deep medium-frequency induction hardening process.
  • Surface Hardness: Achieves a robust HRC 55-62 on the wear surface. This creates a “shell” that resists abrasion from the track chain bushings.
  • Core Toughness: The core of the roller maintains a lower hardness (HRC 32-40), preserving ductility. This allows the roller to absorb severe shock loads without cracking or spalling .
• Shaft Integrity: The mounting shaft is manufactured from high-tensile steel, precision-ground, and often subjected to anti-corrosion treatments to prevent seizing within the track frame.

3.2 Load-Bearing Bearing System

The internal bearing system is the heart of the roller assembly. HELI utilizes heavy-duty tapered roller bearings.

• Load Distribution: Tapered roller bearings are specifically chosen for their ability to handle the combined radial (weight) and axial (thrust) loads generated during turning and operating on slopes.
• Preload Tolerances: Bearings are assembled with precise preload settings to eliminate internal clearance under load, reducing vibration and preventing shock loads from damaging the rolling elements .

3.3 Advanced “Triple-Protection” Sealing Technology

Seal failure is the number one cause of bottom roller failure. HELI employs a multi-stage sealing system designed specifically for KOBELCO’s harsh operating environments :

1. External Floating Ring / Dust Guard: A hardened steel ring creates a tight labyrinth interface, deflecting large debris (rocks, mud) and preventing physical damage to the primary seal.
2. Multi-Lip Nitrile (NBR) Seal: A primary sealing lip maintains constant contact with the rotating shaft, providing the final barrier against fine particles.
3. Labyrinth Grease Chamber: A precision-engineered path packed with high-temperature, extreme-pressure (EP) lithium-complex grease. This chamber acts as a “buffer zone”—any contaminant that bypasses the outer ring gets trapped in this grease, neutralizing it before it reaches the bearing cavity.

4. Manufacturer Profile: HELI (CQCTRACK) – A Vertically Integrated Source

As a professional ODM/OEM manufacturer based in Quanzhou, China, HELI (branded as CQCTRACK) distinguishes itself from simple traders through vertical integration and strict quality control .

4.1 In-House Production Capabilities

Unlike many suppliers who outsource components, HELI controls the entire manufacturing chain:

• Forging & Casting: Raw material is processed in-house to ensure grain flow optimization for maximum strength.
• CNC Machining: Computer-controlled lathes and machining centers guarantee that critical dimensions (bore diameter, width, flange profile) match KOBELCO blueprints within microns.
• Heat Treatment: Proprietary furnace and induction lines allow precise control over case depth, eliminating the risk of a thin, flaking hardened surface.

4.2 Quality Management System

• Certification: Operations are compliant with ISO 9001:2015 standards .
• Traceability: Each batch of material is spectrally analyzed to verify chemical composition. Heat treatment records are logged for full traceability.
• Testing Protocols: Finished assemblies undergo rigorous checks:
  • Dimensional Inspection: Using Coordinate Measuring Machines (CMM).
  • Hardness Testing: Rockwell tests on tread and core.
  • Rotational Torque Test: Ensuring the sealed roller rotates smoothly without “notchy” bearing movement.
  • Seal Efficiency Test: Pressure testing to validate the integrity of the sealing system .

5. Application, Maintenance, and Service Life Optimization

5.1 Operating Environment Suitability

These KOBELCO bottom rollers are optimized for:

• Mining & Quarrying: High-impact resistance to protect against rock damage.
• Heavy Construction: Endurance for continuous duty cycles.
• Demolition & Scrap Handling: Seal protection against metallic debris and fine dust.

5.2 Installation Best Practices

To maximize the lifespan of the 24100N7039F3 and 24100N8642F2 assemblies:

1. System Inspection: Before installing new rollers, inspect the track chain for excessive bushing wear. A “hogged” or stretched chain will create abnormal pressure points on new rollers, leading to premature flange wear.
2. Torque Specifications: Adhere strictly to KOBELCO’s original torque specifications for the mounting bolts. Under-torquing can cause movement and wear in the mounting ears; over-torquing can distort the roller frame or break bolts.
3. Break-In Period: Monitor the new rollers for the first 10-20 hours of operation. Check for unusual heat generation (indicating bearing drag) or seal leakage.

5.3 Lifecycle Management

• Wear Limits: Regularly measure the outer diameter (OD) of the roller. Replacement is typically required when the OD wears down by 5-10mm, or when flange thickness is reduced to the point where it can no longer guide the chain effectively.
• Preventative Maintenance: For machines operating in abrasive sand or water, consider flushing and re-lubricating if the roller design includes a grease fitting. For “sealed-for-life” units, visual inspection for seal damage is critical .

6. Customization & Global Supply Chain Solutions

HELI (CQCTRACK) operates not only as a supplier but as a development partner for heavy equipment industries .

6.1 ODM / Custom Engineering Services

• Sample Replication: Clients can send original samples or worn parts for metallurgical analysis and reverse engineering to create exact-match components.
• Design Modification: HELI’s R&D team can modify existing KOBELCO designs to incorporate larger bearings, enhanced seal profiles, or different material grades for specific ultra-heavy applications.
• Private Labeling: HELI offers white-label manufacturing, allowing distributors to sell these high-quality rollers under their own brand names.

6.2 Logistics and Export

Strategically located in Fujian Province, a major industrial and port hub, HELI ensures efficient global logistics. They offer flexible Incoterms (FOB, CIF, DAP) and provide comprehensive export documentation to facilitate smooth customs clearance worldwide .

7. Conclusion: The Strategic Choice for Undercarriage Reliability

The KOBELCO excavator track bottom roller assemblies (24100N7039F3, 24100N8642F2, 72216674) from HELI (CQCTRACK) represent the convergence of robust engineering and manufacturing excellence. By focusing on critical failure points—surface hardness, bearing capacity, and contaminant exclusion—HELI delivers a product that ensures the KOBELCO SK450, SK460, SK480, and SK520 machines maintain maximum uptime and productivity.

For procurement managers and equipment owners, sourcing directly from HELI offers a distinct advantage: OEM-grade quality at factory-direct pricing, backed by the technical expertise of a dedicated undercarriage manufacturer.

Contact HELI (CQCTRACK) for detailed specifications, drawings, or to discuss your heavy-duty undercarriage requirements.
