Technical White Paper: The HYUNDAI R130/HX140 Track Sprocket Group—Professional OEM Manufacturing Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-HYUNDAI-SPROCKET-07
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Models: HYUNDAI R130, HX140 Crawler Excavators
Component Portfolio: 81Q410010, 81Q510050, 81E610052
Machine Weight Class: 12.5 – 14.5 tons (dependent on configuration)
Publication Date: March 2026
Classification: Technical Engineering Specification / Professional OEM Undercarriage Parts Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Professional OEM Manufacturer for HYUNDAI R130/HX140 Undercarriage Components

In the precision-dependent realm of 13-ton class crawler excavator operations, the track sprocket group—alternatively designated as the final drive sprocket assembly—represents the critical terminus of the power transmission chain. This component performs the essential function of converting hydraulic motor torque, through the final drive reduction gearing, into linear tractive force via direct mechanical engagement with the track chain bushings . For the HYUNDAI R130 and HX140 platforms—versatile 13-14 ton class excavators widely deployed in urban construction, utilities, infrastructure development, and light quarry applications—the sprocket group stands as a mission-critical component determining propulsion efficiency, track alignment, and overall undercarriage longevity.

Heli Machinery (CQCTRACK) has established itself as a premier professional OEM manufacturer of undercarriage components for HYUNDAI applications, bridging the gap between genuine OEM parts and inconsistent aftermarket alternatives. This technical white paper provides a comprehensive engineering deconstruction of the HYUNDAI 81Q410010, 81Q510050, and 81E610052 Track Sprocket Groups, specifically engineered for the R130 and HX140 excavator platforms and their variants.

By integrating rigorous material science (utilizing high-grade alloys such as 40MnB, 35MnB, and 50Mn) , precision closed-die forging technologies with optimized grain flow , advanced heat treatment protocols achieving optimal hardness gradients (52-58 HRC surface with tough core) , and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers sprocket assemblies that achieve documented performance parity with—and in specific metrics beyond—original equipment specifications.

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership for their HYUNDAI R130 and HX140 excavator fleets operating in professional construction applications, this document serves as the definitive technical reference and OEM sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

Component Classification: Track Sprocket Group / Final Drive Sprocket Assembly / Drive Wheel
Target Machines: HYUNDAI R130, R130LC, HX140 Crawler Excavators
Operating Weight Range: 12,500 kg – 14,500 kg (dependent on configuration and year of manufacture)
Primary Function: Torque transmission from final drive to track chain via positive tooth engagement
Secondary Function: Track chain guidance and alignment maintenance during operation
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: Professional OEM-quality replacement components engineered for 1:1 mechanical interchangeability without modification

2.1 System Integration within Final Drive Assembly

The Track Sprocket Group does not function as an isolated component but constitutes the external working element of an integrated power transmission system:

• Final Drive Assembly Context: The sprocket is mounted directly to the output flange of the final drive reduction hub—a compact, high-reduction planetary gearbox housed within the track frame .
• Power Flow Architecture: Hydraulic motor → Reduction gearing → Planetary gear set → Output flange → Drive sprocket → Track chain → Machine propulsion .
• Mounting Configuration: The sprocket features a precision-machined bolt circle with counterbored holes for high-tensile alloy cap screws, secured with thread-locking compound per manufacturer specifications.

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK HYUNDAI R130/HX140 Sprocket Assemblies

The performance longevity of any track sprocket group operating in professional applications is determined by the synergistic interaction of four critical engineering subsystems: the sprocket wheel structure, tooth geometry, mounting interface, and heat treatment profile. Heli CQCTRACK engineers each of these subsystems with precision appropriate for the 13-14 ton class excavator application.

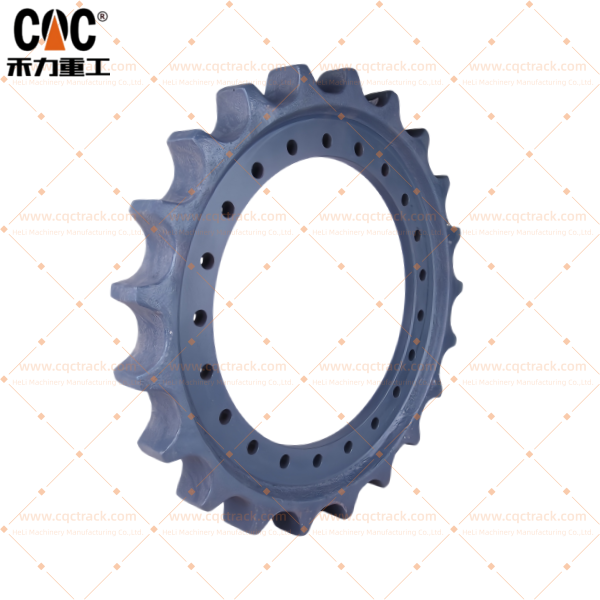

3.1 Sprocket Wheel Structure: Forged Metallurgy for Professional Applications

The sprocket wheel forms the core structural element of the assembly, transmitting the full tractive torque while resisting abrasive wear from continuous chain bushing engagement.

3.1.1 Material Selection and Alloy Engineering

Heli CQCTRACK employs strategic material selection based on application requirements, utilizing high-grade alloy steels proven in demanding undercarriage applications:

• Primary Material Grade: 40MnB or 35MnB Manganese-Boron Alloy Steel—selected for exceptional hardenability and impact toughness characteristics . These materials are widely specified for sprockets and segments in heavy-duty undercarriage systems.
• Alternative High-Performance Grade: 50Mn Alloy Steel—utilized for applications requiring enhanced wear resistance and surface durability .
• Manganese Function: Improves hardenability and tensile strength; ensures hardness penetration depth during quenching rather than forming a thin, brittle surface layer.
• Boron Micro-Alloying: Even in minute concentrations (parts per million), boron acts as a hardenability catalyst, significantly increasing the steel’s capacity to achieve a hard, martensitic structure upon quenching without inducing brittleness .

Table 2: Material Grade Comparison for Sprocket Applications

3.1.2 Forging versus Casting: A Critical Manufacturing Distinction

The manufacturing method fundamentally determines the internal grain structure and, consequently, the performance characteristics of the finished sprocket.

Forged Construction (Heli CQCTRACK Standard):

• Process: A solid steel billet is shaped under immense pressure at elevated temperatures through closed-die forging. Segments are hot forged for the optimum internal grain flow .
• Grain Structure Engineering: The forging process aligns the grain flow to follow the contour of the sprocket teeth and hub, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength . This optimized grain flow is critical for withstanding the cyclic loading inherent in excavator propulsion.
• Internal Integrity: Eliminates internal voids, porosity, and micro-inclusions common in castings; produces a dense, continuous structure.
• Performance Advantage: Superior impact strength and fatigue resistance for high-torque, abrasive environments characteristic of excavator applications .

Cast Construction (Industry Alternative):

• Process: Molten steel poured into a mold and allowed to solidify.
• Structural Limitations: Granular, potentially porous structure with possible micro-voids and non-uniform grain orientation.
• Performance Limitations: Lower tensile strength; more susceptible to cracking under high-stress cyclic loading.

Table 3: Forged versus Cast Sprocket Comparison

3.1.3 Tooth Profile Engineering

The sprocket teeth represent the critical wear interface with the track chain bushings, requiring precision geometry for optimal load distribution.

• Profile Geometry: Precision-machined with involute or modified trapezoidal profile engineered for optimal engagement with the track bushing (chain pin). The tooth profile is generated through CNC hobbing or shaping operations to ensure accuracy.
• Contact Stress Distribution: The engineered profile minimizes point contact, distributing immense contact stresses over a larger area to reduce localized wear.
• Tooth Flank Engineering: Flanks receive enhanced hardening depth compared to root areas to combat the primary wear mode—abrasive friction against rotating chain bushings.
• Clearance Optimization: Controlled clearance between teeth ensures proper chain engagement and disengagement, preventing binding or “tooth climbing” under load.

3.2 Heat Treatment Protocol: Achieving Optimal Hardness Gradient

The heat treatment process transforms the forged steel from its relatively soft state into a wear-resistant component capable of enduring thousands of operational hours.

3.2.1 Induction Hardening Technology

Heli CQCTRACK employs precision high-frequency induction hardening with full-circle medium-frequency induction quenching capability  to achieve optimal surface characteristics:

• Selective Hardening Process: High-frequency alternating current generates intense heat rapidly at tooth surfaces, followed by immediate quench. This creates a hardened case while maintaining core toughness.
• Low-Temperature Tempering: Following induction hardening, components undergo low-temperature tempering to relieve internal stresses while preserving hardness .
• Case Depth Control: Computer-controlled parameters (temperature profile, traverse speed, quench flow rate) ensure consistent case depth of 8-12 mm on tooth flanks and wear surfaces .

3.2.2 Dual Hardness Engineering

The sprocket achieves a dual hardness structure that optimizes both wear resistance and impact toughness:

• Surface Hardness: 52 – 58 HRC (Rockwell Hardness Scale C) on tooth flanks and wear surfaces . This martensitic surface layer provides the primary defense against abrasive wear from track chain bushings.
• Core Toughness: The tough, ductile core (maintaining hardness below 45 HRC) absorbs shock loads and prevents catastrophic tooth fracture under impact conditions .
• Hardness Gradient: Progressive transition from hard case to tough core prevents spalling and delamination under cyclic loading.

Table 4: Hardness Specifications—HYUNDAI R130/HX140 Sprocket Assembly

Engineering Rationale: The 52-58 HRC surface range provides optimal abrasion resistance against track chain bushings . Hardness below 50 HRC results in accelerated tooth wear and premature profile loss; hardness exceeding 58-60 HRC risks brittleness and tooth fracture under impact loads. The 8-12 mm case depth  ensures that as the surface wears over thousands of operational hours, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals. The minimum 5 mm depth at 45 HRC threshold  provides an additional safety margin.

3.2.3 Through-Hardening and Normalizing

Prior to induction hardening, the sprocket blank undergoes normalization heat treatment to refine grain structure and establish base mechanical properties:

• Normalizing: The forged blank is heated to approximately 850-900°C and air-cooled, producing a uniform, fine-grained microstructure with base hardness achieving HB235 or above .
• Base Material Preparation: This normalized structure provides consistent metallurgical characteristics for subsequent induction hardening.

3.3 Mounting Interface Engineering

The sprocket-to-final drive interface is critical for power transmission integrity and alignment maintenance.

• Bolt Circle Precision: Machined to exact center-to-center tolerances (±0.05mm) ensuring even load distribution across all mounting bolts. Precision machining of mounting surfaces ensures the best performance .
• Pilot Diameter: Precisely machined pilot on back face ensures perfect concentricity with final drive output flange, eliminating run-out and uneven load distribution.
• Counterbore Design: Engineered counterbores ensure proper bolt head seating and clamping force distribution.
• Sealing Interface: The mounting surface works in conjunction with the final drive’s radial lip seal, protecting internal planetary gear sets from contamination ingress.

3.4 Metallurgical Purity and Quality Assurance

Beyond primary alloying elements, control of trace elements and internal integrity significantly impacts final component performance.

• Low Alloyed Boron Steel Strategy: Specific low alloyed boron steel is used to achieve high hardenability while maintaining cost-effectiveness .
• Clean Steel Practice: Heli CQCTRACK utilizes “clean steel” with minimal detrimental inclusions, ensuring micro-crack-free components.
• Verification: Spectrochemical analysis confirms compliance with stringent specifications for carbon, manganese, and boron content.

4. Professional OEM Manufacturing Process Engineering

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating variance introduced by subcontracted processes and ensuring consistent OEM-quality output suitable for HYUNDAI R130 and HX140 applications.

4.1 Metallurgical Validation and Incoming Inspection

• Spectrochemical Analysis: Incoming steel billets undergo spectrochemical analysis to verify exact chemical composition—ensuring compliance with specifications for carbon, manganese, chromium, and boron content critical for hardenability.
• Ultrasonic Testing: Raw materials undergo ultrasonic inspection to detect any internal voids, inclusions, or discontinuities that could compromise structural integrity.
• Grain Structure Verification: Metallurgical samples confirm proper grain flow alignment in forged components .

4.2 Precision Forging and Machining Sequence

The manufacturing process follows a carefully orchestrated sequence of operations:

4.2.1 Raw Material Preparation

• Steel billets are cut to precise dimensions based on sprocket size and weight requirements.
• Material traceability is established from the initial cutting stage.

4.2.2 Hot Forging

• Billets are heated to forging temperature (approximately 1100-1200°C).
• Closed-die forging under high-tonnage presses shapes the billet, creating aligned grain structure that follows the sprocket contour .
• Flash is trimmed, and the forged blank undergoes visual inspection.

4.2.3 Normalizing Heat Treatment

• Forged blanks undergo normalizing to refine grain structure and establish consistent mechanical properties with base hardness achieving HB235 or above .

4.2.4 Rough Machining

• The normalized blank is mounted on CNC vertical turning lathes.
• Rough machining establishes basic dimensions, including hub diameter, back face, and preliminary tooth profile .

4.2.5 Precision CNC Machining

• Tooth Profile Generation: Gear hobbing or shaping machines cut the precise tooth profile, ensuring accurate pitch and pressure angle.
• Bolt Circle Drilling: Mounting holes are drilled on CNC drilling centers with precision fixturing to ensure exact hole spacing .
• Pilot Diameter Machining: The pilot diameter is machined to tight tolerances for concentricity with the final drive output flange.
• Counterboring: Mounting holes receive counterbores for proper bolt head seating.

4.2.6 Induction Hardening

• Medium-Frequency Induction Quenching: Teeth and wear surfaces undergo full-circle medium-frequency induction quenching .
• Computer-Controlled Processing: All parameters (power, frequency, traverse rate, quench flow) are digitally monitored to ensure consistent case depth of 8-12 mm .
• Low-Temperature Tempering: Following quenching, components undergo tempering at 150-250°C to relieve stresses while maintaining hardness .

4.2.7 Final Finishing Operations

• Tooth Grinding: After heat treatment, sprocket teeth are ground or polished to remove minor distortion, burrs, and scale, ensuring smooth engagement with track bushings .
• Surface Cleaning: Components undergo thorough cleaning to remove scale, residue, and quenching media .
• Final Dimensional Verification: All critical dimensions verified against specifications.

4.2.8 Surface Treatment and Coating

• Corrosion Protection: Components receive anti-corrosion treatment.
• Painting: Application of durable industrial paint (standard black or yellow, customizable per customer requirements) providing corrosion resistance and professional appearance .

4.3 Assembly and Quality Assurance Protocol

Every Heli CQCTRACK sprocket assembly undergoes rigorous multi-stage quality inspection:

1. Dimensional Inspection: 100% verification of critical mounting interfaces, tooth profile, bolt circle, and pilot diameter using calibrated CMM (Coordinate Measuring Machine) equipment.
2. Hardness Verification: Rockwell hardness testing on tooth surfaces; case depth verification through destructive sampling from each production batch .
3. Tooth Profile Inspection: Optical comparator or coordinate measurement verifies tooth geometry against master specifications.
4. Magnetic Particle Inspection (MPI): Non-destructive testing detects any surface or subsurface defects in critical areas, ensuring crack-free components .
5. Run-out Verification: Concentricity and axial run-out verified to <0.5mm.
6. Ultrasonic Testing: Sample testing per batch to verify internal integrity .
7. Metallurgical Analysis: Cross-sectional analysis verifies proper hardness gradient and case depth.
8. Traceability Marking: Permanent laser engraving or stamping with batch numbers and manufacturing date codes.
9. Export Packaging: Components secured in reinforced plywood crates or steel-framed pallets for international shipping protection .

5. Quality Certification and Supply Chain Assurance

Heli CQCTRACK’s commitment to professional OEM manufacturing quality is validated through internationally recognized certification frameworks.

5.1 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates under a certified ISO 9001:2015 Quality Management System, mandating:

• Documented procedures for all manufacturing processes
• Regular internal and external audits
• Continuous improvement protocols
• Complete traceability of materials and processes

5.2 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including:

• Material certification reports (Mill Test Certificates per EN 10204 3.1)
• Heat treatment process logs with digital monitoring data
• Dimensional inspection reports
• Batch-specific test results and hardness verification records
• NDT reports (MPI, ultrasonic)

5.3 Warranty and Performance Commitment

Each HYUNDAI 81Q410010, 81Q510050, and 81E610052 Track Sprocket Group manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship, underwritten by certified manufacturing processes and rigorous quality control protocols.

6. Application-Specific Engineering for HYUNDAI R130 and HX140 Excavators

6.1 HYUNDAI R130 Platform Overview

The HYUNDAI R130 crawler excavator represents a versatile 13-ton class platform widely deployed across construction applications. Key specifications include:

• Operating Weight Range: 12,500 kg – 13,500 kg (dependent on configuration)
• Engine Power: Approximately 70-80 kW
• Undercarriage Type: Standard or long-track (R130LC) configurations available
• Track Shoe Width: Typically 500-600 mm depending on application

6.2 HYUNDAI HX140 Platform Overview

The HX140 represents HYUNDAI’s next-generation 14-ton class excavator with enhanced performance characteristics:

• Operating Weight Range: 13,500 kg – 14,500 kg
• Engine Power: Approximately 80-90 kW (Tier 4 compliant)
• Undercarriage Design: Enhanced durability features for extended service life
• Application: Heavy construction, infrastructure, utility work

6.3 Part Number Specific Engineering Considerations

Table 5: Application-Specific Engineering Features by Part Number

6.4 Compatibility Verification Requirements

Before ordering, verify the following machine parameters to ensure correct sprocket selection:

• Machine Serial Number (for precise model year and configuration)
• Undercarriage type (standard vs. long track)
• Track shoe width and chain pitch
• Previous part number (if available for cross-reference)

7. Failure Mode Analysis and Professional Maintenance Integration

Understanding the mechanics of failure in 13-14 ton class excavator applications validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance.

7.1 Primary Failure Mode Analysis

Table 6: Failure Mode Analysis and Heli CQCTRACK Engineering Countermeasures

7.2 Recommended Professional Maintenance Practices

To maximize service life of Heli CQCTRACK sprocket assemblies in HYUNDAI R130 and HX140 applications:

1. Regular Inspection Interval: Inspect sprocket at 250-hour intervals (more frequently in severe applications) for evidence of abnormal wear patterns, tooth hooking, or visible damage . In heavy construction or quarry applications, more frequent inspections are recommended.
2. Wear Pattern Diagnosis:
   • Normal Wear: Gradual, uniform reduction in tooth profile.
   • Hooked Teeth: Indicates worn track chain bushings requiring replacement.
   • Asymmetric Wear: Indicates misalignment or track tension issues.
   • Tooth Pointing: Advanced wear requiring immediate replacement .
3. Track Tension Management: Maintain track tension per HYUNDAI specifications. Incorrect tension is a primary cause of accelerated sprocket wear—too tight increases tooth loading; too loose causes track slap and impact damage .
4. Paired Replacement Protocol: For optimal undercarriage economy, replace sprocket in conjunction with track chain assembly. Mismatched wear conditions (new sprocket with worn chain, or vice versa) accelerate wear of both components. Replace the sprocket and chain as a matched set to avoid uneven wear .
5. Bolt Torque Verification: Periodically verify sprocket mounting bolt torque per manufacturer specifications. Bolts should be secured with thread-locking compound.
6. Final Drive Oil Seal Inspection: Inspect seal area for leakage; contamination ingress through failed seals accelerates bearing and gear wear.
7. Systematic Replacement Threshold: Replace sprocket when:
   • Tooth wear exceeds 5-8mm reduction from original profile
   • Teeth exhibit hooking or pointing
   • Any tooth shows cracking or chipping
   • Wear pattern indicates case depth consumption (hardened layer worn through)
   • Inspect teeth for abnormal wear or cracking every 500–800 working hours

8. Technical Specifications Summary—HYUNDAI R130/HX140 Track Sprocket Group

Table 7: Technical Specifications Summary—Heli CQCTRACK HYUNDAI R130/HX140 Sprocket Assembly

9. Professional Sourcing and Logistics Support

Heli CQCTRACK supports global procurement operations with comprehensive logistics capabilities designed for professional equipment managers and procurement specialists:

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports (EN 10204 3.1) provided with each shipment.
• Flexible Shipping Options:
  • Sea freight (FCL/LCL) for cost-effective bulk transport
  • Air freight for urgent order fulfillment
  • Express courier (DHL/FedEx/UPS) for sample or emergency small-volume orders
• Packaging: All products are securely packed using high-quality export cartons, reinforced wooden cases, or industry-standard palletized packaging to ensure maximum protection during transit .
• Port of Shipment: Xiamen, China (primary) with capability for other major ports
• Lead Times: Standard production orders: 20-30 working days; stock items: 7-10 days for expedited shipping
• Minimum Order Quantity: Flexible MOQ accommodating both trial orders and fleet-level bulk procurement
• Payment Terms: T/T standard; L/C available for major contracts

10. Conclusion: Heli CQCTRACK as the Professional OEM Choice for HYUNDAI R130/HX140 Undercarriage Components

The Heli CQCTRACK manufacturing philosophy for the HYUNDAI 81Q410010, 81Q510050, and 81E610052 Track Sprocket Groups represents a definitive advancement in professional undercarriage technology. Through rigorous material selection (utilizing high-grade 40MnB/35MnB/50Mn alloy steels) , precision closed-die forging with grain flow alignment , advanced induction heat treatment protocols achieving optimal 52-58 HRC surface hardness with 8-12 mm case depth , and ISO 9001:2015 certified manufacturing processes, Heli CQCTRACK delivers sprocket assemblies that achieve and exceed OEM-quality performance standards for professional 13-14 ton class excavator applications.

For the equipment manager or procurement specialist managing HYUNDAI R130, R130LC, and HX140 excavator fleets operating in construction, utilities, infrastructure, and light quarry applications, the value proposition is clear: investing in Heli CQCTRACK professional sprocket components means investing in maximized machine availability, minimized unplanned downtime, extended component life in abrasive environments, and predictable, optimized total cost of ownership.

These are not generic replacement parts—they are professionally engineered solutions validated through certified manufacturing processes, backed by comprehensive material traceability, and designed from the ground up to meet the demands of global construction and earthmoving applications where component reliability is essential.

11. References and Engineering Resources

For additional technical information, application engineering support, or to discuss professional OEM requirements:

• Engineering Consultation: Heli CQCTRACK applications engineers available to discuss specific duty cycles and recommend optimal component specifications.
• Technical Drawings: Detailed 2D and 3D CAD models available upon request for engineering verification.
• Installation Manuals: Comprehensive installation instructions aligned with HYUNDAI service manual procedures available with each shipment.
• Material Certifications: Mill test reports and heat treatment certification available for each production batch.
• Fitment Support: Drawing or serial number verification available to confirm compatibility .

For technical specifications, professional OEM inquiries, pricing, or to place an order:

Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
ISO 9001:2015 Certified • Professional OEM Undercarriage Components Manufacturer • Global Supplier Since 2002
Contact: JACK (International Sales Director)
Web: www.cqctrack.com

This technical document is provided for engineering and procurement reference. Specifications subject to change due to continuous product improvement for professional applications. All brand names and part numbers are referenced for cross-reference purposes only; Heli CQCTRACK is an independent professional manufacturer specializing in undercarriage components for construction and earthmoving applications. Always verify machine serial number and undercarriage configuration before ordering.
