HYUNDAI Track Roller Assembly: OEM-Quality Chassis Components for R250-9, R260-9 & HX260 Series Excavators

In the competitive landscape of mid-to-large hydraulic excavators, HYUNDAI has established a reputation for delivering machines that balance performance, fuel efficiency, and structural durability. The R250-9, R260-9, and the next-generation HX260AL and HX260TL3 models represent the pinnacle of HYUNDAI’s engineering in the 25–28 metric ton class. Central to their operational reliability is the undercarriage—specifically the Track Roller Assembly, a component that bears the machine’s weight, guides the track chain, and absorbs the relentless impacts of construction, quarry, and heavy earthmoving applications.

This article provides an exhaustive technical analysis of HYUNDAI track roller assemblies, focusing on part numbers 81N611010GG, 81Q611010, and 81Q611011. It explores their engineering specifications, application compatibility across R and HX series platforms, metallurgical requirements for OEM-quality performance, and the manufacturing excellence delivered by CQC TRACK.

1. The Strategic Importance of the Track Roller Assembly

The track roller assembly—often referred to as the lower roller or bottom roller—is the load-bearing interface between the excavator and the ground. In the 25–28 ton class, each roller must withstand significant static and dynamic loads while maintaining precise track alignment.

Key functions include:

• Load Distribution: Transmits machine weight to the track chain, ensuring stable ground pressure across varying terrains.
• Track Guidance: Flanges maintain lateral alignment, preventing derailment during turning and traversing slopes.
• Impact Absorption: Attenuates shocks from rocks, debris, and uneven surfaces, protecting the track frame, idler, and final drive.
• Wear Management: Acts as a sacrificial wear component, preserving the integrity of the track chain and track frame.

For HYUNDAI R250-9, R260-9, and HX260 series machines—frequently deployed in quarry loading, heavy infrastructure, and mining support—the quality of track rollers directly influences undercarriage life, machine uptime, and total cost of ownership.

2. Component Identification and Application Mapping

The three part numbers covered in this article represent track roller assemblies used across HYUNDAI’s 25–28 ton excavator platforms:



Part Number	Compatible Models	Roller Type	Key Features

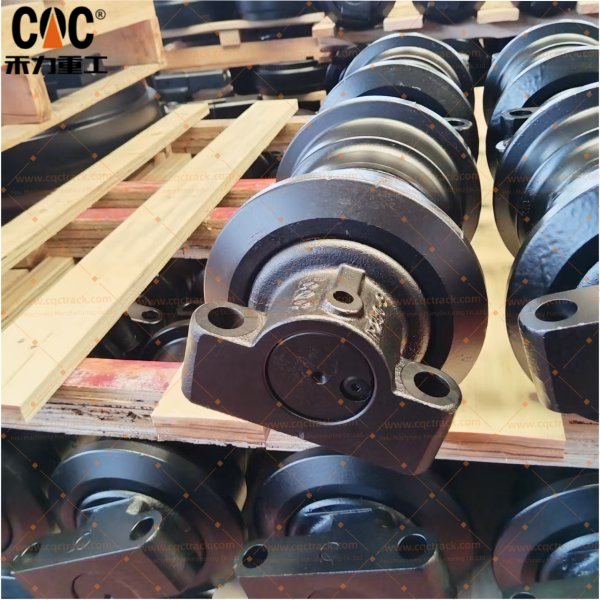

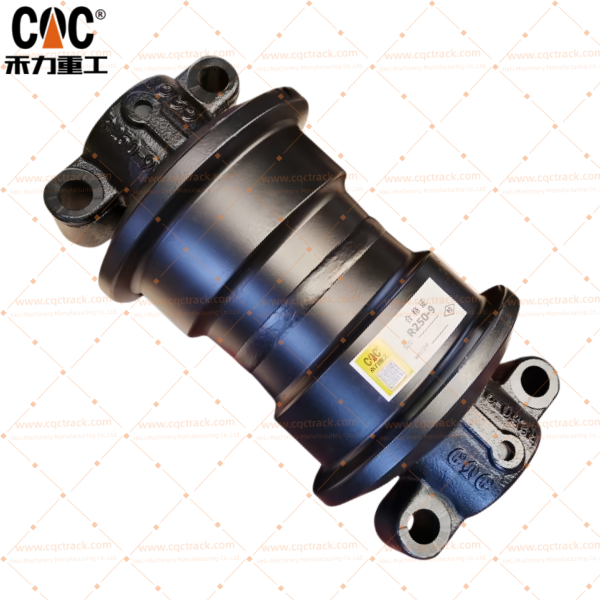

81N611010GG	R250-9, R260-9, HX260AL, HX260TL3	Single-flange bottom roller	OEM specification for standard undercarriage; optimized for general construction and earthmoving
81Q611010	R250-9, R260-9, HX260AL, HX260TL3	Single-flange bottom roller	Heavy-duty variant; reinforced flange geometry for higher lateral load applications
81Q611011	R250-9, R260-9, HX260AL, HX260TL3	Single-flange bottom roller	Updated sealing configuration; compatible with extended-service track chains

2.1 R-Series vs. HX-Series Platform Considerations

HYUNDAI’s evolution from the R-series to the HX-series introduced several undercarriage refinements:

• R250-9 / R260-9: Legacy platforms with proven durability; widely deployed in global markets; undercarriage components remain in high demand for aftermarket replacement.
• HX260AL / HX260TL3: Next-generation platforms featuring improved hydraulics, reduced fuel consumption, and enhanced undercarriage durability. The “AL” designation indicates standard undercarriage, while “TL3” denotes a longer track frame for increased stability.

Despite the generational evolution, the track roller mounting interfaces and dimensional specifications remain consistent, allowing the 81N611010GG, 81Q611010, and 81Q611011 rollers to serve both R-series and HX-series machines interchangeably.

3. Engineering Specifications for OEM-Quality Performance

3.1 Dimensional Parameters

Precision dimensions are essential for proper fitment and undercarriage alignment:

CQC TRACK utilizes CMM (Coordinate Measuring Machine) inspection to verify that each roller meets OEM dimensional tolerances within ±0.1 mm, ensuring drop-in fitment without modification.

3.2 Metallurgical Composition

OEM-quality track rollers require superior material properties to withstand continuous abrasion and impact:

Forged steel is essential for this weight class because the forging process eliminates internal voids and aligns grain structure, significantly enhancing resistance to crack initiation and propagation under cyclic loading.

3.3 Heat Treatment Profile

The heat treatment process determines the roller’s ability to resist wear while maintaining structural integrity:

• Surface Hardness (Tread and Flanges): 52–58 HRC
• Case Depth: 6–12 mm (depending on application; heavy-duty variants receive deeper case hardening)
• Core Hardness: 28–35 HRC for impact absorption
• Hardness Gradient: Gradual transition from hardened surface to ductile core prevents spalling and delamination

For the 81Q611010 heavy-duty variant, CQC TRACK applies a deeper case depth to extend wear life under the higher lateral loads encountered in quarry and slope operations.

3.4 Sealing System Integrity

Contamination ingress is the primary cause of premature roller failure. HYUNDAI excavators operate in environments ranging from urban construction to quarry rock—each presenting unique sealing challenges.

CQC TRACK’s track rollers incorporate:

• Duo-Cone Floating Seal Technology: Metal-faced seals with mirror-finished wear rings provide exceptional resistance to abrasive particles and water ingress.
• Seal Material Options: Nitrile rubber (NBR) for standard conditions; fluoroelastomer (FKM) for high-temperature or chemically aggressive environments.
• Precision O-Rings: Manufactured to tight tolerances to maintain consistent compression pressure.

Each assembled roller undergoes air pressure testing to verify seal integrity before shipment, ensuring leak-proof performance throughout the service life.

4. Distinguishing the Three Part Numbers

While all three part numbers serve the same machine platforms, there are important distinctions that buyers should understand:

4.1 81N611010GG – Standard Specification

This is the baseline OEM-equivalent roller for R250-9, R260-9, HX260AL, and HX260TL3 models. It features:

• Standard flange geometry suitable for general construction and earthmoving
• Case depth optimized for typical service intervals (4,000–6,000 hours)
• Standard sealing configuration (NBR floating seals)

4.2 81Q611010 – Heavy-Duty Variant

This roller is designed for applications involving higher lateral loads, such as:

• Quarry operations with frequent turning on uneven terrain
• Slope work and hillside excavation
• Machines equipped with long-track (TL3) undercarriages

Key differentiators:

• Reinforced flange thickness for increased lateral stability
• Deeper case hardening (8–12 mm) for extended wear life
• Enhanced sealing with optional FKM for high-temperature environments

4.3 81Q611011 – Extended-Service Configuration

This roller incorporates an updated sealing system designed for:

• Wet or muddy conditions requiring superior contamination exclusion
• Extended service intervals (targeting 6,000–8,000 hours)
• Machines operating in high-humidity or coastal environments

The 81Q611011 features the same dimensional specifications as the 81Q611010 but with upgraded floating seals and premium bearing materials.

5. OEM-Quality Manufacturing: The CQC TRACK Advantage

The designation “OEM Quality” implies manufacturing standards that meet or exceed the specifications of original equipment. For HYUNDAI track rollers, CQC TRACK adheres to rigorous protocols across the production process.

5.1 Material Traceability

Every batch of steel used for forging rollers is accompanied by mill test certificates (MTC) certifying chemical composition and mechanical properties. This traceability ensures that each roller meets or exceeds HYUNDAI’s material specifications.

5.2 Precision Forging and Machining

CQC TRACK employs:

• Precision forging to achieve near-net shape, minimizing material waste and optimizing grain structure
• CNC machining centers with robotic loading to ensure consistent dimensional accuracy across large production runs
• FAI (First Article Inspection) reports for new production orders, documenting all critical dimensions

5.3 Automated Heat Treatment

Induction hardening is performed using computer-controlled cells with real-time temperature monitoring. This ensures:

• Uniform case depth across all rollers
• Consistent hardness profiles batch after batch
• Minimal distortion, preserving dimensional accuracy

5.4 Seal Integrity Testing

Rollers are assembled in clean-room conditions to prevent contamination during assembly. Each roller undergoes:

• Low-pressure air testing to verify floating seal performance
• Rotational testing to confirm smooth operation and absence of bearing defects

5.5 Final Inspection and Packaging

Finished rollers undergo:

• Visual inspection for surface finish and weld quality
• Dimensional audit using CMM on a statistically significant sample
• Protective packaging to prevent corrosion during transit and storage

6. Application-Specific Considerations

6.1 R250-9 and R260-9 – Legacy Fleet Support

The R250-9 and R260-9 remain widely deployed in many global markets, particularly in regions where equipment is maintained beyond typical economic life. For these legacy machines, sourcing OEM-quality aftermarket rollers is essential to keeping older fleets operational. The 81N611010GG roller provides a direct replacement for original components, while the 81Q611010 offers an upgrade path for machines operating in more demanding conditions.

6.2 HX260AL – Standard Undercarriage

The HX260AL features a standard-length undercarriage optimized for general construction and earthmoving. The 81N611010GG roller is the appropriate specification for this platform, providing reliable performance within typical service intervals.

6.3 HX260TL3 – Long-Track Undercarriage

The HX260TL3 features an extended track frame for increased stability and reduced ground pressure—ideal for quarry loading, slope work, and soft terrain. The longer track frame increases lateral loads on the outer rollers, making the 81Q611010 heavy-duty variant the preferred choice for this configuration.

7. Installation and Maintenance Best Practices

To achieve maximum service life from HYUNDAI track rollers, proper installation and ongoing maintenance are essential:

7.1 Installation Guidelines

• Bolt Torque: Use new, grade 10.9 or 12.9 bolts. Torque to manufacturer specifications (typically 280–380 Nm depending on bolt size). Follow a cross-pattern tightening sequence.
• Alignment: Verify that all track rollers are parallel to the track frame. Misalignment causes uneven flange wear and increases derailment risk.
• Cleanliness: Clean mounting surfaces thoroughly before installation to prevent debris from affecting alignment or torque retention.

7.2 Maintenance Practices

• Visual Inspection: Regularly inspect rollers for oil leakage (indicating seal failure), flange wear, or unusual noise during operation.
• Wear Synchronization: Replace track rollers as a complete set on both sides of the machine. Mixing new and worn rollers accelerates wear on newer components.
• Track Tension: Maintain proper track tension according to HYUNDAI specifications. Over-tensioning increases roller load; under-tensioning causes track slap and impact damage.

8. Why Source from CQC TRACK?

As a specialized manufacturer of excavator chassis components, CQC TRACK offers distinct advantages for international buyers seeking HYUNDAI track rollers:

9. Conclusion

The HYUNDAI 81N611010GG, 81Q611010, and 81Q611011 Track Roller Assemblies are essential components for maintaining the mobility, stability, and productivity of R250-9, R260-9, HX260AL, and HX260TL3 excavators. These machines operate across a spectrum of demanding applications—from urban construction to quarry loading—requiring undercarriage components that deliver consistent reliability under continuous load.

For aftermarket distributors, fleet managers, and equipment rebuilders, sourcing these components from a manufacturer like CQC TRACK ensures OEM-quality durability combined with engineering precision and supply chain responsiveness. By combining advanced forging, induction hardening, and rigorous quality control with deep expertise in HYUNDAI undercarriage systems, CQC TRACK delivers track rollers that perform with the longevity and reliability demanded by today’s most challenging applications.

In the competitive global aftermarket, choosing the right undercarriage partner is not merely a procurement decision—it is a strategic investment in operational uptime, customer satisfaction, and long-term business success.

Disclaimer: Part numbers and model references are provided for cross-reference purposes only. They are intended to indicate compatibility with original equipment manufacturer (OEM) specifications. CQC TRACK is an independent manufacturer of aftermarket undercarriage components.
