Technical White Paper: The HYUNDAI R220/HX Series Track Bottom Roller Assemblies—Heavy-Duty Mining-Grade Engineering Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-HYUNDAI-MINING-04
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Models: HYUNDAI R220, R250-9, R260-9, HX220, HX235, HX260L Excavators
Component Portfolio: 81N611010, 81Q611010, 81Q611011, 81N811051G9
Publication Date: March 2026
Classification: Technical Engineering Specification / Mining-Grade Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Definitive Mining-Grade Undercarriage Source for HYUNDAI Excavators

In the demanding realm of heavy mining and large-scale earthmoving operations, the undercarriage system represents the critical interface between machine weight and ground contact—a component group subjected to continuous abrasive wear, cyclical impact loading, and relentless environmental contamination. For the HYUNDAI R220, R250-9, R260-9, HX220, HX235, and HX260L excavator platforms—machines routinely deployed in mining, quarrying, and heavy infrastructure development—the track bottom roller assembly stands as the single most maintenance-intensive component determining machine availability, operating costs, and total cost of ownership .

Heli Machinery (CQCTRACK) has established itself as a premier manufacturer and supplier of mining-quality undercarriage components for HYUNDAI excavators, bridging the gap between genuine OEM parts and inconsistent aftermarket alternatives. This technical white paper provides a comprehensive engineering deconstruction of the HYUNDAI 81N611010, 81Q611010, 81Q611011, and 81N811051G9 Track Bottom Roller Assemblies, specifically engineered for the 20–26 ton class excavator platforms operating in severe mining environments .

By integrating rigorous material science, precision manufacturing protocols, ISO 9001:2015 certification, and mining-validated design iterations, Heli CQCTRACK delivers components that achieve documented performance parity with—and in specific metrics beyond—original equipment specifications .

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership for their HYUNDAI medium-class excavator fleets operating in mining applications, this document serves as the definitive technical reference and sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

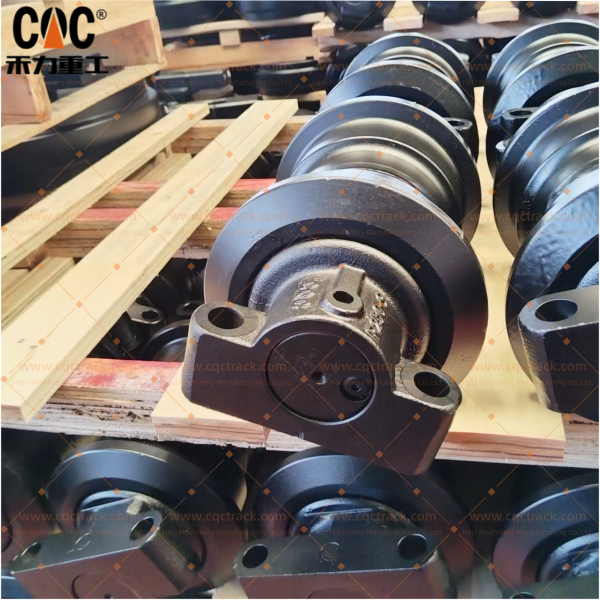

Component Classification: Track Roller Assy / Track Bottom Roller Assembly / Lower Carrier Roller
Operating Weight Range: 20,000 kg – 26,000 kg (Excavator operating weight class)
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: Mining-grade replacement components engineered for 1:1 mechanical interchangeability without modification, validated for severe-duty applications .

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK HYUNDAI Mining-Grade Roller Assemblies

The performance longevity of any track bottom roller assembly operating in mining environments is determined by the synergistic interaction of four critical engineering subsystems: the shell metallurgy, the bearing interface, the sealing architecture, and the mounting integrity. Heli CQCTRACK engineers each of these subsystems with precision appropriate for the 20–26 ton class excavator application in severe mining conditions .

3.1 Roller Shell and Flange System: Forged Metallurgy for Mining Abrasion Resistance

• Material Selection and Grain Structure Engineering: Each Heli CQCTRACK roller body for the 81N611010, 81Q611010, and 81Q611011 series is precision-forged from high-grade micro-alloyed steel—specifically 50Mn, 40MnB, or 40Mn2Bh alloy steel—selected for its exceptional hardenability and impact toughness characteristics essential for mining applications . The forging process is metallurgically critical: it aligns the grain flow to follow the contour of the roller, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength compared to cast alternatives. This forged foundation ensures the component can absorb the repetitive high-energy shocks of loading cycles in mining, quarrying, and demolition environments without catastrophic brittle fracture .

• Flange Geometry Engineering: The single-flange guidance system (applicable to these HYUNDAI series) is engineered to exacting profiles to interface precisely with the track link counterparts. This precision prevents lateral derailment during turning maneuvers and minimizes friction under load, preserving machine power and reducing fuel consumption in mining operations. The inner flange surfaces undergo the same hardening protocol as the running surface to resist wear from lateral link contact under high side-load conditions typical in mining applications .

• Differential Heat Treatment Protocol for Mining Duty: The running surface and flange sides undergo computer numerical control (CNC) induction hardening with real-time temperature monitoring to achieve mining-grade durability.

  • Surface Hardness: 58 – 62 HRC (Rockwell Hardness Scale C). This martensitic surface layer provides the primary defense against abrasive wear from silica sand, crushed rock, and mineral ores encountered in mining environments .

  • Effective Case Depth: 8 – 12 mm minimum. This deep-case hardening ensures that as the surface wears over thousands of operational hours in abrasive mining conditions, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals .

  • Core Toughness Retention: 35 – 40 HRC. The tough, ductile core beneath the hardened case absorbs shock loads, preventing spalling and structural failure under impact conditions typical in quarry and mine applications .

3.2 The Sealing and Bearing System: A Fortified Tribological Interface for Contaminated Environments

Industry data consistently demonstrates that over 90% of premature undercarriage failures originate from contamination ingress leading to seal bypass—a failure mode dramatically accelerated in mining environments. Heli CQCTRACK addresses this failure mode through a multi-stage sealing architecture validated for extreme contamination .

• Shaft Metallurgy and Surface Engineering: The stationary shaft is machined from high-tensile 40Cr or 20CrMnTi alloy steel with precision-ground and chrome-plated seal contact areas . Following CNC turning, the shaft is precision-ground to a mirror-like surface finish (Ra ≤ 0.4 μm). Chrome plating reduces friction and adhesive wear against seal lips, a critical factor in extending seal life in abrasive mining environments .

• Bushing Technology: The rotational interface utilizes high-density, oil-impregnated sintered bronze bushings. This material provides low friction coefficient and excellent conformability under load. The embedded lubricant acts as a secondary emergency lubrication source—a fail-safe mechanism should the primary lubrication path be compromised. These assemblies are designed as sealed and lubricated-for-life components, requiring no routine maintenance greasing .

• Multi-Stage Pressure-Adaptive Sealing System for Mining: Heli CQCTRACK engineers utilize a proprietary Labyrinth + Floating Ring + Radial Lip sealing architecture validated for the most severe mining applications :

  • Primary Defense (Labyrinth): A grease-purged labyrinth path uses complex geometry to centrifugally eject large particulate matter such as mud, coarse sand, and mining debris.

  • Secondary Defense (Floating Wear Ring): A precisely machined hardened steel ring (HRC 55+) creates a sacrificial barrier, protecting the primary seal from physical damage while maintaining consistent sealing gap .

  • Final Barrier (Radial Lip Seal): The ultimate seal is a dual-element nitrile rubber (NBR) or optional fluoroelastomer (FKM/Viton®) radial lip seal, energized by a constant-force garter spring to maintain tight shaft contact, retaining high-viscosity lithium complex EP grease and excluding fine abrasive “fines” characteristic of mining environments .

3.3 Mounting Interface Engineering

The mounting bosses at each end of the shaft provide the critical bolting interface to the excavator’s track frame. Heli CQCTRACK ensures:

• Precision-drilled mounting holes with exact center-to-center dimensions verified by CMM inspection

• Proper counterbore depth for correct bolt seating to distribute clamping forces evenly

• Surface flatness within 0.1mm to ensure even load distribution and prevent mounting stress

• Thread verification for all mounting hardware interfaces to ensure proper bolt engagement

4. Mining-Grade Manufacturing Process Engineering: From Raw Material to Certified Assembly

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating the variance introduced by subcontracted processes and ensuring consistent mining-grade quality output .

4.1 Metallurgical Validation and Incoming Inspection for Mining Duty

• Spectrochemical Analysis: Incoming steel coils and billets are subjected to spectrochemical analysis to verify exact chemical composition, ensuring compliance with stringent specifications for carbon, manganese, chromium, and boron content critical for hardenability in mining-grade components .

• Ultrasonic Testing: Forged blanks undergo ultrasonic inspection to detect any internal voids, inclusions, or discontinuities that could compromise structural integrity under the high-impact loads characteristic of mining operations .

• Grain Structure Verification: Metallurgical samples are examined to confirm proper grain flow alignment from the forging process, ensuring anisotropic strength properties .

4.2 Precision Machining and Heat Treatment

• CNC Turning and Grinding: Multi-axis CNC vertical turning lathes and centerless grinding centers ensure that all critical dimensions—roller outside diameter, flange width, bore concentricity, and seal gland profiles—are held to tolerances within ±0.05mm (IT7-IT8 grade) .

• Digitally Monitored Induction Hardening: All induction hardening parameters (temperature profile, traverse speed, quench flow rate) are digitally monitored and logged, creating a permanent, auditable record for each production batch. This ensures consistent 8-12mm case depth across all rollers .

• Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) is employed to detect any subsurface defects or cracks in the forged components before machining .

4.3 Assembly and Quality Assurance Protocol

Every Heli CQCTRACK roller assembly undergoes a rigorous multi-stage quality inspection process validated for mining-grade components :

1. Dimensional Inspection: 100% verification of critical mounting interfaces and running surfaces using calibrated CMM (Coordinate Measuring Machine) equipment.

2. Hardness Verification: Rockwell hardness testing on shell surfaces and case depth verification through destructive sampling from each production batch.

3. Radial Runout Verification: Each roller is inspected for radial runout (<0.5mm) to ensure smooth track operation and reduced vibration in mining applications .

4. Seal Integrity Testing: Each assembled roller undergoes air pressure decay testing to validate seal performance before lubrication—a critical validation for mining applications where contamination is extreme .

5. Rotational Torque Verification: Consistent rotational torque is verified, confirming proper bearing/bushing pre-load and lubrication .

6. Running-In Procedure: Selected samples undergo simulated load testing to verify smooth rotation and proper internal clearance under load conditions simulating mining duty cycles .

7. Corrosion Protection: Final assemblies receive anti-rust coating and paint application (standard black/yellow or customized per customer requirements) .

8. Export Packaging: Components are secured in reinforced plywood crates or palletized packaging for international shipping protection .

5. Mining-Grade Performance Validation and Quality Certification

5.1 Performance Validation for Mining Applications

Heli CQCTRACK mining-grade roller assemblies undergo rigorous validation testing to ensure performance in the most demanding environments:

• Static Load Rating: Components are designed to withstand the full dynamic loads of 20–26 ton class excavators operating in mining applications, including impact loads from loading cycles .

• Seal Contamination Testing: Sample units undergo extended rotational endurance and seal contamination tests, including immersion in abrasive slurry to validate sealing performance in mining conditions .

• Fatigue Testing: Mining-grade components undergo accelerated life testing on custom rigs simulating real-world conditions—cyclic radial loading and high-hour endurance runs—to validate design robustness .

5.2 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates under a certified ISO 9001:2015 Quality Management System. This certification mandates :

• Documented procedures for all manufacturing processes

• Regular internal and external audits

• Continuous improvement protocols

• Complete traceability of materials and processes

5.3 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including :

• Material certification reports (Mill Test Certificates per EN 10204 3.1)

• Heat treatment process logs with digital monitoring data

• Dimensional inspection reports

• Batch-specific test results and hardness verification records

5.4 Warranty and Performance Commitment

Each HYUNDAI 81N611010, 81Q611010, 81Q611011, and 81N811051G9 Track Bottom Roller Assembly manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship. This warranty is underwritten by the certified manufacturing processes and rigorous quality control protocols detailed throughout this document .

6. Application-Specific Engineering for HYUNDAI R220, R250-9, R260-9, HX220, HX235, and HX260L Excavators

The undercarriage configurations across these HYUNDAI platforms share common engineering principles but require specific dimensional verification for optimal performance in mining applications.

Table 2: Machine Application and Compatibility Verification for Mining Duty

Note: Verify machine Serial Number prefix for exact undercarriage configuration before ordering. Long-track configurations may require additional verification .

6.1 HYUNDAI R220 and HX220 Series Specific Considerations (Part Numbers: 81N611010, 81N811051G9)

The R220 and HX220 platforms represent the entry point to HYUNDAI’s medium-heavy excavator lineup, frequently deployed in quarry support and light mining applications. Heli CQCTRACK engineers have optimized the 81N611010 variant for the specific load profiles and track pitch configurations of these models . Key considerations include:

• Track Pitch Compatibility: Precision-matched to HYUNDAI 20-ton class link spacing

• Load Rating: Engineered for dynamic loading profiles typical in quarry loading applications

• Flange Profile: Optimized for track chain guidance under moderate side-load conditions

6.2 HYUNDAI R250-9 and R260-9 Specific Considerations (Part Numbers: 81Q611010, 81Q611011)

The R250-9 and R260-9 represent HYUNDAI’s dedicated mining and heavy construction platforms with increased operating weights and enhanced performance characteristics. The 81Q611010 and 81Q611011 variants feature enhanced case depth (verified 10-12mm) and upgraded sealing for applications involving high abrasion materials typical in production mining and quarry environments . The 81Q611011 specifically incorporates advanced seal geometry for machines operating in wet mining conditions or high-silt environments.

6.3 HYUNDAI HX235 and HX260L Specific Considerations (Part Numbers: 81N611010, 81Q611010)

The HX series represents HYUNDAI’s next-generation excavator platform with enhanced durability features. The HX235 and HX260L, with their higher operating weights and often more severe duty cycles, require rollers with increased load capacity. Heli CQCTRACK specifies enhanced heat treatment protocols for these applications to accommodate the dynamic loading characteristic of production mining .

7. Failure Mode Analysis and Proactive Mining Maintenance Integration

Understanding the mechanics of failure in mining environments validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance in severe-duty applications .

7.1 Primary Failure Mode Analysis for Mining Applications

• Primary Failure Mode: Seal Bypass and Contamination Ingress. In inferior rollers operating in mining environments, abrasive particles (silica dust, crushed rock fines) breach the seal, transforming lubricant into lapping compound and rapidly wearing the bushing and shaft interface. This leads to roller seizure and flat-spot development. Heli Solution: The multi-stage labyrinth and floating ring sealing system is validated for high-contamination mining environments, with optional FKM seals for extreme conditions, significantly extending contamination-free service life .

• Secondary Failure Mode: Flange Wear and Spalling. Shallow-hardened rollers wear quickly in mining applications, losing guiding capability and leading to track misalignment and accelerated link wear. Heli Solution: Deep-case induction hardening (8-12mm minimum case depth with 58-62 HRC surface) provides a sacrificial wear layer that maintains flange profile and proper track engagement throughout the service life in abrasive mining conditions .

• Tertiary Failure Mode: Structural Fracture from Impact. Brittle materials or inadequate core toughness can crack under the high-impact loads characteristic of mining operations (loading shocks, rough terrain). Heli Solution: Forged 50Mn/40MnB steel with optimized core toughness (35-40 HRC) ensures the roller absorbs shock loads without fracture, protecting the track frame and final drive from transmitted stresses .

• Quaternary Failure Mode: Bushing Seizure. Inadequate lubrication or contamination leading to metal-to-metal contact causes bushing seizure and roller locking. Heli Solution: Oil-impregnated sintered bronze bushings provide emergency lubrication even if primary grease is compromised .

7.2 Recommended Mining Maintenance Practices

To maximize service life of Heli CQCTRACK roller assemblies in mining applications :

1. Regular Inspection Interval: Inspect rollers at 250-hour intervals (more frequently in severe mining applications) for evidence of oil leakage, abnormal wear patterns, or visible flat spots. In mining environments, weekly visual inspections are recommended .

2. Rotation Check: Ensure all rollers turn freely—a seized roller will be visibly worn flat and cause accelerated track chain wear. Any roller exhibiting restricted rotation should be replaced immediately .

3. Cleanliness Protocol: Remove accumulated debris around roller flanges during daily greasing routines to prevent accelerated packing and seal damage. In mining applications, high-pressure washing of the undercarriage should be performed regularly to prevent mud packing .

4. Track Tension Management: Always maintain track tension according to HYUNDAI manufacturer specifications. Incorrect tension is a primary cause of accelerated undercarriage wear in mining applications—too tight accelerates roller and bushing wear, too loose causes track whip and impact damage .

5. Environmental Consideration: For machines operating in acidic/alkaline soils, salt water environments, or extended idle periods in wet mining conditions, specify FKM seals and enhanced corrosion protection options .

6. Systematic Replacement Protocol: For optimal undercarriage economy in mining applications, assess roller wear in conjunction with track chain, sprocket, and idler condition. Replacing severely worn components in matched sets prevents accelerated wear on new parts. Rollers should be replaced when wear reduces diameter by 5-8mm or when flange height is reduced by 3-5mm .

7. Rotation Protocol: Where undercarriage configuration permits, rotate rollers between positions at 1000-hour intervals to equalize wear patterns, though this practice is less common in sealed-for-life mining applications .

8. OEM and ODM Manufacturing Capabilities for Mining Applications

As a full-service manufacturer, Heli CQCTRACK offers comprehensive OEM and ODM capabilities to meet diverse mining customer requirements .

8.1 OEM (Original Equipment Manufacturer) Services for Mining

• Specification-Based Manufacturing: Production strictly according to HYUNDAI part numbers and technical specifications with full material certification.

• Dimensional Conformance: Guaranteed 1:1 interchangeability with genuine HYUNDAI components verified by CMM inspection.

• Material Compliance: Certified materials (50Mn, 40MnB, 40Cr) meeting or exceeding original specifications with mill certificates available.

• Brand Neutral Packaging: Available with customer-specified packaging and labeling for mining distributors and OEM programs .

8.2 ODM (Original Design Manufacturer) Services for Severe Duty

• Custom Engineering: Design and development of proprietary undercarriage components based on customer performance requirements for specific mining applications.

• Sample-Based Manufacturing: Ability to reverse-engineer and manufacture from customer-provided samples with full dimensional verification.

• Drawing-Based Production: Manufacturing to customer-supplied 2D or 3D CAD drawings with engineering review and optimization recommendations.

• Material Upgrades: Option to specify enhanced materials (55Mn, boron-enhanced alloys) or heat treatment protocols for severe mining applications beyond standard specifications.

• Seal Customization: Selection of seal compounds (NBR, FKM/HNBR) based on operating environment chemistry and temperature ranges .

8.3 Prototyping and Testing Support for Mining Applications

• Rapid prototyping capabilities for design validation before volume production

• In-house testing facilities for performance verification under simulated mining conditions

• Collaborative engineering support throughout development cycle for mining equipment manufacturers

9. Global Sourcing and Logistics Support for Mining Operations

Heli CQCTRACK supports global mining procurement operations with comprehensive logistics capabilities designed for the demanding schedules of mining operations :

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports (EN 10204 3.1) provided with each shipment to support international customs clearance and quality verification.

• Flexible Shipping Options for Mining Operations:

  • Sea freight (FCL/LCL) for cost-effective bulk transport to mining regions worldwide

  • Air freight for urgent order fulfillment when mining operations face critical downtime

  • Express courier (DHL/FedEx/UPS) for sample or emergency small-volume orders

• Port of Shipment: Xiamen, China (primary) with capability for other major ports based on customer requirements

• Lead Times: Standard orders typically ship within 20-30 working days; stock items available for expedited shipping within 7-10 days for mining emergency requirements

• Minimum Order Quantity: Flexible MOQ structure accommodating both trial orders for new mining operations and fleet-level bulk procurement for major mining enterprises

• Payment Terms: T/T (Telegraphic Transfer) standard; L/C (Letter of Credit) available for major mining contracts; other terms negotiable based on order volume and customer relationship

10. Technical Specifications Summary—HYUNDAI Mining-Grade Track Bottom Rollers

Table 3: Technical Specifications Summary—HYUNDAI R220/HX Series Mining-Grade Track Bottom Rollers

11. Conclusion: Heli CQCTRACK as the Engineering-First Choice for HYUNDAI Mining-Grade Undercarriage Components

The Heli CQCTRACK manufacturing philosophy for the HYUNDAI 81N611010, 81Q611010, 81Q611011, and 81N811051G9 Track Bottom Roller Assemblies represents a definitive advancement in mining-grade undercarriage technology. Through rigorous material selection, precision forging and machining, advanced deep-case heat treatment protocols, and multi-stage sealing architecture validated for extreme contamination, Heli CQCTRACK delivers components that achieve and exceed OEM-quality performance standards for the most demanding mining applications .

For the equipment manager or procurement specialist managing HYUNDAI R220, R250-9, R260-9, HX220, HX235, or HX260L HX275 excavator fleets operating in mining, quarry, and heavy infrastructure environments, the value proposition is clear: investing in Heli CQCTRACK mining-grade components means investing in maximized machine availability, minimized unplanned downtime, extended component life in abrasive environments, and predictable, optimized total cost of ownership .

These are not generic replacement parts—they are engineered solutions validated through certified manufacturing processes, backed by comprehensive material traceability, and designed from the ground up to meet the demands of global mining, quarry, and heavy civil engineering applications where component failure is not an option .

12. References and Engineering Resources

For additional technical information, application engineering support, or to discuss custom ODM solutions for specific mining requirements:

• Engineering Consultation: Heli CQCTRACK maintains a staff of applications engineers available to discuss specific mining duty cycles and recommend optimal component specifications .

• Technical Drawings: Detailed 2D and 3D CAD models available upon request for engineering verification.

• Installation Manuals: Comprehensive installation instructions aligned with HYUNDAI service manual procedures available with each shipment .

• Material Certifications: Mill test reports and heat treatment certification available for each production batch.

For technical specifications, mining-grade OEM/ODM inquiries, pricing, or to place an order:

Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
*ISO 9001:2015 Certified • Mining-Grade Undercarriage Solutions Provider • Global Supplier Since 2005*
Contact: Jack (International Sales Director)
Web: www.cqctrack.com

This technical document is provided for engineering and procurement reference. Specifications subject to change due to continuous product improvement for mining applications. All brand names and part numbers are referenced for cross-reference purposes only; Heli CQCTRACK is an independent manufacturer specializing in OEM and ODM undercarriage components for mining and construction applications. Always verify machine serial number and undercarriage configuration before ordering
