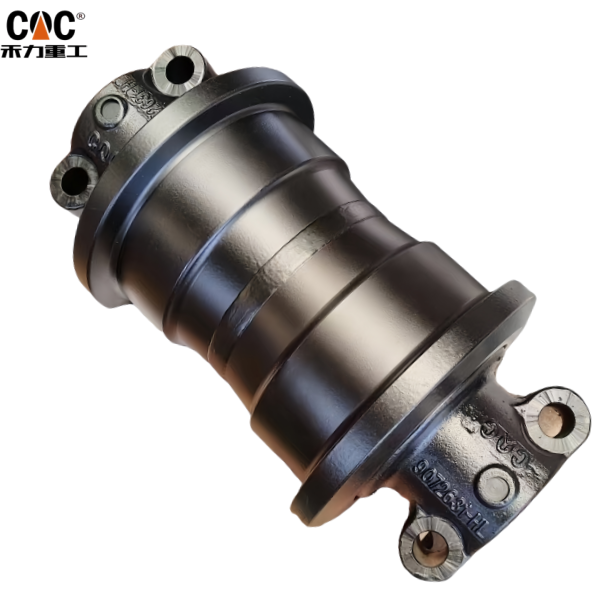

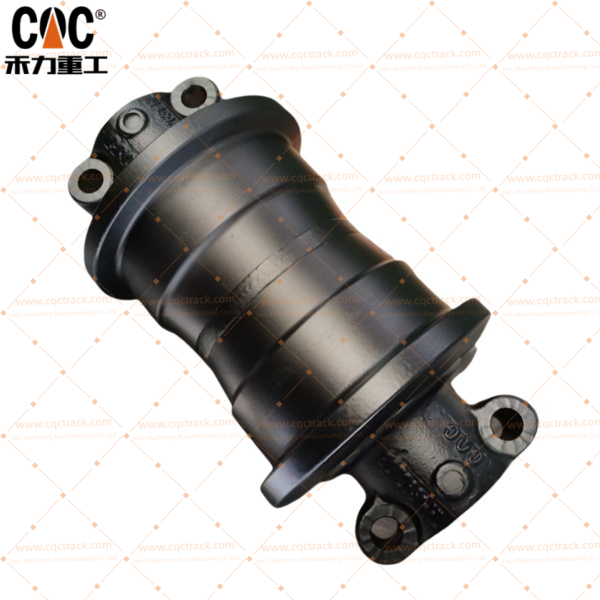

HITACHI EX400 ZX450/9072631/Track Bottom Roller Assembly/Source OEM manufacture based in Quanzhou,China-HELI(CQCTrack)

CQC’s Hitachi EX400 Track Bottom Roller Assembly is a masterpiece of durability engineering, designed to withstand the most demanding applications. Its robust forged construction, induction-hardened wear surfaces, heavy-duty bearing system, and advanced sealing technology work in concert to provide reliable performance and an extended service life. As a primary load-bearing point, its condition is a direct indicator of overall undercarriage health and is fundamental to the machine’s productivity, stability, and cost-effective operation.

Professional Technical Description: Hitachi EX400 Track Bottom Roller Assembly

1. Product Overview and Primary Function

The Hitachi EX400 Track Bottom Roller Assembly is a critical load-bearing component within the undercarriage system of the Hitachi EX400 hydraulic excavator. Positioned along the lower track frame between the front idler and the sprocket, its primary function is to support the entire weight of the machine and guide the track chain along its path. These rollers directly transfer the machine’s operational load to the ground through the track chain, while simultaneously ensuring smooth travel, maintaining alignment, and absorbing ground-level shocks and impacts. Their performance is directly linked to machine stability, traction, and overall undercarriage health.

2. Key Functional Roles

• Primary Load Bearing: Supports the static and dynamic weight of the excavator during all phases of operation, including digging, lifting, swinging, and traveling. They are subjected to immense radial loads.
• Track Guidance and Containment: The double-flanged design acts as a guide, keeping the track chain aligned on the roller path and preventing lateral derailment, especially during turns and on uneven ground.
• Vibration and Impact Dampening: Absorbs and dissipates shock loads from traversing rough terrain, rocks, and other obstacles, protecting the track frame and main structure from excessive stress and fatigue.
• Smooth Propulsion: Provides a continuous, rotating surface of hardened steel for the track chain to ride on, minimizing friction and ensuring efficient power transmission from the final drive to the ground.

3. Detailed Component Breakdown & Construction

The Bottom Roller Assembly for a machine of the EX400′s class is a robust, sealed-for-life unit designed for maximum durability in the most abrasive environments. Key sub-components include:

• Roller Shell (Body): The main cylindrical body that makes contact with the track chain bushings. It is typically manufactured from high-carbon, high-tensile alloy steel. The outer running surface is precision-machined and undergoes induction hardening to achieve a very high surface hardness (typically 55-60 HRC) for exceptional resistance to abrasive wear. The core of the shell remains tough to withstand high-impact loads without cracking.
• Integral Flanges: Massive, double flanges are integral to the roller shell. These are critical for containing the track chain and preventing derailment. The inner surfaces of these flanges are also hardened to resist wear from lateral contact with the track links.
• Shaft (Spindle or Journal): A stationary, hardened, and ground steel shaft. It is the structural anchor of the assembly, bolted directly to the track frame. The entire roller assembly rotates around this stationary shaft via the bearing system.
• Bearing System: Utilizes two large, heavy-duty tapered roller bearings pressed into each end of the roller shell. These bearings are specifically engineered to handle the extreme radial loads generated by the machine’s weight and dynamic forces.
• Sealing System: This is arguably the most critical subsystem for longevity. Hitachi employs an advanced, multi-stage sealing system, which likely includes:
  • Primary Lip Seal: A spring-loaded, multi-lip seal that retains lubricating grease within the bearing cavity.
  • Secondary Dust Lip / Labyrinth Seal: An outer barrier designed to actively exclude abrasive contaminants like silt, sand, and mud from reaching the primary seal.
  • Metal Seal Carrier: Provides a rigid, press-fit housing for the seals, ensuring they remain seated and effective under vibration and load.
    These assemblies are Lube-for-Life, meaning they are sealed and pre-lubricated at the factory for the entire service life of the roller, requiring no routine maintenance greasing.
• Mounting Bosses: The forged or fabricated lugs at each end of the shaft that provide the bolting interface to securely attach the assembly to the excavator’s track frame.

4. Material and Manufacturing Specifications

• Material: The roller shell and shaft are constructed from high-grade, heat-treated alloy steels (e.g., equivalent to SCr440, SCMn440, or similar), chosen for their superior strength, hardenability, and impact resistance.
• Manufacturing Processes: The manufacturing process involves forging the shell for a superior grain structure, precision CNC machining, induction hardening of all critical wear surfaces, fine grinding, and automated, press-fit assembly of bearings and seals.
• Surface Treatment: The assembly is shot-blasted to clean and prepare the surface before being coated with a corrosion-resistant primer and Hitachi’s signature finish paint.

5. Application and Compatibility

This assembly is specifically designed for the Hitachi EX400 series excavators (e.g., EX400-1 through EX400-7, though compatibility must be verified by serial number). Bottom rollers are consumable wear items due to their constant ground contact and exposure to abrasives. They are typically replaced in sets to ensure even support and wear across the undercarriage. Using the correct OEM-specified part is crucial for maintaining proper track shoe height, alignment, and overall machine performance.

6. Importance of Genuine or Premium-Quality Parts

Using a Genuine Hitachi or a certified high-quality equivalent ensures:

• Precision Engineering: Exact conformance to OEM dimensions, guaranteeing perfect fitment with the track chain and correct alignment on the track frame.
• Material Integrity: Certified materials and precise heat treatment ensure the roller meets its designed service life, resisting wear, spalling, and catastrophic failure.
• Seal Reliability: The quality of the sealing system is the primary determinant of roller life. Premium seals prevent the leading cause of failure: lubricant loss and contaminant ingress, which lead to bearing seizure.
• Balanced Undercarriage Wear: Promotes even wear across all undercarriage components (rollers, idlers, track chain, sprocket), protecting your larger investment.

7. Maintenance and Operational Considerations

• Regular Inspection: A daily walk-around inspection should include:
  • Rotation: Ensure all rollers turn freely. A seized roller will be visibly worn flat and will cause accelerated wear to the track chain.
  • Flange Wear: Check for excessive wear or damage to the guiding flanges.
  • Leakage: Look for any signs of grease leaking from the seal area, indicating seal failure.
  • Visual Damage: Inspect for cracks, deep gouges, or significant scoring on the roller shell.
• Cleanliness: While designed for harsh conditions, operating in environments with sticky clay or mud that packs solidly around the rollers can increase stress and accelerate wear. Periodic cleaning is beneficial.
• Proper Track Tension: Always maintain track tension according to the manufacturer’s specifications in the operator’s manual. Incorrect tension is a primary cause of accelerated undercarriage wear.
