Technical Data Sheet: HITACHI EX1100 Track Guide Wheel & Idler Assembly (P/N 2044037 / 9101204) – Manufactured by HELI-CQC TRACK

Meta Description: OEM-quality HITACHI EX1100 Track Guide Wheel & Idler Assy (P/N 2044037/9101204). HELI-CQC manufactures heavy-duty excavator chassis components with advanced forging, heat treatment, and sealing technology for maximum durability.

1. Component Identification & Functional Synopsis

OEM Part Numbers: 2044037, 9101204
Application: Hitachi EX1100 Series Crawler Excavators.
Component Names:

• Track Guide Wheel: Also known as the Bottom Roller or Lower Roller.
• Track Idler Assembly: Also known as the Front Idler.
  Manufacturer & Supplier: HELI-CQC TRACK, a specialized manufacturer of heavy-duty excavator undercarriage systems.

These two components are critical elements of the excavator’s undercarriage, working in tandem with the track chain, sprocket, and carrier rollers to form a continuous track circuit.

• Track Guide Wheel (IDLER):
  • Primary Function: Supports the machine’s weight and guides the lower section of the track chain.
  • Load Distribution: It carries the main structural load, distributing it evenly along the track’s bottom run to ensure ground stability and prevent excessive sinkage.
  • Track Guidance: Its double flanges maintain the lateral alignment of the track chain, preventing derailment during travel and steering maneuvers.

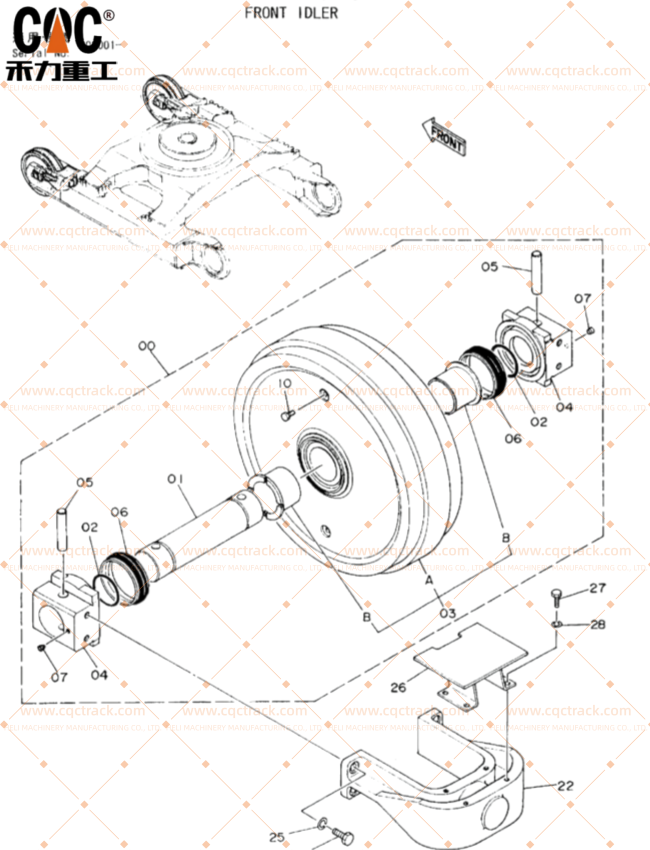

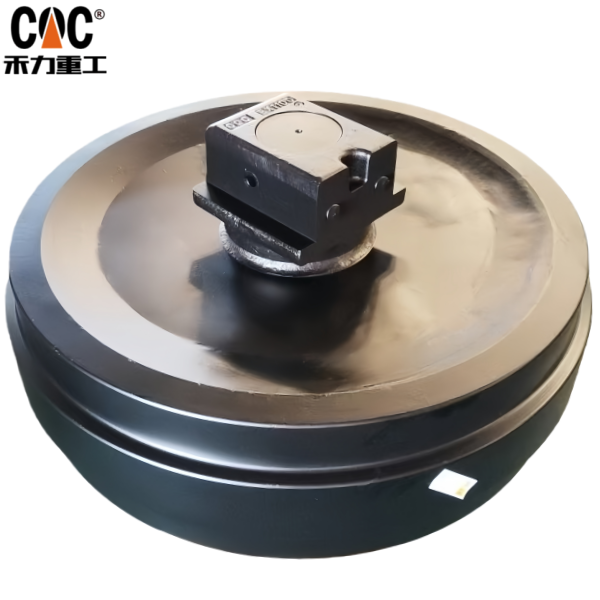

• Track Idler Assembly (Front Idler):
  • Primary Function: Guides the track chain at the front of the undercarriage and provides tension adjustment.
  • Track Contour Definition: It directs the track chain onto the ground, creating the characteristic “D-shape” of the track loop.
  • Shock Absorption: It often incorporates a spring or hydraulic damper to absorb impact loads from obstacles.
  • Tension Adjustment: The idler is mounted on a tensioning mechanism (screw or hydraulic), allowing for precise adjustment of track chain tightness, which is crucial for optimal performance and service life.

2. Detailed Technical Specifications & Engineering Design

HELI-CQC manufactures these components to meet the rigorous demands of the 100-ton-class EX1100 excavator, employing advanced engineering and material science.

A. Material Science & Forging:

• Core Material: Both the guide wheel and idler wheel are hot-forged from high-carbon, high-manganese steel alloys such as 50Mn or 60Si2Mn. This forging process creates a superior grain flow that enhances impact strength and fatigue resistance far beyond cast equivalents.
• Shafts & Bushings: Machined from high-strength alloy steels (e.g., 42CrMo, 40Cr) and paired with wear-resistant sintered bronze or duplex steel bushings to ensure longevity under high-load rotational forces.

B. Advanced Heat Treatment:

• Quenching & Tempering (Q&T): The entire component undergoes this process to achieve a tough, ductile core (approx. 30-40 HRC) capable of withstanding massive shock loads without cracking.
• Induction Hardening: The critical wear surfaces—the rolling contact path and the guiding flanges of the guide wheel, and the rim of the idler—are induction hardened to a depth of 5-8mm, achieving a surface hardness of 58-62 HRC. This provides exceptional resistance to abrasive wear in harsh mining and quarrying conditions.

C. Sealing System (Multi-Stage Labyrinth Design):
HELI-CQC utilizes a state-of-the-art sealing system that is critical for component life in contaminated environments.

1. Primary Seal: A heavy-duty, spring-loaded Nitrile Butadiene Rubber (NBR) lip seal that maintains constant contact with the wear ring.
2. Labyrinth Seal: A complex, multi-channel mechanical seal designed to create a tortuous path that effectively traps and expels abrasive particles (slurry, sand, dust).
3. Grease Barrier: The seal cavity is filled with high-temperature, waterproof lithium-complex grease, creating a positive pressure barrier that further prevents contaminant ingress and ensures continuous lubrication of internal bushing surfaces.

D. Lubrication & Maintenance:
Designed as sealed and lubricated-for-life components, they require no routine internal lubrication. External grease fittings are provided for track tension adjustment (idler) and for purging the outer seal cavities.

3. HELI-CQC Manufacturing & Quality Assurance Protocol

HELI-CQC‘s manufacturing process is structured around precision and quality control.

• Production Workflow: Raw Material Certification → Die Forging → Rough Machining → Quenching & Tempering → Induction Hardening → Precision CNC Finish Machining → Seal & Bearing Assembly → Performance Testing → Anti-Corrosion Painting & Packaging.
• Comprehensive Quality Control:
  • Dimensional Inspection: 100% verification using precision gauges, calipers, and Coordinate Measuring Machines (CMM) to ensure OEM dimensional compliance.
  • Hardness Verification: Rockwell and Brinell tests on both core and wear surfaces for every production batch.
  • Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) is employed to detect any subsurface defects or cracks in the forged components before machining.
  • Rotational Torque Test: Each assembled unit is tested for smooth, free rotation with specified torque values, confirming proper seal and bearing installation.
  • Seal Leakage Test: A pressure decay test validates the integrity of the entire sealing system, ensuring it is impervious to contamination.

4. Failure Mode Analysis & Durability Advantages

Using HELI-CQC components mitigates common undercarriage failures:

• Premature Flange Wear: Combated by deep induction hardening.
• Seal Failure & Internal Contamination: Prevented by the multi-stage labyrinth seal design.
• Component Seizure: Avoided through precise internal tolerances and effective sealing.
• Core Fractures: Mitigated by the forged construction and proper core toughness from Q&T heat treatment.

5. HELI-CQC TRACK: A Strategic Manufacturing Partner

HELI-CQC represents the pinnacle of heavy-duty undercarriage manufacturing, offering:

• OEM Direct Replacement: Components are engineered for perfect interchangeability with original Hitachi parts.
• Integrated Vertical Manufacturing: Full control over the production process from forging to assembly guarantees consistent quality and cost efficiency.
• Proven Field Performance: Parts are designed and tested to deliver service life comparable to, or exceeding, OEM components in similar operating conditions.
• Global Supply Chain Capability: The capacity to serve international markets with reliable logistics, ensuring reduced downtime for equipment operators worldwide.
