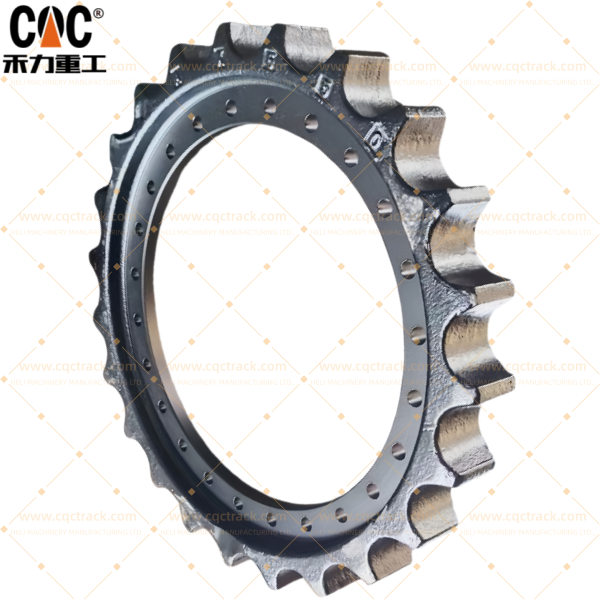

HELI (CQCTRACK): OEM/ODM-Engineered, Heavy-Duty Track Sprocket Assemblies for HITACHI ZAX650/ZX650 Mining Excavators – Precision Replacements for 1020265 & 4388621

As a certified ODM/OEM (Original Design Manufacturing) specialist and global supplier for the mining machinery undercarriage sector, HELI (branded as CQCTRACK) designs and fabricates mission-critical drive components that withstand the most extreme operational environments. This technical dossier provides a comprehensive analysis of our ODM-engineered Track Sprocket Assembly, a high-performance, durability-optimized direct replacement for HITACHI OEM part numbers 1020265 and 4388621, engineered exclusively for the HITACHI ZAX650 and ZX650 super-large mining crawler excavators.

Product Technical Overview: Mining-Specific Sprocket Assembly

In the context of 600-ton-class mining excavators like the Hitachi ZAX650/ZX650, the track sprocket functions as the critical torque-transfer interface, converting immense rotational force from the final drive into linear traction. Subjected to continuous shock loads, high-stress cyclic engagement, and severe abrasive wear, this component’s failure precipitates extensive downtime and costly collateral damage to adjacent undercarriage systems. Our ODM/OEM philosophy transcends basic interchangeability, incorporating application-specific design enhancements to maximize service life and reliability in extreme mining and quarrying operations.

• Target OEM Part Numbers: HITACHI 1020265, HITACHI 4388621.
• Compatible Machine Models: HITACHI ZAX650, HITACHI ZX650 Super-Large Mining Crawler Excavators.
• Primary Function: To engage precisely with track chain links, transmitting high-torque rotational power into controlled crawler propulsion under maximum load conditions.
• Key Engineering Challenge: Balancing extreme surface hardness for wear resistance with exceptional core toughness to prevent tooth spalling, cracking, or catastrophic failure under dynamic impact loads.

ODM Engineering & Advanced Manufacturing Protocol

Our manufacturing process is a vertically integrated, multi-stage protocol, meticulously controlled from metallurgy to final validation, specifically tailored for mining severity.

1. Proprietary Material Science & Alloy Specification:
We employ a premium, low-alloy carburizing steel (e.g., enhanced-grade SAE 4320/20CrNi2MoA or equivalent), formulated for ultra-deep hardenability. This proprietary alloy chemistry is crucial for achieving a profound and gradual hardness gradient, ensuring a deep wear reservoir on the tooth flanks while maintaining a ductile, shock-absorbent core microstructure capable of withstanding bending stresses exceeding 1,200 MPa.

2. Precision Die-Forging for Structural Integrity:
Each sprocket originates as a closed-die, hot-forged blank. This process:

• Aligns Grain Flow: Optimizes the metallic grain structure to follow the contour of the teeth and hub, dramatically enhancing fatigue strength and impact resistance—a critical advantage over cast or fabricated sprockets which have isotropic or discontinuous grain structures prone to crack propagation.
• Eliminates Internal Defects: Forging consolidates the material, eliminating porosity and micro-shrinkage cavities inherent in castings, thereby ensuring structural homogeneity and integrity.

3. Multi-Axis CNC Machining & Precision Gear Hobbing:
Forged blanks undergo sequential machining on advanced CNC centers and dedicated gear hobbing machines.

• Tooth Profile Optimization: The tooth form—including pressure angle, involute profile, pitch accuracy, and root fillet radius—is machined to exacting tolerances (AGMA Class 9 or higher). Our ODM design may incorporate a modified tooth tip profile to facilitate smoother chain link entry, reducing meshing impact forces and minimizing stress concentrations on both the sprocket and the track chain bushings.
• High-Precision Boring: The final drive mounting bore and pilot diameters are finish-machined to IT6 tolerance levels, ensuring perfect concentricity. This prevents radial run-out, protects final drive seals from premature failure, and ensures even load distribution.
• Mounting Interface Finishing: Bolt hole patterns, thrust faces, and locating surfaces are precision-machined to guarantee a flush, secure mounting without requiring field machining or shimming.

4. Advanced Heat Treatment: Deep-Case Carburizing & Tempering:
We utilize a computer-controlled, deep-case gas carburizing process followed by a dual-stage quenching and tempering sequence.

• Effective Case Depth: Achieves a specified hardened case depth of 6.5mm to 8.0mm (at 550 HV), creating a substantial “wear bank” that far exceeds standard treatments, significantly extending component life in highly abrasive environments.
• Surface Hardness: Final tooth flank hardness is maintained at 58-62 HRC, providing maximum resistance to grinding abrasion from silica and other minerals.
• Core Toughness: The core is tempered to a robust 38-42 HRC, ensuring the component retains the necessary ductility to absorb massive shock loads without brittle fracture.

5. Rigorous Mining-Grade Quality Assurance & Validation:
Every sprocket assembly is subjected to a conclusive battery of tests:

• Full-Form Dimensional Metrology: Complete 3D scanning via Coordinate Measuring Machine (CMM) to verify global geometry, including tooth-to-tooth pitch error, cumulative pitch error, and all critical interface dimensions.
• Hardness Gradient Analysis: Micro-hardness traverses are performed from the tooth surface to the core to validate the specified case depth and gradient profile.
• Non-Destructive Testing (NDT): 100% Magnetic Particle Inspection (MPI) for surface flaws and Ultrasonic Testing (UT) for subsurface discontinuities.
• Dynamic Performance Run-in Test: Assembled units undergo a controlled, loaded run-in procedure to verify smooth rotation, correct seal function, and absence of abnormal noise or vibration.

The CQCTRACK ODM Value Proposition for Mining Operations

• Application-Driven Design: Engineered from first principles for the ZAX650/ZX650 in mining, not merely reverse-engineered for basic fit. This results in enhanced durability and synchronized wear with the track chain.
• Maximized Operational Uptime: Superior materials and deep-case heat treatment deliver predictable, extended service intervals, reducing unplanned downtime and associated production losses.
• Optimized Total Cost of Ownership (TCO): Although a premium component, the significantly longer lifespan and reduced frequency of change-outs lead to a lower cost-per-operating-hour compared to standard replacement parts.
• Vertical Integration & Traceability: Complete in-house control over the entire manufacturing process ensures consistent quality, supply chain security, and full material traceability for each component.

Disclaimer: HITACHI, ZAX650, ZX650, and part numbers 1020265 and 4388621 are trademarks and property of Hitachi Construction Machinery Co., Ltd. HELI (CQCTRACK) operates as an independent ODM manufacturer and supplier of replacement undercarriage components. Our products are the result of our proprietary engineering and are designed to be mechanically interchangeable with the OEM parts for the referenced models. This communication establishes no affiliation, endorsement, or sponsorship by Hitachi Construction Machinery.

For access to detailed engineering specifications, field performance data, or to discuss a collaborative ODM project for your mining fleet’s undercarriage needs, please contact the dedicated Mining Solutions division at HELI (CQCTRACK).
