Comprehensive Technical Specification: CATERPILLAR 6Y1824 / CR6378 Series E375 / E385 / E390 / E395 SF Track Lower Roller (Bottom Roller) Assembly – Mining-Grade Undercarriage Excellence by HELI CQCTRACK

1. Executive Summary: The Apex of Mining Excavator Load-Bearing Engineering

The CATERPILLAR 6Y1824 / CR6378 Series Track Lower Roller Assembly—encompassing OEM cross-reference numbers including 1091215, 1373369, 1524130, 3363380, 5297106, 6125209, and 6162336—is a mission-critical load-bearing component engineered for the CATERPILLAR E375, E385, E390, and E395 SF series mining-class crawler excavators. As a fundamental element of the track undercarriage system, this assembly supports the immense operational weight of machines in the 65-90 ton class, guides the track chain along the ground contact path, and absorbs the extreme dynamic and impact loads characteristic of open-pit mining, quarrying, and heavy construction operations .

HELI – CQCTRACK, operating as a premier source manufacturer of heavy-duty mining crawler excavator chassis components, produces these lower roller assemblies to meet and exceed rigorous Original Equipment Manufacturer (OEM) specifications. By leveraging vertical manufacturing integration—from raw material sourcing and closed-die forging to precision CNC machining and advanced heat treatment—CQCTRACK delivers components with unparalleled structural integrity, wear resistance, and seamless compatibility with CATERPILLAR’s E375/E385/E390/E395 SF series excavators. This document provides a comprehensive technical exposition of the assembly’s engineering philosophy, material metallurgy, manufacturing precision, and operational superiority, solidifying its status as the definitive choice for mining operations demanding maximum uptime in the most punishing environments .

2. System Function & Operational Dynamics: The Load-Bearing Foundation of Mining Excavators

In the closed-loop undercarriage architecture of CATERPILLAR’s 65-90 ton class mining excavators—including the E375, E385, E390, and E395 SF models—the lower roller assembly (also termed track roller or bottom roller) is positioned along the bottom side of the track frame, riding directly on the track chain links. These components bear the full weight of the machine and perform three primary mechanical functions with extreme precision :

• Primary Load-Bearing & Weight Distribution: The lower rollers support the total static and dynamic weight of the excavator, distributing immense loads from the mainframe through the track chain to the ground. Each roller assembly must withstand radial loads that fluctuate constantly during digging, lifting, and travel operations in mining environments. The precision-machined contour of the roller engages with the track chain link, ensuring stable, low-friction travel along the track rail while enduring significant impact, shock loads, and abrasive wear from dirt, rocks, and debris .
• Track Chain Guidance & Derailment Prevention: The integrally forged flanges on each roller serve as continuous rails that interface precisely with the inner surfaces of the track links. This provides positive lateral control of the track chain, preventing lateral displacement (de-tracking) during counter-rotation turns or operations on sloped mine terrains—a critical function for maintaining operational safety and preventing catastrophic downtime in mining applications .
• Load Distribution & Track Alignment: The rollers distribute the machine’s load evenly across the track chain links and shoes, ensuring proper track alignment and smooth operation along the entire undercarriage system. This function is essential for minimizing wear on all undercarriage components, reducing rolling resistance, and maintaining fuel efficiency during travel operations .

3. Technical Specifications & Material Metallurgy: The Science of Mining-Grade Durability

The operational lifespan of a lower roller for a 65-90 ton class mining excavator is dictated by advanced material science and precise thermal treatment. The CATERPILLAR E375/E385/E390/E395 SF Track Roller assemblies from HELI-CQCTRACK exemplify state-of-the-art metallurgical engineering for mining applications .

3.1 Core Material Selection: Forged for Mining-Grade Fortitude

• Roller Body Material: The roller body is manufactured from high-strength, wear-resistant alloy steel, specifically 40Mn2 or 50Mn high-tensile, fine-grain alloy steel . These manganese-silicon alloys are selected for their exceptional toughness and dynamic work-hardening characteristics. When subjected to the continuous impact and rolling contact from the track chain in mining environments, the surface of the material undergoes micro-structural densification, actually increasing its hardness and wear resistance in the field. The closed-die forging process ensures a continuous grain flow, superior impact resistance, and exceptional fatigue strength compared to cast components .
• Roller Shaft (Axle) Material: The stationary axle is precision-machined from high-tensile, quenched and tempered alloy steel, typically 42CrMo or equivalent chromium-molybdenum alloy . These chromium-based alloys provide supreme fatigue limit, torsional strength, and resistance to bending under cyclic loads, ensuring the shaft maintains perfect geometric alignment throughout its service life. The shaft journals are precision-ground to a fine surface finish (Ra ≤ 0.4μm) to ensure optimal performance and longevity of the bearing system .

3.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between an abrasion-resistant surface and a tough, impact-absorbing core is achieved through a precise, multi-stage thermal process :

• Core Treatment – Quenching & Tempering (Q&T): The entire forging undergoes quenching and tempering to achieve a uniform, tough core structure with high impact resistance. Typical core hardness is maintained at HRC 30-35, providing essential ductility for absorbing massive shock loads without catastrophic cracking, ensuring the component yields elastically rather than fracturing plastically under impact .
• Wear Surface Treatment – Deep Induction Hardening: The outer diameter (O.D.) running surface and the flange guide paths undergo computer-controlled, deep-case induction hardening. For the E375/E385 series mining-class rollers, this creates a metallurgically bonded, high-hardness case with an effective depth of 5-8mm, achieving a surface hardness of HRC 55-62 . This creates a virtually impenetrable barrier against abrasive wear from track bushings and mining debris while maintaining core ductility.
• Precision Machining: Following heat treatment, precision CNC machining achieves tolerance levels within IT7-IT8 grade on critical surfaces, including the journal for bearings and the wheel tread . The running surface achieves a fine ground finish to minimize friction with the track bushings and prevent micro-welding under extreme pressures.

3.3 Corrosion Protection

Following heat treatment and machining, components undergo shot blasting for stress relief and surface preparation, followed by application of high-performance corrosion protection: typically an epoxy primer and durable polyurethane topcoat system designed to resist corrosion and environmental degradation in harsh mining environments .

3.4 Dimensional Precision & Quality Metrics

• OEM Interchangeability: Manufactured strictly according to CATERPILLAR’s original engineering blueprints, guaranteeing direct, “bolt-on” replacement for the complete series of OEM part numbers—including 6Y1824, CR6378, 1091215, 1373369, 1524130, 3363380, 5297106, 6125209, and 6162336—on the E375, E385, E390, and E395 SF models without modification.
• Critical Dimensions: All interface dimensions—shaft diameter, mounting configuration, overall width, and flange profile—are held to stringent tolerances (IT7-IT8 grade), with concentricity maintained within tight limits to ensure perfect track alignment .

4. Structural Anatomy: Deconstructing the CATERPILLAR Mining Excavator Lower Roller Assembly

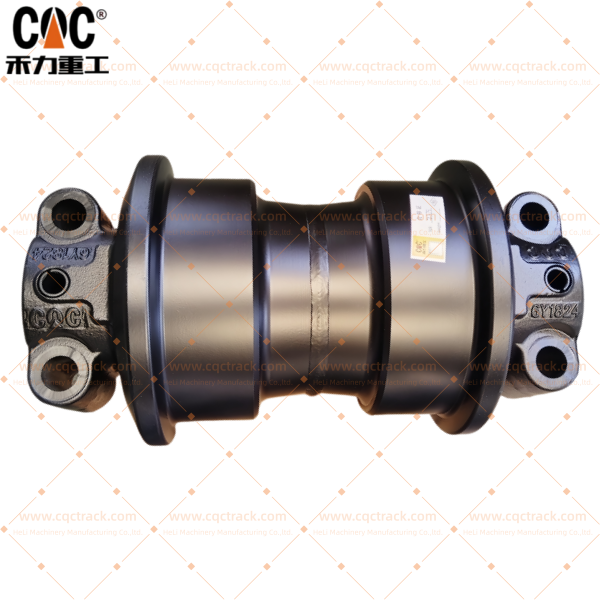

The CATERPILLAR 6Y1824 / CR6378 Series Lower Roller is a precision-engineered assembly consisting of several high-performance sub-components, each designed for a specific function in the demanding mining environment .

5. The HELI – CQCTRACK Manufacturing Advantage: Source Manufacturer Philosophy

As a dedicated source manufacturer of heavy-duty mining crawler excavator chassis components, HELI-CQCTRACK distinguishes itself through vertical integration and an uncompromising commitment to quality at every stage of production. Operating under the corporate umbrella and quality infrastructure of the HELI Group—a globally recognized industrial conglomerate—CQCTRACK leverages extensive manufacturing expertise and robust quality management systems (typically ISO 9001, ISO 14001) for producing world-class machinery parts .

5.1 Source Factory Control

• Closed-Die Forging: The manufacturing process begins with closed-die forging of roller blanks from selected steel billets, heated to precise forging temperature and formed into near-net-shape blanks using high-tonnage forging presses . This critical process aligns the metal’s grain flow with the component’s shape, significantly enhancing structural integrity, fatigue resistance, and impact strength compared to cast alternatives. Forging refines the grain structure and creates a denser, more impact-resistant substrate essential for mining applications .
• CNC Precision Machining: Following heat treatment, state-of-the-art Computer Numerical Control (CNC) turning centers, grinding machines, and machining centers execute all turning, boring, and grinding operations . Critical tolerances (IT7-IT8 grade) are consistently achieved, with surface finishes optimized for seal longevity and rolling contact under extreme loads.
• In-House Heat Treatment: Owning and controlling automated heat treatment lines allows CQCTRACK to strictly adhere to the precise time-temperature cycles necessary for Q&T processing, followed by CNC-controlled induction hardening machines to apply the wear-resistant case precisely to specified depths (5-8mm) . This guarantees metallurgical consistency across all production batches—essential for mining-grade durability.
• Controlled Assembly Environment: Bearings and seals are installed in a controlled, clean environment to prevent contamination during assembly. The unit is pressurized with a precise volume of grease to ensure complete cavity fill and proper seal seating .

5.2 Mining-Grade Quality Assurance

The designation of “OEM Quality” for mining applications is validated through a battery of rigorous tests mandated for heavy-duty undercarriage components :

• Dimensional Conformity: 100% verification via Coordinate Measuring Machines (CMM) for all critical dimensions, including bore diameter, journal size, and overall run-out, ensuring perfect interchangeability with CATERPILLAR specifications .
• Material & Hardness Verification: Spectrochemical analysis for material grade confirmation; Rockwell and Brinell hardness testing on case and core areas to verify surface hardness (HRC 55-62) on raceway and flanges, and confirm core toughness (HRC 30-35), ensuring the component can withstand harsh mining realities .
• Non-Destructive Testing (NDT): Magnetic Particle Inspection (MPI) of forgings detects subsurface flaws that could lead to premature failure under mining loads.
• Performance Validation: Rotational torque testing to confirm smooth bearing operation and correct seal function post-assembly; run-out testing to ensure smooth operation under load .
• Comprehensive Documentation: Provision of Material Certificates (mill certificates for raw materials, chemical composition analysis) and Final Inspection Reports for complete traceability .

5.3 Value Proposition for Mining Operations

Sourcing the CATERPILLAR E375/E385/E390/E395 SF lower roller assembly from CQCTRACK offers mining operations a Technologically Advanced and Cost-Effective Solution . It combines direct-from-factory pricing with engineering that is tailored to withstand the demanding conditions for which these Caterpillar mining excavators are designed, bypassing traditional supply chain markups while delivering a product engineered to meet or exceed functional and durability standards required for 24/7 industrial operation .

6. Failure Mode Analysis & Preventive Maintenance Protocol

Maximizing the service life of E375/E385 series lower rollers in mining applications requires understanding potential failure modes and adhering to a strict maintenance regimen .

6.1 Common Failure Mechanisms

• Seal Failure & Contamination Ingress: The primary cause of premature roller failure in mining environments . If the floating seal is compromised by debris impact or thermal degradation, lubricant escapes and abrasives (mine dust, sand) enter the bearing cavity. This acts as a grinding paste, rapidly destroying the bearings, shaft, and roller bore. Signs include grease leakage or dirt/mud entering the seal area .
• Raceway Wear / Flattening: Progressive wear on the outer diameter due to continuous friction with track bushings in abrasive mining conditions . Excessive wear reduces roller diameter, alters track geometry, and increases derailment risk. Visible excessive wear or scoring on the outer shell indicates need for replacement .
• Brinelling: Surface indentations on the raceway caused by impact loads exceeding material’s elastic limit—common in mining applications with frequent rock contact—leading to rough rotation and accelerated wear.
• Bearing Failure: Results from fatigue, contamination, or inadequate lubrication . Rolling elements or races spall due to cyclic loading, leading to increased internal clearance, causing roller to wobble and run noisily, accelerating seal wear. Signs include significant play or wobble when pried, roller not spinning freely (seized or very stiff), or unusual grinding/squealing noises .
• Flange Wear: Gradual thinning of guide flanges due to constant contact with track links. This reduces guidance capability, leading to de-tracking risks during side-loading operations on mine slopes.
• Secondary Damage: Worn rollers lead to accelerated wear on track chain links and bushings, poor track alignment and derailment risk, increased rolling resistance reducing fuel efficiency, excessive vibration and noise, and damage to other undercarriage components (idlers, sprockets) .

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Check for evidence of grease leakage around hub (tell-tale sign of seal failure). Listen for unusual grinding or squealing noises during operation. Inspect flange and raceway profiles for visible wear or damage. Include track rollers in routine undercarriage inspections for wear and seal condition .
• Track Tension Management: Maintain correct track sag as per CATERPILLA R specifications for E375/E385 series. Over-tensioned track overloads roller bearings and seals; under-tensioned track causes chain slap, leading to impact damage and accelerated wear.
• Rotation Check: During daily walk-around where safely accessible, observe rollers for smooth rotation without wobble or roughness. Manually spin rollers (when safe) to feel for binding indicating bearing distress. Check for significant play or wobble when roller is pried .
• Wear Limit Measurement: Periodically measure outer diameter and flange thickness using appropriate gauges. Replace assemblies when wear reaches manufacturer’s recommended limit to prevent damage to more expensive track chain.
• Replace in Sets (Best Practice): While not always strictly necessary, replacing all bottom rollers on one side at the same time promotes even wear and optimal track performance/longevity in mining applications .
• Professional Installation: Proper installation—including correct torque on mounting bolts and ensuring seals aren’t damaged during installation—is critical for roller’s lifespan. Use correct part number verified by machine Serial Number (S/N) .
• S/N Verification: Use machine’s specific Serial Number to look up exact track roller assembly required, as variations may exist based on configuration, serial number prefix, or manufacturing updates .

7. Compatibility & Application Scope

• Primary Models:
  • CATERPILLAR E365, E374, E375, E385, E390, E395 SF Series
  • 65-90 ton class mining hydraulic excavators
• OEM Part Numbers: Direct replacement for comprehensive cross-reference list including:
  • 6Y1824, CR6378, 1091215, 1373369, 1524130, 3363380, 5297106, 6125209, 6162336
• Machine Class: Heavy-duty mining crawler excavators (65-90 metric tons) .
• Quality Warranty: Components are backed by performance warranty underwritten by certified manufacturing processes and extensive documentation required by ISO quality systems, providing objective basis for confidence in longevity for mining applications .
• Applications: Engineered for extreme durability in:
  • Open-pit mining and overburden removal
  • Large-scale quarrying and aggregate handling
  • Heavy construction and major infrastructure projects
  • Operations involving highly abrasive terrains and severe impact loads
  • 24/7 continuous duty cycles in demanding environments .

8. Conclusion: The Benchmark for CATERPILLAR Mining Excavator Undercarriage Reliability

The CATERPILLAR 6Y1824 / CR6378 Series E375 / E385 / E390 / E395 SF Track Lower Roller Assembly from HELI – CQCTRACK represents the pinnacle of heavy-duty mining excavator undercarriage engineering. It is not merely a replacement part; it is a strategic investment in operational uptime and total cost of ownership reduction for CATERPILLAR mining excavator fleets operating in the world’s most demanding environments .

By combining advanced metallurgy (40Mn2/50Mn forged bodies, 42CrMo shafts), closed-die forging, precision CNC machining, and the rigorous quality control of a true source manufacturer operating under HELI Group’s quality management systems, CQCTRACK delivers components that not only meet the exacting standards of CATERPILLAR’s mining-class excavator specifications but are engineered to surpass them in real-world, punishing conditions . The deep induction hardening to HRC 55-62 with 5-8mm case depth ensures exceptional wear resistance against mining abrasives, while the high-integrity multi-stage floating seal system—combining floating face seals with labyrinth paths and lip seals—protects the precision double-row tapered roller bearings from the relentless assault of mine dust, mud, and debris .

Choosing HELI-CQCTRACK means partnering with a source manufacturer that possesses deep domain expertise in heavy-duty mining crawler excavator chassis components. It ensures that every critical element—from the forged 50Mn roller body to the case-hardened 42CrMo shaft and heavy-duty tapered roller bearings—works in perfect harmony to support the immense dynamic forces of CATERPILLAR’s E375, E385, E390, and E395 SF excavators, ensuring the track system remains reliable, efficient, and productive for thousands of operating hours in open-pit mines, quarries, and major infrastructure projects worldwide
