Comprehensive Technical Specification: CATERPILLAR 4304192 E6015 / E6015B Track Final Drive Sprocket Assembly – Mining-Grade Undercarriage Excellence by HELI CQCTRACK

1. Executive Summary: The Apex of Mining Excavator Power Transmission Engineering

The CATERPILLAR 4304192 Track Final Drive Sprocket Assembly, colloquially known as the Drive Sprocket or “Asterisk” due to its distinctive tooth profile, is a mission-critical power transmission component engineered specifically for the CATERPILLAR E6015 and E6015B series mining-class crawler excavators. As the terminal element of the final drive system, this sprocket assembly is responsible for converting hydraulic motor torque into tractive effort, engaging precisely with the track chain bushings to propel machines exceeding 150 metric tons through the most demanding mining environments.

HELI – CQCTRACK, operating as a premier source supplier and manufacturer of heavy-duty mining excavator chassis components, produces this sprocket assembly to meet and exceed rigorous Original Equipment Manufacturer (OEM) specifications. By leveraging vertical manufacturing integration—from raw material sourcing and closed-die forging to precision CNC hobbing and advanced heat treatment—CQCTRACK delivers a component with unparalleled structural integrity, wear resistance, and seamless compatibility with the CATERPILLAR E6015/E6015B. This document provides a comprehensive technical exposition of the assembly’s engineering philosophy, material metallurgy, manufacturing precision, and operational superiority, solidifying its status as the definitive choice for mining operations demanding maximum uptime in the most punishing environments.

2. System Function & Operational Dynamics: The Prime Mover of the E6015 Track System

In the closed-loop undercarriage architecture of the CATERPILLAR E6015/E6015B—a 150-170 ton class mining excavator—the final drive sprocket assembly is mounted at the rear of the track frame, directly coupled to the planetary final drive reduction hub. It is the prime mover of the entire track system, performing three primary mechanical functions with extreme precision and force:

• Torque Conversion to Linear Motion: The sprocket assembly receives high-torque, low-speed rotational input from the final drive planetary gear system. Through the precise geometric interface between its teeth and the track chain bushings, this rotational motion is converted into linear tractive force, propelling the excavator forward or reverse. The “asterisk” tooth profile is specifically engineered to optimize this engagement, minimizing contact stress while maximizing power transfer efficiency .
• Precise Chain Engagement & Timing: The sprocket’s tooth geometry dictates the pitch and timing of the track chain’s movement. Proper tooth profile ensures that the chain bushings seat correctly between the sprocket teeth, maintaining synchronous motion between the left and right tracks during straight travel and allowing for differential rotation during steering. This precise engagement is critical to minimizing chordal action—the polygon effect that causes chain speed fluctuation and dynamic loading .
• Load Distribution & Shock Absorption: The sprocket teeth endure cyclic impact loading with every bushing engagement. Each tooth, as it rotates into contact, must absorb the instantaneous shock of assuming the machine’s tractive load. The sprocket assembly distributes these immense forces across multiple teeth simultaneously, transmitting the reaction loads through the hub and into the final drive mounting interface.

3. Technical Specifications & Material Metallurgy: The Science of Mining-Grade Power Transmission

The operational lifespan of a final drive sprocket for a 150-ton class excavator like the E6015 is dictated by advanced material science and precise thermal treatment. The CATERPILLAR 4304192 assembly from HELI-CQCTRACK exemplifies state-of-the-art metallurgical engineering for mining applications.

3.1 Core Material Selection: Forged for Power Transmission

• Sprocket Rim / Segments: The sprocket is manufactured from high-grade, wear-resistant alloy steel, specifically 35SiMn or 40Mn2. These manganese-silicon alloys are selected for their exceptional toughness and dynamic work-hardening characteristics. When subjected to the continuous impact and rolling contact from the track chain bushings, the tooth surfaces undergo micro-structural densification, actually increasing their hardness and wear resistance in the field. This ensures the sprocket maintains its critical tooth profile far longer than components made from lower-grade steels .
• Sprocket Hub: The central hub structure is forged from high-strength carbon steel, engineered to provide rigid support for the rim segments and precise mounting to the final drive hub. The hub features precision-machined bolt patterns and pilot diameters to ensure concentricity and eliminate runout.

3.2 Heat Treatment & Surface Engineering

Achieving the optimal balance between an abrasion-resistant tooth surface and a tough, impact-absorbing core is achieved through a precise, multi-stage thermal process:

• Tooth Profile Induction Hardening: The critical tooth flanks and roots undergo deep induction hardening. This process creates a metallurgically bonded, high-hardness case of significant depth. For the E6015 sprocket, the target surface hardness is HRC 52-58 with a case depth of 5-8mm, creating a virtually impenetrable barrier against abrasive wear from track bushings while maintaining core ductility to resist tooth breakage under impact loading .
• Through Hardening & Tempering (QT): The core of the sprocket segments and the hub are subjected to a rigorous quenching and tempering process. This refines the grain structure and achieves a core hardness of approximately HRC 28-36. This retained ductility is essential for absorbing the massive shock loads of mining operations without catastrophic cracking.
• Stress Relieving: Following welding of segmented designs or after rough machining, components undergo stress relief heat treatment to eliminate residual stresses from manufacturing, ensuring dimensional stability under load.

3.3 Dimensional Precision & Tooth Geometry

• OEM Interchangeability: Manufactured strictly according to CATERPILLAR’s original engineering blueprints, guaranteeing a direct, “bolt-on” replacement for part number 4304192 on the E6015/E6015B without any modification.
• Tooth Profile Accuracy: The “asterisk” tooth profile is generated using precision CNC hobbing or shaping processes, ensuring exact tooth spacing, pressure angle, and root radius as specified by CATERPILLAR. This precision ensures optimal load sharing across multiple teeth and minimizes bushing wear.
• Concentricity: The assembly is machined to tight tolerances for pilot fit and bolt circle accuracy, ensuring the sprocket runs true with zero radial runout, eliminating dynamic imbalance that could lead to premature wear or final drive seal failure.

4. Structural Anatomy: Deconstructing the E6015 Sprocket Assembly

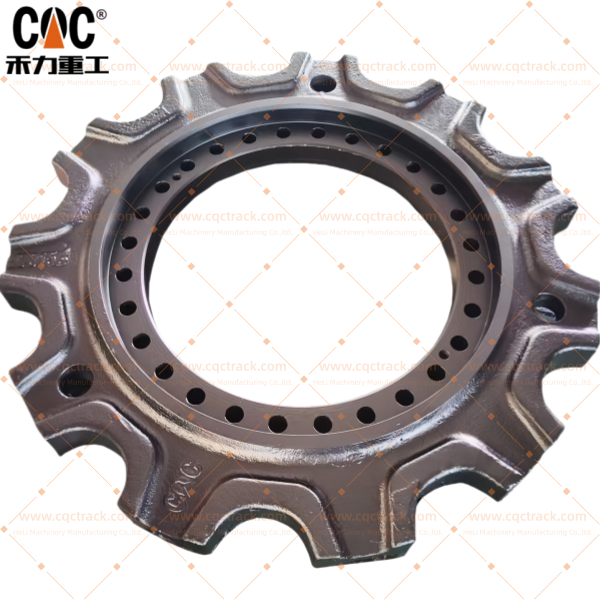

The CATERPILLAR 4304192 Sprocket Assembly is a precision-engineered assembly designed for the extreme loads of mining service. Depending on the specific variant, it may be manufactured as a one-piece design or as a segmented rim for field serviceability.

5. The HELI – CQCTRACK Manufacturing Advantage: Source Manufacturer Philosophy

As a dedicated source supplier and manufacturer of heavy-duty mining excavator chassis components, HELI-CQCTRACK distinguishes itself through vertical integration and an uncompromising commitment to quality at every stage of production.

5.1 Source Factory Control

• Closed-Die Forging: The manufacturing process begins with closed-die forging of sprocket segments and hubs. This process aligns the metal’s grain flow with the component’s shape—critical for tooth strength—significantly enhancing structural integrity, fatigue resistance, and impact strength compared to cast alternatives .
• CNC Hobbing & Machining: Following heat treatment, state-of-the-art Computer Numerical Control (CNC) gear hobbing machines and machining centers execute all tooth cutting, boring, and drilling operations. This ensures that every tooth profile meets the tight tolerances required for perfect engagement and flawless function on the CATERPILLAR E6015 track system .
• In-House Heat Treatment: Owning and controlling the heat treatment lines allows CQCTRACK to strictly adhere to the precise time-temperature cycles necessary to achieve the specified case depth and core hardness, guaranteeing metallurgical consistency across all production batches.

5.2 Mining-Grade Quality Assurance

The designation of “OEM Quality” for mining applications is validated through a battery of rigorous tests:

• Dimensional Conformity: Each assembly is measured against master jigs and advanced Coordinate Measuring Machines (CMM) to ensure 100% interchangeability with CATERPILLAR specifications .
• Tooth Profile Inspection: Specialized gear inspection equipment verifies tooth spacing, profile, and runout against master gauges, ensuring perfect mating with the E6015 track chain bushings.
• Hardness Profiling: Rockwell hardness testers verify the surface hardness (HRC 52-58) on tooth flanks, while also confirming the core toughness, ensuring the component can withstand the harsh realities of open-pit mining .
• Magnetic Particle Inspection (MPI): Critical areas, particularly tooth roots and bolt holes, are inspected for micro-fractures or material inclusions that could lead to catastrophic failure under load.
• Traceability: All products receive unique identification numbers, enabling complete quality traceability from raw material to finished component .

5.3 Adaptation to Mining Applications

CQCTRACK understands that CATERPILLAR E6015 excavators operate globally in diverse, challenging mining environments. Their manufacturing process is adaptable, allowing for engineering adjustments—such as specifying enhanced wear-resistant alloys for highly abrasive conditions or specialized low-temperature material variants for Arctic mining operations—while maintaining the core OEM footprint.

6. Failure Mode Analysis & Preventive Maintenance Protocol

Maximizing the service life of the E6015 sprocket requires understanding potential failure modes and adhering to a strict maintenance regimen, as undercarriage components in mining applications operate under extreme conditions.

6.1 Common Failure Mechanisms

• Tooth Wear / Hook Profile: Progressive wear on the drive flank of the teeth due to continuous engagement with track bushings. As teeth wear, the pressure angle changes, leading to increased bushing contact stress and accelerated wear of both components. When teeth develop a “hook” profile, power transmission efficiency decreases and shock loading increases .
• Tooth Breakage: Catastrophic failure caused by impact loading exceeding the material’s ultimate strength—typically from striking rock ledges or from severe shock loads during digging operations. Proper core toughness from heat treatment is essential to resist breakage.
• Tooth Root Cracking: Fatigue cracks initiating at the tooth root radius due to cyclic bending stresses. These can propagate through the rim section, leading to segment failure. Regular inspection for crack initiation is critical.
• Bolt Hole Elongation / Bolt Failure: In segmented designs, bolt holes can elongate due to relative motion between segments and hub, or bolts can fatigue and fail. This leads to segment loosening and catastrophic damage.
• Bushing Mismatch Wear: If sprocket tooth wear and chain bushing wear become mismatched, the pitch diameter changes, leading to “climbing” and accelerated wear of both components .

6.2 Recommended Maintenance Practices

• Daily Visual Inspection: Inspect sprocket teeth for visible wear patterns, cracks, or missing teeth. Listen for unusual noises like “clunking” or irregular engagement sounds during operation. Check for loose bolts on segmented designs.
• Wear Measurement: Periodically measure tooth thickness using specialized sprocket wear gauges. Compare measurements to CATERPILLAR specifications and replace when tooth wear reaches the minimum allowable limit to prevent chain damage.
• Track Tension Management: Maintain correct track sag as per E6015 specifications. Improper tension affects the engagement angle between sprocket teeth and bushings, accelerating wear on both components.
• Rotation Inspection: During operation in a straight line, observe sprocket rotation for signs of runout or wobble, indicating hub or mounting issues.
• Proactive Replacement Planning: Sprockets should be evaluated for replacement in conjunction with track chain condition. Installing new sprockets with worn chains (or vice versa) accelerates wear of both due to pitch mismatch. Ideally, sprockets and chains should be replaced as a matched system .
• Bolt Torque Verification: For segmented designs, periodically verify bolt torque according to specifications to prevent loosening and fretting.

7. Compatibility & Application Scope

• Primary Models: CATERPILLAR E6015, E6015B, and related variants in the 150-170 ton mining excavator class.
• OEM Part Number: Direct replacement for CATERPILLAR 4304192.
• Machine Class: Heavy-duty mining crawler excavators (140-180 metric tons).
• Quality Warranty: Industry-leading warranty periods are available for mining-grade components, reflecting confidence in metallurgy and workmanship .
• Applications: Engineered for extreme durability in:
  • Open-pit mining and overburden removal
  • Large-scale quarrying and aggregate handling
  • Major infrastructure and earthmoving projects
  • Operations involving highly abrasive terrains and severe impact loads.

8. Conclusion: The Benchmark for Mining-Grade Power Transmission Reliability

The CATERPILLAR 4304192 E6015 / E6015B Track Final Drive Sprocket Assembly from HELI – CQCTRACK represents the pinnacle of heavy-duty undercarriage engineering for mining applications. It is not merely a replacement part; it is a strategic investment in operational uptime and total cost of ownership reduction for CATERPILLAR E6015 excavator fleets operating in the world’s most demanding environments.

By combining advanced metallurgy (35SiMn/40Mn2), closed-die forging, precision CNC hobbing, and the rigorous quality control of a true source manufacturer, CQCTRACK delivers a component that not only meets the exacting standards of CATERPILLAR’s mining-class excavator but is also engineered to surpass them in real-world, punishing conditions. The deep induction hardening to HRC 52-58 with 5-8mm case depth ensures exceptional tooth wear resistance, while the precision-machined “asterisk” profile guarantees optimal power transmission efficiency and minimal bushing wear.

Choosing HELI-CQCTRACK means partnering with a source supplier and manufacturer that possesses deep domain expertise in heavy-duty mining excavator chassis components. It ensures that every critical element—from the forged 35SiMn sprocket segments to the high-strength mounting hardware—works in perfect harmony to transmit the immense power of the E6015′s final drive, ensuring the track system remains reliable, efficient, and productive for thousands of operating hours in open-pit mines, quarries, and major infrastructure projects worldwide.
