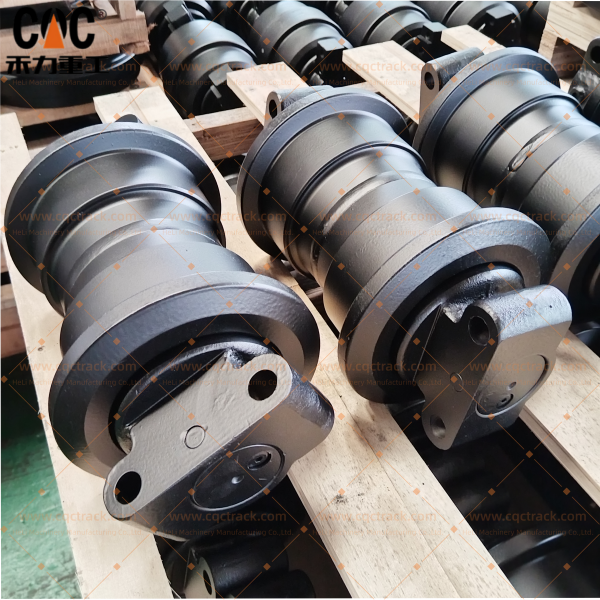

CATERPILLAR 1175045 1634143 2093386 3481867 8E5034 991109 E200B E320 E322 Track Lower Roller Assy / Track Bottom Roller Assembly / OEM quality Crawler excavator undercarriage parts source Supplier And Manufacturer–HeLi cqctrack

Technical White Paper: The CATERPILLAR E200B/E320/E322 Series Track Bottom Roller Assemblies—A Comprehensive Engineering Analysis from Heli CQCTRACK

Document Identifier: TWP-CQCT-CAT-EXCV-02
Issuing Body: Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
Target Models: Caterpillar E200B, E320, E322 Excavators
Component Portfolio: 1175045, 1634143, 2093386, 3481867, 8E5034, 991109
Publication Date: March 2026
Classification: Technical Engineering Specification / OEM-Quality Sourcing Guide

1. Executive Summary: Heli CQCTRACK as the Definitive OEM-Quality Undercarriage Source

In the demanding realm of crawler excavator operations, the undercarriage represents the critical interface between machine and terrain. The track bottom roller assembly—subjected to continuous abrasive wear, cyclical impact loading, and harsh environmental contaminants—stands as the single most maintenance-intensive component group on any excavator. Heli Machinery (CQCTRACK) has established itself as a premier source manufacturer of OEM-quality undercarriage components, bridging the gap between genuine OEM parts and inconsistent aftermarket alternatives.

This technical white paper provides a comprehensive engineering deconstruction of the CATERPILLAR 1175045, 1634143, 2093386, 3481867, 8E5034, and 991109 Track Bottom Roller Assemblies, specifically engineered for the E200B, E320, and E322 excavator platforms. By integrating rigorous material science, precision manufacturing protocols, and the disciplined framework of ISO 9001:2015 certification, Heli CQCTRACK delivers components that achieve documented performance parity with original equipment specifications.

For procurement specialists, fleet maintenance engineers, and equipment managers seeking to optimize total cost of ownership (TCO) for their CATERPILLAAR medium-class excavator fleets, this document serves as the definitive technical reference and sourcing guide.

2. Product Portfolio Identification and Cross-Reference Matrix

To ensure procurement accuracy and seamless integration into existing undercarriage systems, the following comprehensive identification matrix defines the complete component portfolio covered under this specification.

Table 1: Complete Part Number Interchangeability and Machine Application

Component Classification: Track Roller Assy / Track Bottom Roller Assembly / Lower Carrier Roller
Manufacturing Origin: Heli Machinery Manufacturing Co., Ltd. (Brand: CQCTRACK) – ISO 9001:2015 Certified Facility
Engineering Intent: OEM-quality replacement components engineered for 1:1 mechanical interchangeability without modification .

3. Engineering Deconstruction: The Anatomy of Heli CQCTRACK CATERPILLAR Roller Assemblies

The performance longevity of any track bottom roller assembly is determined by the synergistic interaction of four critical engineering subsystems: the shell metallurgy, the bearing interface, the sealing architecture, and the lubrication regime. Heli CQCTRACK engineers each of these subsystems with precision.

3.1 Roller Shell and Flange System: Forged Metallurgy for Abrasion Resistance

• Material Selection and Grain Structure Engineering: Each Heli CQCTRACK roller body for the 1175045, 1634143, and 8E5034 series is precision-forged from high-grade micro-alloyed steel, specifically 50Mn or 40MnB, selected for its exceptional hardenability and impact toughness . The forging process is metallurgically critical—it aligns the grain flow to follow the contour of the roller, creating an anisotropic grain structure that exhibits superior fatigue resistance and impact strength compared to cast alternatives. This forged foundation ensures the component can absorb the repetitive high-energy shocks of loading cycles in construction and quarry environments without catastrophic brittle fracture.
• Flange Geometry Engineering: The double-flange guidance system is engineered to exacting profiles to interface precisely with the track link counterparts. This precision prevents lateral derailment during turning maneuvers and minimizes friction under load, preserving machine power and reducing fuel consumption .
• Differential Heat Treatment Protocol: The running surface and flange sides undergo computer numerical control (CNC) induction hardening with real-time temperature monitoring.
  • Surface Hardness: 52 – 58 HRC (Rockwell Hardness Scale C). This martensitic surface layer provides the primary defense against abrasive wear from silica sand, crushed rock, and mineral ores .
  • Effective Case Depth: 8 – 12 mm. This deep-case hardening ensures that as the surface wears over thousands of operational hours, the newly exposed material maintains high hardness, preventing premature “wear-out” and extending service intervals .
  • Core Toughness Retention: 35 – 40 HRC. The tough, ductile core beneath the hardened case absorbs shock loads, preventing spalling and structural failure.

3.2 The Sealing and Bearing System: A Fortified Tribological Interface

Industry data consistently demonstrates that over 90% of premature undercarriage failures originate from contamination ingress leading to seal bypass. Heli CQCTRACK addresses this failure mode through a multi-stage sealing architecture.

• Shaft Metallurgy and Surface Engineering: The stationary shaft is machined from high-tensile 40Cr or 20CrMnTi alloy steel. Following CNC turning, the shaft is precision-ground to a mirror-like surface finish (Ra ≤ 0.4 μm). This minimizes friction and wear on the sealing lips and internal bushing surfaces.
• Bushing Technology: The rotational interface utilizes high-density, oil-impregnated sintered bronze bushings. This material provides low friction coefficient and excellent conformability under load. The embedded lubricant acts as a secondary emergency lubrication source—a fail-safe mechanism should the primary lubrication path be compromised.
• Multi-Stage Pressure-Adaptive Sealing System: Heli CQCTRACK engineers utilize a proprietary Labyrinth + Floating Ring + Radial Lip sealing architecture:
  • Primary Defense (Labyrinth): A grease-purged labyrinth path uses complex geometry to centrifugally eject large particulate matter such as mud and course sand.
  • Secondary Defense (Floating Wear Ring): A precisely machined metal ring creates a sacrificial barrier, protecting the primary seal from physical damage while maintaining consistent sealing gap.
  • Final Barrier (Radial Lip Seal): The ultimate seal is a dual-element nitrile rubber (NBR) or optional fluoroelastomer (FKM) radial lip seal, energized by a constant-force garter spring to maintain tight shaft contact, retaining lubricant and excluding fine abrasive “fines” .

4. Manufacturing Process Engineering: From Raw Material to Certified Assembly

Heli CQCTRACK maintains vertical integration across the manufacturing value chain, eliminating the variance introduced by subcontracted processes and ensuring consistent OEM-quality output.

4.1 Metallurgical Validation and Incoming Inspection

• Spectrochemical Analysis: Incoming steel coils and billets are subjected to spectrochemical analysis to verify exact chemical composition, ensuring compliance with stringent specifications for carbon, manganese, and alloying elements critical for hardenability.
• Ultrasonic Testing: Forged blanks undergo ultrasonic inspection to detect any internal voids or inclusions that could compromise structural integrity under load.

4.2 Precision Machining and Heat Treatment

• CNC Turning and Grinding: Multi-axis CNC vertical turning lathes and centerless grinding centers ensure that all critical dimensions—roller outside diameter, flange width, bore concentricity, and seal gland profiles—are held to tolerances within ±0.05mm .
• Digitally Monitored Induction Hardening: All induction hardening parameters (temperature profile, traverse speed, quench flow rate) are digitally monitored and logged, creating a permanent, auditable record for each production batch.

4.3 Assembly and Quality Assurance Protocol

Every Heli CQCTRACK roller assembly undergoes a rigorous multi-stage quality inspection process:

1. Dimensional Inspection: 100% verification of critical mounting interfaces and running surfaces using calibrated CMM (Coordinate Measuring Machine) equipment.
2. Hardness Verification: Rockwell hardness testing on shell surfaces and case depth verification through destructive sampling.
3. Seal Integrity Testing: Each assembled roller undergoes air pressure decay testing to validate seal performance before lubrication.
4. Running-In Procedure: Selected samples undergo simulated load testing to verify smooth rotation and proper internal clearance .
5. Corrosion Protection: Final assemblies receive anti-rust coating and paint application (standard black or optional yellow) .
6. Export Packaging: Components are secured in reinforced plywood crates or palletized packaging for international shipping protection .

5. Application-Specific Engineering for CATERPILLAR E200B, E320, and E322 Excavators

The undercarriage configurations across the E200B, E320, and E322 platforms share common engineering principles but require specific dimensional verification for optimal performance.

Table 2: Machine Application and Compatibility Verification

Note: Verify machine Serial Number prefix for exact undercarriage configuration before ordering .

5.1 CATERPILLAR E200B Specific Considerations (Part Numbers: 1175045, 8E5034, 991109)

The E200B represents a foundational platform in Caterpillar’s medium excavator lineage. Heli CQCTRACK engineers have optimized the 8E5034 and 991109 variants for the specific load profiles and track pitch configurations of this model. The roller flange profile is engineered to match the E200B’s link spacing, ensuring proper load distribution across the track chain.

5.2 CATERPILLAR E320 Specific Considerations (Part Numbers: 1175045, 1634143, 2093386, 3481867)

As one of the most ubiquitous excavator models globally, the E320 demands undercarriage components capable of sustained performance across diverse applications—from urban utility work to severe quarry service. The 1634143 and 2093386 variants feature enhanced case depth and upgraded sealing for applications involving high abrasion materials. The 3481867 incorporates an advanced seal design for machines operating in wet or high-silt environments.

5.3 CATERPILLAR E322 Specific Considerations (Part Numbers: 1175045, 1634143, 3481867)

The E322, with its higher operating weight and often more severe duty cycles, requires rollers with increased load capacity. Heli CQCTRACK specifies the 1634143 as the baseline for E322 applications, with the 3481867 recommended for machines equipped with long undercarriage configurations.

6. Quality Certification and Supply Chain Assurance

Heli CQCTRACK’s commitment to OEM-quality manufacturing is validated through internationally recognized certification frameworks.

6.1 ISO 9001:2015 Quality Management System

The Heli Machinery facility operates under a certified ISO 9001:2015 Quality Management System. This certification mandates:

• Documented procedures for all manufacturing processes
• Regular internal and external audits
• Continuous improvement protocols
• Complete traceability of materials and processes

6.2 Comprehensive Product Traceability

Heli CQCTRACK maintains digital records for each production batch for a minimum of 24 months, including:

• Material certification reports (Mill Test Certificates)
• Heat treatment process logs
• Dimensional inspection reports
• Batch-specific test results

6.3 Warranty and Performance Commitment

Each CATERPILLAR 1175045, 1634143, 2093386, 3481867, 8E5034, and 991109 Track Bottom Roller Assembly manufactured by Heli CQCTRACK is backed by a comprehensive warranty against defects in materials and workmanship. This warranty is underwritten by the certified manufacturing processes and rigorous quality control protocols detailed throughout this document.

7. Failure Mode Analysis and Proactive Maintenance Integration

Understanding the mechanics of failure validates the engineering choices made in Heli CQCTRACK components and provides a roadmap for proactive maintenance .

• Primary Failure Mode: Seal Bypass and Contamination Ingress. In inferior rollers, abrasive particles breach the seal, transforming lubricant into lapping compound and rapidly wearing the bushing and shaft interface. Heli Solution: The multi-stage labyrinth and floating ring sealing system is validated for high-contamination environments, significantly extending contamination-free service life.
• Secondary Failure Mode: Flange Wear and Spalling. Shallow-hardened rollers wear quickly, losing guiding capability and leading to track misalignment and accelerated link wear. Heli Solution: Deep-case induction hardening (8-12mm case depth) provides a sacrificial wear layer that maintains flange profile and proper track engagement throughout the service life .
• Tertiary Failure Mode: Structural Fracture. Brittle materials can crack under high-impact loads. Heli Solution: Forged 50Mn/40MnB steel with optimized core toughness ensures the roller absorbs shock loads without fracture, protecting the track frame and final drive from transmitted stresses .

7.1 Recommended Maintenance Practices

To maximize service life of Heli CQCTRACK roller assemblies:

1. Regular Inspection: Inspect rollers at 250-hour intervals for evidence of oil leakage or abnormal wear patterns.
2. Cleanliness: Remove accumulated debris around roller flanges during daily greasing routines to prevent accelerated packing and seal damage.
3. Environmental Consideration: For machines operating in acid/alkaline soils or extended idle periods in wet environments, consider enhanced corrosion protection options.
4. Rotation Protocol: Where undercarriage configuration permits, rotate rollers between positions at 1000-hour intervals to equalize wear .

8. Global Sourcing and Logistics Support

Heli CQCTRACK supports global procurement operations with comprehensive logistics capabilities:

• Export Documentation: Full commercial invoices, packing lists, certificates of origin, and material test reports provided with each shipment.
• Flexible Shipping Options:
  • Sea freight (FCL/LCL) for cost-effective bulk transport
  • Air freight for urgent order fulfillment
  • Express courier (DHL/FedEx/UPS) for sample or small-volume orders
• Lead Times: Standard orders typically ship within 15-20 working days; stock items available for expedited shipping .
• Minimum Order Quantity: Flexible MOQ structure accommodating both trial orders and fleet-level bulk procurement .

9. Conclusion: Heli CQCTRACK as the Engineering-First Choice for CATERPILLAR Undercarriage Components

The Heli CQCTRACK manufacturing philosophy for the CATERPILLAR 1175045, 1634143, 2093386, 3481867, 8E5034, and 991109 Track Bottom Roller Assemblies represents a definitive advancement in aftermarket undercarriage technology. Through rigorous material selection, precision forging and machining, advanced heat treatment, and multi-stage sealing architecture, Heli CQCTRACK delivers components that achieve OEM-quality performance standards.

For the equipment manager or procurement specialist managing CATERPILLAR E200B, E320, or E322 excavator fleets, the value proposition is clear: investing in Heli CQCTRACK components means investing in maximized machine availability, minimized unplanned downtime, and predictable, optimized total cost of ownership. These are not generic replacement parts—they are engineered solutions validated through certified manufacturing processes and designed from the ground up to meet the demands of global construction, quarry, and heavy civil engineering applications.

For technical specifications, pricing, or to place an order, contact:

Heli Machinery Manufacturing Co., Ltd. (CQCTRACK)
*ISO 9001:2015 Certified • Global Under-carriage Solutions Provider*

This technical document is provided for engineering and procurement reference. Specifications subject to change without notice. All brand names and part numbers are referenced for cross-reference purposes only; Heli CQCTRACK is an independent manufacturer.
