Engineering Profile: CAT 6095428 DM6250 Track Lower Roller Group

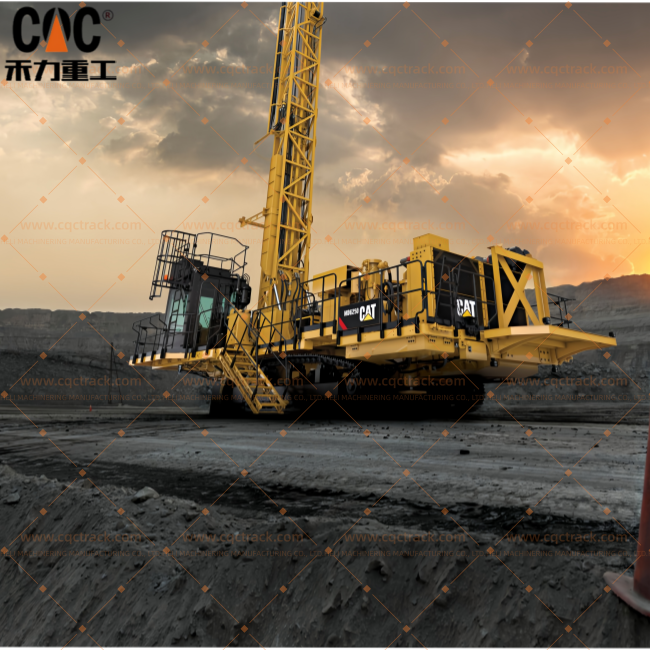

Within the demanding realm of track drilling rigs, the undercarriage system transcends its conventional role, becoming a bedrock of stability and precision. The CAT 6095428 DM6250 Track Lower Roller Group is a pivotal assembly within this system, engineered specifically for the punishing, high-vibration, and static-load environments characteristic of drilling operations. This component is not merely a wear part; it is a fundamental structural bearing element that supports the machine’s mass, maintains track alignment, and absorbs substantial dynamic forces during positioning and drilling cycles.

1. Functional Anatomy & Operational Demands

For a machine like the DM6250 track drill, the lower rollers (also known as bottom rollers or track rollers) fulfill a mission-critical function distinct from standard excavator duty cycles:

• Primary Load-Bearing: The roller group forms the primary contact point between the track chain and the machine’s mainframe, carrying the brunt of the rig’s weight. During drilling, these rollers endure prolonged static loads combined with high-frequency vibrations transmitted through the frame.
• Track Guidance & Alignment: Positioned on the lower strand of the track, these rollers precisely guide the track chain’s path of travel, preventing lateral slippage or derailment. This precise guidance is essential for maintaining positional accuracy during hole setup.
• Shock & Vibration Damping: The internal bearing and bushing systems within the roller are designed to dampen impact loads from uneven terrain and, more critically, to withstand the resonant vibrations generated by the drill head, protecting the entire undercarriage structure from premature fatigue.

2. Technical Design & Material Specifications

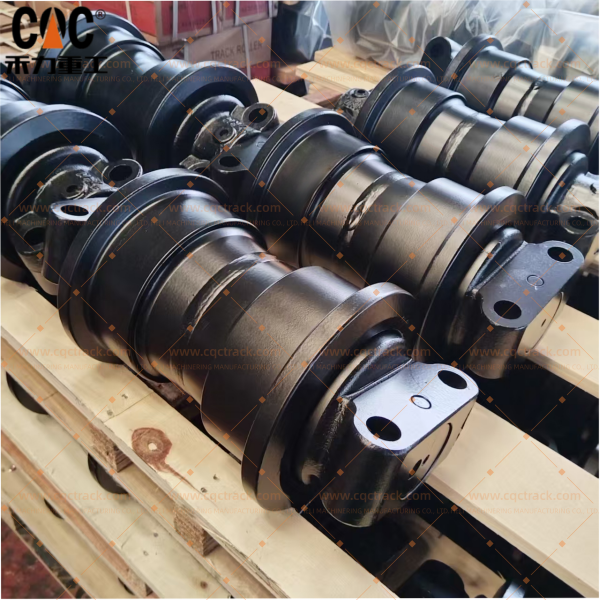

The CAT 6095428 part number designates a complete, service-ready lower roller group. Its design incorporates features to meet the exceptional stresses of drill rig applications.

• Forged Steel Construction: The roller shell is typically hot-forged from high-grade boron or alloy steel (e.g., 50Mn, 53Mn2B). Forging ensures a continuous, dense grain structure optimized for impact resistance and rolling contact fatigue life, far superior to cast components.
• Precision-Ground Flange & Running Surface: The roller’s outer diameter and inner flange are machined to exacting tolerances. This ensures smooth rolling contact with the track chain link and bushing, while the robust flange contains the track, providing critical alignment under side loads encountered during turning.
• Sealed & Lubricated Bearing System: At its core, the roller group houses a heavy-duty tapered roller bearing or a specially engineered bushing system. This assembly is permanently lubricated and protected by a multi-stage, labyrinth-style seal system—often incorporating alloy steel wear rings, nitrile rubber seals, and grease purging channels. This complex sealing is paramount for excluding abrasive rock dust and slurry, the primary adversaries of undercarriage component longevity in drilling applications.
• Mounting Configuration: The group includes the hardened steel shaft (kingpin) and mounting hardware, engineered for a secure, press-fit, or bolted connection to the track frame, ensuring rigidity and load transfer.

3. Failure Mode Analysis in Drilling Applications

Understanding the unique failure modes in drilling contexts informs the design philosophy:

• Flange Fatigue & Spalling: Cracking or material breakdown on the roller flange due to constant high side pressure from the track chain during rigid-frame turning maneuvers common in drill positioning.
• Bearing Brinelling: Indentations on bearing raceways caused by high static loads during prolonged stationary drilling, combined with vibrational loading.
• Seal Integrity Loss: The single most common point of failure. Abrasive invasion leads to rapid bearing/bushing wear, loss of lubrication, and eventual roller seizure.
• Running Surface Wear: Concentrated abrasive wear on the roller’s outer diameter, leading to loss of machine ground clearance and altered track tension.

4. HELI CQCTRACK: OEM Manufacturing Expertise for Specialized Undercarriage

HELI CQCTRACK operates as an original manufacturer producing undercarriage components to meet the specifications of global OEMs, including Caterpillar. Their production of the CAT 6095428 DM6250 group demonstrates capability in specialized, low-volume, high-complexity parts.

Manufacturing & Quality Assurance Protocols:

• Application-Specific Engineering: Components are designed with the DM6250′s operational envelope in mind, potentially involving material upgrades or seal enhancements over standard excavator rollers to address vibration and static load factors.
• Integrated Forge & Heat Treat: In-house forging and subsequent through-hardening or case hardening (to depths of 8-12mm) provide uniform material properties and deep wear resistance.
• Precision Machining & Seal Integration: CNC grinding achieves micron-level accuracy on all critical surfaces. The seal housing is machined as an integral part of the assembly process, ensuring perfect alignment of sealing components—a critical step often overlooked.
• Rigorous Performance Validation: Beyond standard material and dimensional checks, testing may include rotational torque analysis, seal pressure testing, and simulated load-cycle endurance evaluations to validate performance under drill rig conditions.

Value Proposition for Drilling Operations:
For drill rig operators, component failure translates directly into costly project delays. HELI CQCTRACK’s focus on OEM-formulated specifications and enhanced durability features offers:

• Guaranteed Interchangeability: Direct, no-modification replacement of the original CAT group.
• Extended Service Intervals: Robust construction and superior sealing aim to maximize component life in severe service, reducing downtime.
• Total Cost of Ownership (TCO) Reduction: Reliable performance decreases unexpected failures, lowers parts consumption frequency, and preserves the integrity of adjacent, more expensive undercarriage elements.

5. Maintenance & Inspection Guidelines

Proactive maintenance is crucial for track drill undercarriages:

• Regular Inspection: Daily checks for visible damage, fluid leaks from seals, and irregular roller rotation. Frequent cleaning of packed debris around rollers is essential.
• Rotation & Wear Measurement: Periodically measure roller flange height and outer diameter wear. Compare against service limits; rollers should be replaced in sets to maintain uniform track ride height and tension.
• System-Wide Assessment: Always evaluate the condition of the roller group in conjunction with the track chain, sprockets, and idlers. Asymmetric wear across components indicates alignment or tension issues.

Conclusion

The CAT 6095428 DM6250 Track Lower Roller Group is a high-precision bearing assembly fundamental to the stability and operational readiness of a track drilling rig. Its design addresses a unique set of challenges posed by static loads, vibration, and abrasive contamination. HELI CQCTRACK, as an original manufacturer, applies specialized engineering and controlled manufacturing processes to produce this critical component, offering drilling contractors a reliable, performance-certified alternative that upholds the demanding standards of Caterpillar machinery. Sourcing this group from a manufacturer with documented OEM capability ensures mechanical integrity, supports sustained machine availability, and protects investment in high-value capital equipment.
