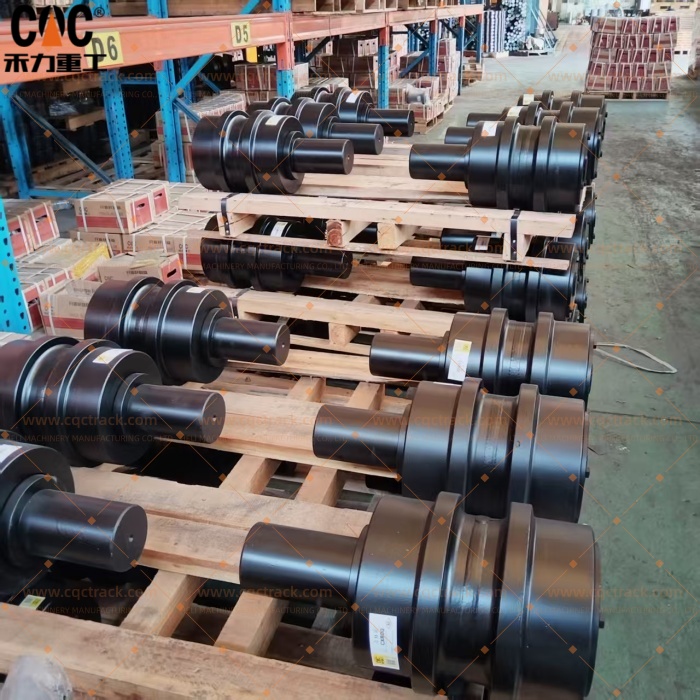

CASE CX800 Track Upper Roller (Top Carrier Roller) Assembly | Mining-Grade Engineering by HELI/CQCTRACK

Introduction:
In the severe operating envelope of large mining and heavy excavation, the Track Upper Roller (Top Carrier Roller) Assembly plays a pivotal role in sustaining machine integrity and performance. Specifically engineered for the CASE CX800 series excavator, this component is tasked with supporting the upper section of the track chain, maintaining proper track sag (tension), and managing dynamic loads from high-speed travel and load-bearing swings. HELI/CQCTRACK, as a specialist in extreme-service undercarriage systems, manufactures this Upper Roller Assembly to original specifications, integrating material science and precision engineering tailored for 24/7 mining applications.

Product Overview & Specification:

• Compatible Machine: CASE CX800 Series Hydraulic Mining Excavator.
• Component Identity: Track Upper Roller / Top Carrier Roller Assembly (Complete Unit).
• Core Function: Supports the weight of the returning track chain, guides it in alignment, and dampens vertical oscillations to protect the track frame and main rollers.
• Design Philosophy: Dimensional and functional interchangeability with OEM part, enhanced for abrasion resistance and structural fatigue life.

Technical Design & Manufacturing Depth:

1. Optimized Load-Bearing Architecture:
   • The roller body is forged from micro-alloyed boron steel, selected for its superior yield strength and hardenability. A proprietary induction hardening process creates a deep, consistent case hardness (typically 55-60 HRC) on the rolling surface, while preserving a ductile core to absorb shock loads without brittle fracture.
   • Internal double-row tapered roller bearings or oversized, case-hardened bushing systems are employed to handle significant radial loads from track weight and lateral forces from misalignment. The bearing raceways are super-finished to minimize friction heat generation.
2. Advanced Contaminant Exclusion & Lubrication Retention:
   • A multi-stage, pressurised labyrinth seal system forms the primary defense. This is augmented by high-temperature, abrasion-resistant grease seals manufactured from reinforced polymer composites.
   • The sealing chamber is packed with lithium-complex EP (Extreme Pressure) grease, formulated to maintain viscosity and lubricity under high load and in a wide temperature range (-30°C to 150°C). The sealing system is tested for performance under negative and positive pressure differentials.
3. Thermal & Structural Management:
   • The roller design incorporates internal ribbing and optimized wall thickness to maximize stiffness-to-weight ratio and provide efficient heat dissipation from the bearing core to the outer shell.
   • The matching bracket or saddle is fabricated from high-strength steel plate with full-penetration welds at critical stress points. Mounting bushings are flame-hardened to resist wear from the pivot pin.
4. Precision Machining for System Integration:
   • Critical interfaces—including the inner bore, sealing surfaces, and external rolling profile—are finished via CNC grinding and honing. This ensures concentricity, reduces seal wear, and provides a smooth engagement surface for the track chain bushings, minimizing friction and power loss.
   • Strict quality control guarantees precise track chain flange clearance, preventing unnecessary side wear and ensuring smooth track return without binding.

Operational Benefits & Application Context:

• Target Operating Environments: Surface mining (overburden removal, mineral extraction), large-scale quarry operations, major dam construction, and infrastructure projects involving dense rock or abrasive soils.
• Performance Advantages:
  • Enhanced Track Stability: Maintains correct track geometry, reducing lateral whip and improving travel alignment for greater operator control and reduced sprocket wear.
  • Vibration Damping: Absorbs and dissipates energy from track chain impacts, reducing vibration transfer to the main frame and operator cabin.
  • Protection of Adjacent Components: By properly supporting the track, it prevents excessive sag that can lead to derailment and reduces impact loading on the front idler and rear sprocket.
  • Increased Uptime: Robust construction and superior sealing directly translate to longer service intervals and reduced risk of catastrophic bearing seizure.

HELI/CQCTRACK: A Manufacturer Profile for Critical Components
HELI/CQCTRACK operates as a vertically integrated producer focused on the most demanding segments of the off-road equipment market. Our capability in manufacturing mining-grade Upper Roller Assemblies is defined by:

• Application-Specific Metallurgy: Collaboration with steel mills to procure bespoke material grades for forging blanks that meet our rigorous impact and wear test standards.
• Process-Controlled Heat Treatment: In-house heat treatment facilities with computer-controlled atmosphere furnaces ensure repeatable and verifiable hardness profiles.
• End-to-End Quality Gates: From ultrasonic testing of raw forgings to coordinate-measuring machine (CMM) inspection of final assemblies, every unit undergoes a stringent quality verification protocol aligned with ISO 9001:2015.
• Engineering Validation: Components are subject to accelerated life testing simulating extreme load cycles, validating performance beyond catalog specifications.

Value Proposition:
The HELI/CQCTRACK Upper Roller Assembly for the CASE CX800 is not a commodity replacement part. It is a performance-engineered system component designed to be the strongest link in your excavator’s undercarriage. It delivers predictable longevity and reliability, converting into lower total operating costs and maximized machine availability for your most profitable projects.

Call to Action:
Equip your CASE CX800 for peak performance in mining duty. Request detailed technical data sheets, competitive quotations, and OEM cross-reference information for our mining-grade Track Upper Roller Assemblies. Contact HELI/CQCTRACK or your regional authorized distributor today.
