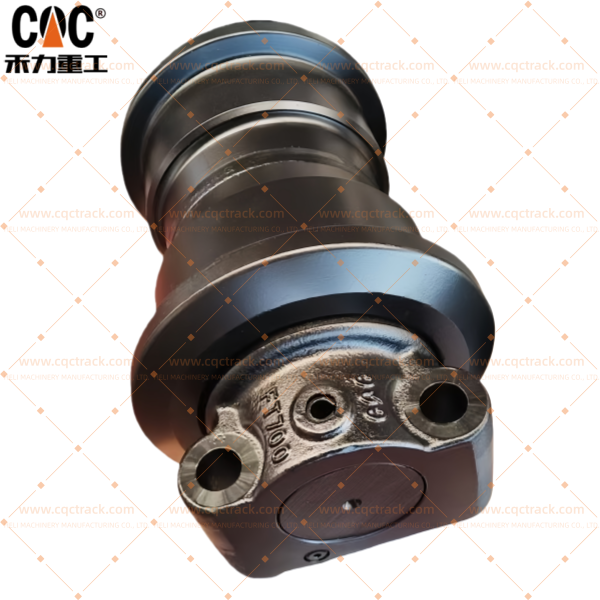

Technical Specification & Engineering Report: Lovol FR700F Heavy-Duty Track Lower Roller Assembly

Report Code: HELI-TS-FR700F-LR | Component: Track Lower (Bottom) Roller Assembly | Target Machine: Lovol FR700F Heavy-Duty Crawler Excavator | Manufacturer: HELI Machinery Mfg. Co., Ltd. (CQCTRACK)

1. Executive Summary

This document provides a comprehensive technical overview of the Track Lower Roller Assembly engineered and manufactured by HELI Machinery (CQCTRACK) for the Lovol FR700F heavy-duty excavator. Designed for machines in the 70-ton class, this component is a cornerstone of the undercarriage system, bearing extreme dynamic loads and abrasive wear in severe applications such as mining and large-scale earthmoving. HELI leverages its position as a top-tier ODM/OEM supplier to deliver a roller assembly that transcends a simple replacement part. Through proprietary material specifications, advanced heat treatment, and a sealing system validated for contaminated environments, this assembly is built to maximize service life, machine availability, and operational economy for the FR700F platform.

2. Functional Analysis & Operational Context

The Track Lower Roller (or Bottom Roller) is a quintessential load-bearing component within the crawler track system. For a machine of the FR700F’s scale, each roller sustains a significant portion of the machine’s operational weight, often under shock loads from uneven terrain.

Primary Functions:

1. Primary Load Support: Directly supports the machine’s mass on the lower track strand, distributing ground pressure.
2. Track Guidance & Stability: Its double-flange design confines the track chain, ensuring lateral stability and preventing derailment during high-force turning and side-slope operation.
3. Friction & Wear Management: By providing a smooth, hardened rolling surface, it minimizes sliding friction between the track chain and the frame, protecting both from accelerated wear.

A failure in this assembly leads directly to increased rolling resistance (higher fuel consumption), misalignment causing rapid wear of adjacent components, and potential catastrophic damage to the track chain and frame.

3. Technical Specifications & Engineering Data

The HELI/CQCTRACK assembly for the Lovol FR700F is defined by specifications that target known failure modes in ultra-heavy-duty cycles.

3.1 Core Component Engineering

3.2 Dimensional & Performance Integrity

• Interchangeability: Manufactured to Lovol FR700F OEM mounting interface specifications (shaft diameter, bolt pattern, overall width). Guaranteed drop-in fit without modification.
• Runout Tolerance: Maximum radial runout < 0.4 mm, ensuring smooth operation and minimal vibration.
• Static Load Capacity: Designed to withstand the specific dynamic load factor (DLF) of the FR700F under maximum working weight and impact conditions.

4. Manufacturing Process & Quality Assurance

HELI’s vertical integration ensures control over the entire value chain, from forging to final assembly.

4.1 Production Sequence:

1. Controlled Forging: Die-forging of pre-heated alloy steel billets ensures optimal grain flow and eliminates internal voids.
2. Normalization: Post-forging heat treatment to refine the grain structure and prepare for machining.
3. CNC Machining: Rough and finish machining on CNC lathes to achieve precise profiles and tolerances for the roller body, flanges, and bore.
4. Induction Hardening: Computer-controlled process applies precise energy to the running surface and flanges, creating the deep, uniform hardened case.
5. Low-Temperature Tempering: Relieves quenching stresses while maintaining core toughness.
6. Finish Grinding: Precision grinding of the hardened raceway and seal contact surfaces.
7. Clean-Room Assembly: Components are ultrasonically cleaned. Seals are installed with dedicated tools, and the assembly is vacuum-filled with grease.

4.2 Quality Assurance Protocol:

• Material Certification: Incoming steel is verified via spectrometry (ISO 14284).
• Process Control: In-process checks for dimensions, hardness (Rockwell testing), and case depth (macro-etch testing).
• Non-Destructive Testing (NDT): 100% Magnetic Particle Inspection (MPI) of critical stress areas post-heat treatment.
• Final Audit: 100% dimensional inspection, rotational torque test, and seal pressure retention test.
• Certifications: Manufactured under an IATF 16949:2016 compliant quality management system, with full traceability.

5. Installation, Maintenance & Value Proposition

5.1 Installation Guidelines:

1. Follow OEM service manual procedures. Safely jack the machine to relieve track tension.
2. Remove the track chain to access rollers. Clean the mounting boss on the side frame thoroughly.
3. Apply a medium-strength thread-locking compound to the mounting bolts. Install the new HELI roller and torque bolts in a cross pattern to the specified value (typically 600-800 N·m for this class).
4. Reassemble the track and adjust tension to the FR700F specification.

5.2 Proactive Maintenance:
Inspect during routine undercarriage checks (every 250 hours):

• Visual: Check for grease leakage, damaged flanges, or asymmetric wear.
• Functional: Ensure rollers rotate freely without binding or excessive noise.
• Contextual: Monitor track tension and alignment, as misalignment is a primary cause of premature roller wear.

5.3 Total Cost of Ownership (TCO) Advantage:

6. Supply Chain & Support

As a direct manufacturer, HELI (CQCTRACK) provides:

• Technical Documentation: Detailed CAD drawings, 3D models, and installation guides upon request.
• Logistics: Flexible shipping terms (FOB, CIF, DDP), with robust export packaging.
• After-Sales Support: Access to engineering teams for application consultation and field failure analysis.

Conclusion: The Lovol FR700F Track Lower Roller Assembly from HELI (CQCTRACK) represents the convergence of application-specific engineering and disciplined manufacturing excellence. It is engineered not just to fit, but to perform and endure, delivering measurable value through extended component life and enhanced machine reliability for owners and operators of this powerful excavator platform.
