Zvikamu zveDoosan Heavy Duty Undercarriage

NziraMutakuri AnotendereraKuungana | Mugadziri weOEM & ODM Source

NaJack
Nyanzvi Yepamusoro Yekutakura Vari Mukati,CQC TRACK

1. Pfupiso yeChigadzirwa

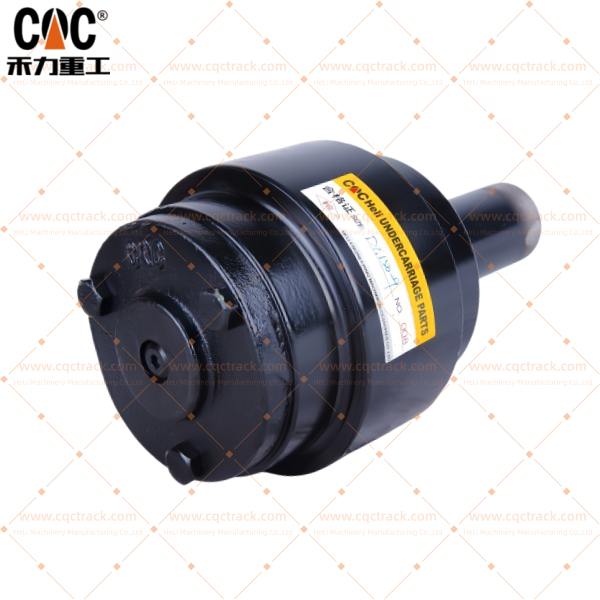

DOOSAN Track Carrier Roller Assembly, inozivikanwawo seRoller Yepamusoro, chinhu chakakosha chekutsigira chakagadzirirwa DOOSAN S140LC, DH150, uye DX150 series medium-size crawler excavators. Yakaiswa padivi pefuremu yepamusoro, iyi assembly inotsigira tambo yepamusoro yecheni yetrack, ichidzivirira kudzika uye kuderedza kukweshana panguva yekufamba uye kushanda kweswing.

CQC TRACKinogadzira gungano iri senzvimbo yekutsiva yemhando yeOEM, ichipa zvikamu zvekutsiva zvakajairwa uye mhinduro dzeODM dzakagadzirwa. Nekubatanidzwa kwakatwasuka kunosanganisira kuwana zvinhu zvisina kugadzirwa, kugadzira zvinhu zvakavharirwa, kugadzira machining nemazvo, kupisa, uye kugadzira kwekupedzisira, tinoshanda sefekitori yekutanga uye semubatsiri wekugadzira kune vanogovera, vanofambisa zvikepe, uye vatengesi vemidziyo mumisika yepasi rose.

OEM Cross-Reference

Mhando dzeDOOSAN Excavator dzinoshanda

Michina yeS140LC, DH150, uye DX150 inomiririra michina yeDoosan yakagadzirwa ine matani 14-15. Iyo DX150, senzira yechizvarwa chinotevera chaDoosan, inosanganisira mahydraulics akagadziriswa uye kugara kwenguva refu kwemotokari pasi pemotokari. Michina iyi inoshandiswa zvakanyanya mumapurojekiti ezvivakwa, kuvaka dzimba, uye mabasa emagetsi pasi rese.

2. Magadzirirwo Ehunyanzvi: Akagadzirwa kuti ashande pakati nepakati

Roller yekutakura, kana kuti roller yepamusoro, inoita basa rakasiyana mukati mehurongwa hwepasi pemotokari. Kusiyana nemaroller ekutevera anotakura huremu hwemuchina, maroller ekutakura anotsigira tambo yekudzosa yecheni yechitima. Basa iri rakakosha pakuchengetedza kurongeka kwakakodzera kwecheni, kuderedza kudedera panguva yekufamba, uye kuderedza kusakara kwecheni nefuremu yechitima.

2.1 Mabasa Ekutanga Ekushanda

Rutsigiro rweTrack Chain: Chinotenderera chinofambisa ngarava chinotsigira kumhanya kwepamusoro (kudzokera) kwecheni yetrack. Pasina rutsigiro rwakakodzera, cheni yacho inodonha zvakanyanya, zvichiwedzera njodzi yekubuda mugwara uye zvichikonzera kushushikana kusingakoshi pasprocket ne idler.

Kuderedzwa Kwekukweshana: Nekupa nzvimbo yekumonera yecheni dzinobatanidza, chinofamba chinotenderedza chinoderedza kukweshana pakati pecheni nefuremu yenzira, zvichivandudza kushanda zvakanaka kwekufamba uye kuderedza kushandiswa kwemafuta.

Kurongeka Kwecheni: Maroller ekutakura anobatsira kuchengetedza kurongeka kwecheni yetrack, achidzivirira kuti isakwizane nemaplate epadivi etrack frame, izvo zvinokurumidzisa kupera kwezvikamu zvese zviri zviviri.

2.2 Magadzirirwo Ehunyanzvi

2.3 Zvaunofanira Kufunga Nezvekugadzira S140LC, DH150, DX150

Kirasi ye14-15 ton inopa zvinhu zvakakosha zvekugadzira maroller ekutakura:

Kugadzika Kwekuisa: Maroller ekutakura emhando idzi anowanzo kuve negadziriso yekugadzika yebolt-on ine mapatani chaiwo ebolt uye tambo dzakatarwa. Chigadziko chekugadzika chinofanira kuenderana nefuremu yenzira kuti chive nechokwadi chekuti cheni yacho inotungamirirwa zvakanaka.

Hunhu hweMutoro: Kunyange hazvo ma "carrier roller" asingatakure huremu hwakafanana nehwemuchina, anosangana nemitoro inoshanduka-shanduka panguva yekufamba munzvimbo isina kuenzana. "Roller" inofanira kutsungirira huremu hwecheni uye simba rekumanikidzwa panguva yekumhanya, kudzikira, uye kutenderera.

3. Nheyo yeMetallurgical & Kugona Kugadzira

3.1 Kusarudzwa Kwezvinhu

Chinotenderera chinotakura zvinhu chinoshanda munzvimbo ine guruva, hunyoro, uye tembiricha yakawandisa. CQC TRACK inosarudza mhando dzesimbi dzakagadzirwa nesimbi dzinoita kuti kuoma kwepazasi uye kusimba kwepakati zvive zvakaenzana:

Simbi yeManganese ye40Mn2 / 50Mn: Idzi simbi dzemanganese dzine kabhoni yepamusoro dzinopa kusimba kwakanaka uye dzinodzivirira kupera mushure mekusimbaradzwa. Kuwanda kwemanganese kunowedzera kusimba uye kunokurudzira chimiro chezviyo zvakatsetseka.

40Cr Chromium Steel: Kune zvishandiso zvinoda simba rakawedzerwa rekudzivirira kuneta, chromium steel inopa simba rakawedzerwa rekudzivirira kuneta uye simba rekudzivirira ngura zvine mwero.

3.2 Maitiro Ekugadzira Zvinhu Zvakavharika

CQC TRACK inoshandisa closed-die hot forging yemidziyo yese yekutakura maroller. Maitiro aya anogadzira chimiro chakafanana, chakasimba, chinotevedzera contour yezvikamu, zvichibvisa maburi emukati uye maburi anowanikwa muzvikamu zvesimbi.

Maitiro ekugadzira anovimbisa:

• Kuyerera Kwezviyo Kunoramba Kuchienderera: Kwakabatana nejometri yeroller kuti uwane simba rakawanda
• Kuramba Kusimba Kwepamusoro: Simba rekuneta rakakwirira ne20-30% kana tichienzanisa nedzimwe nzira dzekugadzira simbi.
• Kuwanda kwezvinhu zvinoenderana: Hapana porosity kana zvikanganiso zvemukati

3.3 Kuomesa Kwekutanga

Mushure mekugadzirwa nemazvo, nzvimbo dzinopfekwa zvakanyanya—kunyanya dhayamita rekunze nepamativi eflange—dzinoomeswa ne induction:

• Kuomarara kwePamusoro: HRC 50-56 yekudzivirira kupfeka kwakanyanya
• Kudzika kweKesi: 4-8 mm kuti igare kwenguva refu ichikweshwa
• Kusimba Kwepakati: Kunochengetedza ductility kuti itore mitoro yekukuvara

Chimiro ichi chine zvikamu zviviri chinoita kuti chisapararire kubva pakusakara uye chinobvisa kuvhunduka kwemuviri, izvo zvakakosha munzvimbo dzekuvaka.

3.4 Kugadzira Machining Nemazvo

Zviyero zvese zvakakosha zvakagadzirwa neCNC kuti zvikwanise kushivirira ± 0.02 mm, zvinosanganisira:

• Dhayamita yemugodhi: Yekukwana kwekutakura
• Maburi ekuisa mabhaudhi: Kuti pave nekurongeka kwakakodzera nefuremu yenzira
• Flange geometry: Kuti pave nenhungamiro yecheni inoenderana

3.5 Sisitimu yeBheari & Kuvhara

Roller yekutakura ine sisitimu yakasimba yekutakura uye yekuvhara yakagadzirirwa kushandiswa kwepakati nepakati:

Sisitimu yekuvhara yepamberi inodzivirira kupinda kwetsvina inokuvadza, zvichiita kuti igare kwenguva refu kunyangwe munzvimbo dzine guruva.

4. Maitiro Ekusimbisa Hunhu

CQC TRACK inoshandisa kusimbiswa kwemhando yezvigadzirwa mumatanho akasiyana-siyana panguva yekugadzira:

5. Rutsigiro rweKufukidzwa kweMusika weDunhu uye Kutakura Zvinhu

CQC TRACK inochengetedza cheni yekugovera pasi rose ine nzvimbo dzakarongeka dzekutengesa uye hunyanzvi hwenzvimbo.

5.1 Australia neOceania

5.2 Japani neKuchamhembe kwakadziva kumabvazuva kweAsia

5.3 South America

5.4 Kuchamhembe kweAmerica

5.5 Russia neCentral Asia

5.6 South Africa neSub-Saharan Africa

5.7 Europe

5.8 Korea

6. Kugona Kwekugadzira kweOEM neODM

CQC TRACK inopa mabasa akazara ekugadzira zvinhu kupfuura zvikamu zvakajairwa zvekutsiva:

Kugadzira kweOEM

• Magadzirirwo Akajairika: Kugadzirwa zvinoenderana nehukuru hweOEM uye zvirevo zvezvinhu
• Chitupa Chemhando Yepamusoro: Maitiro akasimbiswa neISO 9001:2015
• Kutevedza Kwakazara: Magwaro kubva pazvinhu zvakabikwa kusvika kune chigadzirwa chapera

Kugadzirisa ODM

• Kugadzira Brand Yemunhu: Kurongedza label yemunhu oga uye kuisa chiratidzo pazvikamu
• Magadzirirwo Akagadzirwa: Zviyero, zvinhu, kana machira akachinjwa kuti aenderane nezvinodiwa chaizvo
• Kubatana Pakugadzira: Rutsigiro rweinjiniya rwezvishandiso zvakasiyana

Kugona Kugadzira

• Kugona Kugadzira: Kugadzira zvinhu zvakawanda zvine simba rekugadzira zvinhu zvakawanda
• Nguva dzeKutungamira: Mazuva ekushanda gumi nemashanu kusvika makumi maviri ekugadzirwa kwakajairika
• Kudzora Hunhu: Kuongororwa kwe100% kwezviyero zvakakosha

7. Mamiriro Ehurongwa Hwepasi Pemusuwo: Mhinduro Yakazara

Kunyange zvazvo chinyorwa chino chichinyanya kutaura nezvegungano remutakuri rinotenderera, CQC TRACK inogadzira zvinhu zvakasiyana-siyana zvepasi pemotokari dzeDOOSAN S140LC, DH150, uye DX150:

8. Zviratidzo Zvekupfeka & Nhungamiro dzeKugadzirisa

8.1 Zviratidzo zveKupfeka Kwakakosha

• Kupera kwedhayamita rekunze: Kudzikira kwedhayamita rekunze kunokanganisa rutsigiro rwecheni uye kurongeka kwayo
• Kupfeka Flange: Kutetepa kweflanges kunoderedza kugona kwekutungamira kwedivi
• Kutamba Kwemabheya: Kutamba kwakanyanya kwe radial kana axial kunoratidza kusashanda kwebheya
• Kukuvara kwechisimbiso: Kubuda kwemafuta kunoratidza kutadza kwechisimbiso uye kusvibiswa kunogona kuitika

8.2 Zviratidzo Zvakajairika

• Kudonha kwakanyanya kwecheni yenzira pamusoro penzira
• Ruzha rusingawanzoitiki runobva pasi pechidya panguva yekufamba
• Kupera kana kukuvara kunoonekwa pamusoro pechitenderedza
• Kubuda kwemafuta kubva muchikamu cheroller

8.3 Maitiro Akanakisisa Ekugadzirisa

• Kuongorora Nguva Dzose: Tarisa kana paine kusakara, mitswe, kana kutamba kwebheya panguva yekugadzirisa kwakarongwa
• Kusimbiswa kweTrack Tension: Ita shuwa kuti wakasimba zvakakwana kudzivirira kushushikana kusingakoshi pama carrier rollers
• Kuzora: Tevedzera nguva dzebasa dzinokurudzirwa neOEM
• Kuiswa Kwehunyanzvi: Torque yakakodzera yebhoti uye kurongeka kwakakosha kuti munhu ararame kwenguva refu

9. Zvitupa zveHunhu

10. Ruzivo rweKuraira

Incoterms

• FOB - China chikuru chiteshi (Shanghai, Qingdao, Tianjin, Xiamen)
• CIF - Chero chiteshi chikuru chengarava pasi rese
• DDP - Vatengi vakakodzera munzvimbo dzakasarudzwa

Nguva dzekutungamira

• Zvinhu Zvemari: maawa 24-72
• Kugadzirwa kweFekitori: Mazuva ekushanda gumi nemashanu kusvika makumi maviri
• Odha dzeODM: Mazuva ekushanda makumi maviri nemashanu kusvika makumi matatu

11. Ruzivo rwekuonana

CQC TRACK - Chikamu chezvifambiso zvepasi pemotokari zvinorema

• Email: cqc@cqctrack.com
• Webhusaiti:www.cqctrack.com
• Nzvimbo yeFekitori: Fujian / Shandong, China

Nzvimbo dzeKutaurirana dzeDunhu

12. Mabasa Ekutsigira Unyanzvi

CQC TRACK inopa rutsigiro rwakakwana rwehunyanzvi:

Kutengesa Pamberi

• Kusimbiswa kwekukwana kwemuchina nenhamba yeserial yemuchina
• Kuongororwa kwekushandiswa kwemamiriro ekushanda
• Mazano akazara ekushandisa kit yemubhedha

Gwaro rekuisa

• Magadzirirwo etorque yebhoti: Mabhoti eGiredhi 10.9, 120-150 Nm
• Maitiro ekusimbisa kurongeka
• Mitemo yekuongorora chisimbiso

Mushure mekutengesa

• Kuongororwa kwezvipfeko uye kurudziro yekutsiva nguva yekupfeka
• Kuongororwa kwekukundikana uye kuongorora chikonzero chikuru
• Gwaro rekugadzirisa kugadzirisa

Nezve Munyori

JACK inyanzvi yepamusoro yekutakura zvinhu pasi pevhu kuCQC TRACK ane ruzivo rwemakore anopfuura gumi nemashanu mukushandisa michina inorema. Akapa rutsigiro rwehunyanzvi uye akapa mhinduro kumabasa ekuvaka nekuchera migodhi muAustralia, South America, Europe, Central Asia, North America, neAfrica.
