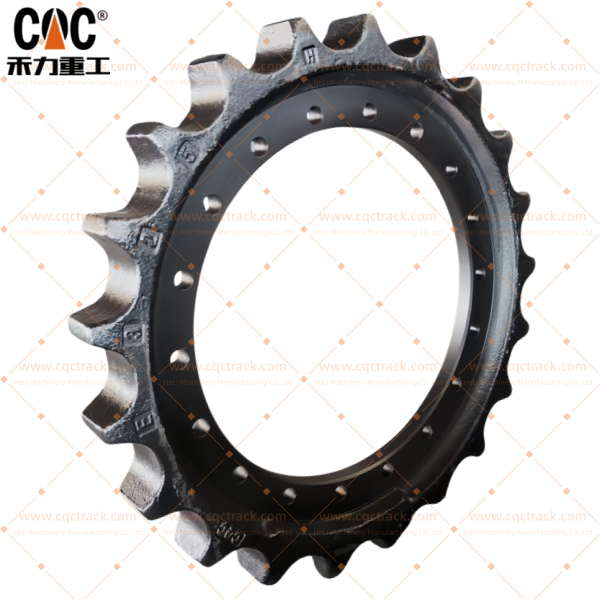

Caterpillar CR5604 6Y4868 6Y4898 57725319 E325 E329 D245S Track Sprocket Wheel Assembly / Heavy duty EXC Crawler Undercarriage Part / Gwero Wopanga ndi Wogulitsa / CQC TRACK

Pepala Loyera la Ukadaulo: CATERPILLARCR5604 / 6Y4868 / 6Y4898/ 57725319 E325 / E329 / D245S Final Drive Sprocket Wheel Assembly

Wopanga Magwero: HELI Machinery Manufacturing Co., Ltd. (NJIRA YA CQC)

1. Chidule cha Ntchito: Kupanga Mphamvu Yolumikizirana ndi Ofukula Magulu Apakati mpaka Akuluakulu

Themsonkhano womaliza wa gudumu la sprocket yoyendetsaikuyimira malo ofunikira kwambiri olumikizirana pomwe mphamvu ya hydraulic imasanduka mphamvu yokoka. Pa mabanja a makina a CATERPILLAR E325, E329, ndi D245S—zipangizo zomwe zimagwira ntchito yomanga nyumba zolemera, kukumba miyala, migodi, ndi ntchito zosuntha nthaka—gulu la sprocket lomwe limatchulidwa ndi manambala ofotokozera CR5604,6Y4868, 6Y4898, ndi INGERSOLL RAND 57725319 ziyenera kupirira kupsinjika kwakukulu kwa torsion, kukhudzana kosalekeza ndi ma bushings a track chain, ndi katundu wokhudzidwa womwe umakhalapo chifukwa cha kuzungulira kwakukulu kwa ntchito.

HELI Machinery Manufacturing Co., Ltd., yomwe imagwira ntchito pansi pa dzina la CQC TRACK, imapanga gawo lofunikira kwambiri lotumizira mphamvu ngati wopanga wolumikizidwa molunjika. Kudzera mu kupangira kolondola, chithandizo chapamwamba cha kutentha kwa induction, komanso njira zowongolera bwino, CQC TRACK imapereka ma sprocket assemblies opangidwa kuti azisinthasintha ndi ma OEM specifications pomwe ikuphatikiza zinthu ndi zowonjezera zamakina kuti zikhale zolimba kwambiri pakugwiritsa ntchito kovuta.

Chikalatachi chikupereka kufotokozera kwathunthu kwaukadaulo kwa CATERPILLAR CR5604/6Y4898 Track Sprocket Wheel Assembly, kufotokozera mwatsatanetsatane za filosofi ya uinjiniya, zitsulo zazinthu, njira zopangira, njira zotsimikizira khalidwe, ndi zofunikira zokhudzana ndi ntchito zomwe zimafotokoza gawo lofunika kwambiri la galimoto yonyamula katundu.

2. Kuzindikira Zamalonda ndi Matrix Yofotokozera Zinthu

Kuzindikira molondola zigawo ndiye chinthu chofunikira kwambiri pa ntchito zogula ndi kukonza zida zolemera. Matrix yotsatirayi imatsimikizira mgwirizano pakati pa manambala osiyanasiyana ofotokozera ndi momwe amagwiritsidwira ntchito.

3. Udindo Wogwira Ntchito mu Dongosolo Lonyamula Magalimoto Osanyamula Magalimoto

Mu kapangidwe ka chassis ya CATERPILLAR E325/E329 series excavators, sprocket wheel assembly imagwira ntchito ngati choyendetsa chachikulu cha undercarriage system, ikugwira ntchito zomwe zimakhudza mwachindunji kuyenda kwa makina, magwiridwe antchito, komanso moyo wautali wa zigawo.

3.1 Ntchito Zoyambira Zogwira Ntchito

1. Kusintha kwa Mphamvu ndi Kutumiza Mphamvu:
Chipolopolocho chimayikidwa mwachindunji ku malo otsiriza a planetary hub, ndikulandira mphamvu yozungulira yamphamvu kuchokera ku injini ya hydraulic kudzera mu splined shaft kapena key interface. Kudzera mu kulumikizana kwa mano molondola ndi ma track chain bushings, chimasintha mphamvu yozungulira kukhala mphamvu yolunjika, ndikuyendetsa makinawo pamalo ogwirira ntchito. Maonekedwe a mawonekedwe a dzino—opangidwa molondola malinga ndi zofunikira za OEM—ndi ofunikira kwambiri kuti zitsimikizire kuti mphamvu imasamutsidwa bwino popanda kugwedezeka, kugwedezeka, kapena kutaya mphamvu.

2. Kugwirizanitsa Unyolo wa Track:
Kupindika kwa dzino la sprocket ndi mawonekedwe ake zimakonzedwa bwino kuti zigwirizane ndi zomwe zili mu unyolo wa track chain wa kalasi ya E325/E329. Kugwirizanitsa bwino kumatsimikizira kugawa kwa katundu mofanana m'mano angapo, kuchepetsa kuchuluka kwa nkhawa komwe kumabweretsa kuwonongeka kwa dzino msanga, kusweka, kapena kusweka. Kugwirizanitsa kumeneku ndikofunikira kuti pakhale kusinthasintha kwa kuthamanga kwa track komanso kulinganiza bwino pansi pa chidendene.

3. Kuphatikiza ndi Kugwirizanitsa Machitidwe:
Monga gawo lalikulu loyendetsera, sprocket imagwira ntchito limodzi ndi idler, track rollers, ndi carrier rollers kuti isunge mawonekedwe oyenera a track ndi kupsinjika. Kusalinganika kulikonse, kusalinganika kwa kuvala, kapena cholakwika choyika mu sprocket chingapangitse kuti kuvala kukhale kofulumira mu dongosolo lonse la pansi pa galimoto—kupangitsa kupanga molondola ndi kukhazikitsa koyenera kukhala kofunikira kwambiri kuti zinthu zikhale ndi moyo wabwino kwambiri.

3.2 Kugwirizana kwa Dongosolo

4. Kuchotsa Katswiri: Kapangidwe ka CR5604 Sprocket Assembly

Magwiridwe antchito ndi nthawi yogwira ntchito ya sprocket mu kalasi ya E325/E329 zimatsimikiziridwa ndi kuphatikizana kwa sayansi yapamwamba ya zinthu, ukadaulo wopanga, makina olondola, ndi chithandizo cha kutentha. Gawo lililonse lopangira limachitidwa pansi pa mikhalidwe yolamulidwa kuti zitsimikizire kuti khalidwe ndi magwiridwe antchito zimagwirizana.

4.1 Kukonza Zitsulo Zazida: Maziko a Kulimba

Kusankha zinthu zoyambira ndi gawo loyamba lofunikira kwambiri pakukwaniritsa kuphatikiza kofunikira kwa kukana kuwonongeka kwa pamwamba, kulimba kwa mkati, ndi mphamvu ya kutopa.

Mafotokozedwe a Zinthu Zoyambira:

• Giredi: 42CrMo4 / SAE 4140 chitsulo champhamvu cha chromium-molybdenum alloy, kapena chitsulo chofanana ndi chapamwamba kwambiri
• Makhalidwe a Zinthu:
  • Kulimba bwino kwambiri komwe kumathandiza kuuma kwakuya komanso kofanana
  • Mphamvu yokoka kwambiri (nthawi zambiri 900-1100 MPa mutatentha) kuti isawonongeke ndi pulasitiki ikafika pachimake
  • Kulimba kwabwino kutentha kwambiri
  • Kukana kutopa kwambiri pansi pa mikhalidwe yodzaza mozungulira

Kapangidwe ka Zinthu Ziwiri (Zosankha Zosiyanasiyana):
Mapangidwe ena a pambuyo pake amaphatikizapo kapangidwe ka zinthu ziwiri zomwe zimakhala ndi:

• Mphete Yakunja: Chitsulo cha aloyi champhamvu kwambiri chomwe chimakonzedwa kuti chisawonongeke
• Mphete Yamkati: Chitsulo chosagwira dzimbiri kuti chikhale cholimba m'malo ovuta
  Njira yomangira iyi ingachepetse kuchuluka kwa kulephera muzochitika zogwirira ntchito zopweteka.

Ndondomeko Yotsimikizira Zinthu:
Gulu lililonse la zinthu limayesedwa ndi spectrographic chemical kuti litsimikizire kapangidwe kake motsutsana ndi zofunikira zovomerezeka, kuonetsetsa kuti gulu lililonse limakhala logwirizana komanso kuti zinthu zonse zikutsatira bwino panthawi yonse yopangira.

4.2 Njira Yopangira: Kukonza Kuyenda kwa Tirigu

Kusintha kuchoka pa zinthu zopangira kupita ku sprocket blank kumachitika kudzera mu closed-die hot forging—njira yomwe imakulitsa kwambiri mphamvu za makina a chinthucho poyerekeza ndi njira zina zopangira.

Njira yopangira zitsulo zotsekedwa imagwirizanitsa kayendedwe ka chitsulo ndi mawonekedwe a geometric a gawolo, ndikupanga kapangidwe ka anisotropic kokhala ndi mphamvu yayikulu yokhudza chitsulo poyerekeza ndi njira zina zopangira chitsulo. Izi ndizofunikira kwambiri pa kalasi ya E325/E329, pomwe kuchuluka kwa chitsulo chomwe chimachokera pakufukula ndi kugwira ntchito zogona kumapangitsa kuti mizu ya dzino ikhale ndi nkhawa kwambiri.

4.3 Makina Opangira CNC Molondola: Kulondola kwa Miyeso

Chopanda kanthu chopangidwacho chimadutsa mu machining a CNC okhala ndi ma axis ambiri kuti chikwaniritse mawonekedwe oyenera ofunikira kuti chigwirizane bwino ndikugwira ntchito. Kulondola kwa miyeso kumatsimikiziridwa pogwiritsa ntchito makina oyezera ogwirizana (CMM) ndi ukadaulo wa 3D scanning.

Zinthu Zofunika Kwambiri Zopangidwa ndi Makina:

Mbiri ya dzino imapangidwa molingana ndi mawonekedwe enieni omwe adafotokozedwa ndi kapangidwe ka zida zoyambirira, kuonetsetsa kuti zikugwirizana bwino ndi unyolo wa track ndikuchotsa kupsinjika kosafunikira komwe kumathandizira kuwonongeka. Mapangidwe a mano olimba okhala ndi makulidwe owonjezereka (mpaka 10% kuposa mbiri wamba) amapezeka kuti awonjezere mphamvu yonyamula katundu pakugwiritsa ntchito kwambiri.

4.4 Kuchiza Kutentha ndi Uinjiniya wa Pamwamba

Kuchiza ndi kutentha ndiye maziko a ubwino wokhalitsa womwe umapezeka ndi ma sprockets a CQC TRACK. Njirayi imapanga mawonekedwe olimba omwe amawonjezera kukana kusweka pamene akusunga kulimba kwa mkati ndi mphamvu yoyamwa.

Ndondomeko Yolimbitsa Mphamvu Yopangira:

Chifukwa Chaukadaulo:

• Malo olimba (58-62 HRC) amapereka kukana kwakukulu kwa kukwawa motsutsana ndi kukhudzana ndi njira yolumikizirana ndi zinthu zodetsa (silika, miyala yophwanyika, zinyalala za zomangamanga)
• Kuzama kwa chivundikiro cha mano (3-5 mm) kumatsimikizira kuti manowo sakuuma nthawi yonse yomwe angagwiritsidwe ntchito—ngakhale manowo atawonongeka kwambiri.
• Chiwalo chapakati cha dzino (28-35 HRC) chimayamwa katundu wolemera ndipo chimaletsa kusweka kwa dzino koopsa pamene mano akugwedezeka.
• Njira yolimbitsira mano imapangitsa kuti kutentha kukhale pamwamba pa dzino lokha, zomwe zimapangitsa kuti pakatikati pa dzino pakhale ductility.

4.5 Chitetezo cha Pamwamba ndi Kukana Kudzimbiri

Pa zinthu zomwe zili pamalo ovuta kugwira ntchito—kuphatikizapo migodi, zomangamanga m'mphepete mwa nyanja, ndi malo omwe ali ndi mankhwala—chitetezo cha pamwamba chimawonjezera nthawi yogwira ntchito ndikusunga umphumphu wotseka.

5. Kuphatikiza kwa Makina Otsekera ndi Kuchotsa Kuipitsidwa

Kulumikizana pakati pa cholumikizira cha sprocket ndi cholumikizira chomaliza ndi malo ofunikira kwambiri otsekera. Kuipitsidwa komwe kumachitika kudzera mu cholumikizira ichi—makamaka kuchokera ku mchenga wa silika, miyala yophwanyika, matope, ndi madzi—ndi chifukwa chachikulu cha kulephera kwa mapulaneti, kutuluka kwa chisindikizo, komanso kuwonongeka kwa ma bearing msanga.

5.1 Uinjiniya wa Chisindikizo cha Duo-Cone

Chipolopolochi chimakhala ndi malo otsekera opangidwa ndi makina opangidwa kuti agwirizane ndi makina otsekera a Duo-Cone a drive yomaliza—chisindikizo champhamvu chachitsulo chomwe chimagwiritsidwa ntchito kwambiri poyendetsa pansi pa Caterpillar.

• Kumaliza kwa pamwamba: Kugwa mpaka Ra ≤ 0.8 μm kapena kupitirira apo pamalo otsekeredwa ndi chisindikizo
• Chophimba Cholimba cha Chrome: Chogwiritsidwa ntchito potseka madera olumikizana kuti apewe kuwonongeka kwa pamwamba chifukwa cha dzimbiri
• Kulondola kwa Geometric: Kulekerera kuthamanga kwa madzi ≤ 0.05 mm TIR imatsimikizira kukanikizana kofanana kwa chisindikizo ndi kugwira ntchito koyenera kwa chisindikizo

5.2 Filosofi Yochotsera Kuipitsidwa

Dongosolo lotsekera limagwira ntchito ziwiri zofunika:

1. Kusunga Mafuta: Kumaletsa kutayika kwa mafuta otsiriza a giya yoyendetsera omwe amapaka mafuta pa giya ndi ma bearing a mapulaneti
2. Kuchotsa Zodetsa: Kumaletsa kulowa kwa tinthu tomwe timayambitsa kuwonongeka kwa mkati mwa ziwalo, kugoba, komanso kulephera msanga

Zigawo za CQC TRACK zimapangidwa ndi malo otsekera omwe amakwaniritsa kapena kupitirira zomwe OEM ikufuna, zomwe zimaonetsetsa kuti makinawo akugwirizana bwino ndi makina omwe alipo a Duo-Cone seal system komanso kusunga umphumphu wa drive.

6. Luso Lopanga: HELI CQC TRACK monga Wopanga Magwero

Kampani ya HELI Machinery Manufacturing Co., Ltd. (CQC TRACK) imagwira ntchito ngati kampani yopanga zinthu zolumikizidwa molunjika, yodzisiyanitsa ndi makampani ogulitsa zida ndi ogulitsa zinthu kudzera mu kayendetsedwe kake ka mtengo wonse—kuyambira kupeza zinthu zopangira mpaka kupanga ndi kuyesa komaliza.

6.1 Kapangidwe Kogwirizana Koyima

6.2 Ndondomeko Yotsimikizira Ubwino

Dongosolo la CQC TRACK la khalidwe limakhala ndi zipata zowunikira zomwe zimaonetsetsa kuti zinthu zonse zikuyenda bwino komanso kuti zinthu zonse zikuyenda bwino nthawi zonse.

Kutsimikizira Zinthu Zobwera:

• Kusanthula kwa mankhwala a Spectrographic motsutsana ndi zomwe zatsimikiziridwa
• Kuyesa kwa Ultrasonic motsatira miyezo yoyenera yodziwira zolakwika zamkati
• Kutsimikizira kuuma ndi kuwunika kapangidwe ka tirigu

Zowongolera Zomwe Zikuchitika:

• Kuyang'ana zinthu zofunika kwambiri 100% pogwiritsa ntchito CMM ndi zida zoyezera molondola
• Kuwunika nthawi yeniyeni magawo a chithandizo cha kutentha ndi kusunga mbiri ya digito
• Kuyang'ana tinthu ta maginito kuti tipeze zolakwika pamwamba ndi pansi pa nthaka

Kutsimikizika Komaliza kwa Msonkhano:

• Kujambula kuuma: kutsimikizira mfundo zingapo pa mbiri ya dzino lililonse
• Mayeso oyeserera kuti atsimikizire kukhazikika kwa concentricity ndi dynamic balance
• Tsekani kuyang'ana pamwamba kuti muwonetsetse kuti mawonekedwe ake ndi oyenera

Machitidwe Otsatira Zinthu:

• Zikalata zovomerezeka malinga ndi miyezo yoyenera
• Kusunga kwa digito kwa zolemba zochizira kutentha ndi malipoti owunikira
• Kutsata malo opangira zinthu zomwe zimathandiza kusanthula chifukwa cha zomwe zimayambitsa komanso kutsimikizira chitsimikizo

7. Chidule cha Mafotokozedwe Aukadaulo

8. Kufunika kwa Ntchito Zogwiritsa Ntchito Zipangizo Zolemera

8.1 Chifukwa Chachuma Chosankha Chopanga Chochokera

8.2 Ndalama Zonse Zoganizira za Eni ake

Pa makina a E325/E329 omwe amagwira ntchito molimbika kwa maola 2,000+ pachaka, mtengo wonse wa ubwino wa umwini wa makina opangidwa ndi ma sprocket abwino ndi awa:

• Kugwira ntchito nthawi yayitali kudzera mu kukana kwapamwamba kwa kuvala komanso kuuma kwa chikwama chakuya
• Kupewa kuwonongeka kwa ma chain a track ndi ma drive omaliza chifukwa cha kulephera kwa sprocket
• Kuchepetsa nthawi yopuma yosakonzekera chifukwa cha kuwonongeka kwa dzino msanga kapena kulephera kwakukulu kwa mano
• Kuwonongeka kwa nthawi yodziwikiratu komwe kungathandize kukonzekera kukonza koyenera
• Kutsimikizika kwa chitsimikizo kudzera mu kulondola kolembedwa ndi ziphaso za zinthu

9. Njira Yosamalira, Kuyang'anira, ndi Kusintha

9.1 Ndondomeko Yoyendera

Kuyang'anitsitsa nthawi zonse kwa gulu la sprocket kumathandiza kukonza zinthu moganizira bwino komanso kupewa kulephera kwakukulu.

9.2 Malangizo a Njira Yosinthira

9.3 Kupewa Kulephera kwa Njira Yopewera

10. Mapeto: Kudalirika kwa Uinjiniya pa Ntchito Zofukula Zinthu Zolemera

Gulu la Caterpillar CR5604 / 6Y4868 / 6Y4898 / INGERSOLL RAND 57725319 Track Sprocket Wheel Assembly la mabanja a E325, E329, ndi D245S ofukula zinthu zakale, monga momwe limapangira HELI Machinery Manufacturing Co., Ltd. (CQC TRACK), limayimira mgwirizano wa sayansi yapamwamba ya zinthu, kupanga zinthu molondola, ndi uinjiniya wofunikira. Yopangidwira ntchito zovuta za migodi, kukumba miyala, kumanga zinthu zolemera, ndi ntchito zosuntha nthaka, makonzedwe awa akuphatikizapo:

• Kapangidwe kachitsulo kopangidwa ndi tirigu wolamulidwa kuti azitha kupirira kugwedezeka kwambiri, kutopa kwambiri, komanso kukana kulephera kwakukulu
• Kulimbitsa thupi kwambiri (58-62 HRC, kuya kwa 3-5 mm kogwira mtima) kumapereka moyo wautali wogwiritsidwa ntchito kudzera mu ma profiles osiyanasiyana a kuuma.
• Kuzindikira mano kopangidwa mwaluso (AGMA Class 9 kapena yofanana nayo) kumatsimikizira kuti imagwirizana bwino ndi machitidwe a CATERPILLAR E325/E329 track chain.
• Malo otsekera apamwamba opangidwa kuti asunge umphumphu wa chisindikizo cha Duo-Cone choyendetsa bwino komanso kupewa kulowa kwa zinthu zodetsa
• Kupanga zinthu molumikizana molunjika kuonetsetsa kuti zinthu zonse zikutsatira bwino, kusinthasintha kwa zinthu zonse, komanso kuwongolera khalidwe la zinthu panthawi yonse yopangira.
• Machitidwe otsimikizika abwino omwe amapereka chitsimikizo cholembedwa cha zipangizo, njira, ndi msonkhano womaliza

Kwa oyang'anira zombo, mainjiniya okonza zinthu, ndi akatswiri ogula zinthu omwe ali ndi udindo wopezera, kupanga, komanso kugwiritsa ntchito bwino ndalama za CATERPILLAR E325, E329, ndi D245S, kupeza ma sprocket assemblies awa kuchokera kwa wopanga wapadera kumapereka njira yodziwikiratu yopezera ndalama zonse zogulira, kuchepetsa nthawi yopuma yosakonzekera, komanso chitetezo chowonjezereka cha ntchito.

Zolemba

1. HELI Machinery Manufacturing Co., Ltd. “Chofukula cha Caterpillar E345 final drive sprocket / CQC undercarriage manufacture.” Zigawo za Makina a CQC. Zikupezeka pa:www.cqctrack.com
2. HELI Machinery Manufacturing Co., Ltd. “Caterpillar 593-6449 E352 Drive Wheel Group / Final Drive Sprocket Wheel Assy.” CQC Track. Ikupezeka pa:www.cqctrack.com

Chodzikanira: CATERPILLAR, E325, E329, D245S, ndi manambala a zigawo CR5604, 6Y4868, 6Y4898, ndi 57725319 ndi zizindikiro za malonda ndi katundu wa Caterpillar Inc. HELI Machinery Manufacturing Co., Ltd. (CQC TRACK) ndi wopanga wodziyimira pawokha yemwe amagwira ntchito yopanga zida zapamwamba zosinthira pansi pa galimoto. Zogulitsa zimapangidwa kuti zizitha kusinthana ndi zida zotchedwa OEM.
